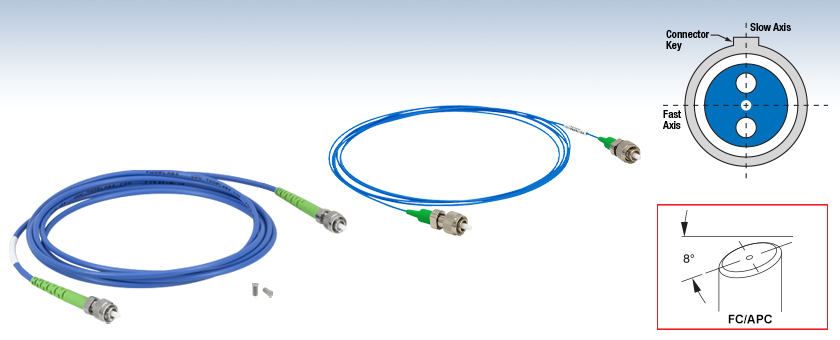

Panda PM Fiber Cross Section

Panda Style Fiber

FC/APC Connectors Feature an 8° Angled Ferrule

PM Fiber Patch Cable Selection
FC/PC to FC/PC
FC/APC to FC/APC
FC/PC to FC/APC Hybrid

Features

Narrow Key (2.0 mm) Aligned to Slow Axis
Typical Return Loss of 60 dB
Ceramic 8° Angled Ferrules (APC)
Ø3 mm Protective Outer Jacket
Custom Patch Cables Available (See Tab Above)

These polarization-maintaining fiber optic patch cables are connectorized on both ends with high-quality, narrow key, ceramic FC/APC connectors. Manufactured in our facility, each cable is individually tested to ensure its extinction ratio and low back-reflection (return loss) at fiber-to-fiber junctions. Available from stock, these cables feature a high-quality polish, which leads to a typical return loss of over 60 dB.

Each patch cable includes two protective caps that shield the ferrule ends from dust and other hazards. Additional CAPF Fiber Caps for FC/APC-terminated ends are also sold separately.

Item Prefix	P3-405BPM-FC	P3-488PM-FC	P3-630PM-FC	P3-780PM-FC	P3-980PM-FC
Test Wavelength	405 nm	488 nm	630 nm	780 nm	980 nm
Operating Wavelength	400 - 680 nm	460 - 700 nm	620 - 820 nm	770 - 1100 nm	970 - 1550 nm
Fiber Type	PM-S405-XP (Panda)	PM460-HP (Panda)	PM630-HP (Panda)	PM780-HP (Panda)	PM980-XP (Panda)
Max Insertion Loss**	1.5 dB	1.5 dB	1.2 dB	1.0 dB	0.7 dB
Min Extinction Ratio**	15 dB	18 dB	20 dB	20 dB	22 dB
Mode Field Diameter	3.6 ± 0.5 µm @ 405 nm 5.0 ± 0.5 µm @ 630 nm	3.3 ± 0.5 µm @ 515 nm	4.5 ± 0.5 µm @ 633 nm	5.3 ± 1.0 µm @ 850 nm	6.6 ± 0.7 µm @ 980 nm
Numerical Aperture*	0.12	0.12	0.11	0.12	0.12
Optical Return Loss**	60 dB Typical
Connector Type	FC/APC
Key Width	2.00 ± 0.02 mm
Key Alignment Type	Narrow Key Aligned to Slow Axis or as Specified
Fiber Length	1.0 +0.075/-0 m for Item Numbers Ending in -1 2.0 +0.075/-0 m for Item Numbers Ending in -2 5.0 +0.075/-0 m for Item Numbers Ending in -5 10.0 +0.075/-0 m for Item Numbers Ending in -10
Jacket Type	FT030-BLUE
Operating Temperature	0 to 70 °C
Storage Temperature	-45 to 85 °C

* Numerical Aperture (NA) is specified as a nominal value.
** Measured at the test wavelength.

Item Prefix	P3-1064PM-FC	P3-1310PM-FC	P3-1550PM-FC	P3-2000PM-FC
Test Wavelength	1064 nm	1310 nm	1550 nm	2000 nm
Operating Wavelength	970 - 1550 nm	1270 - 1625 nm	1440 - 1625 nm	1850 - 2200 nm
Fiber Type	PM980-XP (Panda)	PM1300-HP (Panda)	PM1550-HP (Panda)	PM2000 (Panda)
Max Insertion Loss**	0.7 dB	0.5 dB	0.5 dB	0.5 dB
Min Extinction Ratio**	22 dB	23 dB	23 dB	23 dB
Mode Field Diameter	6.6 ± 0.7 µm @ 980 nm	9.5 ± 1.0 µm @ 1300 nm	10.5 ± 0.8 µm @ 1550 nm	8.0 µm @ 1950 nm
Numerical Aperture*	0.12	0.13	0.13	0.20
Optical Return Loss**	60 dB Typical
Connector Type	FC/APC
Key Width	2.00 mm ± 0.02
Key Alignment Type	Narrow Key Aligned to Slow Axis or as Specified
Fiber Length	2.0 +0.075/-0 m for Item Numbers Ending in -2 5.0 +0.075/-0 m for Item Numbers Ending in -5
Jacket Type	FT030-BLUE
Operating Temperature	0 to 70 °C
Storage Temperature	-45 to 85 °C

* Numerical Aperture (NA) is specified as a nominal value.
** Measured at the test wavelength.

Please Give Us Your Feedback

Email		Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.

Please type the following key into the field to submit this form:

Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.

Would this product be useful to you? Little Use 1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000

Posted Comments:

Poster: skyzeus

Posted Date: 2013-04-09 14:10:41.66

I would like to ask that whether two fiber connected with a FC/APC connector can aligned to the slow axis? Was the inserted pin fixed the angle of the fiber end face as well as the slow axis? Thanks!

Poster: jlow

Posted Date: 2013-04-09 16:30:00.0

Response from Jeremy at Thorlabs: The connector key is aligned to the slow axis for our stocked PM patch cables.

Poster: steven.king

Posted Date: 2012-08-15 15:21:28.0

What is the damage threshold for the P3-488PM-FC-2?

Poster: tcohen

Posted Date: 2012-08-15 10:15:00.0

Response from Tim at Thorlabs: The P3-488PM-FC-2 uses PM460-HP fiber. The MFD of this fiber is approximately 3.3 +/- 0.5 microns at 515 nm. When we look at the damage threshold of a fiber there are many considerations to take into account. The first is connectorization. The connectors here will already limit the damage threshold to a couple of Watts. Furthermore, we look at a general limit of silica at approximately 10mW/um^2. We see that 80% of the MFD is ~2.64um. Therefore, we would expect a working radius of ~1.32um. This would equate to ~54.7mW. Of course this is a theoretical approximation. Actual lab conditions will depend on where the incident light is focused (ie: high coupling efficiency?), how clean the fiber tip is, what the wavelength is, etc. I will contact you so that we can continue this conversation.

Poster: tcohen

Posted Date: 2012-05-01 13:39:00.0

Response from Tim at Thorlabs: Thank you for your feedback! We do offer our Air-Spaced Doublet Collimators in a 2um APC compatible version: the F810APC-2000. We are also looking to expand our optics and our Fixed Fiber Optic Collimation Packages to include a 2um APC version in the near future.

Poster: g9622513

Posted Date: 2012-05-01 03:03:46.0

Do you supply the suitable fiber collimator for 2000 nm PM FC/APC Patch Cable?

Poster: bdada

Posted Date: 2011-10-25 13:13:00.0

Response from Buki at Thorlabs: Thank you for your feedback. Yes, ER will decrease with long lengths of fiber but 2-5m is negligible. In general the longer wavelengths will see less change in PER for the same length of fiber. The physical environment will have more of an impact on PER than the length. Please contact TechSupport@thorlabs.com if you have further questions about this.

Poster:

Posted Date: 2011-10-25 12:19:22.0

How come the extinction ratio is 20dB for both 2m and 5m? Shouldn't the E.R. get lower with fiber length?

Poster: philip.starkey

Posted Date: 2010-10-12 14:14:04.0

Hi, can someone let me know what the damage threshold of the fibre/cladding is for the P3-780PM-FC-5? As in, if I put 1W into a 70% efficient fibre couple, Ill have 300mW leaking into the cladding. Will this damage the fibre or FC/APC connector?

Poster:

Posted Date: 2009-03-28 15:47:34.0

I checked a few sources and found that blue is the defacto standard, so while it is not a fully ratified international standard it does seem reasonable for Thorlabs to join in making it one. I will ask for this change to be implement as quickly as possible... Alex Cable

Poster: Greg

Posted Date: 2009-03-27 15:54:02.0

A response from Greg at Thorlabs to brian.wojo: Thank you for your feedback regarding our PM cables. There isnt a standard for PM cables, but it is not uncommon to see blue tubing used. We are actually working on providing blue furcation tubing to our lineup for PM cables. This should be available shortly.

Poster: brian.wojo

Posted Date: 2009-03-27 12:28:31.0

Im not sure if things have changed, byt for the past 15 years the industry standard for jacketing color coding is Orange for MM fiber, Yellow for standard SM fiber, and blue for PM fiber. Why do you not offer blue jacketing? This is very confusing to determine the fiber type without having a spec sheet in front of you. This potentially can cause our end-users endless confusion.
