Laser Power and Energy Meter, USB Only Interface
Related Items
 |
Create an Account | Log In |
|
||||||||
Loading...
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

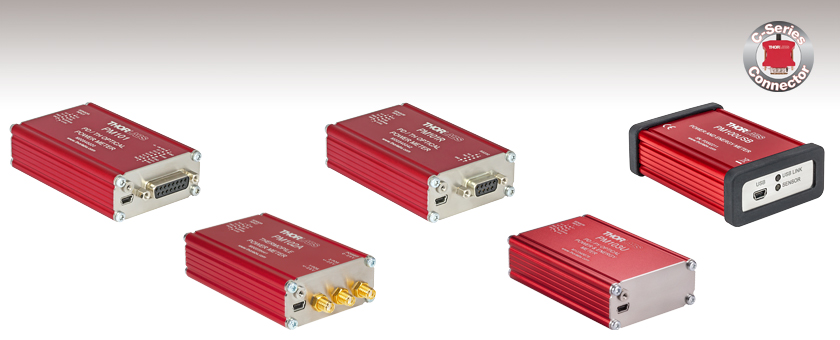

Compact, USB Power and Energy Meter Interface
- For General Purpose Optical Power Measurements
- Integrated Viewing Target for Easy Sensor Alignment
- Compaptible Fiber Adapters: S120-xx Series
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Sensor, Protective Cap, IR Target, and Thread Adapter Included
- Click Here to View All of our Photodiode Power Sensors
The S12xC Standard Photodiode Power Sensors are ideal for metering low power coherent and incoherent sources from the UV to the NIR. The NIST-traceable, calibrated sensors feature an integrated viewing target for easy alignment, enhanced shielding against electromagnetic interference, over temperature alert device, and large Ø9.5 mm sensor aperture. The sensors are compatible with 30 mm cage systems, Ø1/2" posts, and SM1 (1.035"-40) lens tubes, and are ideal for free-space and fiber-coupled sources.
| Item # | S120VC | S120C | S121C | S122C |
|---|---|---|---|---|
|
Sensor Image |
|
|
|
|
| Aperture Size | Ø9.5 mm | |||
| Wavelength Range | 200 nm - 1100 nm | 400 nm - 1100 nm | 400 nm - 1100 nm | 700 nm - 1800 nm |
| Power Range | 50 nW - 50 mW | 500 nW - 500 mW | 50 nW - 40 mW | |
| Detector Type | Si Photodiode (UV Extended) | Si Photodiode | Ge Photodiode | |
| Linearity | ±0.5% | |||
| Resolutiona | 1 nW | 10 nW | 2 nW | |
| Measurement Uncertaintyb | ±3% (451 nm - 1100 nm) ±5% (Over Rest of Range) |
±3% (451 nm - 1000 nm) ±5% (Over Rest of Range) |
±5% | |
Click to Enlarge
S130C Sensor in a 30 mm Cage
- For Optical Power Measurements in Confined Spaces
- Very Slim Design: 5 mm Thin on Sensor Side
- Ø9.5 mm Sensor Aperture
- Slideable ND Filter Automatically Changes Sensor Power Range
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Click Here to View All of our Photodiode Power Sensors
The S13xC Slim Photodiode Power Sensors are designed to take optical source power measurements in locations where space and accessibility are at a premium. The 5 mm thin Slim Photodiode Sensors can fit between closely space optics, cage systems, and other arrangements where standard power meters may not fit. The NIST-traceable, calibrated sensors also feature a large Ø9.5 mm sensor aperture and slideable neutral density filter for dual power ranges in one compact device.
| Item # | S130VC | S130C | S132C |
|---|---|---|---|
| Sensor Image (Click the Image to Enlarge) |
|
|
|
| Aperture Size | Ø9.5 mm | ||
| Wavelength Range | 200 - 1100 nm | 400 - 1100 nm | 700 - 1800 nma |
| Power Range (with filter) |
500 pW - 5 mWb (Up to 50 mW)b |
500 pW - 5 mW (Up to 500 mW) |
5 nW - 5 mW (Up to 500 mW) |
| Detector Type | Si Photodiode | Ge Photodiode | |
| Linearity | ±0.5% | ||
| Resolution (with filter) | 100 pW (1 nW)c | 100 pW (100 nW)c | 1 nW (100 nW)d |
| Measurement Uncertaintye | ±3% (451 - 1000 nm) ±5% (Over Rest of Range) |
±5% | |
Click to Enlarge
S140C and S120-FC Fiber Adapter
- For Beam-Shape- and Entrance-Angle-Independent Power Measurements
- Integrating Sphere Design Acts as a Diffuser with Minimal Power Loss
- Ø5 mm or Ø12 mm Input Apertures
- Removable S120-FC Fiber Adapters (FC/PC and FC/APC) Included
- Compatible Fiber Adapters: S120-xx Series and S140-BFA Bare Fiber Adapter
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Click Here to View All of our Photodiode Power Sensors
The S14xC Integrating Sphere Photodiode Power Sensors are the choice for non-uniform, diverging, beam shape and entrance angle independent power measurements. Integrating spheres are ideal for power measurements from fiber sources, as well as off-axis free space sources. The integrating spheres feature large Ø5 mm or Ø12 mm apertures, SM1 (1.035"-40) threaded front connections, enhanced shielding against electromagnetic interference, and an overtemp alert sensor. NIST-traceable data is stored in the sensor connector.
| Item # | S140C | S142C | S144C | S145C | S146C |
|---|---|---|---|---|---|
| Sensor Image (Click the Image to Enlarge) |
|
|
|
|
|
| Aperture | Ø5 mm | Ø12 mm | Ø5 mm | Ø12 mm | |
| Wavelength Range | 350 - 1100 nm | 800 - 1700 nm | 900 - 1650 nm | ||
| Power Range | 1 µW - 500 mW | 1 µW - 5 W | 1 µW - 500 mW | 1 µW - 3 W | 10 µW - 20 W |
| Detector Type | Si Photodiode | InGaAs Photodiode | |||
| Linearity | ±0.5% | ||||
| Resolutiona | 1 nW | 10 nW | |||
| Measurement Uncertaintyb |
±3% 451 - 1000 nm ±5% (Over Rest of Range) |
±3% 451 - 1000 nm ±5% (Over Rest of Range) |
±5% | ||
Click to Enlarge
PM100D with S150C Sensor and FC Cable
- For Fiber-Based Optical Power Measurements
- Compact Sensor Integrated into the Connector
- Integrated Design for use in the Field and Lab
- Includes PM20-FC Fiber Adapter
S150C and S151C Sensors also Include PM20-SMA Adapters - Compatible with all PM20-xx Series Fiber Adapters
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Click Here to View All of our Photodiode Power Sensors
The S15xC Compact Fiber Photodiode Power Sensor is designed to take power measurements from a wide variety of fiber-coupled sources. The compact sensor, integrated into the power meter connector, features a unique integrated design housing the photodiode sensor, fiber coupling, and NIST-traceable data. The connectors included with these sensors are easily interchanged with a variety of standard fiber connectors.
| Item # | S150C | S151C | S154C | S155C |
|---|---|---|---|---|
| Sensor Image (Click the Image to Enlarge) |
|
|
|
|
| Included Connectors | FC & SMA | FC | ||
| Wavelength Range | 350 - 1100 nm | 400 - 1100 nm | 800 - 1700 nm | |
| Power Range | 100 pW to 5 mW (-70 dBm to +7 dBm) |
1 nW to 20 mW (-60 dBm to +13 dBm) |
100 pW to 3 mW (-70 dBm to +5 dBm) |
1 nW to 20 mW (-60 dBm to +13 dBm) |
| Detector Type | Si Photodiode | InGaAs Photodiode | ||
| Linearity | ±0.5% | |||
| Resolutiona | 10 pW (-80 dBm) | 100 pW (-70 dBm) | 10 pW (-80 dBm) | 100 pW (-70 dBm) |
| Measurement Uncertaintyb | ±3% (451 - 1000 nm) ±5% (Over Rest of Range) |
±3% (451 - 1000 nm) ±5% (Over Rest of Range) |
±5% | |
Click to Enlarge
Thermal Sensor Absorption Spectra
- For General Broadband Optical Power Measurements
- Ø12 mm - Ø25 mm Sensor Area
- Fast Response Time
- Broadband Coatings with Flat Response over a Large Wavelength Range
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Click Here to View All of our Thermal Power Sensors
The S3xxC Standard Thermal Power Sensors are designed for broadband optical power measurements of low (100 µW) to high (200 W) power sources. The broadband coatings used on these thermal sensors feature a flat response over a wide range of wavelengths (190 nm to 25 µm).
NIST-traceable response curves are stored in the sensor connector. Aperture sizes from Ø12 mm to Ø25 mm allow easy alignment and measurement of large spot size laser sources. All Standard Thermal Sensors feature SM1 (1.035"-40) threading on the front for easy integration into existing cage and lens tube systems in addition to fiber coupling applications.
| Item # | S302C | S310C | S314C | S322C |
|---|---|---|---|---|
|
Sensor Image |
|
|
|
|
| Aperture Size | Ø9.3 mm (Ø12 mm with Black SM1-Threaded Shield Removed) | Ø20 mm | Ø25 mm | |
| Wavelength Range | 0.19 - 25 µm | 0.19 - 25 µm | 0.19 - 11 µm | 0.25 - 11 µm |
| Power Range | 100 µW - 2 W | 10 mW - 10 W | 10 mW - 40 W | 100 mW - 200 W |
| Detector Type | Stabilized Thermal Absorber | Thermal Surface Absorber | ||
| Linearity | ± 1% | |||
| Resolution | 1 µW | 200 µW | 1 mW | 5 mW |
| Measurement Uncertainty | ±3% @ 1064 nm ±5% @ 0.19 - 25 µm |
±3% @ 1064 nm ±5% @ 0.19 - 11 µm |
||
| Response Time | 3 s | <1 s | 1 s | |
| Cooling | Passive | Active Fan Cooling | ||
- For Optical Power Measurements of Excimer and YAG Lasers
- Ideal for Applications with High Peak Powers (10 W and 40 W Versions Available)
- Ø25 mm or Ø40 mm Sensor Area
- Fast Response Time
- Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
- Click Here to View All of our Thermal Power Sensors
The S350C and S370C Thermal Sensors are designed for Excimer and YAG pulsed laser sources, respectively. The S350C sensor features a Ø40 mm aperture, while the S370C has a Ø25 mm aperture designed for easy alignment of large spot size pulsed lasers. The units are post mountable for free space applications and feature NIST-traceable data stored in the sensor connector.
| Item # | S350C | S370C |
|---|---|---|
| Sensor Image (Click the Image to Enlarge) |
|
|
| Aperture Size | Ø40 mm | Ø25 mm |
| Wavelength Range | 0.19 - 1.1 µm, 10.6 µm | 0.40 - 5.2 µm |
| Power Range | 10 mW - 40 W | 10 mW - 10 W |
| Detector Type | Thermal Surface Absorber | Thermal Volume Absorber |
| Linearity | ± 1% | |
| Resolution | 1 mW | 250 µW |
| Measurement Uncertainty | ±3% @ 351 nm ±5% @ 190 - 1100 nm (10.6 µm) |
±3% @ 1064 nm ±5% @ 0.40 - 5.2 µm |
| Response Time | 1 s | 3 s |
| Cooling | Passive | |
Click to Enlarge
ES220C Sensor in a 30 mm Cage System
- For General Purpose and High Energy Optical Pulse Measurements
- Black Broadband Coating with Flat Response Over a Wide Wavelength Range
- Ceramic Coating with High Damage Thresholds for High-Energy-Density Lasers
- Ø11 mm - Ø45 mm Sensor Area
- Comes with BNC Connector for Oscilloscope Use and a Sensor Adapter for Use with the
PM200, PM100D, PM100USB, and PM320E Consoles - Click Here for more information about our Pyroelectric Energy Sensors
The ESxxxC Standard and High Energy Pyroelectric Sensors are designed to measure pulsed coherent and incoherent sources. Pyroelectric sensors are not suited for CW measurements, as they convert energy from light pulses into voltage pulses. A black broadband or ceramic coating is used for low or high power measurements, respectively. Large sensor areas from Ø11 mm - Ø45 mm allow easy alignment. The energy sensors features BNC connectors for oscilloscope use, as well as standard power meter connectors which contain NIST and PTB-traceable calibration data.
| Item # | ES111C | ES120C | ES145C | ES220C | ES245C |
|---|---|---|---|---|---|
| Sensor Image (Click the Image to Enlarge) |
|
|
|
|
|
| Aperture Size | Ø11 mm | Ø20 mm | Ø45 mm | Ø20 mm | Ø45 mm |
| Wavelength Range | 0.185 - 25 µm | ||||
| Energy Range | 10 µJ – 150 mJ | 100 µJ – 500 mJ | 500 µJ – 2 J | 500 µJ – 3 J | 1 mJ – 15 J |
| Detector Type | Pyroelectric Energy Sensor with Black Broadband Coating | Pyroelectric Energy Sensor with Ceramic Coating | |||
| Resolution | 100 nJ | 100 nJ | 1 µJ | 25 µJ | 50 µJ |
| Linearity | ±1% | ||||
| Measurement Uncertainty | ±5% @ 0.185 - 25 µm | ||||
