Mechanical Essentials Kit: Cage Assemblies and Lens Tubes


Related Items







Mechanical Essentials Kit: Cage Assemblies and Lens Tubes

Features

  • Imperial and Metric Kits
  • Frame Dimensions (L x W x H): 17" x 11" x 11" (432 mm x 279 mm x 279 mm)
  • Drawer Dimensions (L x W x H): 10.56" x 4.00" x 2.13" (268 mm x 102 mm x 54 mm)
  • Fully Stocked and Labeled Drawers
  • Clear Labels with Product Icons Facilitate the Process of Locating the Desired Part
  • Priced 10% Below Cost of Individual Components
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the case allow for wall mounting.

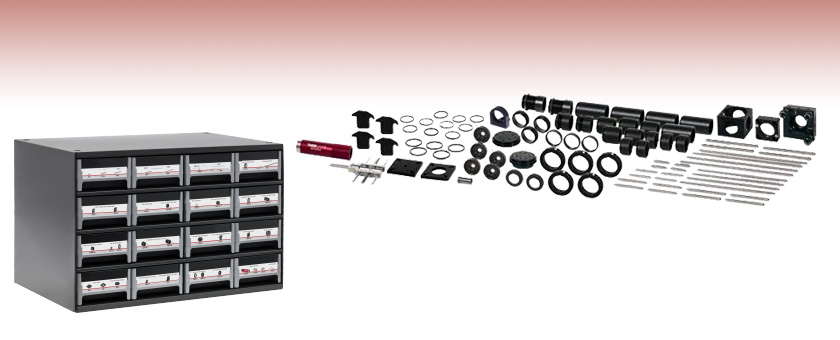

This Cage Assemblies and Lens Tubes Essentials Kit contains 118 of our most popular cage assembly components, all conveniently housed in a completely labeled cabinet. Every drawer is clearly labeled with product icons in order to locate desired parts quickly. The cage system incorporates our SM1 Series of lens tubes and accessories. Refer to the Contents tab above for detailed information about the components included in the kit.

Application Idea: Use the RK4101 rack shelf to organize our ESK Series Essential Kits within our RK3884 standard 19" rack. Post-mounted optical elements can be stored in the 19" rack with the use of the RK4102 rack shelf as shown in the photo to the right.

All ESK Series Essential Kits are equipped with easy-to-read labels complete with product icons, allowing quick access to all products housed within the kits. All ESK Series Cabinets have slots in the rear of the case, shown to the left, for wall mounting and feature indentations on the top and four feet on the bottom for stable stacking.

Item # (Imperial)Item # (Metric)DescriptionImageQuantity

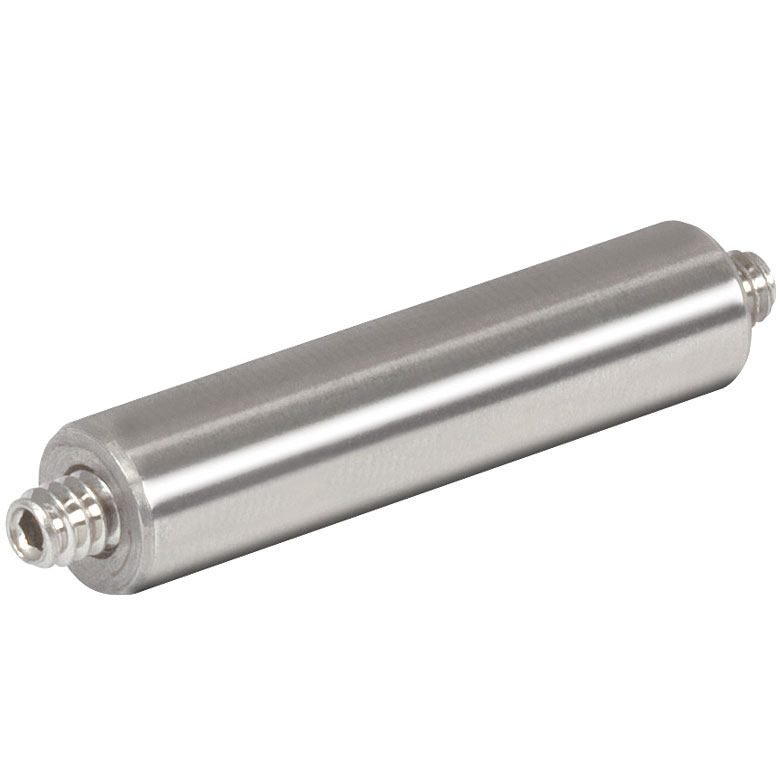

ER1ER1Cage Assembly Rod - 1", Ø6 mm 1" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER1.5ER1.5Cage Assembly Rod - 1.5", Ø6 mm 1.5" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER2ER2Cage Assembly Rod - 2", Ø6 mm 2" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER3ER3Cage Assembly Rod - 3", Ø6 mm3" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER4ER4Cage Assembly Rod - 4", Ø6 mm 4" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER6ER6Cage Assembly Rod - 6", Ø6 mm6" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
ER8ER8Cage Assembly Rod - 8", Ø6 mm 8" Cage Assembly Rod, Ø6 mm
Click to Enlarge
4
CPA1CPA130 mm Cage System Alignment Plate with 1 mm Hole 30 mm Cage System Alignment Plate with 1 mm Hole
Click to Enlarge
4
CP02CP02/M0.35" Thick Cage Plate, 30 mm, 1.035"-40 Threaded Aperture, 8-32 (M4) Tapped Hole,
One SM1RR Retaining Ring Included with Each
SM1-Threaded 30 mm Cage Plate, 0.35" Thick
Click to Enlarge
5
CP02TCP02T/M0.5" Thick Cage Plate, 30 mm, 1.035"-40 Threaded Aperture, 8-32 (M4) Tapped Hole,
Two SM1RR Retaining Rings Included with Each
SM1-Threaded 30 mm Cage Plate, 0.5" Thick
Click to Enlarge
3

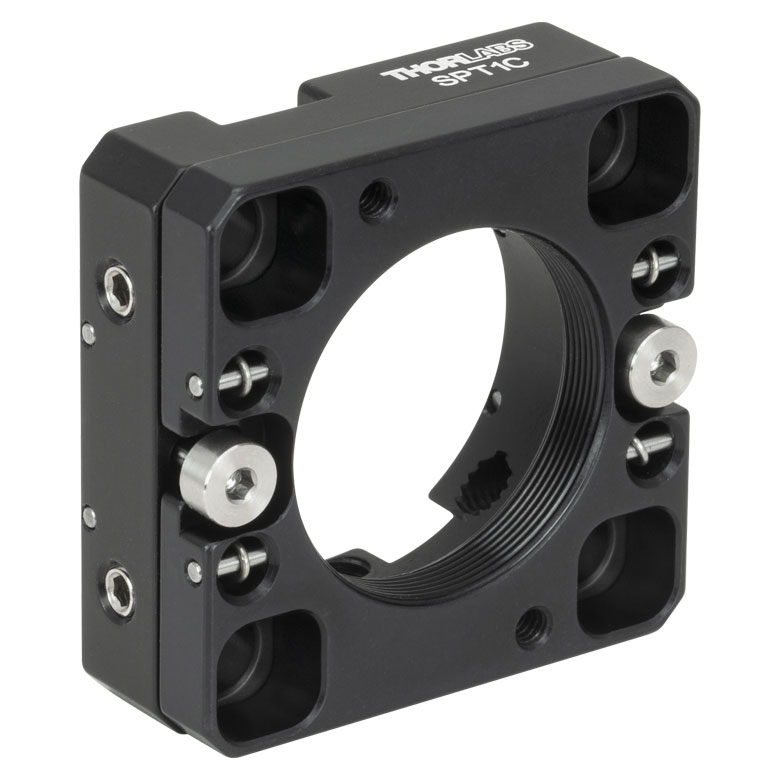

SPT1SPT1/MXY Slip Plate Positioner, Coarse 1 mm XY Slip Plate Positioner, Coarse 1 mm
Click to Enlarge
1

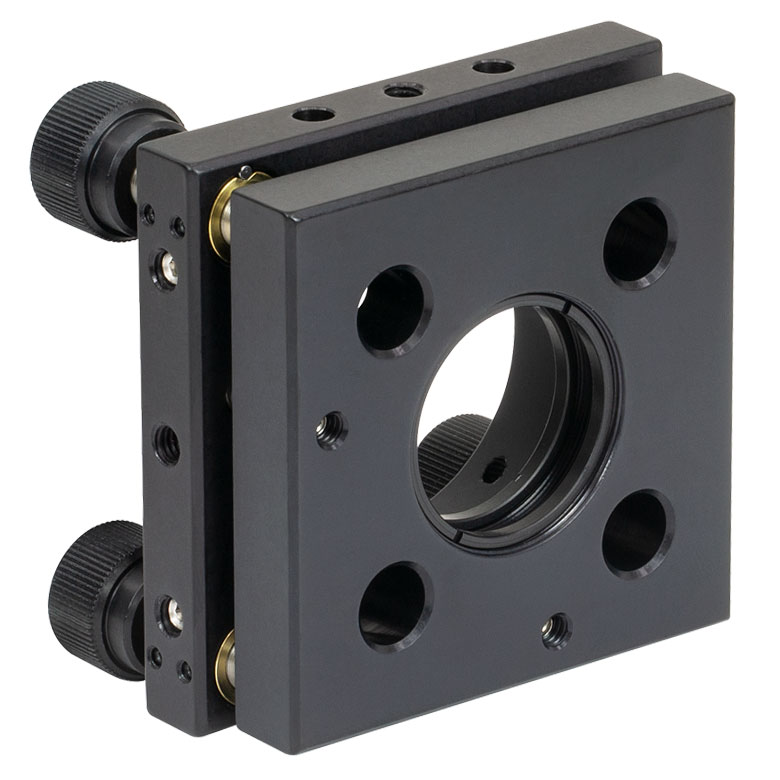

KC1-TKC1-T/MSM1 (1.035"-40) Threaded Kinematic Mount for Ø1" Optics SM1-Threaded Kinematic Mount for Ø1" Optics
Click to Enlarge
1
B1CB1C/Mblank Cover Plate with Rubber O-Ring for C4W/C6W blank Cover Plate with Rubber O-Ring for C4W/C6W
Click to Enlarge
1
B2CB2CSM1 (1.035"-40) Tapped Cube Plate for C4W/C6W SM1 (1.035"-40) Tapped Cube Plate for C4W/C6W
Click to Enlarge
1
B3CB3C/MRotatable Cage Cube Platform for C4W/C6W Rotatable Cage Cube Platform for C4W/C6W
Click to Enlarge
1
B4CB4C/MRotatable Kinematic Cage Cube Platform for C4W/C6W Rotatable Kinematic Cage Cube Platform for C4W/C6W
Click to Enlarge
1
B5CB5CØ1" Cage Cube Optic Mount For B3C Ø1" Cage Cube Optic Mount For B3C
Click to Enlarge
1

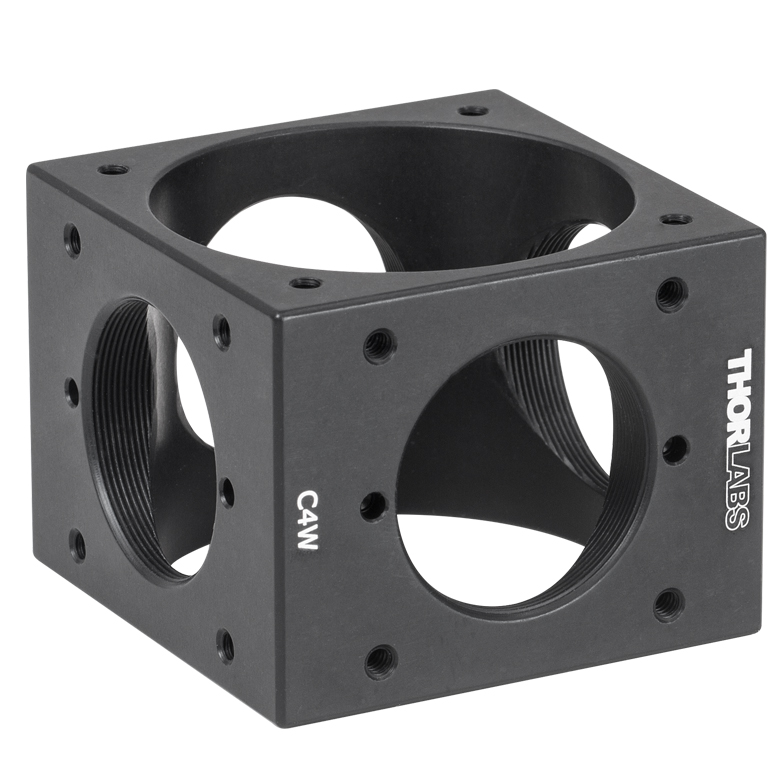

C4WC4W30 mm Cage System Cube, 4-Way 4-Way 30 mm Cage System Tube
Click to Enlarge
1
SM1L05SM1L05SM1 Lens Tube, 0.50" (12.7 mm) Bore Depth,
One SM1RR Retaining Ring Included with Each
1/2" Long Lens Tube, SM1-Threaded
Click to Enlarge
5
SM1L10SM1L10SM1 Lens Tube, 1.00" (25.4 mm) Bore Depth, One SM1RR Retaining Ring Included with Each1" Long Lens Tube, SM1-Threaded
Click to Enlarge
5
SM1L20SM1L20SM1 Lens Tube, 2.00" (50.8 mm) Bore Depth,
One SM1RR Retaining Ring Included with Each
2" Long Lens Tube, SM1-Threaded
Click to Enlarge
5
SM05L05SM05L05SM05 Lens Tube, 1/2" (12.7 mm) Bore Depth,
One SM05RR Retaining Ring Included with Each
1/2" Long Lense Tube, SM05-Threaded
Click to Enlarge
3
SM1T1SM1T1SM1 (1.035"-40) Coupler, Internal Threads SM1 (1.035"-40) Coupler, Internal Threads
Click to Enlarge
3
SM1T2SM1T2SM1 (1.035"-40) Coupler, External Threads,
Two SM1NT Locking Nuts Included with Each
SM1 (1.035"-40) Coupler, External Threads
Click to Enlarge
3

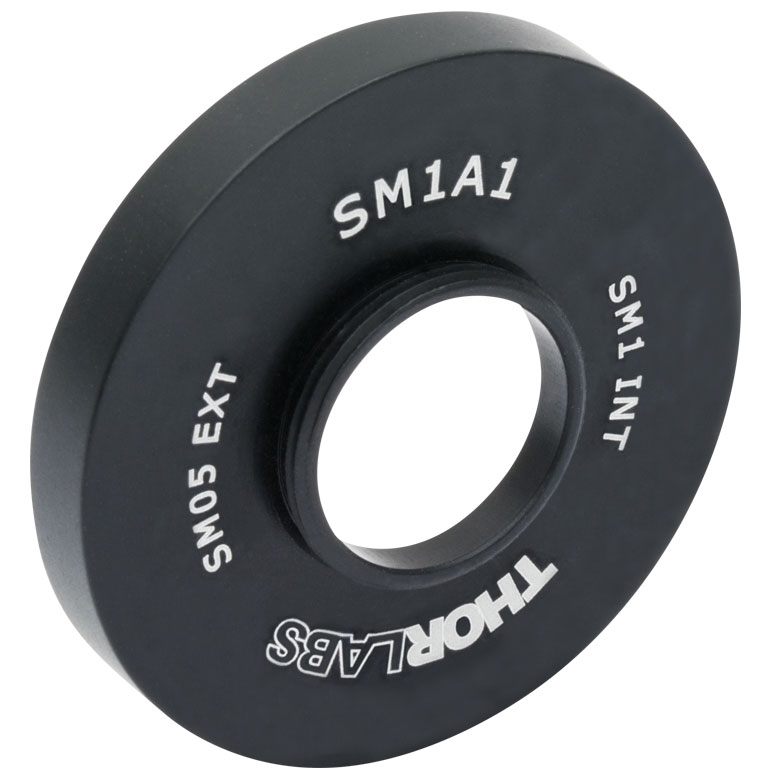

SM1A1SM1A1Thread Adapter, SM05 External / SM1 Internal Threaded Ends Thread Adapter, SM05 External / SM1 Internal Threaded Ends
Click to Enlarge
5

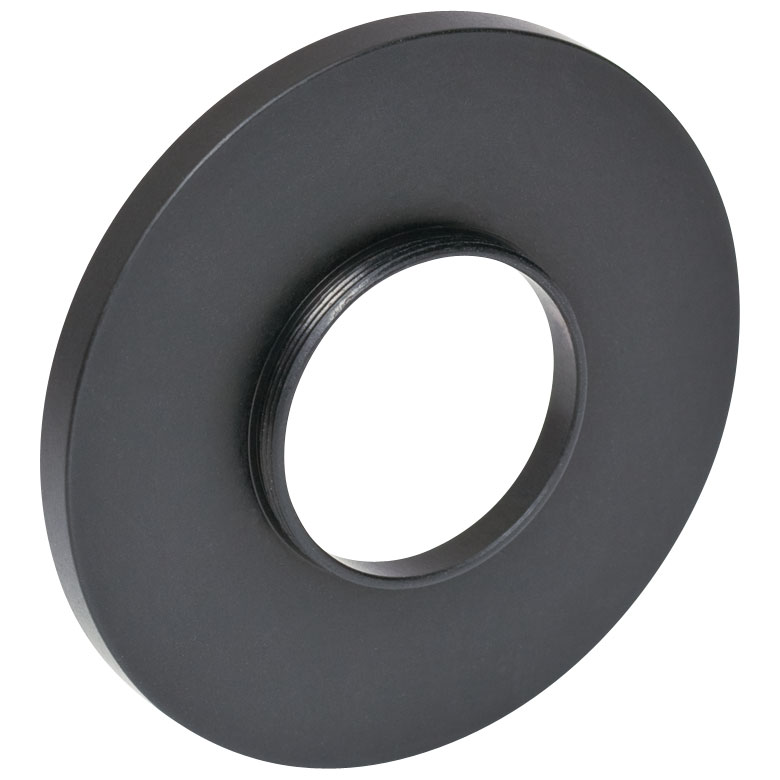

SM1A2SM1A2Thread Adapter, SM1 External / SM2 Internal Threaded Ends Thread Adapter, SM1 External / SM2 Internal Threaded Ends
Click to Enlarge
5
SM1A3SM1A3Thread Adapter, SM1 External / RMS Internal Threaded Ends Thread Adapter, SM1 External / RMS Internal Threaded Ends
Click to Enlarge
2

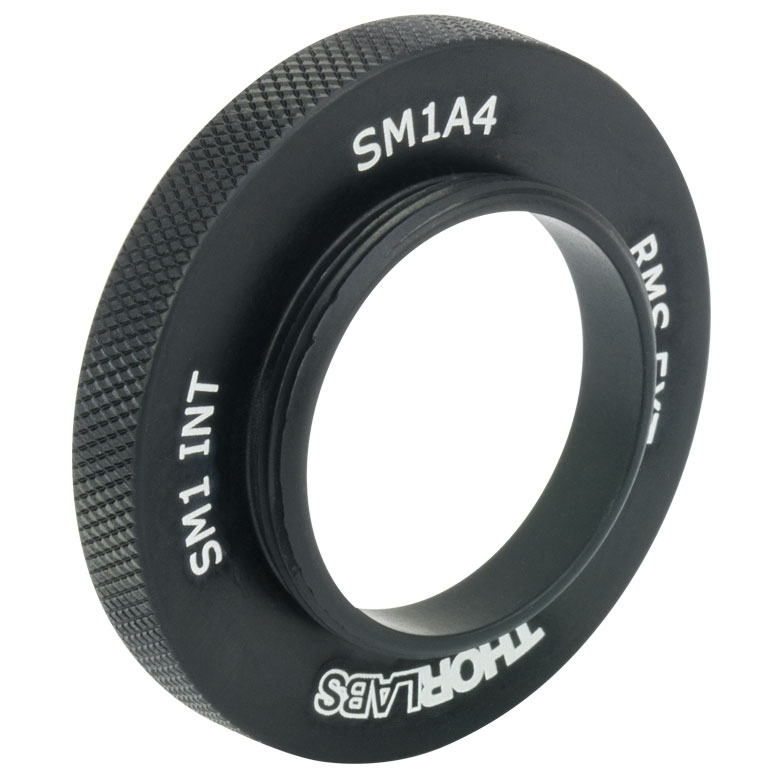

SM1A4SM1A4Thread Adapter, RMS External / SM1 Internal Threaded Ends Thread Adapter, RMS External / SM1 Internal Threaded Ends
Click to Enlarge
2
SM1V05SM1V05Ø1" Rotating Adjustable Focusing Element, 1/2" Travel Ø1" Rotating Adjustable Focusing Element, 1/2" Travel
Click to Enlarge
2
SM1V10SM1V10Ø1" Rotating Adjustable Focusing Element, 1" Travel Ø1" Rotating Adjustable Focusing Element, 1" Travel
Click to Enlarge
2
SM1RRSM1RRRetaining Ring, SM1 (1.035"-40) Threaded x 0.08" (2 mm) Thick Retaining Ring, SM1-Threaded x 0.08" (2 mm) Thick
Click to Enlarge
10
SM1NTSM1NTSM1 Locking Nut (1.035"-40) SM1 Locking Nut
Click to Enlarge
5

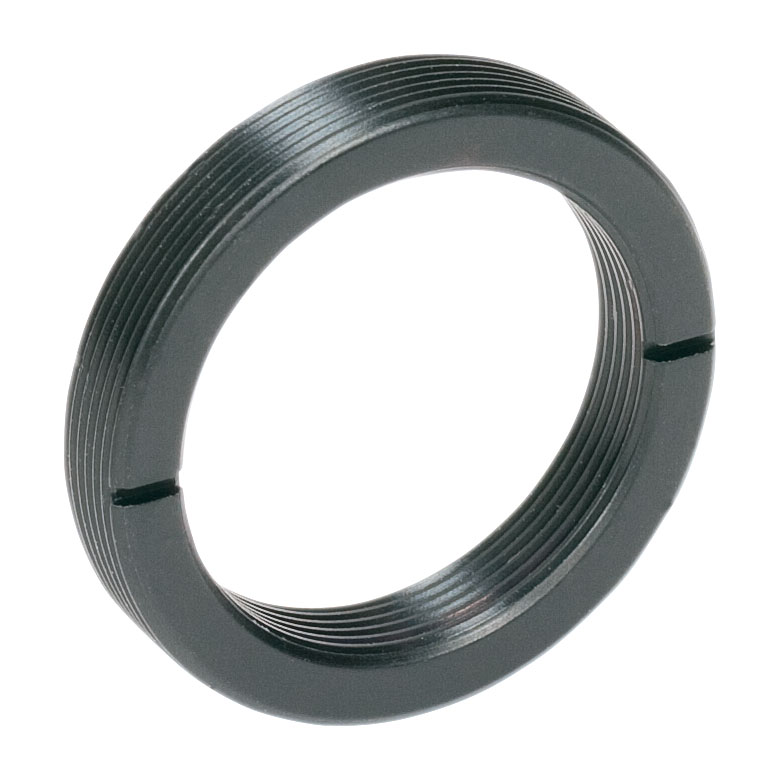

SM1RCSM1RC/MSM1 (1.035"-40) Series Slip RingSM1 Series Slip Ring
Click to Enlarge
5

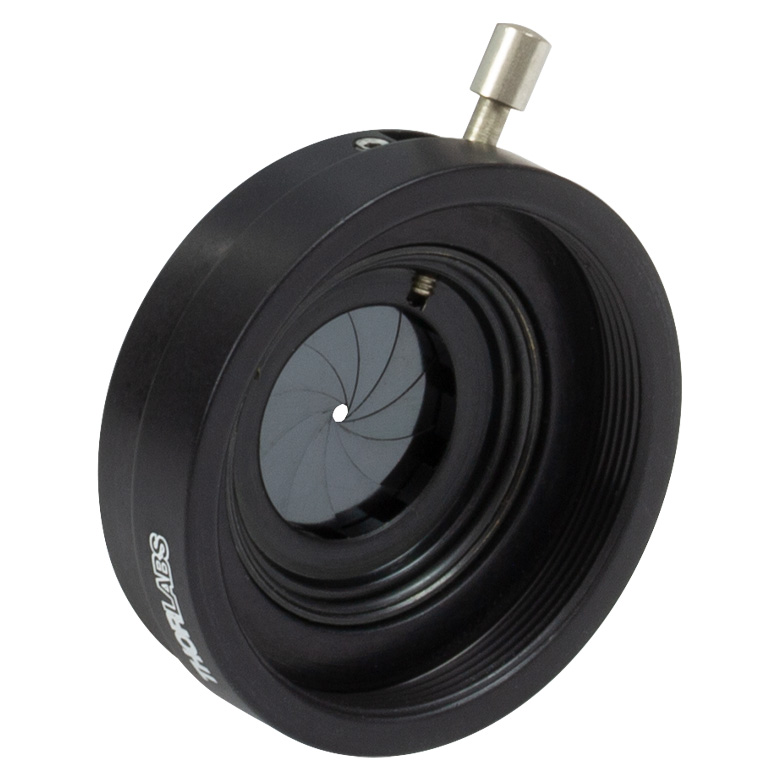

SM1D12SM1D12Iris Diaphragm Used In SM1 (1.035"-40) Series SM1 Series Iris Diaphragm
Click to Enlarge
5
SPW602SPW602SM1RR Spanner Wrench with Clear Aperture SM1RR Spanner Wrench with Clear Aperture
Click to Enlarge
1
SPW603SPW603SM05RR Spanner Wrench with Clear Aperture SM05RR Spanner Wrench with Clear Aperture
Click to Enlarge
1
SPW801SPW801Adjustable Spanner Wrench Set Adjustable Spanner Wrench Set
Click to Enlarge
1
ESK07A SmartPack Packaging
Click to Enlarge

ESK07A Packaging

Smart Pack

Item #% Weight
Reduction
CO2-Equivalent
Reductiona
ESK07A83.10%72.81 kg
ESK07A/M83.10%80.24 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
Loading Tag Cloud Loading...

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use   1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
Poster: acable
Posted Date: 2007-12-22 08:59:13.0
Consider adding a selection guide as one of the tabs that covers all the kits.
Click on any phrase below to search our site using our new Search Engine:
30 mm cage kit   30mm cage kit   basics kit   cage assembly   cage assembly kit   cage kit   cage lens tube kit   cage system kit   esk kit   fundamentals kit   kinematic mounts kit   kit   lens mounts kit   lens tube   lens tube cage kit   lens tube kit   mirror mounts kit   mounting basics kit   mounting kit   optical mounts kit   optomech kit   optomechanics kit   sm1 kit   sm1 lens tube kit
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
ESK07A Support Documentation
ESK07A Cage Assembly and Lens Tubes Essentials Kit
$2,067.70
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
ESK07A/M Support Documentation
ESK07A/M Cage Assembly and Lens Tubes Essentials Kit (Metric)
$2,067.70
Today
