Compact Mirror Mounts

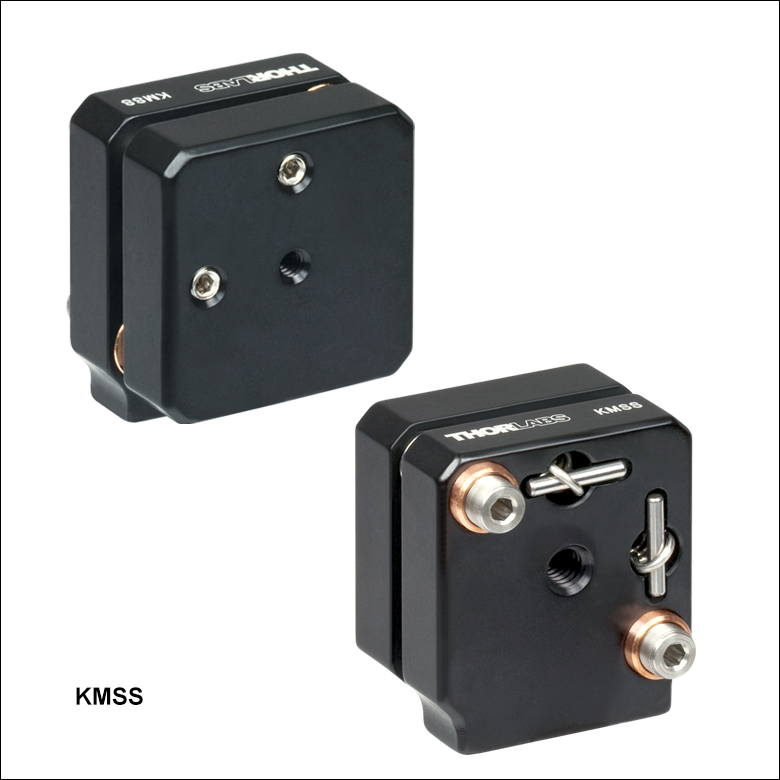

The KMS (KMS/M) and KMSS (KMSS/M) mounts are compact, general-purpose, two-adjuster kinematic mirror mounts. The adjustment screws on the KMS have a 5/64" hex socket, which can be accessed through the removable knobs. The slimmer design of the KMSS results from the fact that the adjuster screws have been shortened to their minimum length. A 5/64" hex key is required to adjust the KMSS mount. Both mounts offer an angular displacement range of ±4° with an adjustment per revolution of 15 mrad/rev and feature 8-32 (M4) threaded holes on the bottom and back of the mount for vertical or horizontal mounting.

Mirror Holders

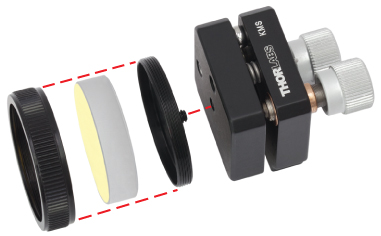

The front plate on each of our compact mirror mounts is equipped with a 4-40 mounting hole that directly accepts either the Ø1/2" mirror holder (MH12) or the Ø1" mirror holders (MH25 or MH25T). The MH12 has a nylon-tipped setscrew that can accommodate Ø1/2" mirrors that are at least 0.10" (2.5 mm) thick. The MH25 and MH25T are two-piece adapters that mount Ø1" mirrors using an internally threaded retainer. The MH25 mounts mirrors from 2.5 mm (0.10") to 6.1 mm (0.24") thick, while the MH25T mounts mirrors from 6.0 mm (0.23") to 10.0 mm (0.39") thick.
