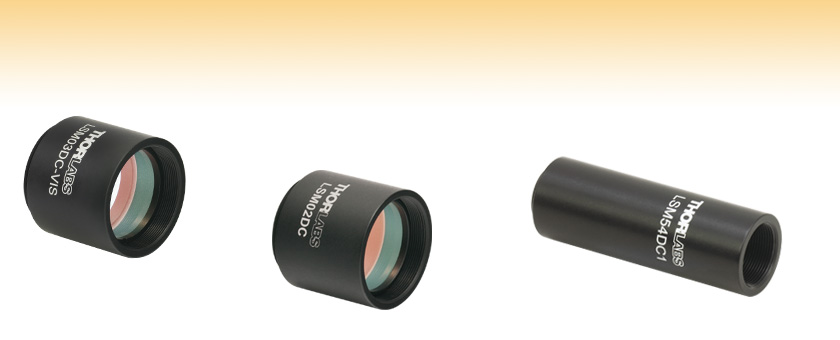

Dispersion Compensators for Scan Lenses


  • 400 - 700 nm or 800 - 1400 nm Wavelength Range Options
  • Dispersion Compensation up to Second Order

LSM03DC-VIS

LSM02DC

LSM04DC

LSM05DC

Related Items

Features

These single glass dispersion compensation blocks are designed for use with our LSM scan lenses. The glass type and the thickness were chosen so that the dispersion matches the dispersion of the LSM scan lenses. The dispersion-compensating block is meant to be placed in the reference arm before the mirror, while the objective sits in the sample arm. Thus, there is an identical amount of dispersion in each leg of the interferometer. All of these dispersion compensators are mounted in an SM1-threaded lens tube (item # SM1L10) engraved with the item number.

Thorlabs offers two versions of these compensators, each with a different AR coating. The LSM03DC-VIS compensator has an AR coating for the 400 – 700 nm wavelength range, and is designed to be used with the LSM03-VIS scan lens. The other compensators sold on this page, LSMxxDC, are AR coated for the 800 – 1400 nm range, and are designed for use with our LSMxx and LSMxx-BB scan lenses.

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part NumberProduct Description
LSM02DC Support Documentation LSM02DC:Dispersion Compensating Block for LSM02 Scan Lens
LSM03DC Support Documentation LSM03DC:Dispersion Compensating Block for LSM03 Scan Lens
LSM03DC-VIS Support Documentation LSM03DC-VIS:Dispersion Compensating Block for LSM03-VIS Scan Lens
Part NumberProduct Description
LSM04DC Support Documentation LSM04DC:Dispersion Compensating Block for LSM04 Scan Lens
LSM05DC Support Documentation LSM05DC:Dispersion Compensating Block for LSM05 Scan Lens

Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Hereif you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining8000
Posted Comments:
Poster:tcohen
Posted Date:2013-01-17 16:16:00.0
Response from Tim at Thorlabs: For others who may be interested, we were able to deliver this within two weeks. If there are any questions on availability, please contact us at sales@thorlabs.com and our team will be happy to assist with the most up to date information.
Poster:syim
Posted Date:2012-11-21 13:54:39.327
Hi, it is not a feedback regarding the product, but shipping information. I have made an order of a CLS-SL through my agent company, and expected a fast shipping based on your website's information (3-5 days). But, to my surprise, I got a call from the company saying it will be available 2-3 months later. Please let me know. Thank you.
Poster:tcohen
Posted Date:2012-11-08 09:45:00.0
Response from Tim at Thorlabs: This scan lens is suitable for use with an Olympus 180mm tube lens. The ITL200 Nikon tube lens is used in their research grade microscopes and can be used with Olympus objectives as well. However, we must be aware that magnification will not be what is noted, but slightly higher. As Nikon uses a 200mm focal length tube lens as opposed to this and standard Olympus design of 180mm focal length tube lenses, the magnification will be 200/180 times greater.
Poster:john.mccaskill
Posted Date:2012-11-01 12:41:59.313
I would like to know if this scan lens would also be suitable for use with Olympus 180 mm tube lens and olympus objectives. I imagine that it is not advisable to mix the Nikon tube lens with our Olympus objectives.
Poster:tcohen
Posted Date:2012-10-30 10:35:00.0
Response from Tim at Thorlabs: Thank you for contacting us. I will send you the .zmx file directly.
Poster:gir
Posted Date:2012-10-24 11:05:15.17
Hello, I'd like to model to the LSM03-VIS in my optical design software, but it can only import ZMX files, not ZAR files. Is there any chance you could send me either 1) a ZMX version of the prescription info for the LSM03-VIS, or 2) simply a text version of that info, specifically the glass types, that I could enter by hand in my software? I can see from the STEP model what the geometry of the lenses is, but I don't know what kind of glass each one uses. Thank you!
Click on any phrase below to search our site using our new Search Engine:
2P Microscopy  AR Coated Scan Lens  Confocal  Confocal Microscope  Confocal Microscopy  confocal objective  confocal objective lens  Dispersion compensating  dispersion compensation  laser scan lens  Laser Scanning Microscopy  laser scanning objective  laser scanning objective lens  LSM02  LSM03  LSM04  LSM05  Multiphoton Microscopy  Multi-Photon Microscopy  scan lens  telecentric lens  telecentric objective  telecentric objective lens  Visible Scan Lens

Dispersion Compensator for LSM03-VIS Scan Lens

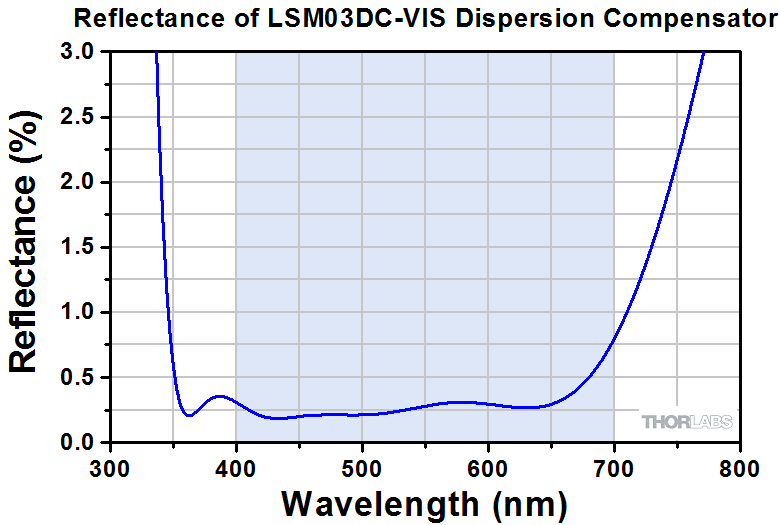

Reflectance of LSM03DC-VIS Dispersion Compensator
Click to Enlarge

The shaded region in this graph denotes the wavelength range of the AR coating.
  • Provides Up to Second Order Dispersion Compensation
  • AR Coated for 400 to 700 nm Wavelength Range
  • Mounted in an Engraved SM1 Lens Tube
Specifications
Material H-ZLAF52
Wavelength Range 400 - 700 nm
Clear Aperture 22.8 mm
Surface Quality 40-20 Scratch-Dig
Wavefront Error λ/4
Mounting Threads SM1 (1.035"-40)
Compatible Scan Lens LSM03-VIS
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
LSM03DC-VIS Support Documentation
LSM03DC-VISDispersion Compensating Block for LSM03-VIS Scan Lens
$98.00
Today

Dispersion Compensators for LSM Series Scan Lenses (800 - 1400 nm)

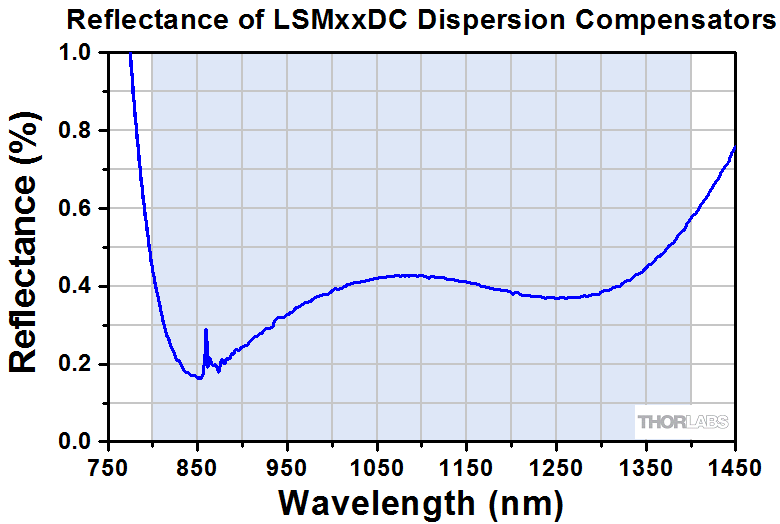

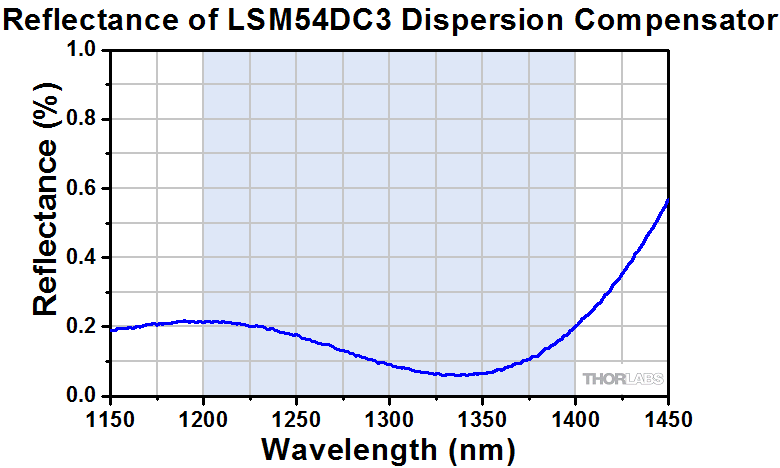

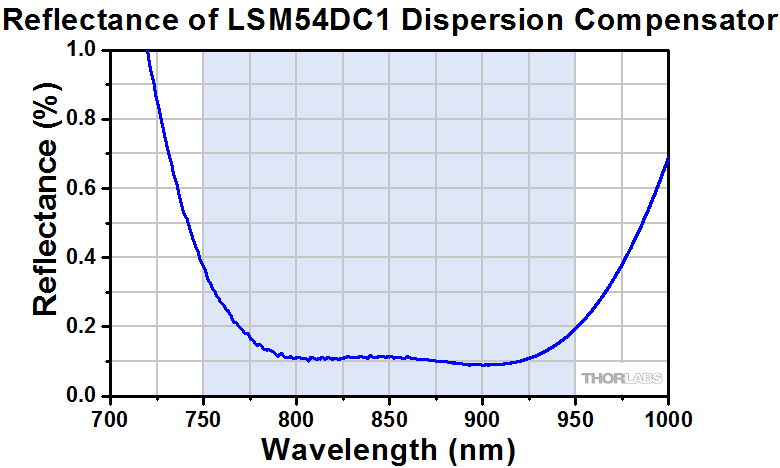

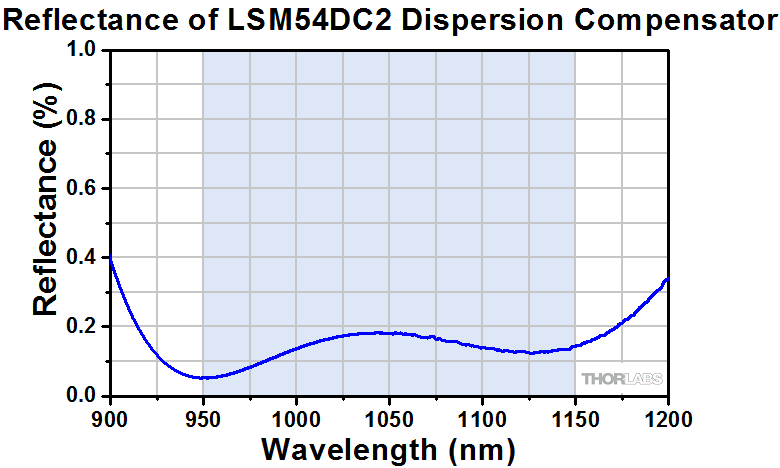

Dispersion Compensator Reflectance
