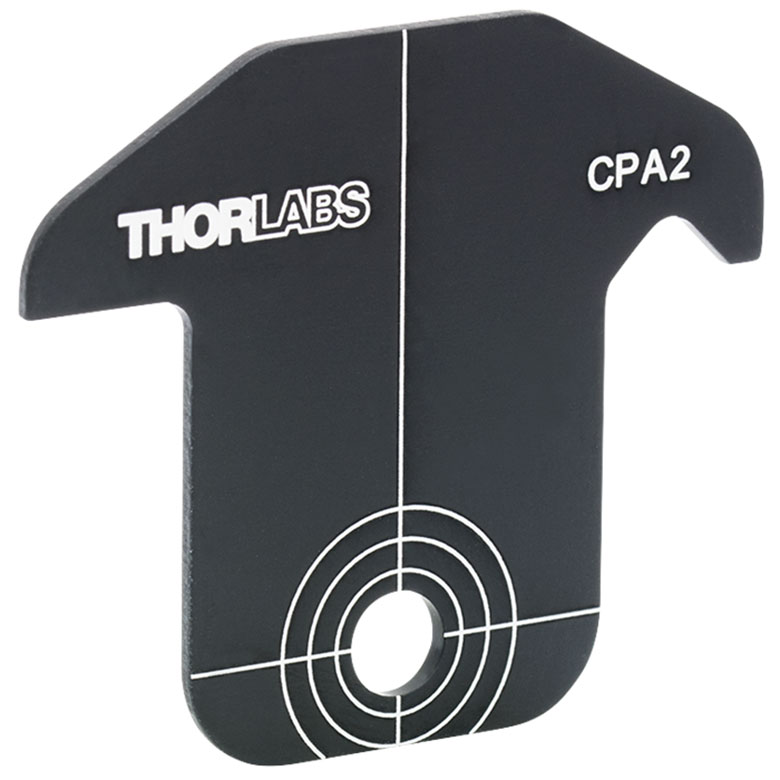

CPA2 - 30 mm Cage System Alignment Plate with Ø5 mm Hole
CPA2 - 30 mm Cage System Alignment Plate with Ø5 mm Hole
Zoom
CPA2
30 mm Cage System Alignment Plate with Ø5 mm Hole
Part Number: CPA2 - Ask a technical question Ask a technical question.
Weight: 0.01 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $12.00
Add To Cart:
Qty :
CPA2 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Quick Drop-In Visual Beam Alignment Tool
  • Small Through-Hole Aligned at Center of 30 mm Cage Assembly

The CPA2 cage alignment plate proves a convenient tool for aligning 30 mm cage-based optical systems because the plate has a small pinhole at the exact center of the cage assembly. This Ø5 mm through-holes provide a convenient visual beam target to assist with optical alignments.
