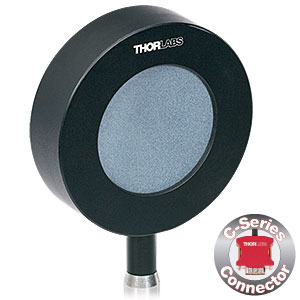

| ES245C - Pyroelectric Energy Sensor, Ceramic Coating, 0.185 - 25 µm, 15 J |
|
|
|
| Product Summary: |
Features
- For General Purpose and High Energy Optical Pulse Measurements
- Ceramic Coating with High Damage Thresholds for High-Energy-Density Lasers
- Ø45 mm Sensor Area
- Comes with BNC Connector for Oscilloscope Use and a Sensor Adapter for Use with the PM200, PM100D, PM100USB, and PM320E Consoles
The ES245C Standard Pyroelectric Sensor is designed to measure pulsed coherent and incoherent sources. The sensor is not suited for CW measurements, as it converts energy from light pulses into voltage pulses. A ceramic coating is used for low and high power measurements. A large sensor area of Ø45 mm allows easy alignment. This energy sensor features BNC connectors for oscilloscope use, as well as standard power meter connectors which contain NIST and PTB-traceable calibration data.
Specifications
- Aperture Size: Ø45 mm
- Wavelength Range: 0.185 – 25 µm
- Power Range: 1 mJ – 15 J
- Detector Type: Pyroelectric Energy Sensor with Ceramic Coating
- Resolution: 50 µJ
- Linearity: ±1%
- Measurement Uncertainty: ±5% @ 0.185 – 25 µm
|
|
|
|
|
