• Designed for High Power Applications
• 1650 nm Center Wavelength
• Highly Reliable InP Ridge Waveguide
• High-Power, Butterfly-Packaged Configuration

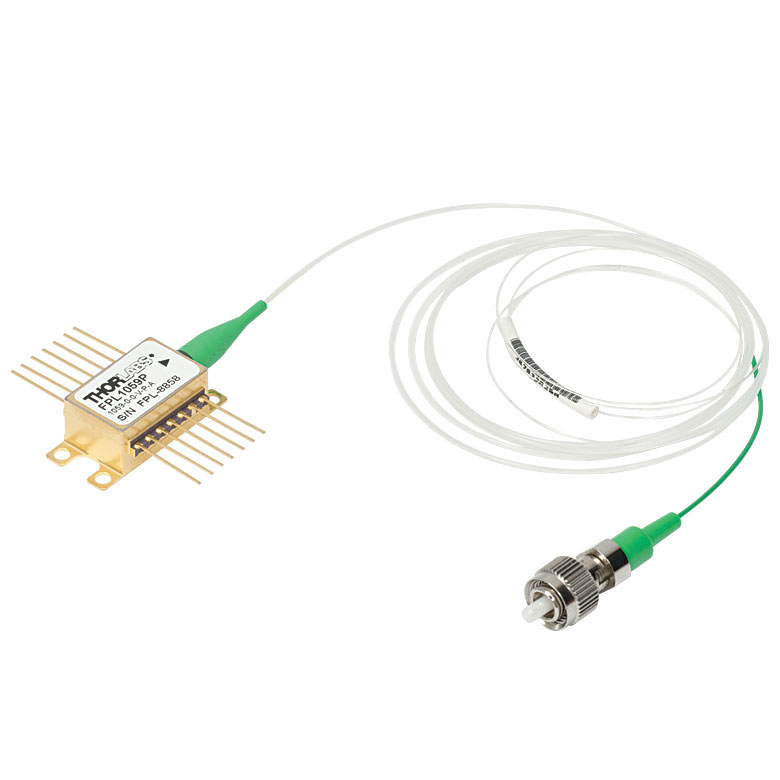

This Fabry-Perot, high-powered laser, the FPL1059P has a typical center wavelength of 1650 nm, which is in the eye-safe wavelength range where the cornea and lens absorb the light before it can reach the sensitive retina. The FPL1059P is a high-power, butterfly-package laser that is coupled to a 1.5 m FC/APC connectorized polarizing-maintaining, single mode fiber. An integrated thermistor allows the FLP1059P to be temperature controlled, thus stabilizing the lasing wavelength and power.

The FPL1059P is manufactured by Thorlabs Quantum Electronics (TQE); this Fabry-Perot laser is based on quantum well epitaxial layer growth and a highly reliable ridge waveguide. They intrinsically offer high slope efficiency, which is the relationship between output power and drive current.

• Center Wavelength (Typical): 1650 nm
• Center Wavelength (Min/Max): 1630/1670 nm
• Spectral Bandwidth (RMS) (Typ/Max): 10 nm/20 nm
• Output Power (Typ/Min): 80 mW/60 mW
• Operating Current (Typ/Max): 400 mA/500 mA
• Threshold Current (Typ/Max): 45 mA/65 mA
• Forward Voltage (Typ/Max): 1.7 V/2.5 V
• Slope Efficiency (Typ/Max): 0.15 (W/A)/0.25 (W/A)
• TEC Operation
• TEC Current (Typ/Max): 0.25 A/1.5 A
• TEC Voltage (Typ/Max): 0.35 V/3.5 V
• Thermistor Resistance: 10 kO
