- Adjuster Provides 13 mrad/rev
- Back Surface Engraved for Realignment of Removed Optics
- Post-Mountable via M4 Mounting Hole

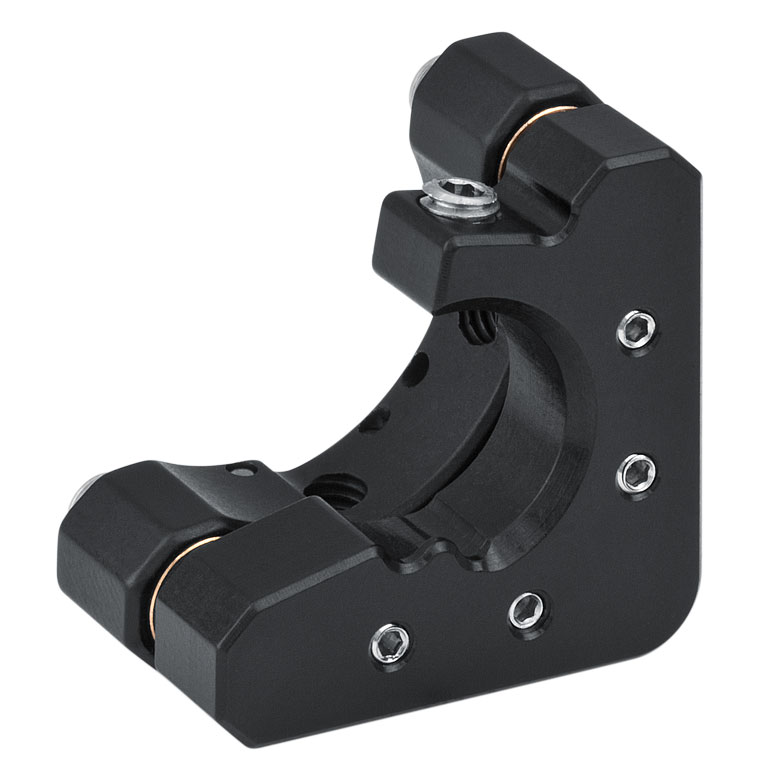

The KM05FR/M is a multi-functional right-handed mirror mount. The mount loads Ø12.7 mm mirrors from the back side of the front plate to ensure that the optic can be reinserted with a high degree of repetition. The single point of contact at the front of the mount is a kinematic stop against which the front surface of the mirror rests while locked by a nylon-tipped setscrew. The witness line on the back side of the mount makes it possible to rotationally orient the optic with a user-inscribed mark on the back side of the mirror. These mounts feature 3/16"-100 TPI adjusters. An optional accessory, the LN19100 bronze locking nut, is available to lock the adjusters once the desired position is reached.
This mount is also recommended for use in tight spaces; one side of the mirror has been machined away to prevent potential obstruction to the beam path. The rear-loaded mount are ideal for use in laser cavities, as the mirror can be removed without disturbing the alignment of the cavity.Specifications
- Angular Range: ±2°
- Height of Center of Mirror: 14.7 mm
