Products Home >>Kits >>Optics Kits >>Ø1in N-BK7 Plano-Convex Lens Kits >> LSB01-B

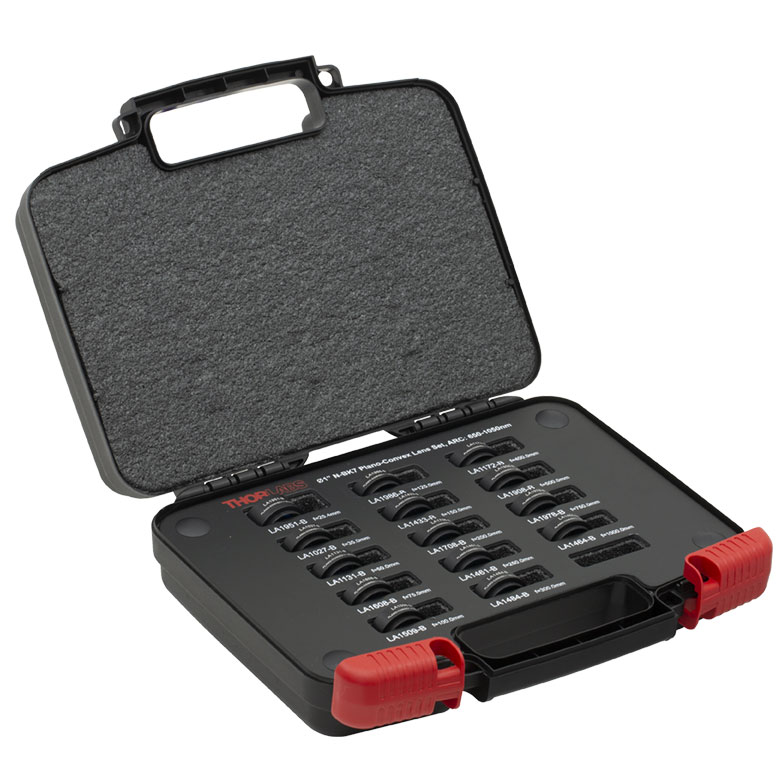

LSB01-B - Ø1" N-BK7 Plano-Convex Lens Kit, ARC: 650-1050 nm, 14 pc

LSB01-B - Ø1in N-BK7 Plano-Convex Lens Kit, AR Coating: 650-1050 nm, 14 pc

Zoom

LSB01-B
Ø1in N-BK7 Plano-Convex Lens Kit, AR Coating: 650-1050 nm, 14 pc

Part Number:	LSB01-B - Ask a technical question Ask a technical question.
Weight:	4.19 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$629.25
Add To Cart:	Qty :

LSB01-B Support Documentation

Catalog Page:
Documents:
Spec Sheet

Product Summary:

Features

N-BK7 Mounted Spherical Singlets Packaged into Kits
Kit Contains Ø1" Lenses AR Coated for 650 - 1050 nm
Each Lens Housing is Laser Engraved and SM Compatible
Offered at a Savings Over Purchasing the Lenses Individually

Thorlabs has taken its most popular Ø1" N-BK7 spherical singlet lenses, housed them in a laser laser-engraved SM-compatible lens tubes, and packaged them into kits. Each kit combines various lenses from our plano-convex line.

Each black anodized lens housing features external SM1 (1.035"-40) threading, making it directly compatible with the multitude of Thorlabs mounts and housing that feature this thread standard. In addition, the housings are laser engraved with the item number, lens type, focal length, and antireflection coating range (if applicable).

Specifications

Diameter:Ø1"
Material: N-BK7
Focal Lengths (mm):
- Plano-Convex Only: 25.4, 35, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500, 750, 1000
- Included Item Numbers:
  - Plano-Convex: LA1951-B, LA1027-B, LA1131-B, LA1608-B, LA1509-B, LA1986-B, LA1433-B, LA1708-B, LA1461-B, LA1172-B, LA1908-B, LA1978-B, LA1464-B, LA1484-B
