PDA10D - InGaAs Fixed Gain Detector, 1.2-2.6 µm, 15 MHz BW, 0.8 mm², 120 VAC

PDA10D - InGaAs Fixed Gain Detector, 1.2-2.6 µm, 15 MHz BW, 0.2 mm<sup>2</sup>, 120 VAC

Zoom

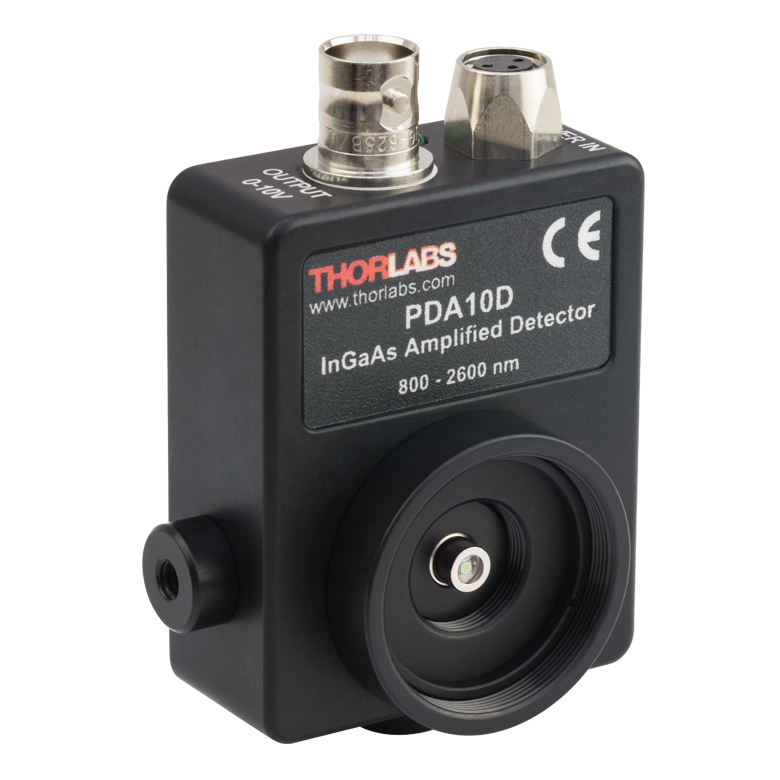

PDA10D
InGaAs Fixed Gain Detector, 1.2-2.6 µm, 15 MHz BW, 0.2 mm², 120 VAC

Part Number:	PDA10D - Ask a technical question Ask a technical question.
Weight:	2.09 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$489.00
Add To Cart:	Qty :

PDA10D Support Documentation

Manual:
Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Features

Detetor Types: InGaAs
Wavelength Ranges from 1.2 to 2.6 µm
Low-Noise, Wide Band Amplifiers
Fixed Gain
0 to 10 V Output
Compatible with SM1 and Some SM05 Series Products
Threaded Mount for Ø1" (Ø25 mm) Optics Included
Power Supply Included

The PDA10D Amplified Photodetector is housed in a compact, low profile package and is designed for the detection of light in the NIR spectrum. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector.

Specifications

Sensor: InGaAr (NIR)
Active Area: 0.8 mm² (Ø1.0 mm)
Wavelength Range: 1.2 – 2.6 µm
Peak Response: 1.1 A/W @ 2.3 µm
Bandwidth DC-15 MHz
NEP Range (W/Hz^1/2): 3.5 × 10 ^-11
Rise Time: 23.3 ns
