| PFM52504 - 750 mm x 1200 mm Lightweight Workstation for an Optical Breadboard |
|
|
|
| Product Summary: |
Features
- All-Steel Construction
- Casters and Leveling Feet Included
- Ships Fully Assembled
- Compatible with Both Metric and Imperial Breadboards
- Sorbothane Pads Provide Damping Between the Breadboard and Frame

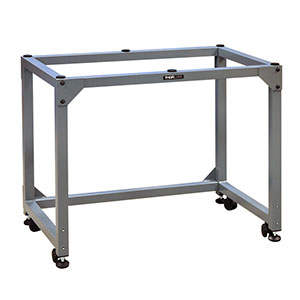

The PFM52504 750 mm x 1200 mm support frame is designed to be a lightweight and portable rigid support for optical breadboards. The all-steel construction of the frame with vibration-damping Sorbothane pads provides an excellent base for an optical breadboard. The frame comes with casters to facilitate the relocation of the frame without moving the optical breadboard and its contents. Once the frame is in the desired location, the four leveling feet can be lowered to level the table and lift it off the casters. These support frames are shipped fully assembled.
Specifications
- Frame Height: 735 mm (28.9”)
- Frame Mass (Weight): 19.5 kg (42.9 lbs)
- Max Total Load: 200 kg (441 lb)
- Frame Material: Steel
|
|
|
|
|
|
|
