• InGaAs Sensor
• Wavelength Range: 800 nm – 1700 nm
• Power Range: -60 dBm to 13 dBm (1 nW - 20 mW)
• Interchangeable Fiber Connector, FC Adapter Included
• Absolute and Relative Measurements Displayed in W, dBm, and dB
• NIST-Traceable Wavelength Calibration in 5 nm Steps
• 50 Hours of Operation Between Charges

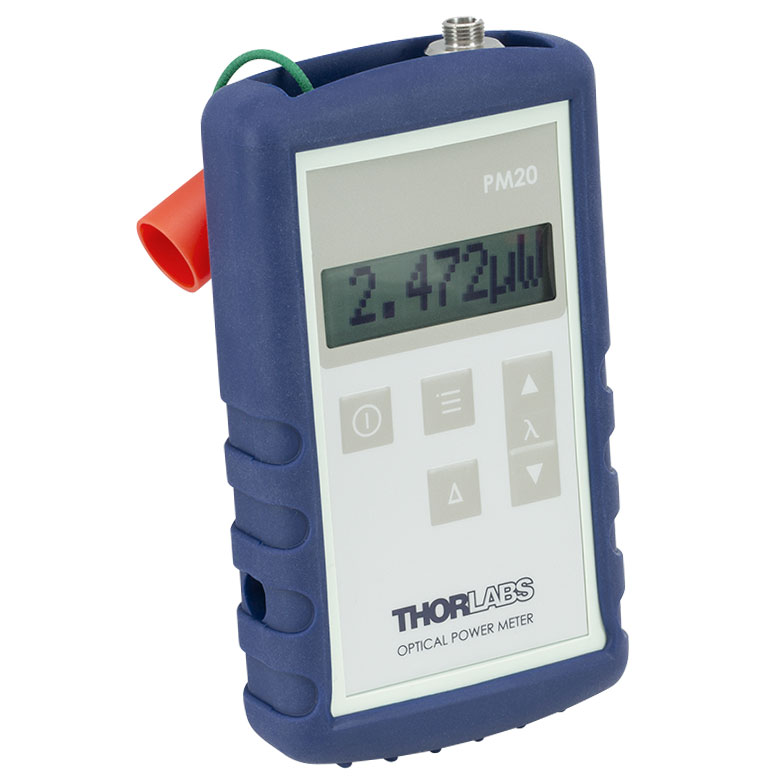

The PM20C Fiber Optic Power Meter is a robust, full-featured, handheld instrument, which together covers the full range of optical fiber applications within the 800 - 1700 nm range with optical powers ranging from -60 dBm to +13 dBm (1 nW - 20 mW). A rugged enclosure, internal sensor, and kickstand make this model ideal for field or lab applications.

Efficient, low-power circuitry provides long battery operation. The alphanumeric 8-digit LCD display allows easy power read-outs. The operation of the device is intuitive due to the clearly labeled key pad. All common features like wavelength setting, relative measurements, power read-out, and auto-shutdown are included. The PM20C is powered by a built-in rechargeable NiMH battery or by the included AC adapter that also recharges the battery. The unit comes with an FC fiber adapter.

• Sensor
• Optical Power Range: -60 dBm to 13 dBm (1 nW - 20 mW)
• Spectral Range: 800 – 1700 nm
• Detector Type: InGaAs
• Sensor Size: Ø2 mm
• Input Aperture: Ø2 mm
• Aperture Thread: SM05 Thread (0.535"-40) for Fiber Adapters Fiber Adapter included for FC/PC and FC/APC
• Measurement Uncertainty: ±5%
• Measurement Standard: NIST Traceable
• Optical Damage Threshold: 50 W/cm²
• General
• Display Type: Alphanumeric 8-Digits LCD
• Display Format: 4 Digit Read Out with Units and Symbols
• Resolution: 14 bit
• Sample Rate 10 Hz
• Dimensions (H x W x D) w/Holster: 125 x 80 x 39 mm (4.9" x 3.1" x 1.5")
• Weight: 0.2 kg (0.44 lbs)
• Operating Temperature: 5 °C to 40 °C
• Storage Temperature: -20 °C to 70 °C
