S122C - Standard Photodiode Power Sensor, Ge, 700 - 1800 nm, 40 mW

Zoom

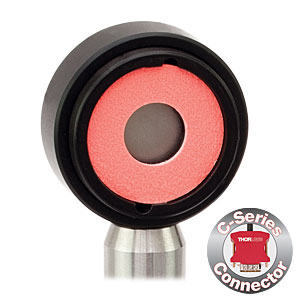

S122C
Standard Photodiode Power Sensor, Ge, 700 - 1800 nm, 40 mW

Part Number:	S122C - Ask a technical question Ask a technical question.
Weight:	0.50 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$570.00
Add To Cart:	Qty :

S122C Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Features

For General Purpose Optical Power Measurements
Integrated Viewing Target for Easy Sensor Alignment
Ø9.5 mm Sensor Aperture
Compatible with the PM200, PM100D, PM100USB, PM100A, and PM320E Consoles
Sensor, Protective Cap, IR Target, and Threaded Adapter Included

The S122C Standard Photodiode Power Sensor is ideal for measuring low power coherent and incoherent sources from the UV to the NIR. The NIST-Traceable, calibrated sensor features an integrated viewing target for easy alignment, enhanced shielding against electromagnetic interference, over heating alert device, and large Ø9.5 mm sensor aperture. The sensor is cage, post mount, and SM1 (1.035""-40) lens tube compatible and is ideal for free space and fiber coupled sources.

Specifications

Aperture Size: Ø9.5 mm
Wavelength Range: 700 nm – 1800 nm
Power Range: 50 nW – 40 mW
Detector Type: Ge Photodiode
Linearity: ±0.5%
Resolution*: 10 nW
Measurement Uncertainty**: ±5%

*Measured with PM100D console in low bandwidth setting.
**Beam diameter > 1 mm.
