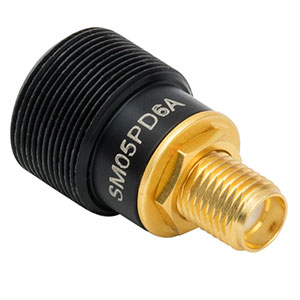

SM05PD6A - Mounted Germanium Photodiode, 800-1800 nm, Cathode Grounded

Zoom

SM05PD6A
Mounted Germanium Photodiode, 800-1800 nm, Cathode Grounded

Part Number:	SM05PD6A - Ask a technical question Ask a technical question.
Weight:	0.04 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$178.00
Add To Cart:	Qty :

SM05PD6A Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Thorlabs' SM05PD6A is a high-speed Germanium photodiode with a spectral response from 800-1800 nm. This photodiode has a PIN structure that provides fast Rise/Fall Times (5ns) with a bias voltage of 5V. A external SM05 thread on the main body makes the SM05PD6A compatible with all Thorlabs SM05 mounting adapters.

The SM05PD6A is ideal for measuring both pulsed and CW light sources, by absorption of photons or charged particles and generate a flow of current in an external circuit, proportional to the incident power.

Specifications

Detector: FDG03
Rise/Fall Time: 1400 ns
Active Area (Dimensions): 7.1 mm² (Ø3.0 mm)
NEP: 1.0 x 10^-12 W/Hz^1/2
Dark Current: 4.0 µA
Spectral Range: 800 - 1800 nm
Material: Ge
Junction Capacitance: 4 nF @ 1 V
