SM1PD1A - Large Area Mounted Silicon Photodiode, 400-1100 nm, Cathode Grounded

Zoom

SM1PD1A

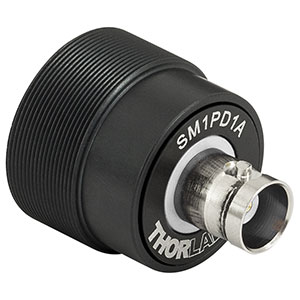

Large Area Mounted Silicon Photodiode, 400-1100 nm, Cathode Grounded

Part Number:	SM1PD1A - Ask a technical question Ask a technical question.
Weight:	0.19 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt
Price:	$124.00
Add To Cart:	Qty :

SM1PD1A Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Thorlabs' SM1PD1A is a high-speed mounted silicon photodiode with a spectral response from 400 - 1100 nm. This photodiode has a PIN structure that provides fast Rise/Fall Times (20ns) with a bias voltage of -12V. A external SM1 thread on the main body makes the SM1PD1A compatible with all Thorlabs SM1 mounting adapters.

The SM1PD1A is ideal for measuring both pulsed and CW light sources, by absorption of photons or charged particles and generate a flow of current in an external circuit, proportional to the incident power.

Specifications

Detector: FDS1010
Rise/Fall Time: 45 ns
Active Area (Dimensions): 63.6 mm² (Ø9.0 mm)
NEP: 5.5 x 10^-14 W/Hz^1/2
Dark Current: 600 nA
Spectral Range: 400 - 1100 nm
Material: Si
Junction Capacitance: 375 pF @ 5V
