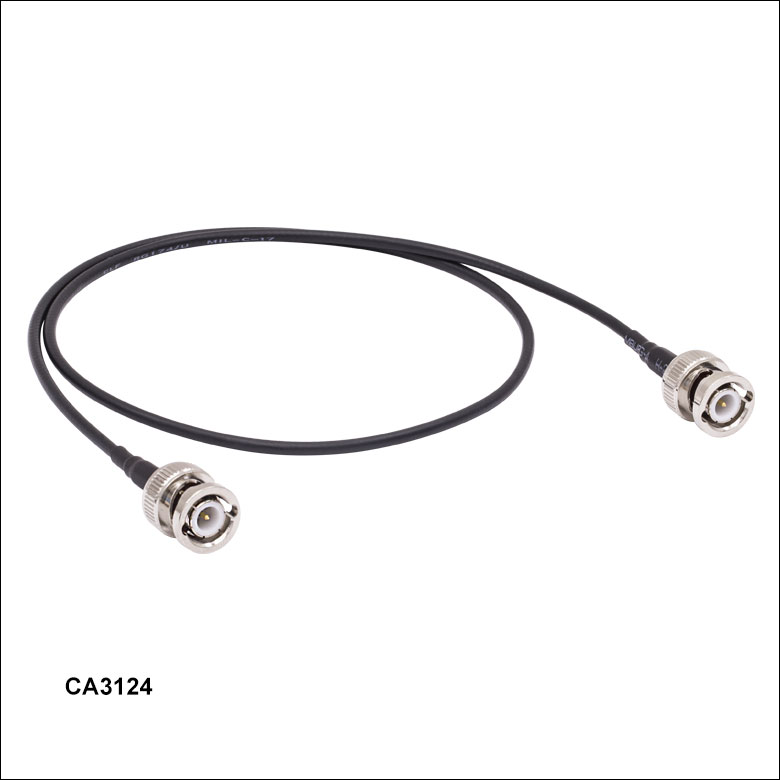

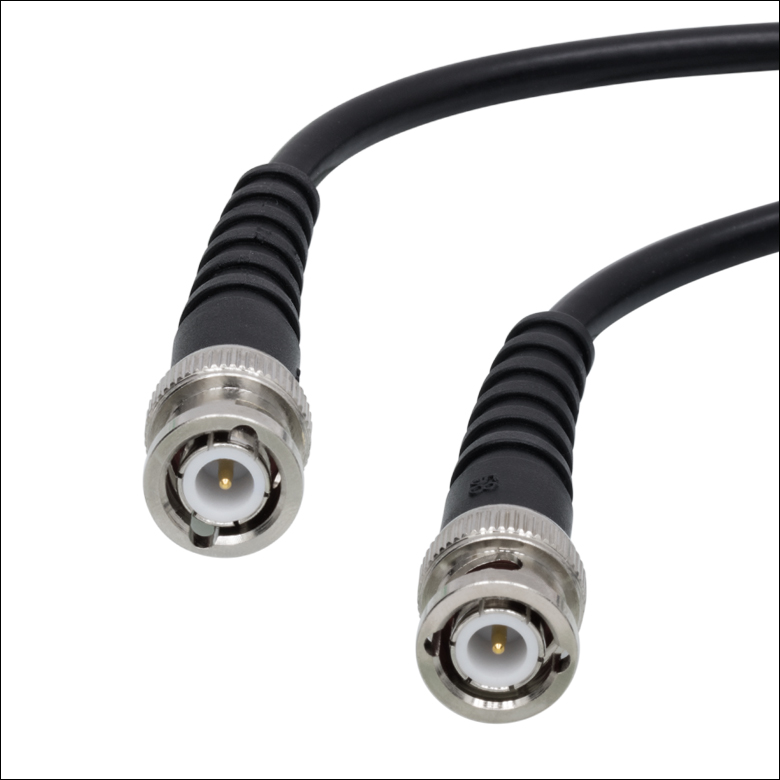

- BNC to BNC Cables

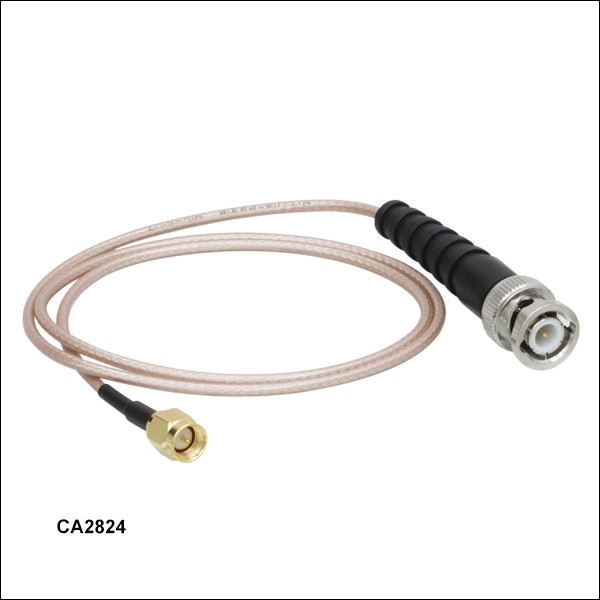

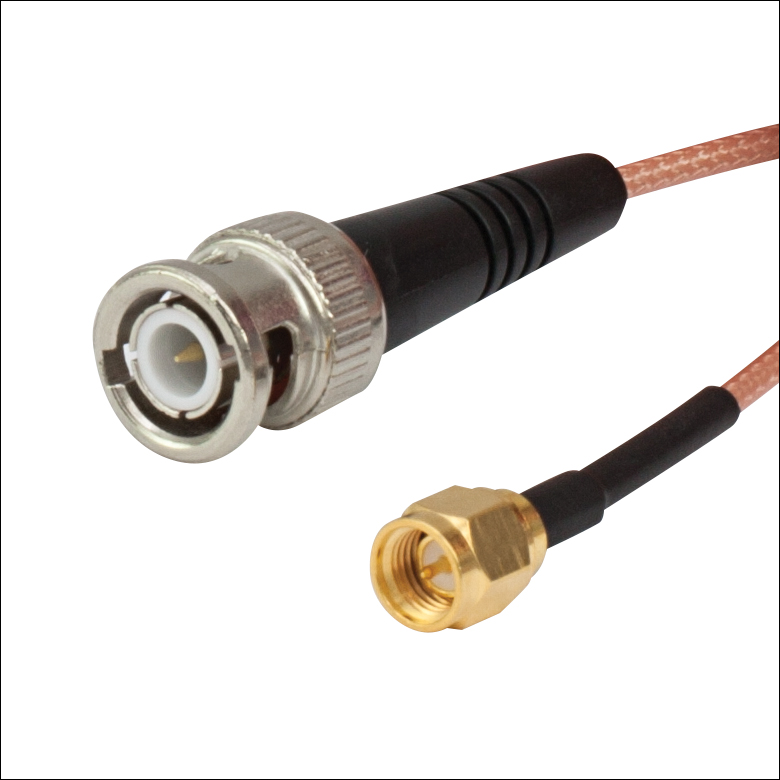

- SMA to BNC Cables
- SMB to BNC Cables

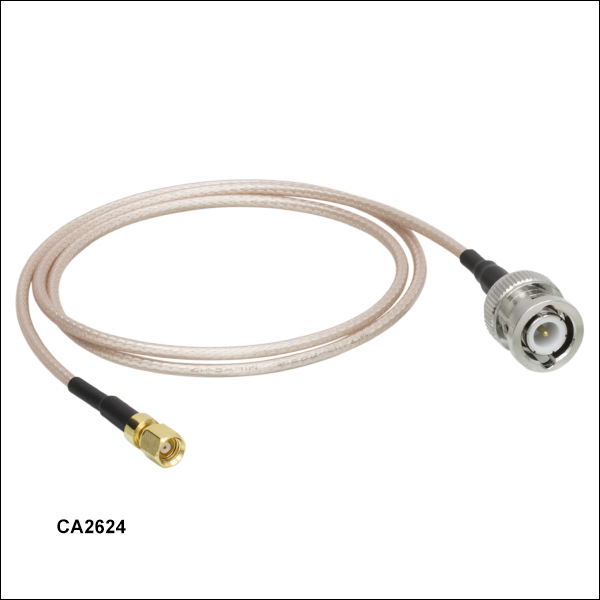

- SMC to BNC Cables
- MMCX to BNC Cable
SMC Female Connector
SMA Male Connector
BNC Male Connector
BNC Male Connector

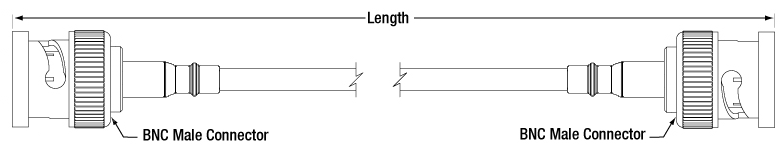

|BNC to BNC, Ø0.2"|

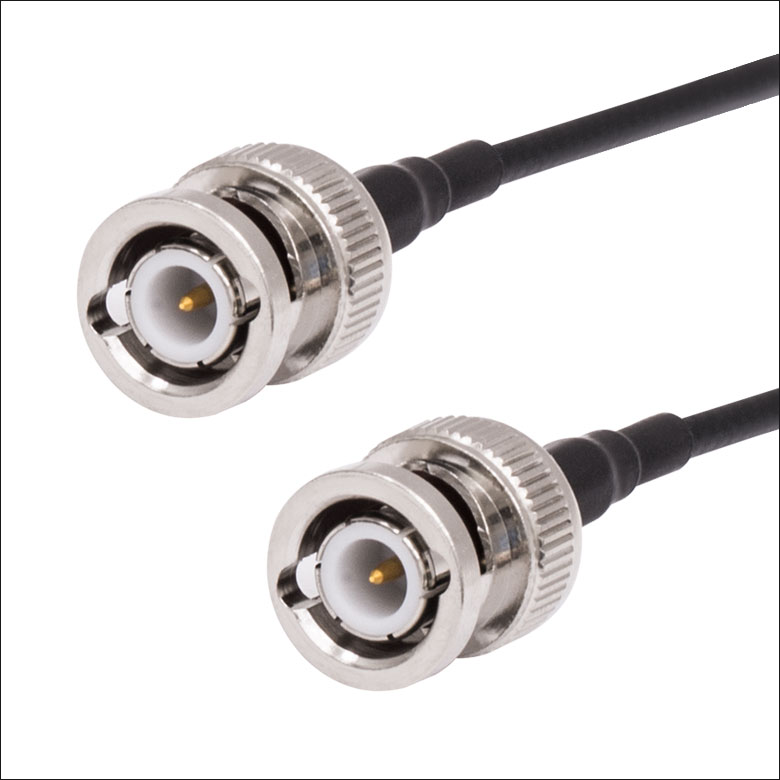

|BNC to BNC, Ø0.1"|
|SMA to BNC|
|SMB to BNC|

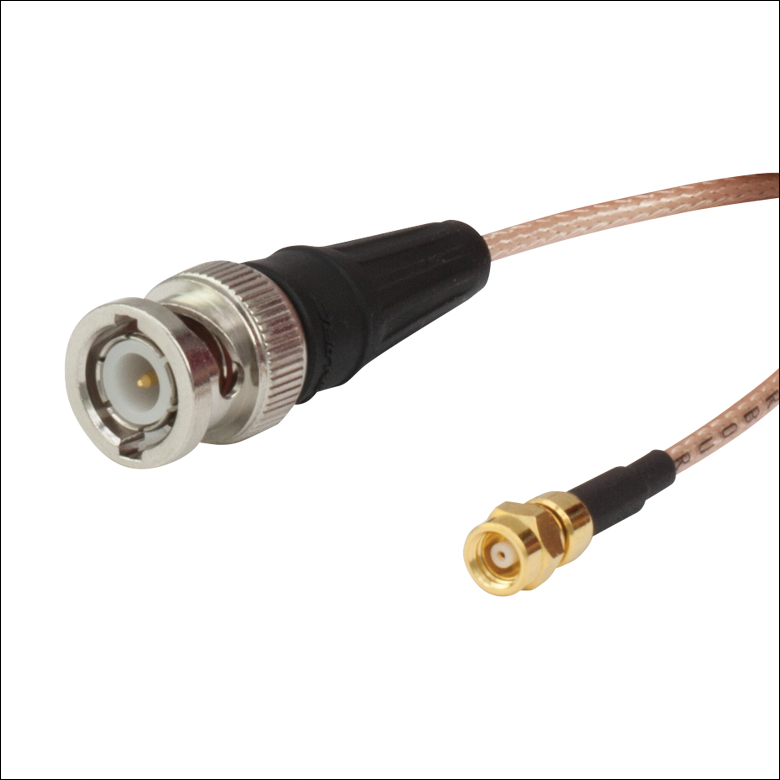

|SMC to BNC|
|MMCX to BNC|

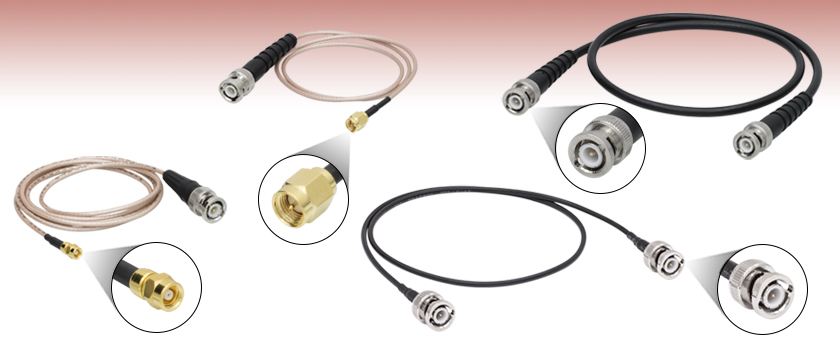

All the cables sold by Thorlabs that have a BNC connector on at least one end are displayed on this page. The table below will take you to web pages that contain cables with other connectors.
|No Comments Posted|

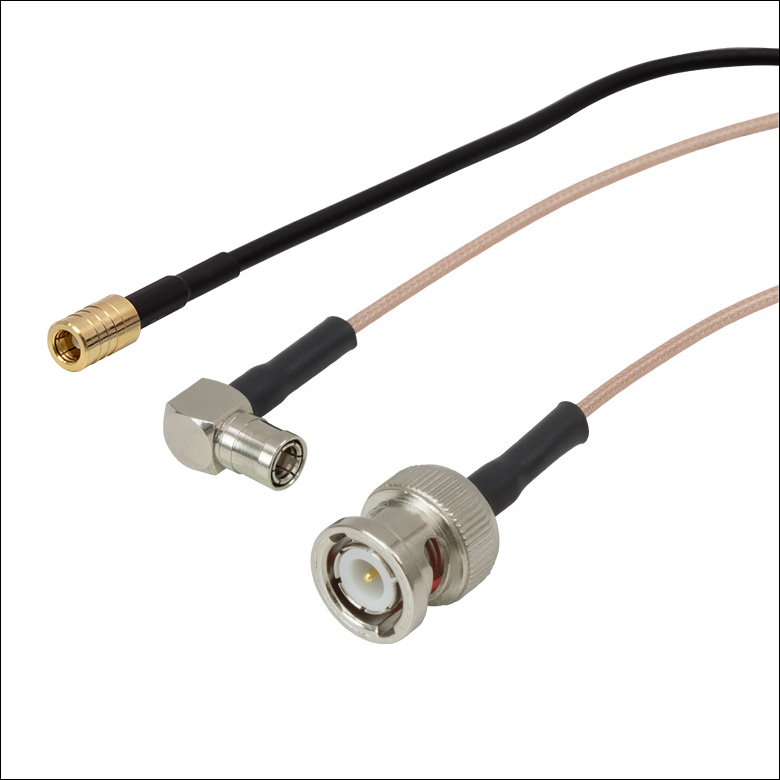

- Right-Angle SMB Female and Straight BNC Male Connector
- 50 Ω Impedance
- DC to 4.0 GHz Frequency Range
- 1000 V (RMS) Dielectric Withstanding Voltage
- 0.40" (10.2 mm) Minimum Bend Radius
- No Bare Brass, Suitable for Use in Laser Systems
This cable has a right-angle, SMB female connector on one end and a straight, BNC male connector on the other. The connectors are made of nickel-plated brass. The RG-178 coaxial cable is flexible enough to reach a minimum bend radius of 0.4", and the 90° SMB connector allows the cable to be connected in tight areas without putting lateral force on the connection, making this cable ideal for use in space-constrained setups.
The PAA236R can be used with our Polaris® mirror mounts with piezoelectric adjusters.

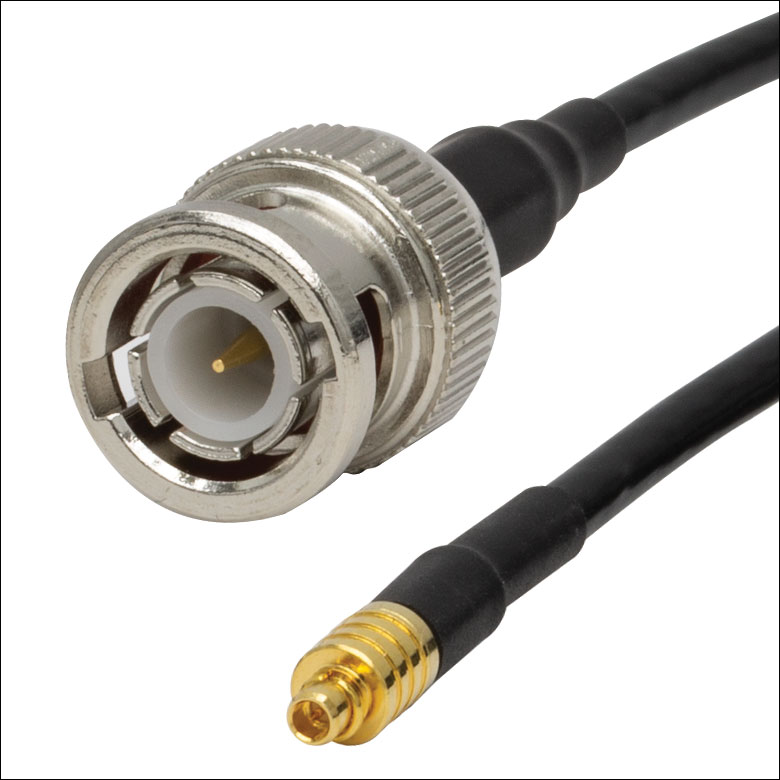

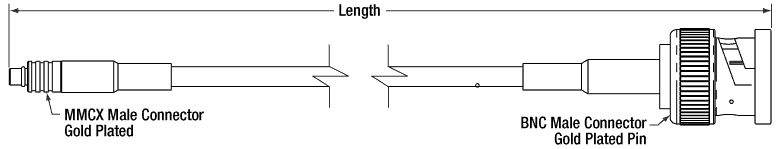

- MMCX Male Connector to BNC Male Connector
- Available in 1 m and 1.8 m Lengths
- DC - 6 GHz Frequency Range
- 50 Ω Normal Impedance
- 170 V Max Operating Voltage
Each of these RG-174 coaxial cables features a male MMCX connector on one and a male BNC connector on the other. They can be connected to I/O ports on the Kinesis® Vertical Translation Stage and Kinesis® 30 mm XY Stage for external triggering applications.
- Wall Mount Cable Racks
- Store Cables Straight and Untangled
- T1508 is Ideal for Fiber Optic Patch Cables
The T1508 is a test lead holder for wires up to 0.210" (5.33 mm) in diameter and has 14 slots for cables. It is ideal for holding fiber optic patch cables.
The T2708 is a test lead holder for wires up to 0.450" (11.43 mm) in diameter and has 9 slots for cables.
The cable racks are made from cold rolled steel with a baked enamel finish. The wall mounting holes are separated by 3" (76.2 mm). Both racks are 11" (279 mm) long and extend outward from the wall by 3.5" (88.9 mm).
