Kinematic Pellicle Mounts


  • Mount Ø1/2" and Ø1" BP-Series Pellicles
  • 3/16"-100 TPI or 1/4"-80 TPI Hex Adjuster Screws
  • Hardware Steel Inserts at Kinematic Contact Points
  • Ø1" and Ø2" Versions Feature Removable Adjuster Knobs

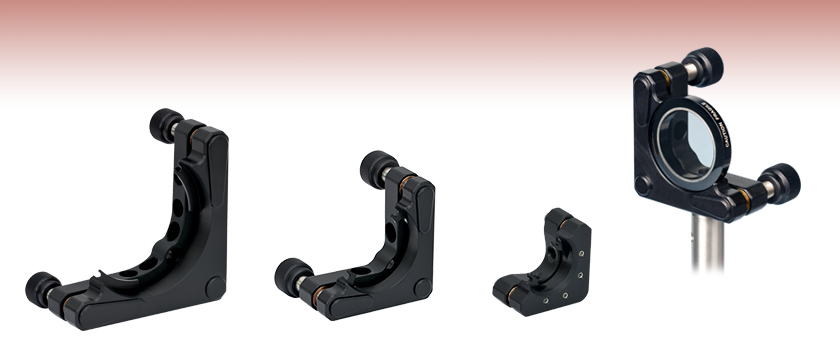

KM200BP

KM100BP

KM05BP

BP133 Not Included

KM100BP
Mounted with BP133

Application Idea

Related Items


Please Wait

Features

The KM05BP, KM100BP, and KM200BP combine the kinematic adjustment of our most popular mirror mounts with an easy-to-use front plate designed specifically for our Ø1/2", Ø1.0", and Ø2.0" pellicle beamsplitters. The front plates come equipped with two clearance slots that accommodate the included 2-56 cap screws used to secure the position of the pellicle within the mount. These mounts feature phosphor bronze bushings, high-quality 3/16"-100 TPI or 1/4"-80 TPI adjuster screws (see below for details), and hardened inserts at all key wear locations. All adjusters can be actuated using a HKTS-5/64 hex key thumbscrew or other 5/64" hex key. An optional accessory, the LN19100 or LN2580 bronze locking nuts, are available to lock the 3/16"-100 TPI or 1/4"-80 adjusters, respectively, once the desired position is reached. The Ø1/2" version features 8-32 or M4 x 0.7 tapped mounting holes, while the Ø1" and Ø2" versions feature #8 (M4) counterbores for post mounting. The mounts are fabricated from black anodized aluminum.

Item #Angular RangeResolutionAdjustment ScrewsMounting
KM05BP ±4° 13 mrad (0.75°) per rev 2 x 3/16"-100 TPI Two 8-32 or M4 x 0.7 (/M version) Tapped Mouting Holes
KM100BP ±4° 8 mrad (0.5°) per rev 2 x 1/4"-80 TPI Two #8 (M4) Counterbored Through Holes
KM200BP ±3° 5 mrad (0.3°) per rev 2 x 1/4"-80 TPI Two #8 (M4) Counterbored Through Holes

Posted Comments:
No Comments Posted
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
KM05BP Support Documentation
KM05BPKinematic Pellicle Mount for KM05 series.
$68.45
Today
+1 Qty Docs Part Number - Universal Price Available
KM100BP Support Documentation
KM100BPKinematic Pellicle Mount for KM100 Series
$86.03
Today
KM200BP Support Documentation
KM200BPKinematic Pellicle Mount for KM200 Series
$117.96
Today
+1 Qty Docs Part Number - Metric Price Available
KM05BP/M Support Documentation
KM05BP/MKinematic Mount for KM05 series.
$68.45
Today
