AR-Coated, N-BK7 Ground Glass Diffusers


  • AR-Coated for 350 - 700 nm or 650 - 1050 nm
  • Unmounted Diffusers Offered in 120, 220, 600, and 1500 Grit Polishes
  • Polished for Greater Uniformity than Sand Blasting

DG10-120-A

DG10-1500-B

AR-Coated Transfusers Provide Enhanced Transmission Compared to Their Uncoated Counterparts

Related Items


Please Wait
Diffuser Selection Guide
Ground Glass Diffusers
Standard Diffusers N-BK7 Substrate Unmounted, Uncoated 350 nm to 2.0 µm
Unmounted, AR-Coated 350 nm - 700 nm
650 nm - 1050 nm
Mounted, Uncoated 350 nm - 2.0 µm
UVFS Substrate Unmounted, Uncoated 185 nm - 2.0 µm
Diffuse Reflectors N-BK7 Substrate Unmounted, UV-Enhanced Aluminum Coated 250 nm - 450 nm
Unmounted, Protected Silver Coated 450 nm - 20 µm
Unmounted, Protected Gold Coated 800 nm - 20 µm
Alignment Disks
Engineered Diffusers
Diffuser Kits

Features

  • 1", Unmounted Circular Diffusers
  • One of Two AR Coatings on Both Surfaces:
    • 350 - 700 nm (A Coating)
    • 650 - 1050 nm (B Coating)
  • Substrate Material: N-BK7

Thorlabs' AR-Coated N-BK7 Ground Glass Diffusers can be used in a variety of applications requiring a diffuse Gaussian-like distribution. They are offered in 120, 220, 600, and 1500 grit polishes with an AR coating deposited on both sides for either 350 - 700 nm or 650 - 1050 nm. These diffusers offer improved transmission over their uncoated counterparts (see the Graphs Tab for more details).

Polished diffusers are advantageous over sand blasted diffusers, as the surface has greater uniformity. The various grits provide a range from fine to coarse scattering. A finer grit (e.g., 1500) allows higher transmission, while a coarser grit (e.g., 120) creates a wider diffusion pattern at the expense of transmission. When mounting the diffusers, the grit polished side should face away from the source.

For applications requiring specific divergence angles, spatial distribution of the illumination, and intensity profiles, our engineered diffusers are more suitable. Thorlabs also offers UV Fused Silica Diffusers for applications that extend into the ultraviolet portion of the spectrum.

Common Specifications
Diameter1.00" (25.4 mm)
Diameter Tolerance+0.00 / -0.25 mm
Thickness2.0 mm
Thickness Tolerance±0.2 mm
Clear Aperture>90% of Diameter
Surface Flatness of Smooth Side (@ 633 nm)<4λ
Surface Quality of Smooth Side80-50 Scratch-Dig
Parallelism<3 arcmin
Item #GritAR Coating Range
DG10-120-A120350 - 700 nm
Ravg<0.5%, 0° AOI (Polished Side)a
DG10-220-A220
DG10-600-A600
DG10-1500-A1500
DG10-120-B120650 - 1050 nm
Ravg<0.5%, 0° AOI (Polished Side)a
DG10-220-B220
DG10-600-B600
DG10-1500-B1500
  • The ground side is coated but does not meet this reflectivity specification.

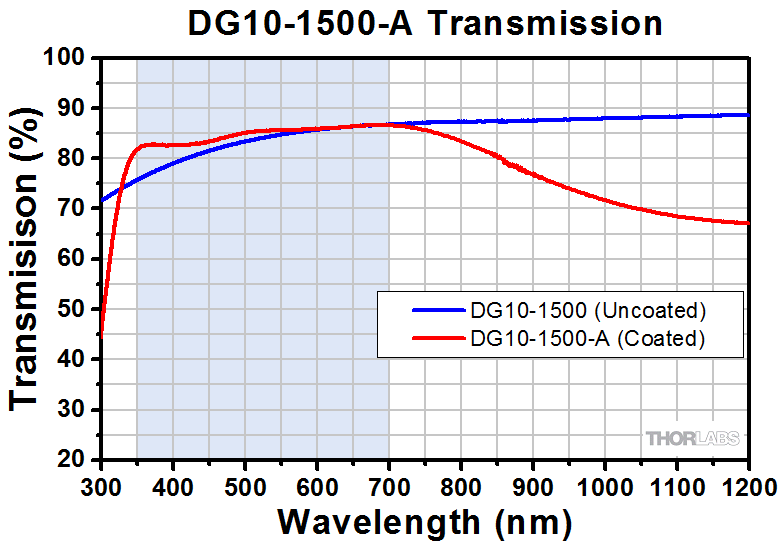

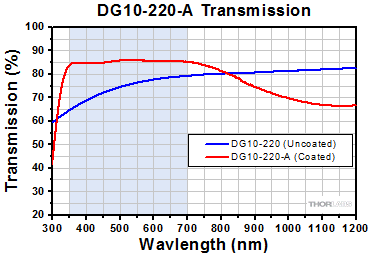

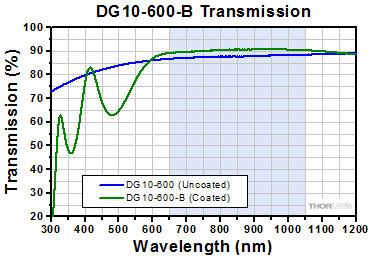

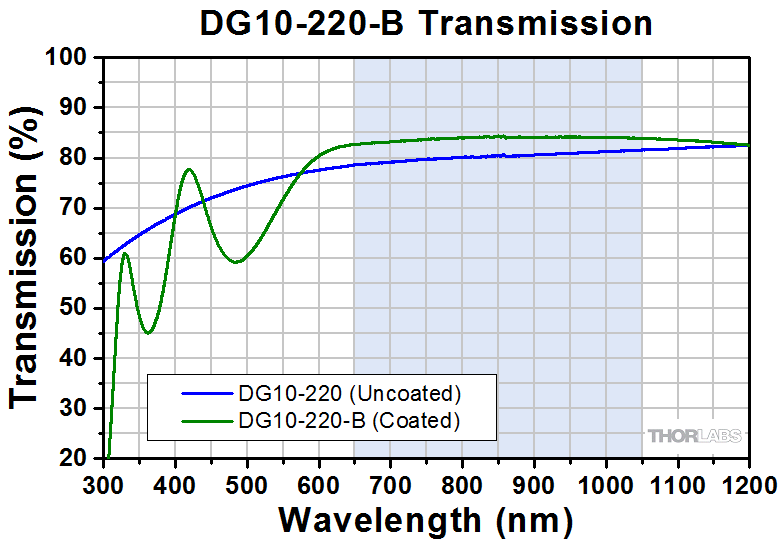

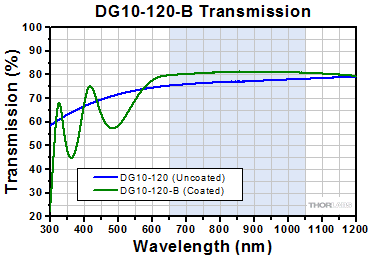

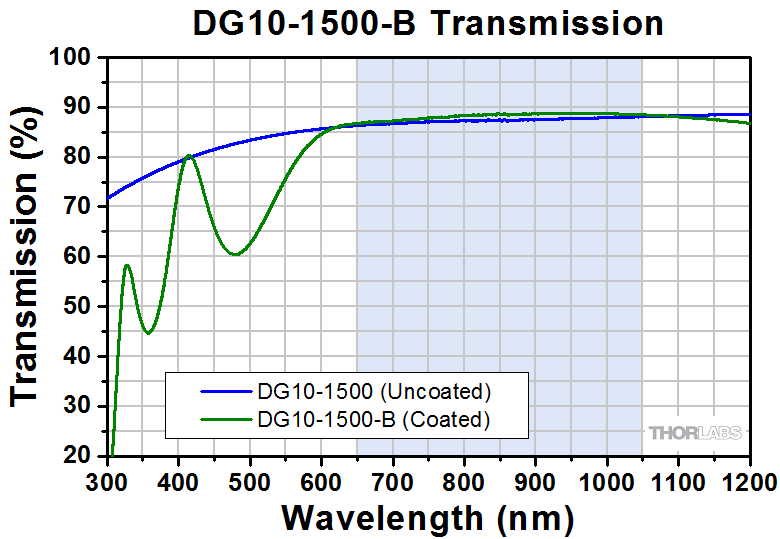

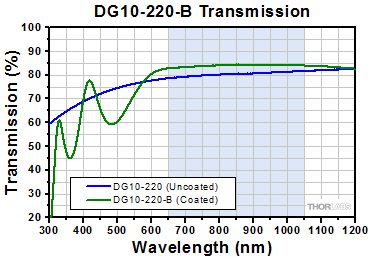

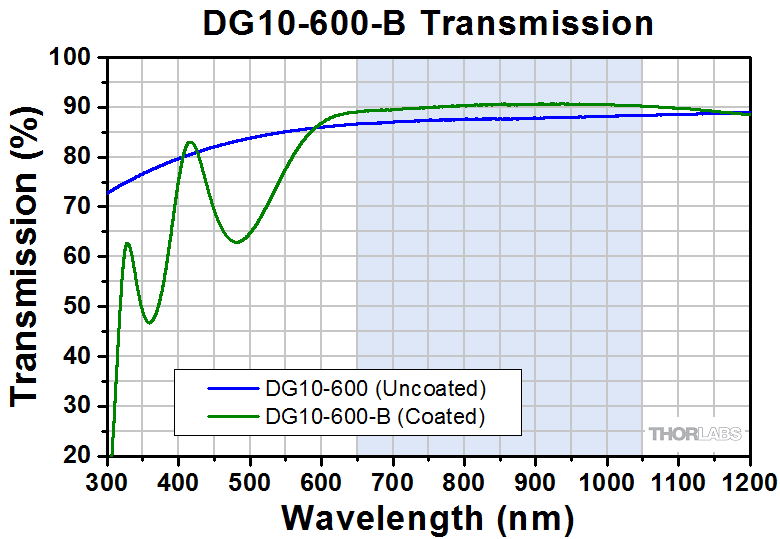

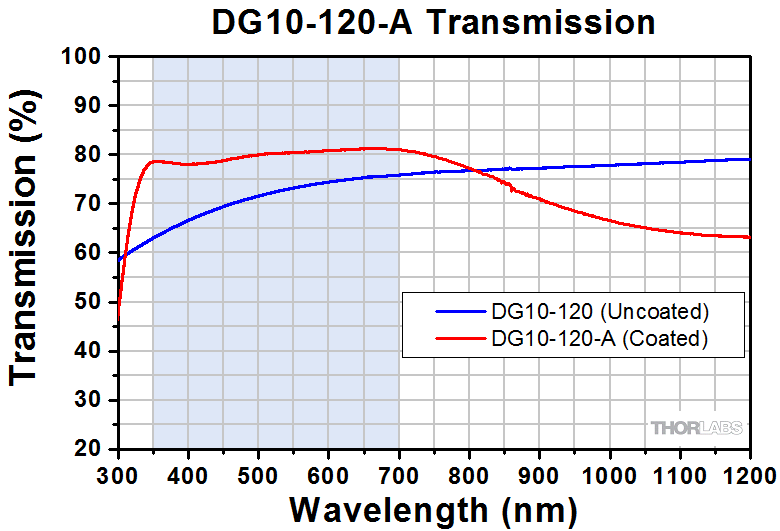

The coated diffusers offer increased transmission over their uncoated counterparts, which are represented by the blue curves in the graphs below. The blue-shaded region represents the wavelength range over which the AR coating is specified. The -A coating is specified for 350 - 700 nm and the -B coating for 650 - 1050 nm. Please note that the transmission values are affected by the manner in which the data is collected. An integrating sphere is used along with a spectrometer, and as the grit values get smaller the light is more dispersed, making it difficult to collect all of the light into the spectrometer. Therefore, lower grit values will appear to have a lower transmission.
