Magnesium Fluoride Plano-Convex Lenses, Uncoated

Wavelength Range: 200 nm - 6 µm Uncoated
Average Transmission >90% from 200 nm to 6 µm
Extremely Durable and Rugged in the UV to the IR

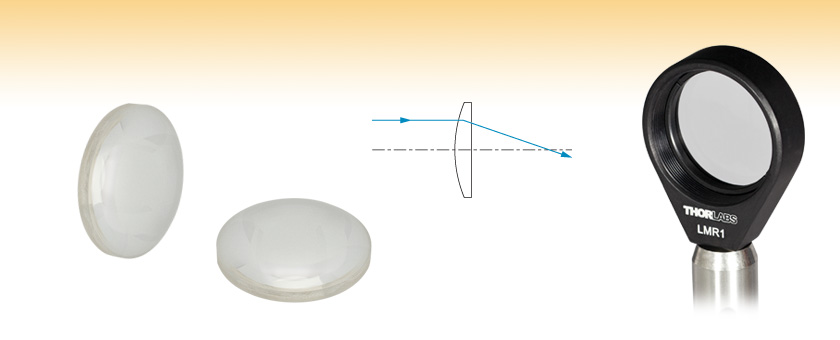

LA6002

LA6004 Lens Shown Mounted
in an LMR1 Fixed Lens Mount

Related Items

Please Wait

Overview
Graphs
Mounting Options
Feedback

Specifications
Material	Vacuum-Grade Magnesium Fluoride
Wavelength Range	200 nm - 6 μm
Diameter Tolerance	+0.00/-0.10 mm
Thickness Tolerance	±0.2 mm
Focal Length Tolerance	±2% at 633 nm
Surface Quality	40-20 Scratch-Dig
Surface Flatness (Plano Side)	λ/2
Spherical Surface Power^a(Convex Side)	3λ/2
Surface Irregularity (Peak to Valley)	λ/4
Centration	≤3 arcmin
Clear Aperture	>90% of Diameter
Alignment of C-Axis	<20 armin
Index of Refraction	1.376981 @ 630 nm
Coating	None

Click Link for Detailed Specifications on the Substrate
Much like surface flatness for flat optics, spherical surface power is a measure of the deviation between the surface of the curved optic and a calibrated reference gauge, typically for a 633 nm source, unless otherwise stated. This specification is also commonly referred to as surface fit.

Zemax Files
Click on the red Document icon next to the item numbers below to access the Zemax file download. Our entire Zemax Catalog is also available.

Features

Wavelength Range: 200 nm - 6.0 μm
Material: Vacuum-Grade MgF₂

Thorlabs' MgF₂ Plano-Convex lenses are popular for many applications in the UV and IR. These lenses are an ideal choice for applications from 200 nm to 6.0 μm. Magnesium Fluoride is extremely durable in comparison to other materials that reach this far down into the UV or out into the IR. The C-axis is oriented to minimize birefringence.

Plano-Convex lenses have a positive focal length and approach best form for infinite and finite conjugate applications. These lenses focus a collimated beam to the back focus and collimate light from a point source. They are designed with minimal spherical aberration and have a focal length which can be calculated using a simplified thick lens equation:

f= R/(n-1),

where n is the index of refraction and R is the radius of curvature of the lens surface. To minimize the introduction of spherical aberration, a collimated light source should be incident on the curved surface of the lens when being focused and a point light source should be incident on the planar surface when being collimated.

Plano-Convex Lens kits are also available - please click here for information.

Selection Guide

Magnesium Fluoride Lenses

Other MIR Lenses

Other Spherical Singlets

Transmission Curve for Magnesium Fluoride: 10 mm Thick Uncoated Sample, Surface Reflections are Included in the Transmission Plot

Transmission Curve for Magnesium Fluoride
Click to Enlarge
Click here for raw data.

Click to Enlarge
CXY1 Translation Mount and
SM1 Lens Tube Mounted in a
30 mm Cage System

Click to Enlarge
Ø1" Optic Mounted in a
ST1XY-S XY Translator

Click to Enlarge
LMR1 Fixed Mount with Ø1" Lens

Click to Enlarge
LM2XY Translating Mount with Ø2" Lens

Recommended Mounting Options for Thorlabs Lenses
Item #		Mounts for Ø2 mm to Ø10 mm Optics
Imperial	Metric	Mounts for Ø2 mm to Ø10 mm Optics
(Various)		Fixed Lens Mounts and Mini-Series Fixed Lens Mounts for Small Optics, Ø5 mm to Ø10 mm
(Various)		Small Optic Adapters for Use with Standard Fixed Lens Mounts, Ø2 mm to Ø10 mm
Item #		Mounts for Ø1/2" (Ø12.7 mm) Optics
Imperial	Metric	Mounts for Ø1/2" (Ø12.7 mm) Optics
LMR05	LMR05/M	Fixed Lens Mount for Ø1/2" Optics
MLH05	MLH05/M	Mini-Series Fixed Lens Mount for Ø1/2" Optics
LM05XY	LM05XY/M	Translating Lens Mount for Ø1/2" Optics
SCP05		16 mm Cage System, XY Translation Mount for Ø1/2" Optics
(Various)		Ø1/2" Lens Tubes, Optional SM05RRC Retaining Ring for High-Curvature Lenses (See Below)
Item #		Mounts for Ø1" (Ø25.4 mm) Optics
Imperial	Metric	Mounts for Ø1" (Ø25.4 mm) Optics
LMR1	LMR1/M	Fixed Lens Mount for Ø1" Optics
LM1XY	LM1XY/M	Translating Lens Mount for Ø1" Optics
ST1XY-S	ST1XY-S/M	Translating Lens Mount with Micrometer Drives (Other Drives Available)
CXY1		30 mm Cage System, XY Translation Mount for Ø1" Optics
(Various)		Ø1" Lens Tubes, Optional SM1RRC Retaining Ring for High-Curvature Lenses (See Below)
Item #		Mount for Ø1.5" Optics
Imperial	Metric	Mount for Ø1.5" Optics
LMR1.5	LMR1.5/M	Fixed Lens Mount for Ø1.5" Optics
(Various)		Ø1.5" Lens Tubes, Optional SM1.5RR Retaining Ring for Ø1.5" Lens Tubes and Mounts
Item #		Mounts for Ø2" (Ø50.8 mm) Optics
Imperial	Metric	Mounts for Ø2" (Ø50.8 mm) Optics
LMR2	LMR2/M	Fixed Lens Mount for Ø2" Optics
LM2XY	LM2XY/M	Translating Lens Mount for Ø2" Optics
CXY2		60 mm Cage System, XY Translation Mount for Ø2" Optics
(Various)		Ø2" Lens Tubes, Optional SM2RRC Retaining Ring for High-Curvature Lenses (See Below)
Item #		Adjustable Optic Mounts
Imperial	Metric	Adjustable Optic Mounts
LH1	LH1/M	Adjustable Mount for Ø0.28" (Ø7.1 mm) to Ø1.80" (Ø45.7 mm) Optics
LH2	LH2/M	Adjustable Mount for Ø0.77" (Ø19.6 mm) to Ø2.28" (Ø57.9 mm) Optics
VG100	VG100/M	Adjustable Clamp for Ø0.5" (Ø13 mm) to Ø3.5" (Ø89 mm) Optics
SCL03	SCL03/M	Self-Centering Mount for Ø0.15" (Ø3.8 mm) to Ø1.77" (Ø45.0 mm) Optics
SCL04	SCL04/M	Self-Centering Mount for Ø0.15" (Ø3.8 mm) to Ø3.00" (Ø76.2 mm) Optics
LH160C	LH160C/M	Adjustable Mount for 60 mm Cage Systems, Ø0.50" (Ø13 mm) to Ø2.00" (Ø50.8 mm) Optics
SCL60C	SCL60C/M	Self-Centering Mount for 60 mm Cage Systems, Ø0.15" (Ø3.8 mm) to Ø1.77" (Ø45.0 mm) Optics

Mounting High-Curvature Optics

Thorlabs' retaining rings are used to secure unmounted optics within lens tubes or optic mounts. These rings are secured in position using a compatible spanner wrench. For flat or low-curvature optics, standard retaining rings manufactured from anodized aluminum are available from Ø5 mm to Ø4". For high-curvature optics, extra-thick retaining rings are available in Ø1/2", Ø1", and Ø2" sizes.

Extra-thick retaining rings offer several features that aid in mounting high-curvature optics such as aspheric lenses, short-focal-length plano-convex lenses, and condenser lenses. As shown in the animation to the right, the guide flange of the spanner wrench will collide with the surface of high-curvature lenses when using a standard retaining ring, potentially scratching the optic. This contact also creates a gap between the spanner wrench and retaining ring, preventing the ring from tightening correctly. Extra-thick retaining rings provide the necessary clearance for the spanner wrench to secure the lens without coming into contact with the optic surface.

Posted Comments:
christian.zimmermann (posted 2016-08-05 11:17:53.79) Hei, can you tell me, if the MgF2 lenses can be used for low Temperature applications (down to ca. 30 K)? Best regards, Christian Zimmermann

Ø1" MgF₂ Plano-Convex Lenses

Item #	Diameter	Focal Length				Radius of Curvature	Center Thickness	Edge Thickness^a	Back Focal Length	Reference Drawing
Item #	Diameter	200 nm	486 nm	633 nm	2.0 µm	Radius of Curvature	Center Thickness	Edge Thickness^a	Back Focal Length	Reference Drawing
LA6002	1"	44.7 mm	49.7 mm	50.1 mm	51.4 mm	18.9 mm	6.9 mm	2.0 mm	45.0 mm
LA6004	1"	66.8 mm	74.4 mm	75 mm	76.9 mm	28.3 mm	5.0 mm	2.0 mm	71.4 mm
LA6005	1"	89.3 mm	99.4 mm	100.3 mm	102.8 mm	37.8 mm	4.3 mm	2.1 mm	97.1 mm
LA6006	1"	133.8 mm	148.9 mm	150.1 mm	153.9 mm	56.6 mm	3.2 mm	1.8 mm	147.7 mm
LA6007	1"	178.2 mm	198.3 mm	200 mm	205.0 mm	75.4 mm	3.2 mm	2.1 mm	197.7 mm
LA6008	1"	222.9 mm	248 mm	250.1 mm	256.4 mm	94.3 mm	2.8 mm	1.9 mm	248.0 mm
LA6009	1"	445.5 mm	495.8 mm	500 mm	512.5 mm	188.5 mm	2.6 mm	2.2 mm	498.1 mm
LA6010	1"	891.1 mm	991.6 mm	1000 mm	1024.9 mm	377.0 mm	2.4 mm	2.2 mm	998.3 mm

Suggested Fixed Lens Mounts: LMR1(/M)

Edge Thickness prior to chamfer (0.2 mm at 45° typical).

Calcium Fluoride	Plano-Convex	Uncoated (0.18 - 8.0 µm)
		D Coated (1.65 - 3.0 µm)
		E Coated (2 - 5 µm)
	Bi-Convex	Uncoated (0.18 - 8.0 µm)
	Bi-Convex	E Coated (2 - 5 µm)
	Plano-Concave	Uncoated (0.18 - 8.0 µm)
	Plano-Concave	E Coated (2 - 5 µm)
	Bi-Concave	Uncoated (0.18 - 8.0 µm) E Coated (2 - 5 µm or 3 - 5 µm)
	Positive Meniscus	Uncoated (0.18 - 8.0 µm)
	Positive Meniscus	E Coated (2 - 5 µm)
	Negative Meniscus	Uncoated (0.18 - 8.0 µm)
	Negative Meniscus	E Coated (2 - 5 µm)
Zinc Selenide	Plano-Convex	E4 Coated (2 - 13 µm)
		E2 Coated (4.5 - 7.5 µm)
		E3 Coated (7 - 12 µm)
	Bi-Convex	E3 Coated (7 - 12 µm)
	Plano-Concave	E4 Coated (2 - 13 µm)
		E2 Coated (4.5 - 7.5 µm)
		E3 Coated (7 - 12 µm)
	Bi-Concave	E3 Coated (7 - 12 µm)
	Positive Meniscus	F Coated (8 - 12 µm)
	Negative Meniscus	F Coated (8 - 12 µm)
Barium Fluoride	Plano-Convex	E Coated (2 - 5 µm)
Silicon	Plano-Convex	E Coated (2 - 5 µm)
Germanium	Plano-Convex	E3 Coated (7 - 12 µm)
