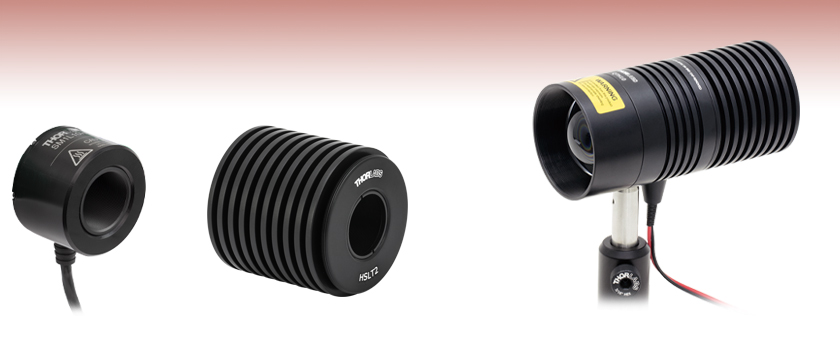

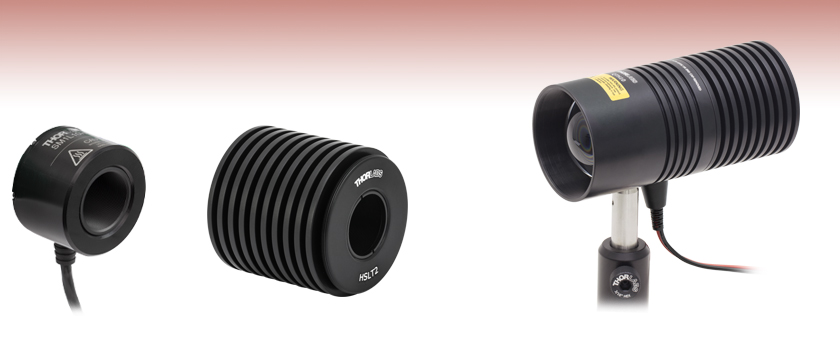

Temperature-Controlled and Heat-Sink Lens Tubes


  • Temperature-Controlled Lens Tube for Temperature-Sensitive Optical Components
  • Passive-Heat-Sink Lens Tubes with 0.25 °C/W Thermal Resistance
  • Compatible with Our SM1 Lens Tubes

SM1L10H

Temperature-Controlled
Lens Tube

HSLT2

Passive-Heat-Sink
Lens Tube

Application Idea

SM1L10H

Temperature-Controlled
Lens Tube Connected to a
TC200 Temperature Controller

Related Items


Please Wait

Features

  • Temperature-Controlled Lens Tube for Heating Ø1" Optical Components
  • Lens Tubes with Passive Heat Sink for Cooling Ø1" Optics
  • Directly Compatible with SM1-Threaded (1.035"-40) Lens Tubes

Thorlabs offers lens tubes featuring controlled heating and passive cooling. The SM1L10H Temperature-Controlled Lens Tube can heat Ø1" optics up to 75 °C, which is ideal for tuning the performance of temperature-sensitive components and preventing condensation from forming on a lens surface. This lens tube is also equipped with an embedded NTC 10 kΩ thermistor that provides temperature feedback and automatic temperature control with the compatible TC200 Temperature Controller (sold separately).

For cooling Ø1" optical components exposed to large amounts of heat, our HSLT2 Passive-Heat-Sink Lens Tube features a low 0.25 °C/W thermal resistance with an exposed surface area of 79 square inches (510 cm2) and is directly compatible with SM1 or SM2 Lens Tubes.


Posted Comments:
No Comments Posted

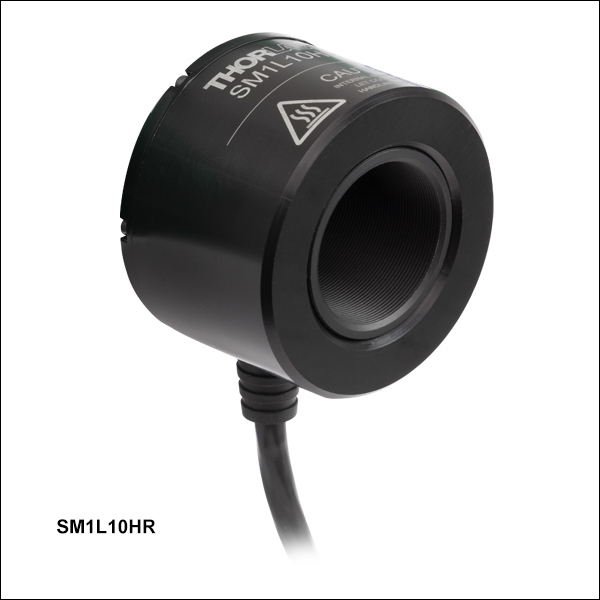

Temperature-Controlled Lens Tube

  • SM1 Lens Tube Featuring Controlled Heating for Ø1" Optics
  • Embedded NTC 10 kΩ Thermistor Provides Temperature Feedback
  • Directly Compatible with Our SM1-Threaded (1.035"-40) Lens Tubes

The SM1L10H Temperature-Controlled Lens Tube is a small heating device that is compatible with our Ø1" Lens Tubes. It is an ideal choice for applying heat to mounted optics in order to control their performance as a function of temperature. It can also be used to prevent condensation from forming on optics.

Optics can be secured inside the heating chamber with the included SM1RR retaining ring. The SM1L10H contains an embedded NTC 10 kΩ thermistor that provides temperature feedback and allows automated control of the internal heating element. It is directly compatible with our TC200 Temperature Controller.

The temperature-controlled lens tube can be post mounted using an SMR1(/M) Fixed Lens Mount.

Specifications
Temperature Range Room Ambient to 75 °C Max
External Dimensions Ø1.85" x 1.43" Long
(Ø47 mm x 36 mm Long)
Clear Aperture Ø0.90" (Ø22 mm)
Temperature Sensor NTC 10 kΩ Thermistor
(BETA = 3750)
Heater Resistance 19.7 Ω ± 10%
Maximum Heating Capacity 30 Watts
Maximum Heater Current 700 mA (@ 10 W)
Compatible Lens Tube SM1 (1.035"-40)
Recommended Heater Controller TC200(-EC)
Temperature-Controlled Lens Tube
Click to Enlarge

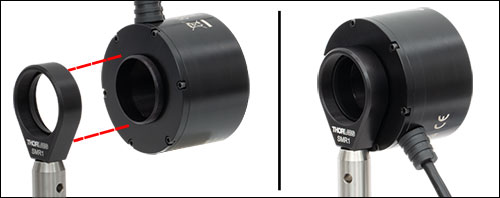

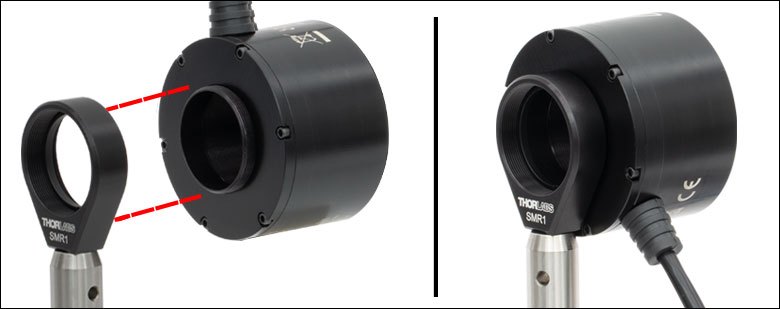

SM1L10H Mounted to a Ø1/2" Post via an SMR1 Fixed Mount
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
SM1L10H Support Documentation
SM1L10HTemperature-Controlled SM1 Lens Tube, One SM1RR Retaining Ring Included
$271.32
Today

Passive-Heat-Sink Lens Tube

Transmission of Uncoated N-BK7
Click for Details
View Imperial Product List
Item #QtyDescription
QTH101Quartz Tungsten-Halogen Lamp, 8-32 Tap
HSLT21Passive-Heat-Sink SM1 Lens Tube with External SM2 Threads, Two SM1RR Retaining Rings Included
SM1PL1Externally SM1-Threaded Plug
TR31Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 3"
PH21Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 2"
BA21Mounting Base, 2" x 3" x 3/8"
View Metric Product List
Item #QtyDescription
QTH10/M1Quartz Tungsten-Halogen Lamp, M4 Tap
HSLT21Passive-Heat-Sink SM1 Lens Tube with External SM2 Threads, Two SM1RR Retaining Rings Included
SM1PL1Externally SM1-Threaded Plug
TR75/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 75 mm
PH50/M1Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=50 mm
BA2/M1Mounting Base, 50 mm x 75 mm x 10 mm

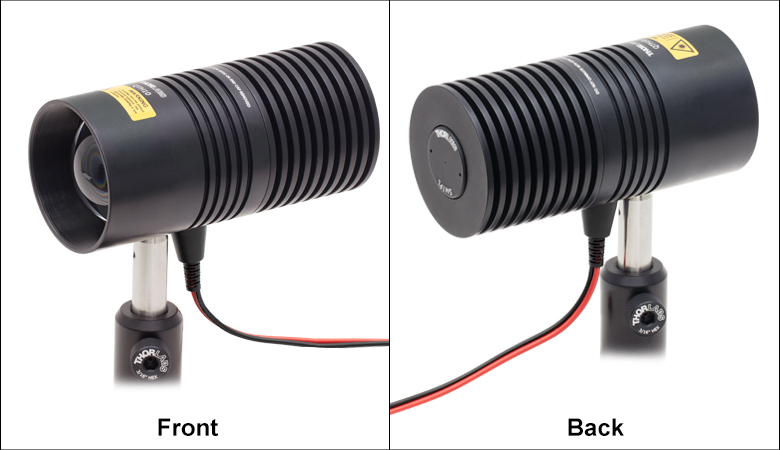

HSLT2 Heat-Sink Lens Tube Secured to a QTH10 Tungsten-Halogen Lamp
  • Lens Tubes Equipped with Heat Sink for Passive Cooling
  • Offers 0.25 °C/W Thermal Resistance Over 2.10" (53.3 mm) Length
  • Internal SM1 (1.035"-40) Threading Directly Compatible with Our Ø1" Lens Tubes
  • External SM2 (2.035"-40) Threading for Compatibility with Our Ø2" Lens Tubes

The HSLT2 Passive-Heat-Sink Lens Tube provides the ability to cool down a lens tube setup that may be subject to an unusual amount of heat. By providing a total surface area of 79 square inches (510 cm2), it provides a thermal resistance of 0.25 °C/W. Ø1" optical components can be mounted into the HSLT2 lens tube using two SM1RR retaining rings (included). This lens tube features internal SM1 threading and external SM2 threading for compatibility with our SM1 and SM2 Lens Tubes, respectively. It can also be mounted to SM05, SM30, or SM3 setups using our Lens Tube Adapters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
HSLT2 Support Documentation
HSLT2Passive-Heat-Sink SM1 Lens Tube with External SM2 Threads, Two SM1RR Retaining Rings Included
$76.50
Today
