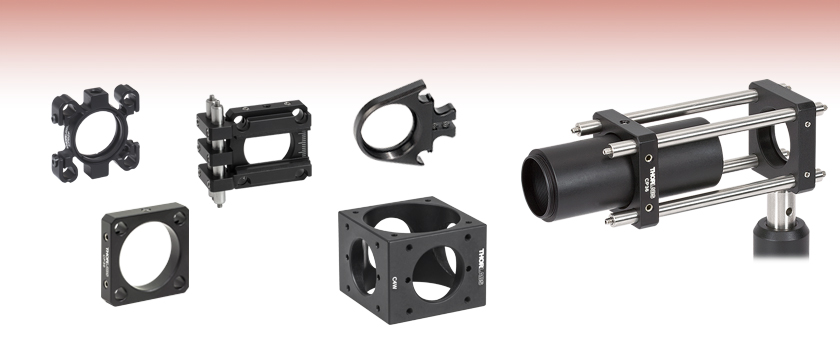

SM1 Lens Tube Compatible Cage Plates


  • Integrate SM1 Lens Tubes and 30 mm Cage Systems
  • Version with Ø1.2" Bore for Slide-In Lens Tube Mounting

CP02F

CP12

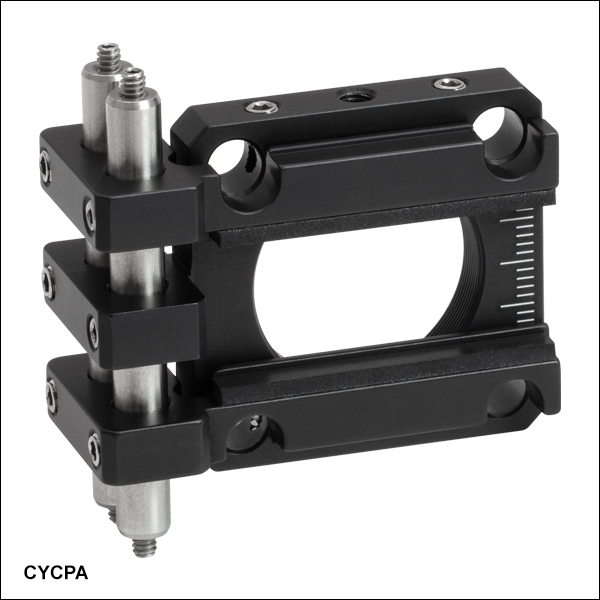

CYCP

QRC1A

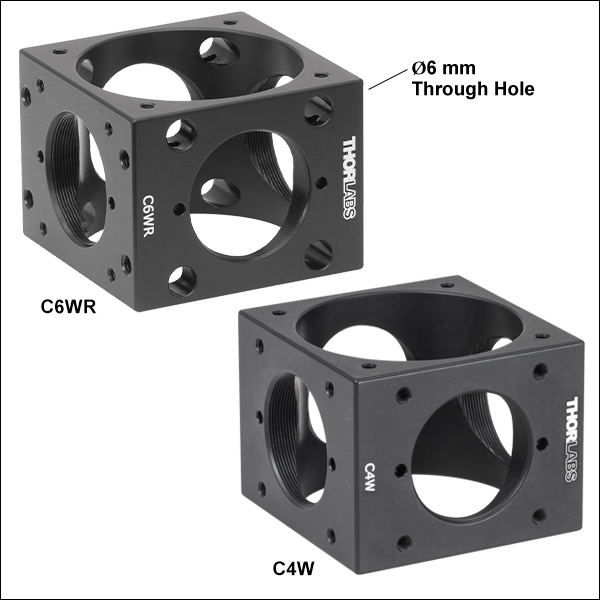

C4W

Application Idea

Related Items


Please Wait
SM-Threaded Cage Plates
SM05 Threaded
SM1 Threaded
SM2 Threaded

Features

SM1-Threaded (1.035"-40) cage plates and cage cubes allow SM1 Lens Tubes to be integrated into 30 mm Cage Systems by threading the lens tube into the plate. Alternatively, the CP12 cage plate has a Ø1.2" bore through the part, which allows an SM1 lens tube to be slid into it and then locked in place.

Thorlabs introduced the SM Series Threading standards to ensure compatibility over a broad range of product lines. SM-Threaded components offer a simple and efficient solution for building optomechanical structures. The SM-Threaded products available, which include lens tubes and cage system components, fixed and kinematic mounts, irises and diaphragms, and mounted optics, provide flexibility when constructing complex optical systems.

This page contains our SM1-Compatible Cage Plates. For a full selection of available Cage Plates, please visit our Cage Systems navigation menu.


Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining  8000
Posted Comments:
No Comments Posted

SM1-Threaded Standard Cage Plates

  • Directly Mounts Optical Components Within a 30 mm Cage System Assembly
  • 2 Thicknesses Available: 0.35" and 0.50"
  • Tapped with Our Standard SM1 Thread (1.035"-40)
  • Post Mountable via 8-32 (M4) Tapped Hole

The CP02(/M) is 0.35" thick and provides a center-located SM1 (1.035"-40) threaded bore that is compatible with our popular Ø1" lens tubes. The center-threaded bore of the CP02(/M) can also directly accept a Ø1" optic up to 0.2" (5 mm) thick. Two SM1RR retaining rings are included. Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key.

The CP02T(/M) is 0.50" thick, and allows two cage assemblies to be joined end-to-end. The extra thickness and double locking 4-40 setscrews enable two extension rods to be inserted and firmly locked into place, allowing for a rigid connection of two cage system subassemblies. The center-located SM1-tapped hole directly accepts Ø1" optics up to 0.35" (8.9 mm) thick. Two SM1RR retaining rings are included.

For additional convenience, an 8-32 (M4) tapped hole is provided on both cage plates for post mounting applications.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CP02 Support Documentation
CP02SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, 8-32 Tap
$16.00
Today
CP02T Support Documentation
CP02TSM1-Threaded 30 mm Cage Plate, 0.50" Thick, 2 Retaining Rings, 8-32 Tap
$21.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CP02/M Support Documentation
CP02/MSM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, M4 Tap
$16.00
Today
CP02T/M Support Documentation
CP02T/MSM1-Threaded 30 mm Cage Plate, 0.50" Thick, 2 Retaining Rings, M4 Tap
$21.00
Today

SM1-Threaded Dual Flexure Cage Plate


Click to Enlarge
The CP02F(/M) Cage Plate offers a 1/4"-20 (M6) tap for mounting on our Ø1" Posts.

Click to Enlarge

Cage rod arms can flex to compensate for cage rod misalignment due to tolerance stacking.
  • Self-Aligning Cage Rod Arms Eliminate Cage Plate Binding
  • Tapped with Our Standard SM1 Thread (1.035"-40)
  • Directly Mounts Optical Components Within a 30 mm Cage System Assembly
  • Post Mountable via 8-32 (M4) and 1/4"-20 (M6) Tapped Holes

The CP02F(/M) Flexure Cage Plate features a flexure arm design for locking onto 30 mm cage rods. This design compensates for the tolerance stacking effects common in cage systems, ensuring that the cage plate never binds or sticks within a constructed cage segment. The cage plate's orthogonal flexure arms remain rigid when handled, but will flex slightly to provide compensation for rod misalignment when installed within a constructed cage segment. This unique feature is illustrated in the diagram to the right. In contrast with the standard setscrew retention method of the CP02 Cage Plate, each CP02F arm clamps onto cage rods using a separate flexure clamp that increases holding force and cage plate rigidity.

Like our our CP02(/M) cage plate, it is 0.35" thick and provides a center-located SM1 (1.035"-40) threaded bore that is compatible with our popular Ø1" lens tubes. The center-threaded bore of the CP02F(/M) can also directly accept a Ø1" optic up to 0.19" (4.8 mm) thick. Two SM1RR retaining rings are included. The cap screw on each flexure cage rod through hole can be tightened using a 5/64" (2.0 mm) hex key or Thorlabs' HKTS-5/64 Hex Key Thumbscrews.

For additional convenience, 8-32 (M4) and 1/4"-20 (M6) tapped holes are provided on opposite sides of the cage plate for post mounting applications. For Ø1" optics thicker than 0.125" (3.2 mm), we offer the CP06F(/M) Cage Plate with a Ø1" Double Bore.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CP02F Support Documentation
CP02FNEW!SM1-Threaded 30 mm Flexure Cage Plate, 0.35" Thick, 2 Retaining Rings, Imperial
$19.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CP02F/M Support Documentation
CP02F/MNEW!SM1-Threaded 30 mm Flexure Cage Plate, 0.35" Thick, 2 Retaining Rings, Metric
$19.00
Today

SM1-Threaded Cage Plate with Flexure Clamps

  • Directly Mounts Bulk Optics Within a 30 mm Cage System Assembly
  • Tapped with Our Standard SM1 Thread (1.035"-40)
  • Post Mountable Via 8-32 (M4) Tapped Hole
  • Thickness: 0.35"

The CP08(/M) Cage Plate provides a more stable clamping mechanism for cage rods than our popular CP02(/M) Cage Plate. It also offers a center-located SM1 (1.035"-40) threaded bore and 8-32 (M4) mounting hole. This cage plate uses a flexure clamping mechanism that increases the surface area in contact with the ER rods. The CP08(/M) uses four side-located 3/32" (2.5 mm) hex cap screws with for securing the cage rods. The central bore of the CP08(/M) can also directly accept a Ø1" optic up to 0.2" (5 mm) thick using two SM1RR retaining rings. One SM1RR retaining ring is included.

Thorlabs also offers the CP02F(/M) Flexure Cage Plate (sold above) with self-aligning cage rod arms that eliminate cage plate binding.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CP08 Support Documentation
CP08SM1-Threaded 30 mm Cage Plate with Flexure Clamping, 1 Retaining Ring, 8-32 Tap
$19.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CP08/M Support Documentation
CP08/MSM1-Threaded 30 mm Cage Plate with Flexure Clamping, 1 Retaining Ring, M4 Tap
$19.00
Today

SM1-Threaded 30 mm Cage Plate, Not Post Mountable

  • Directly Mounts Optical Components Within a 30 mm Cage System Assembly
  • 3 Thicknesses Available: 4 mm, 6 mm, and 8 mm
  • Tapped with Our Standard SM1 Thread (1.035"-40)
  • Not Post Mountable

At 4 mm, 6 mm, and 8 mm thick, respectively, the CP4S, CP6S, and CP8S are the thinnest cage plates we offer. They have a center-located SM1 (1.035"-40) threaded bore that is compatible with our SM1 threaded optomechanical components. These plates allow the close spacing of optical components within a cage system. Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key. Unlike the CP02(/M) and the CP02T(/M) sold above, these cage plates do not offer an 8-32 (M4) tapped hole for post mounting.

Pictured to the right is the CP4S cage plate being used to mount a SM1FC FC/PC Fiber Adapter Plate within a cage system.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CP4S Support Documentation
CP4SCustomer Inspired!SM1-Threaded 30 mm Cage Plate, 4 mm Thick
$17.65
Today
CP6S Support Documentation
CP6SCustomer Inspired!SM1-Threaded 30 mm Cage Plate, 6 mm Thick
$18.20
Today
CP8S Support Documentation
CP8SCustomer Inspired!SM1-Threaded 30 mm Cage Plate, 8 mm Thick
$18.50
Today

30 mm Cage Plate with Ø1.2" Bore


Click for Details
View Imperial Product List
Item #QtyDescription
Imperial Product List
PH31Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 3"
TR1.51Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 1.5"
CP12130 mm Cage Plate, Ø1.2" Double Bore for SM1 Lens Tube Mounting
CP021SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, 8-32 Tap
SM1L301SM1 Lens Tube, 3.00" Thread Depth, One Retaining Ring Included
ER4-P41Cage Assembly Rod, 4" (101.6 mm) Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
Metric Product List
PH75/M1Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=75 mm
TR40/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 40 mm
CP12130 mm Cage Plate, Ø1.2" Double Bore for SM1 Lens Tube Mounting
CP02/M1SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, M4 Tap
SM1L301SM1 Lens Tube, 3.00" Thread Depth, One Retaining Ring Included
ER4-P41Cage Assembly Rod, 4" (101.6 mm) Long, Ø6 mm, 4 Pack
  • Ø1.2" Bore Supports Outside Diameter of SM1 Lens Tubes and C-Mount Extension Tubes
  • Compatible with 30 mm Cage Systems
  • Nylon-Tipped Setscrew and Double Bore Securely Hold Lens Tubes
  • Not Post Mountable

The CP12 cage plate is designed to allow our SM1 Lens Tubes or C-Mount Extension Tubes to slide into the cage plate and be locked in position with a nylon-tipped setscrew. This is ideal for situations where it is not desirable to thread the lens tube into one of our threaded cage plates. It will also allow our Ø1.2" free-space isolator packages to be integrated into a 30 mm cage system. A double-bore design gives three points of contact for stable and secure mounting. Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key (Item # HK050).

Please note that this cage plate does not feature a tapped mounting hole, unlike many of our other cage plates. Due to the bore size, there would be interference between the threaded stud on our Ø1/2" posts and the clear aperture of the bore. Therefore, this cage plate cannot be used directly with Ø1/2" Posts, and a cage system utilizing this plate must be supported using a different method. For a post-mountable solution, consider our SM1RC or SM1TC lens tube clamps, but note that these parts are not cage compatible.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CP12 Support Documentation
CP12Customer Inspired!30 mm Cage Plate, Ø1.2" Double Bore for SM1 Lens Tube Mounting
$20.00
Today

Ø2" Round Cage Plates (30 mm Cage and SM1 Compatible)

  • Compatible with 30 mm Cage Systems
  • CP07 Offers SM1 (1.035"-40) Internal Threading and Smooth Ø2" Outer Diameter
  • CP07T Offers SM1 (1.035"-40) Internal Threading and SM2 (2.035"-40) External Threads
  • Ideal for Mounting Cage Assemblies in Optomechanical Mounts Designed for Ø2" Optics
  • Not Post Mountable

The CP07 and CP07T are ideal for mounting small cage subassemblies into optomechanical mounts designed for Ø2" optics (such as our KS2 Ø2" kinematic mirror mount) or SM2-series threads (such as our SM2-series lens tubes). Both plates feature an SM1 (1.035"-40) tapped hole for mounting Ø1" optics up to 0.2" (5 mm) thick. Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key. One SM1RR retaining ring is included. Pictured to the right is the CP07T cage plate being used in a 4-axis alignment system that can be used with laser diode modules and fiber collimators.

The CP07 has a smooth Ø2" outer diameter, which works well with Ø2" mounts with a setscrew, while the CP07T has SM2 (2.035"-40) external threads.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CP07 Support Documentation
CP07Ø2" Outer Diameter Round Cage Plate with SM1 Internal Thread (SM1RR Inc.)
$28.00
Today
CP07T Support Documentation
CP07TSM2-Threaded Round Cage Plate with SM1 Internal Thread (SM1RR Inc.)
$29.00
Today

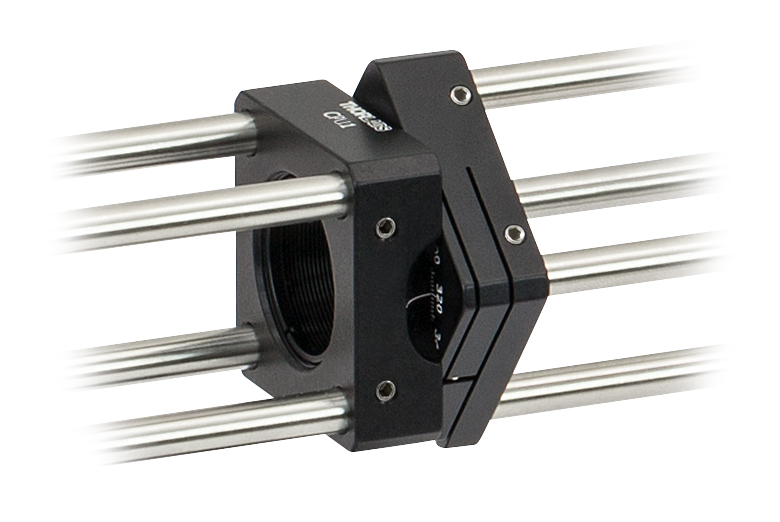

Rotating Cage Plate for 30 mm Cage Systems

CPR1 Application
Click to Enlarge

Rotating 30 mm Cage System
  • Rotates an Entire 30 mm Cage System Subassembly Around a Fixed SM1-Threaded Bore
  • Post Mountable via 8-32 (M4) Tapped Hole
  • Rotation Locked with Flexure Mechanism

Thorlabs' CPR1 30 mm Rotating Cage Segment Plate allows an entire 30 mm cage subsystem to be rotated about the optical axis. The CPR1 consists of two plates: one attaches to a fixed cage segment, while the other rotates all attached cage elements. To rotate a cage segment between two fixed cage segments, two CRP1 plates must be used as shown in the image to the right. The rotating cage segment is ideal for rotating multiple optical elements where the rotation of each element must be the same (e.g., using two cylindrical lenses to change the spatial profile of a laser diode or for multi-element polarization applications).

The rotating cage segment plate features a 1" deep, SM1-threaded (1.035"-40) central bore through the part that remains fixed as the plate is rotated. Two SM1RR retaining rings are provided for direct mounting of optics.

Each side of the cage plate has four blind holes for attaching cage rods, and thus, the cage rods must terminate at this cage plate. Each rod is held in place by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key (Item # HK050). An engraved scale with 2° graduations allows for reliable manual positioning. After the rotation is adjusted, a flexure locking mechanism, which is engaged with a 3/32" hex key, secures the rotation. The fixed side of the cage plate is equipped with an 8-32 (M4) tapped hole for mounting with our Ø1/2" posts.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CPR1 Support Documentation
CPR130 mm Rotating Cage Segment Plate, Two SM1RR Retaining Rings Included
$150.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CPR1/M Support Documentation
CPR1/M30 mm Rotating Cage Segment Plate, Two SM1RR Retaining Rings Included, Metric
$150.00
Today

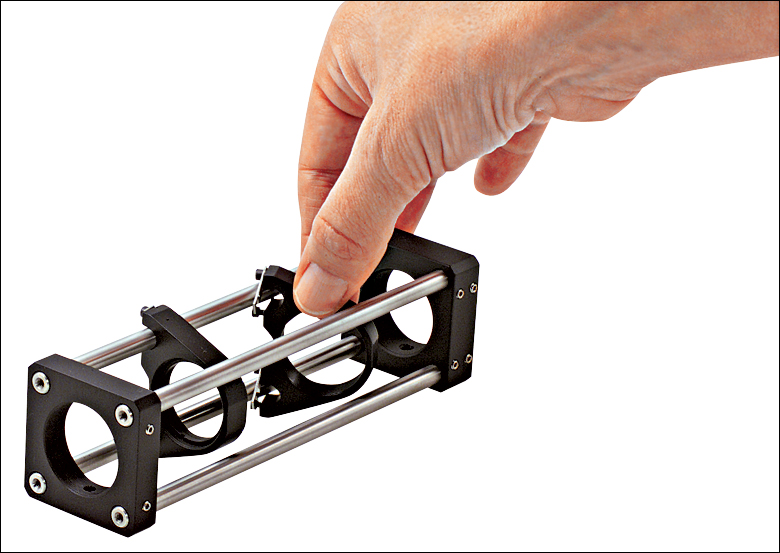

Removable 30 mm Cage Segment

  • Create Removable 30 mm Cage Segments
  • SM1 (1.035"-40) Internal Thread
  • Compatible with 30 mm Cage Systems
  • Available in 0.35" or 0.50" Thick Versions

Thorlabs' 30 mm Removable Cage Segment Plates provide the means to extract a portion of a cage system and replace it with other pre-aligned segments, as illustrated in the photo to the right. These cage plates add versatility to a cage system without disturbing any pre-aligned components while maintaining the rigidity of the cage system. They are equipped with a flexure cam lock to hold the cage plate in position prior to final tightening via the included 4-40 (M3) cap screws. The cage plates may be mounted on our Ø1/2" Posts via an 8-32 (M4) mounting hole.

For additional information, please see the complete product presentation.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CP09 Support Documentation
CP09Customer Inspired!30 mm Removable Segment Cage Plate, 0.35" Thick
$25.00
Today
CP09T Support Documentation
CP09TCustomer Inspired!30 mm Removable Segment Cage Plate, 0.50" Thick
$25.30
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CP09/M Support Documentation
CP09/MCustomer Inspired!30 mm Removable Segment Cage Plate, 0.35" Thick, Metric
$25.00
Today
CP09T/M Support Documentation
CP09T/MCustomer Inspired!30 mm Removable Segment Cage Plate, 0.50" Thick, Metric
$25.30
Today

30 mm to 60 mm Cage Plate Adapter

  • Couples 30 mm and 60 mm Cage Systems
  • Centered SM1 (1.035"-40) Tapped Hole Directly Accepts Ø1" Optics up to 0.35" (9 mm) Thick
  • 8-32 (M4) Tapped Hole for Mounting to Ø1/2" Posts

The LCP02(/M) Cage Plate provides a convenient means for coupling 30 mm and 60 mm cage assemblies via our Ø6 mm ER Cage Rods. The centered SM1 (1.035"-40) tapped hole directly accepts optics up to 0.35" (9 mm) thick (SM1RR retaining rings sold separately). Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key. The LCP02(/M) also has an 8-32 (M4) tapped hole for Ø1/2" post mounting. The surface with the 8-32 (M4) tap is not wide enough to support Ø1" posts.

Additionally, two of these cage plates can be used to straddle a 30 mm cage subassembly in such a way that the entire assembly [LCP02(/M), 30 mm subsystem, and LCP02(/M)] can slide along the 60 mm cage rods as a single optomechanical unit. A 16 mm cage assembly can also be easily integrated by utilizing the SP05 cage plate adapter (sold above).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
LCP02 Support Documentation
LCP0230 mm to 60 mm Cage Plate Adapter, 8-32 Tap
$38.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
LCP02/M Support Documentation
LCP02/MCustomer Inspired!30 mm to 60 mm Cage Plate Adapter, M4 Tap
$38.00
Today

30 mm Cage Plate with Quick-Release Magnetic Plate

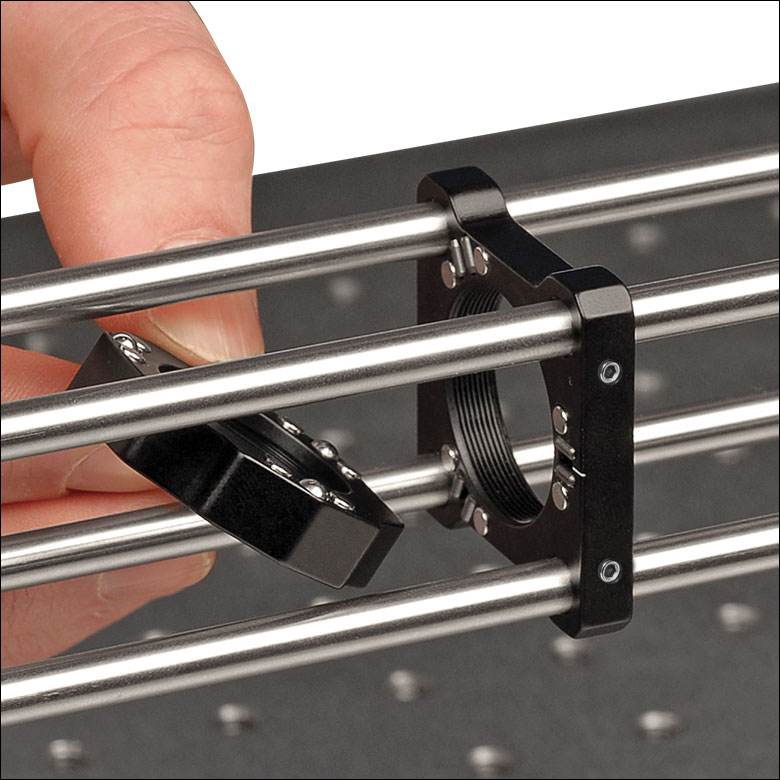

application image of the quick release cage mount
  • 30 mm Cage Compatible Back Plate
  • Magnetically Coupled Mounting Carriage
  • Accepts Ø1" (25.4 mm) Optics up to 0.20" (5.1 mm) Thick
  • Angular Repeatability Better than 1 µrad
  • Lateral Repeatability Better than 10 µm in X, Y, and Z
  • Back Plate and Mounting Carriage Have Internal SM1 Threading
  • One Retaining Ring (SM1RR) Included

The CP90F consists of a back plate compatible with the 30 mm cage system and a mounting carriage (front plate) that is magnetically coupled with pairs of rare earth magnets to the back plate. For stability, precision, and repeatability, the mounting carriage contacts the back plate at three points. Each point of contact is a ball bearing on the mounting carriage resting in the groove formed by two parallel steel pins. Since the axes defined by the three sets of pins share a common point of intersection, the system is properly constrained (kinematic). The mounting carriage can be easily inserted or removed from the fully assembled cage system by separating it from the back plate, rotating it sideways, and then extracting it from the cage.

The internal SM1 threading allows components up to 0.20" (5.1 mm) thick to be secured in the mounting carriage with the included SM1RR retaining ring. Components with external SM1 threading, like the SM1A7 alignment guide, can be threaded onto the mounting carriage. However, components mounted in this way (OD = 1.2" (30 mm)) cannot extend more than 3/16" (4.7 mm) beyond the face of the mounting carriage without sacrificing the ability to remove the mounting carriage and component from a closed cage system. The lateral repeatability specification (10 µm) indicates that the X, Y, and Z position of the mount will not vary by more than 10 µm after being removed and replaced, while the 1 µrad angular repeatability refers to the rotation of the optic not changing by more than 1 µrad.

Both the CP90F and CP90F-B cage rod through holes have side-located locking 4-40 setscrew, which can be secured using a 0.05" hex key.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CP90F Support Documentation
CP90F30 mm Removable Cage Plate, Front and Back Plate, Internal SM1 Threading
$48.00
Today
CP90F-B Support Documentation
CP90F-B30 mm Removable Cage Plate, Back Plate with ER Rod Holes, Internal SM1 Threading
$28.00
Today
CP90F-F Support Documentation
CP90F-F30 mm Removable Cage Plate, Removable Front Plate, Internal SM1 Threading
$28.00
Today

30 mm Cage Mount with Quick-Release Clamp

QRC1A Application
Click to Enlarge
QRC1A Quick-Release Clamp Mounted Within a 30 mm Cage System
  • 30 mm Cage Systems Compatible
  • Dovetail Design Provides Smooth Release and Clamping Action
  • One-Handed Operation
  • Accepts Ø1" (Ø25 mm) Optics up to 0.14" (3.6 mm) Thick
  • SM1 Internal Thread Directly Compatible With Our SM1-Series Components
  • Two Retaining Rings (SM1RR) Included

The QRC1A cage mount is equipped with a spring-loaded dovetail clamp that secures or releases the cage mount to two of the four ER rods in the cage structure. The cage plate has internal SM1 threading that allows for components up to 0.2" (5 mm) thick to be secured with the two included SM1RR retaining ring. This cage plate is compatible with our SM1-threaded (1.035"-40) SM1L03 lens tubes. Addtionally, all of our SM1 threaded ND filters can be used with this cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
QRC1A Support Documentation
QRC1ASM1-Threaded Quick-Release Cage Mount for the 30 mm Cage System
$62.00
Today

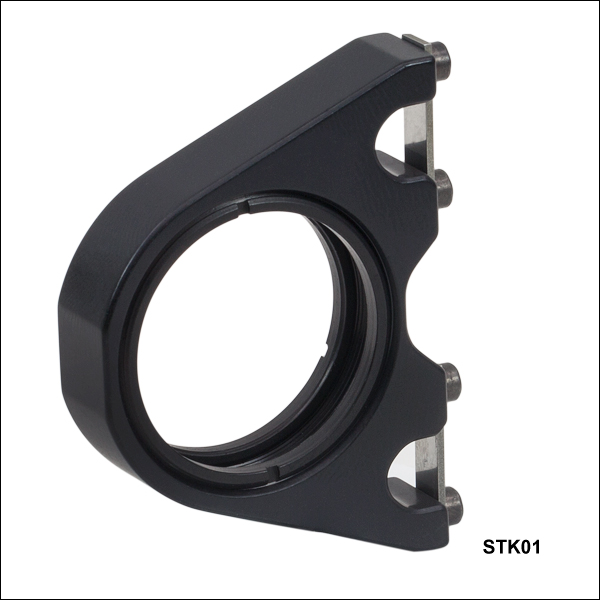

Removable 30 mm Cage Plate

STK01 Application
Click to Enlarge
STK01 Removable 30 mm Cage Plate Being Mounted Within a 30 mm Cage System
  • 30 mm Cage Systems Compatible
  • Easy Placement and Removal of a Ø1" Optic Within an Assembled 30 mm Cage System
  • SM1 (1.035"-40) Tapped Hole Directly Accepts Optics Up to 0.20" (5.1 mm) Thick
  • Two Retaining Rings (SM1RR) Included

The STK01 cage plate allows Ø1" optics to be inserted or removed from a closed 30 mm cage structure. The cage plate uses two bands that are locked in place with four 5/64" (2 mm) hex locking screws. Optics 1" in diameter and up to 0.20" (5 mm) thick can be secured in the cage plate using the included two SM1RR retaining rings. This cage plate is compatible with our SM1-threaded (1.035"-40) SM1L03 lens tubes. Addtionally, all of our SM1 threaded ND filters can be used with this cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
STK01 Support Documentation
STK01Cage Assembly Optic Swapper Plate
$37.00
Today

Cylindrical Lens Mount for 30 mm Cage Systems

This animation depicts various mounting options of the CYCP Cylindrical Lens Mount.

  • Rectangular Optic Mount for 30 mm Cage Systems
  • Two Manually Positioned Arms Hold Optics up to 0.66" (16.8 mm) Tall Within the Cage System
  • Internal SM1 (1.035"-40) Threads Compatible with Ø1" Lens Tubes
  • Graduations at 1 mm Intervals Help with Centration and Repeatability

Thorlabs' Cylindrical Lens Mount for 30 mm Cage Systems is designed to orient a cylindrical lens or another rectangular optic horizontally or vertically within a 30 mm cage system. The lens is effectively clamped between the two sliding arms, each of which is lined with a 1.51" (38.3 mm) long rubber pad and has a lip for resting the plano side of the lens against. The manually positioned arms can hold optics from 0.16" to 0.66" tall (4.0 mm to 16.8 mm) before the arms begin to obscure the through holes for the cage system.

Each arm is secured to the side-mounted 2" long cage rods (Item # ER2) using two 4-40 setscrews that accept a 0.05" (1.3 mm) hex key. The cage plate is tightened to these cage rods by two additional 4-40 setscrews. The cage plate and arms can be moved and locked independently. Hence, by loosening the cage plate while keeping the arms tightened, the user may translate a lens parallel to the cage rods (i.e., in a transverse direction) without disturbing the rest of the cage system. The arms can also be relocated from the front of the cage plate to the back of the cage plate.

For additional information, please see the complete product presentation.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CYCP Support Documentation
CYCP30 mm Cage Mount for Cylindrical Lenses, 8-32 Tap
$80.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CYCP/M Support Documentation
CYCP/M30 mm Cage Mount for Cylindrical Lenses, M4 Tap
$80.00
Today

30 mm Cage to Ø1/2" Post Adapters

  • Mounts Ø1/2" TR Post and Components in a 30 mm Cage System
  • Double-Bored Hole and Locking Thumbscrew Securely Locks Post in Position
  • CP02(/M) Cage-Plate-Style Front Face with SM1-Threaded Through-Hole

Thorlabs' 30 mm cage to Ø1/2" post adapters allow the integration of our post-mounted components into our 30 mm cage system. The front face of this clamp is similar to the CP02(/M) cage plate and accommodates our Ø6 mm ER cage rods which are secured using the side-located locking setscews and are 30 mm apart. The center-located SM1 (1.035"-40) threaded bore, which is compatible with our popular Ø1" lens tubes, directly accepts a Ø1" optic up to 0.19" (4.8 mm) thick. Two SM1RR retaining rings are included.

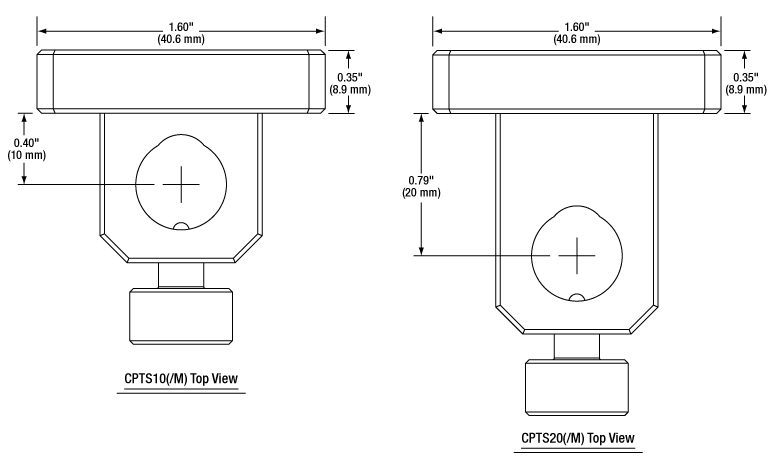

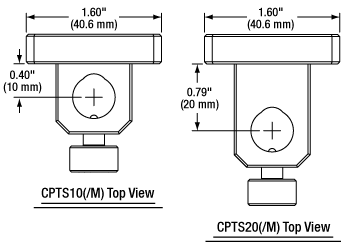

The tail stock of this adapter has a double-bored through-hole and a spring-loaded thumbscrew that provide three-point contact for Ø1/2" posts for secure placement. Two versions are available, providing either 10 mm [CPTR10(/M)] or 20 mm [CPTR20(/M)] separation between the post center and the back of the cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CPTR10 Support Documentation
CPTR10Cage Plate to Ø1/2" Post Adapter, 10 mm Spacing
$34.70
Today
CPTR20 Support Documentation
CPTR20Cage Plate to Ø1/2" Post Adapter, 20 mm Spacing
$34.70
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CPTR10/M Support Documentation
CPTR10/MCage Plate to Ø1/2" Post Adapter, 10 mm Spacing, Metric
$34.70
Today
CPTR20/M Support Documentation
CPTR20/MCage Plate to Ø1/2" Post Adapter, 20 mm Spacing, Metric
$34.70
Today

30 mm Cubes

C6W Application Shot
Click to Enlarge
B4C Platform and the FFM1 Filter Holder Mounted Within the C4W Cube
C6W Application Shot
Click to Enlarge

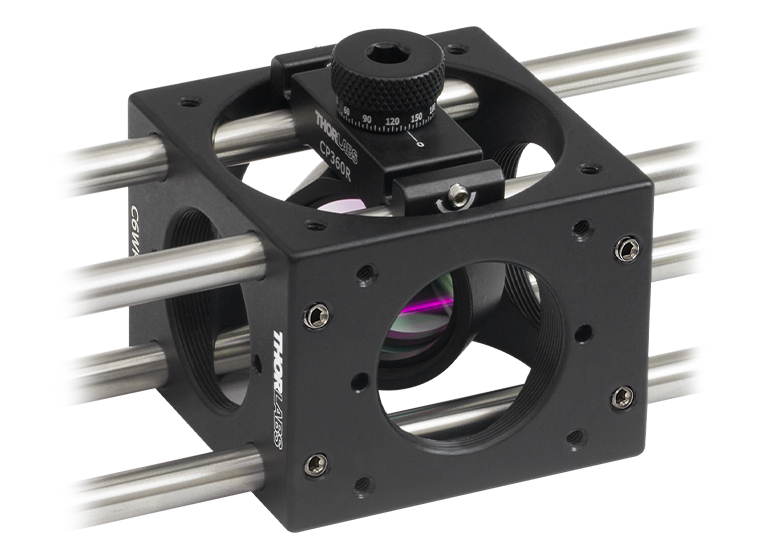

The CP360R Quick-Release Mount for Ø1" Optics Being Used Within the C6W Cube
  • Two Models for 30 mm Cage Systems
  • Two Sides with Ø1.75" (44.5 mm) Through Holes
  • C4W: Four Sides with Four 4-40 Tapped Holes Around an SM1-Threaded Hole
  • C6W: Two Sides with Four 4-40 Tapped Holes and Two Sides with Ø6 mm Clearance Through Holes Around an SM1-Threaded Hole
  • Compatible with Ø6 mm ER Series Cage Rods
  • Compatible with all Accessories Sold on this Page

The C4W offers four planar cube faces with 4-40 tapped holes for mounting cage system rods centered on an SM1 (1.035"-40) threaded hole. The "top" and "bottom" faces of the cube are machined with Ø1.75" (44.5 mm) holes and tapped holes designed for mounting our Cage Cube Plates (featured below).

The C6W offers the same machined face options as the C4W with the exception of two opposing faces machined with Ø6 mm through-holes rather than 4-40 tapped holes. This allows cage rods to pass through the cube, rather than be fastened to it. This unique feature allows the cube to be translated along the cage rods, and then locked in place with the included setscrews.

These cage cubes are compatible with a range of 30 mm Cage Components, including port hole covers and cage cube platforms.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
C4W Support Documentation
C4W30 mm Cage Cube
$57.90
Today
C6W Support Documentation
C6W30 mm Cage Cube, Ø6 mm Through Holes
$61.20
Today

Compact 30 mm Cage Cube for Prisms and Beamsplitter Cubes

BS127CAM Beamsplitter Adapter Mount
Click to Enlarge
BS127CAM Beamsplitter Cube Adapter Mounted in the CM1-4ER Cage Cube (Optic and Adapter Sold Separately)
CM1-4ER
Click to Enlarge
CM1-4ER with Penta Prism (Optic Sold Separately)

These 1.5" wide cage cubes directly accept a 1" square optic, such as a beamsplitter cube or right-angle prism, with adapters available here for mounting a 5 mm (0.20"), 10 mm (0.39"), 12.7 mm (0.50"), or 20 mm (0.79") beamsplitter cube. The base of the cube has an 8-32 (M4) tap to attach to Ø1/2" Posts. The M4 tapped hole on the CCM1-4ER/M is located on the base of the cube providing increased mounting stability. Therefore, the optical beam height of the CM1-4ER and CCM1-4ER/M is 0.94" and 0.75", respectively. Shown to the far right is a 12.7 mm (0.50") beamsplitter cube being mounted in the CM1-4ER using the BS127CAM Beamsplitter Cube Adapter. Two cage cubes can be connected using ER rods and ERSCA Cage Rod Adapters.

The optic is clamped within the cube by tightening three hex screws of a tension plate (see image above), allowing the user to replace the optic with any other compatible optic when necessary. The optic must sit flush against the three corners of the cube base. Do not over tighten the tension plate, this can damage the optic. The image above shows a penta prism mounted in a CM1-4ER with the outer housing removed.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CM1-4ER Support Documentation
CM1-4ERCompact Clamping 4-Port Prism/Mirror 30 mm Cage Cube, 8-32 Tap
$131.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CCM1-4ER/M Support Documentation
CCM1-4ER/MNEW!Customer Inspired!Compact Clamping 4-Port Prism/Mirror 30 mm Cage Cube, M4 Tap
$128.00
Today

30 mm Cage Cube Connector

C4W-CC Application
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
CM1-4ER1Compact Clamping 4-Port Prism/Mirror 30 mm Cage Cube, 8-32 Tap
CM1-CC1Cage Cube Connector for Compact 30 mm Cage Cubes
C4W-CC130 mm Cage Cube Connector for C4W and C6W Series Cubes
C6W130 mm Cage Cube, Ø6 mm Through Holes
C4W130 mm Cage Cube
View Metric Product List
Item #QtyDescription
Metric Product List
CM1-4ER/M1Compact Clamping 4-Port Prism/Mirror 30 mm Cage Cube, M4 Tap
CM1-CC1Cage Cube Connector for Compact 30 mm Cage Cubes
C4W-CC130 mm Cage Cube Connector for C4W and C6W Series Cubes
C6W130 mm Cage Cube, Ø6 mm Through Holes
C4W130 mm Cage Cube
A C4W and C6W Cage Cube connected to a 1.5" wide CM1-4ER Compact Cage Cube using the C4W-CC and CM1-CC Cube Connectors, respectively.
C4W-CC Application
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
C4W-CC130 mm Cage Cube Connector for C4W and C6W Series Cubes
C6W230 mm Cage Cube, Ø6 mm Through Holes
TR41Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 4"
B4C2Kinematic Cage Cube Platform for C4W/C6W
FFM1230-mm-Cage-Compatible Rectangular Filter Mount
ER4-P41Cage Assembly Rod, 4" (101.6 mm) Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
Metric Product List
C4W-CC130 mm Cage Cube Connector for C4W and C6W Series Cubes
C6W230 mm Cage Cube, Ø6 mm Through Holes
TR100/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 100 mm
B4C/M2Kinematic Cage Cube Platform for C4W/C6W, Metric
FFM1230-mm-Cage-Compatible Rectangular Filter Mount
ER4-P41Cage Assembly Rod, 4" (101.6 mm) Long, Ø6 mm, 4 Pack
C4W-CC Connecting Two 2" Wide Cage Cubes
  • Connect Two 2" Wide Cage Cubes Side by Side
  • Connect a 2" Wide Cage Cube to a 1.5" Wide Cage Cube
  • Compatible with C4W and C6W Cage Cubes

The C4W-CC allows our 2" wide 30 mm cage cubes to be connected together as shown in the image to the right. Our C4W and C6W cubes are both compatible with this connector. This connector can also be used to connect one 2" wide 30 mm cage cube, such as our C4W or C6W, with a 1.5" wide 30 mm cage cube.

We also offer the CM1-CC to connect two 1.5" wide cage cubes.

Alignment Pins
Please note that this connector requires drilled holes on the cube face next to the SM1-threaded ports, as the cube connector has alignment pins. If you have an older cube and would like it updated for free, please contact Technical Support. Alternatively, the alignment pins are press-fit inside their mounting holes and can be pressed out for use with un-drilled cubes.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
C4W-CC Support Documentation
C4W-CCCustomer Inspired!30 mm Cage Cube Connector for C4W and C6W Series Cubes
$49.40
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2016 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
