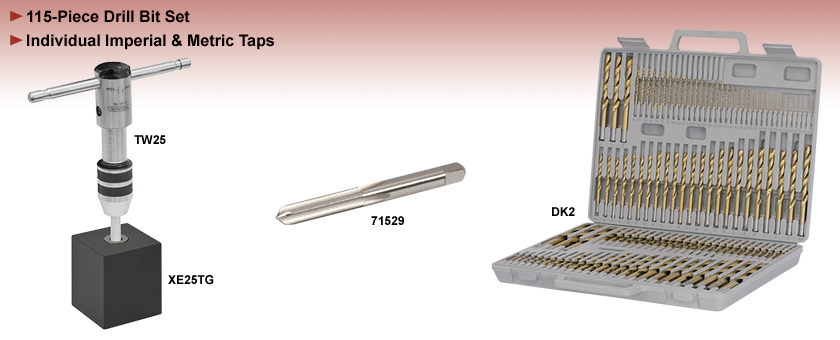

Taps and Drill Bit Kit


  • Individual Imperial & Metric Plug Taps
  • 60-Piece Drill Bit Kit
  • Tap Guides Help Ensure Tapped Holes are
    Perpendicular to Flat Surfaces

TTT001

Tap Guide for Optical Tables and Breadboards

TAP1480

1/4"-80 Tap

TW25

Tap Wrench

DK3

60-Piece Drill Bit Kit

Related Items


Please Wait

Click to Enlarge

The TAPSM1 Imperial Tap for Tapping Thorlabs' SM1 Standard Threads

Click to Enlarge

The TAPSM05 Imperial Tap for Tapping Thorlabs' SM05 Standard Threads

Features

  • Wide Selection of Plug Taps Including Thorlabs' SM05 (0.535"-40) and SM1 (1.035"-40) Standards
  • Drill Kit Includes 60 Drill Bits in an Embossed Steel Case
  • Universal Tap Wrench is an Essential Tool for Custom Applications
  • Table and Breadboard Tapping Guide for Repairing Damaged Tapped Holes

The items on this webpage can be used to add taps in user-selected locations and repair damaged tapped holes on breadboards and optical tables.


Posted Comments:
Chris Betters  (posted 2019-04-08 04:44:40.833)
Can you provide a tap for SMA threads (1/4-32)? Thanks Chris
YLohia  (posted 2019-04-09 03:13:43.0)
Hello Chris, thank you for contacting Thorlabs. Custom taps can be requested by clicking the red "Request Quote" button above or emailing techsupport@thorlabs.com. We will reach out to discuss your requirements.
ghovorka  (posted 2019-01-16 09:57:30.87)
It would be very useful to have a tap for M10.5x0.5 threads. It is a great size for mounting 10mm OD optics with the SM10RR retaining ring, but can't be used as easily for custom mounts without a tap available.
llamb  (posted 2019-01-17 12:02:50.0)
Thank you for your feedback. I have added this idea into our internal product forum for further discussion. We can currently offer the M10.5 x 0.5 plug tap as a special item. I have reached out to you by email directly to discuss this special quote.
kitchinsf  (posted 2018-10-24 16:12:02.7)
It would be helpful to offer a tap guide for ensuring perpendicular taps to the work surface. Since the SM05, SM1, and SM2 are not very common outside of Thor, a tap guide that includes these (at least the SM05 and SM1, SM2 is a bit too large) it would be very helpful. The table tap guide is very useful but is limited in its functionality.
llamb  (posted 2018-11-05 10:48:40.0)
Thank you for your feedback. Tap guides like the TTT001(/M) typically need a flat reference plane like an optical table to fix to first. Most optomechanical parts with SM- threads are rounded or cylindrical, making it difficult to create a standardized tapping guide that fits to all components. We do not recommend hand-tapping these larger threads, but instead recommend using a type of drill press with a clutch for reversing the tap out of the threads.
wenzel.jakob  (posted 2017-12-02 22:26:07.137)
I'm also interested in a tap for SM2 threads. Could you please provide me with a quote? Thank you.
tfrisch  (posted 2017-12-05 01:54:35.0)
Hello, thank you for contacting Thorlabs. We will reach out to you with a quote for an SM2 tap.
pierrick.cheiney  (posted 2017-06-21 13:57:27.263)
Hello, I cannot find a tap for the SM2 threads. Would it be possible to get one? Thanks,
tfrisch  (posted 2017-06-27 11:19:36.0)
Hello, thank you for contacting Thorlabs. We will reach out to you with a quote.
user  (posted 2017-03-15 08:46:56.48)
What tapping depth can each tap achieve?! This is key info that needs to be added to this webpage. Also of interest are: overall length, shank diameter.
tcampbell  (posted 2017-03-23 01:55:10.0)
Response from Tim at Thorlabs: thank you for your feedback. We have added the thread depth and overall length of each tap to the webpage.
ludoangot  (posted 2016-09-26 11:22:33.873)
Hello, it would be very useful and convenient if you could offer precision quality individual drill in the sizes required for the taps you sell.
jlow  (posted 2016-09-29 10:55:03.0)
Response from Jeremy at Thorlabs: Thank you for your feedback, we will look into offering these.
johannes.hohlbein  (posted 2016-06-27 09:37:37.37)
I would also be interested in a tap to match the SM2 lens tube system.
acaballero  (posted 2016-05-10 10:03:46.95)
I could really use a tap to match the SM2 lens tube system.
besembeson  (posted 2016-05-10 04:59:37.0)
Response from Bweh at Thorlabs USA: We can provide this to you. I will follow-up via email.
cbrideau  (posted 2016-01-04 19:09:52.09)
An 8/32 imperial tap would be very useful to complement the M4 metric tap.
besembeson  (posted 2016-01-05 08:26:53.0)
Response from Bweh at Thorlabs USA: We typically stock and provide mostly specialty taps that aren’t easily found as a convenience to those looking to integrate our components in their systems. As #8-32 is a very common thread, its tap can be easily found at local convenient stores or many other places online so we don't stock this.
ghall  (posted 2015-11-24 11:50:45.943)
What style of taps are those? For through holes or bottoming? What class are they in terms of the tolerance/allowance? Specifically looking at the M11x0.5 tap.
besembeson  (posted 2015-12-02 12:12:21.0)
Response from Bweh at Thorlabs USA: This is a 4 flute, straight flute hand tap with a 6H class fit.
cbrideau  (posted 2014-01-13 14:58:47.927)
What would you recommend for drilling out a broken-off cap screw? The stainless steel of the screw is quite hard, so I'm not sure what would have a decent chance of actually boring through it...
jlow  (posted 2014-01-14 02:59:05.0)
Response from Jeremy at Thorlabs: You can use a sharp carbide drill bit for this. You can use a sharp punch and a hammer to create a pilot first. The screw is susceptible to hardening, so once you begin the drill process, you should not stop until you are through the screw. Also, there should be a steady stream of some sort of cutting fluid on the drill bit so it does not get too hot. Your university machine shop or a local machine shop should have this cutting fluid readily available.
user  (posted 2013-11-07 15:40:06.927)
Why not sell the die too?
jlow  (posted 2013-11-11 10:54:51.0)
Response from Jeremy at Thorlabs: We do not stock the dies but we can provide it. Since you did not leave your contact info, can you contact us at techsupport@thorlabs.com to request a quote for the die you are looking? Thanks.
user  (posted 2013-07-15 16:12:23.917)
Worst drill bit set ever!. Tried to drill through copper 1/4" copper and was not able to because the drills are just dull. I would not sell these at all.
cdaly  (posted 2013-07-18 10:15:00.0)
Response from Chris at Thorlabs: Thank you for your feedback. It may be a matter of drill speed and feed. Please contact as at techsupport@thorlabs.com to discuss the conditions further.
nejbauer  (posted 2013-03-19 07:25:05.243)
Hi, Do you have taps for imperial thread 8-32, which is very popular in your products? Best regards, Michal Nejbauer
tcohen  (posted 2013-03-21 15:51:00.0)
Response from Tim at Thorlabs to Michal: Thank you for contacting us! We look to stock specialty taps that aren’t easily found as a convenience to those looking to integrate our components in their devices. #8-32 is a ubiquitous tap and you will most probably have luck finding it at your local hardware store.
jlow  (posted 2012-07-31 15:26:00.0)
A response from Jeremy at Thorlabs: We will get in contact with you directly regarding a quote for this.
sfnagle  (posted 2012-07-31 13:52:09.0)
I was wondering if you sell the die that goes with this tap size. I need to make external SM1 threads for a custom part in my set-up. Thanks.
gregory.futia  (posted 2010-12-15 16:44:34.0)
Where do you get a .508" through drill to use with the SM05 tap, 83373?

Specialty Taps - Imperial

Standard Thread Tap Diagram
Click to Enlarge
Diagram of a Standard Tap
  • Specialized Plug Taps
  • Covers SM05, SM1, and Most Other Threads Used by Thorlabs
  • Material: High-Speed Steel

These specialty taps aid in the integration of our optomechanical components into your custom-built devices. Our imperial taps selection includes many of the thread standards used by Thorlabs, including our SM05 (0.535"-40) and SM1 (1.035"-40) standards. Please see below for our metric taps.

Tapping Recommendations
To tap a hole, first machine a pilot bore, using the table below to find the recommended pilot bore diameter. The bore can be made using a drill bit or an end mill. For fine pitch threads, the pilot bore should be tightly toleranced because of the shallow thread depth; a reamer is also recommended in this case.

Next, secure the tap into a tap wrench, drill press, or lathe to create the threads. Lubricant or tapping fluid should be used to create the hole. If resistance is felt while tapping, carefully rotate the tap backwards to remove it, as broken taps are exceptionally difficult to remove.

If using these specialty taps for production, precision ring and plug gauges should be used to verify hole diameters. For additional details on threading and taps, please consult the Machinery's Handbook, available in many machine shops and bookstores.

Item # Thread Type Thread Depth
(T)
Overall
Length
(L)
Shank Size
(S)
Pilot Bore Example Uses
Diameter Tolerancea Imperial Drill Sizeb
TAP080 0-80 0.31" 1.63" 0.141" 0.049" +0.003"/-0.002" - Holes for Locking Setscrews
TAP256 2-56 0.44" 1.75" 0.141" 0.070" ±0.004" #50
(0.0700")
Mounting Holes on Miniature Translation Stages
TAP440 4-40 0.56" 1.88" 0.141" 0.089" ±0.005" #43
(0.0890")
Holes for Cage Rod Locking Setscrews
TAP680 6-80 0.69" 2.00" 0.141" 0.126" ±0.002" 1/8"
(0.1250")
Holes for 6-80 Adjustment Screws
TAP832 8-32 0.75" 2.13" 0.168" 0.135" +0.004"/-0.005" #29
(0.1360")
Mounting Holes for 8-32 Screws
TAP316100 3/16"-100 0.88" 2.38" 0.194" 0.177" +0.002"/-0.001" #16
(0.1770")
Holes for 3/16"-100 Adjustment Screws
TAP1420 1/4"-20 1.00" 2.50" 0.255" 0.202" +0.005"/-0.006" #7
(0.2010")
Mounting Holes for 1/4"-20 Screws
TAP1480 1/4"-80 1.00" 2.50" 0.255" 0.238" ±0.002" B
(0.2380")
Holes for 1/4"-80 Adjustment Screws
TAP14100 1/4"-100 1.00" 2.50" 0.255" 0.240" +0.002"/-0.001" - Holes for 1/4"-100 Adjustment Screws
TAP51632 5/16"-32 1.13" 2.72" 0.318" 0.282" +0.004"/-0.003" 9/32"
(0.2812")
Mounting Holes for 3/16"-100 Locking Bushings
with 5/16"-32 External Threads
TAP3824 3/8"-24 1.25" 2.94" 0.381" 0.335" ±0.005" Q
(0.3340")
3/8" Standard Tapped Holes
TAP3840 3/8"-40 1.25" 2.94" 0.381" 0.348" ±0.003" S
(0.3480")
Mounting Holes for 1/4"-80 Locking Bushings
with 3/8"-40 External Threads
TAP38100 3/8"-100 1.25" 2.94" 0.381" 0.365" +0.002"/-0.001" - Holes for 3/8"-100 Fine Adjustment Screws
TAPSM05 0.535"-40
(SM05 Standard)
1.66" 3.59" 0.429" 0.511" ±0.003" - Internal Threads on Ø1/2" Lens Tubes
TAPRMS 0.800"-36
(RMS Standard)
2.00" 4.47" 0.652" 0.773" +0.004"/-0.003" - Mounts for RMS-Threaded Objectives
TAPCM 1.00"-32
(C-Mount Standard)
2.50" 5.13" 0.800" 0.970" ±0.004" - Internal Threads on C-Mount Extension Tubes,
Mounts for Machine Vision Camera Lenses
TAPSM1 1.035"-40
(SM1 Standard)
2.50" 5.13" 0.896" 1.011" ±0.003" - Internal Threads on Ø1" Lens Tubes
  • For fine pitch threads, it is especially important to tightly tolerance the pilot bore because of the shallow thread depth.
  • Item numbers with drill sizes listed are within the provided tolerance for each item. For item numbers without a corresponding standard drill size, please refer solely to the pilot bore diameter column, as drill bits in that size are not available.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
TAP080 Support Documentation
TAP080NEW!English (Imperial) Tap, 0-80 Thread
$21.64
Today
TAP256 Support Documentation
TAP256NEW!English (Imperial) Tap, 2-56 Thread
$16.23
Today
TAP440 Support Documentation
TAP440NEW!English (Imperial) Tap, 4-40 Thread
$10.83
Today
TAP680 Support Documentation
TAP680NEW!English (Imperial) Tap, 6-80 Thread
$33.16
Today
TAP832 Support Documentation
TAP832NEW!English (Imperial) Tap, 8-32 Thread
$8.70
Today
TAP316100 Support Documentation
TAP316100NEW!English (Imperial) Tap, 3/16"-100 Thread
$29.71
Today
TAP1420 Support Documentation
TAP1420NEW!English (Imperial) Tap, 1/4"-20 Thread
$16.23
Today
TAP1480 Support Documentation
TAP1480NEW!English (Imperial) Tap, 1/4"-80 Thread
$29.71
Today
TAP14100 Support Documentation
TAP14100NEW!English (Imperial) Tap, 1/4"-100 Thread
$38.73
Today
TAP51632 Support Documentation
TAP51632NEW!English (Imperial) Tap, 5/16"-32 Thread
$27.06
Today
TAP3824 Support Documentation
TAP3824NEW!English (Imperial) Tap, 3/8"-24 Thread
$40.69
Today
TAP3840 Support Documentation
TAP3840NEW!English (Imperial) Tap, 3/8"-40 Thread
$28.64
Today
TAP38100 Support Documentation
TAP38100NEW!English (Imperial) Tap, 3/8"-100 Thread
$55.11
Today
TAPSM05 Support Documentation
TAPSM05NEW!English (Imperial) Tap, 0.535"-40 Thread (SM05 Standard)
$93.36
Today
TAPRMS Support Documentation
TAPRMSNEW!English (Imperial) Tap, 0.800"-36 Thread (RMS Standard)
$93.36
Today
TAPCM Support Documentation
TAPCMNEW!English (Imperial) Tap, 1.00"-32 Thread (C-Mount Standard)
$108.21
Today
TAPSM1 Support Documentation
TAPSM1NEW!English (Imperial) Tap, 1.035"-40 Thread (SM1 Standard)
$93.36
Today

Specialty Taps - Metric

Standard Thread Tap Diagram
Click to Enlarge
Diagram of a Standard Tap
  • Specialized Plug Taps
  • Covers Many Threads Used by Thorlabs
  • Material: High-Speed Steel

These specialty taps aid in the integration of our optomechanical components into your custom-built devices. Our metric taps selection includes many of the thread standards used by Thorlabs. Please see above for our imperial taps, as well as taps for our SM05 (0.535"-40) and SM1 (1.035"-40) standards.

Tapping Recommendations
To tap a hole, first machine a pilot bore, using the table below to find the recommended pilot bore diameter. The bore can be made using a drill bit or an end mill. For fine pitch threads, the pilot bore should be tightly toleranced because of the shallow thread depth; a reamer is also recommended in this case.

Next, secure the tap into a tap wrench, drill press, or lathe to create the threads. Lubricant or tapping fluid should be used to create the hole. If resistance is felt while tapping, carefully rotate the tap backwards to remove it, as broken taps are exceptionally difficult to remove.

If using these specialty taps for production, precision ring and plug gauges should be used to verify hole diameters. For additional details on threading and taps, please consult the Machinery's Handbook, available in many machine shops and bookstores.

Item # Thread Type Thread Depth
(T)
Overall
Length
(L)
Shank Size
(S)
Pilot Bore Example Uses
Diameter Tolerancea Metric Drill Sizeb Imperial Drill Sizeb
TAPM2502 M2.5 x 0.2 12.7 mm 46.0 mm 3.58 mm 2.313 mm ±0.030 mm 2.3 mm
(0.0905")
- Holes for M2.5 x 0.2 Adjustment Screws
TAPM302 M3 x 0.2 16.0 mm 49.3 mm 3.58 mm 2.813 mm ±0.030 mm 2.8 mm
(0.1102")
#34
(0.1110")
Holes for M3 x 0.2 Adjustment Screws
TAPM3025 M3 x 0.25 16.0 mm 49.3 mm 3.58 mm 2.766 mm ±0.037 mm 2.75 mm
(0.1083")
7/64"
(0.1093")
Holes for M3 x 0.25 Adjustment Screws
TAPM4025 M4 x 0.25 19.1 mm 54.1 mm 4.27 mm 3.77 mm ±0.037 mm 3.75 mm
(0.1476")
#26
(0.1470")
Holes for M4 Fine Adjustment Screws
TAPM407 M4 x 0.7
(M4 Standard)
19.1 mm 54.0 mm 4.27 mm 3.332 mm ±0.090 mm 3.3 mm
(0.1299")
#30
(0.1285")
Mounting Holes for M4 Screws
TAPM4505 M4.5 x 0.5 22.4 mm 60.5 mm 4.93 mm 4.029 mm ±0.070 mm 4.0 mm
(0.1575")
#21
(0.1590")
Mounting Hole for M3 x 0.25 Adjuster Nutc
TAPM6025 M6 x 0.25 25.4 mm 63.5 mm 6.48 mm 5.575 mm ±0.0165 mm 5.6 mm
(0.2205")
#2
(0.2210")
Holes for M6 x 0.25 Adjustment Screws
TAPM605 M6 x 0.5 25.4 mm 63.5 mm 6.48 mm 5.526 mm ±0.068 mm 5.5 mm
(0.2165")
7/23"
(0.2187")
Mounting Bores for Aspheric Lens Housingsd
TAPM610 M6 x 1.0
(M6 Standard)
25.4 mm 63.5 mm 6.48 mm 5.035 mm ±0.118 mm 5.1 mm
(0.2008")
#8
(0.1990")
Mounting Holes for M6 Screws
TAPM7505 M7.5 x 0.5 28.7 mm 69.0 mm 8.08 mm 7.026 mm +0.068 mm/-0.067 mm - - Mounting Bores for
Ø7 mm Optic Mounts
TAPM805 M8 x 0.5 28.7 mm 69.1 mm 8.08 mm 7.526 mm ±0.068 mm 7.5 mm
(0.2953")
M
(0.2950")
Mounting Bores for Aspheric Lens Housingsd
TAPM905 M9 x 0.5 31.8 mm 74.7 mm 9.68 mm 8.526 mm ±0.068 mm 8.5 mm
(0.3346")
Q
(0.3340")
Mounting Bores for Aspheric Lens Housingsd
TAPM1005 M10 x 0.5 31.8 mm 74.7 mm 9.68 mm 9.526 mm ±0.068 mm 9.5 mm
(0.3740)
3/8"
(0.3750")
Mounting Bores for Aspheric Lens Housingsd
TAPM10505 M10.5 x 0.5 31.8 mm 74.7 mm 9.70 mm 10.026 mm +0.068 mm/-0.067 mm - - Mounting Bores for
Ø10 mm Optic Mounts
TAPM1105 M11 x 0.5 36.6 mm 80.3 mm 8.20 mm 10.526 mm ±0.068 mm 10.5 mm
(0.4133")
Z
(0.4130")
Mounting Holes for Mounted Aspheric Lens Pair Housingsd
TAPM1205 M12 x 0.5 42.1 mm 85.7 mm 9.32 mm 11.526 mm ±0.068 mm 11.5 mm
(0.4528")
29/64"
(0.4531")
Mounting Bores for Aspheric Lens Housingsd
TAPM1405 M14 x 0.5 42.2 mm 91.2 mm 10.90 mm 13.526 mm ±0.068 mm 13.5 mm
(0.5315")
17/23"
(0.5312")
-
TAPM20505 M20.5 x 0.5 50.8 mm 113.5 mm 16.56 mm 20.026 mm +0.068 mm/-0.067 mm - - Mounting Bores for for
Ø20 mm Lens Mounts
TAPM25075 M25 x 0.75 (M25 Standard) 63.5 mm 130.3 mm 20.32 mm 24.284 mm ±0.096 mm - - Mounts for M25-Threaded Objectives
  • For fine pitch threads, it is especially important to tightly tolerance the pilot bore because of the shallow thread depth.
  • Item numbers with drill sizes listed are within the provided tolerance for each item. For item numbers without a corresponding standard drill size, please refer solely to the pilot bore diameter column, as drill bits in that size are not available.
  • The N250L3P M3 x 0.25 Adjuster Nut is externally M4.5 x 0.5 threaded. The TAPM4505 Tap can be used to tap a mounting hole for this adjuster nut.
  • The webpages for our mounted aspheric lenses indicate the external thread of the lens housing.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Metric Price Available
TAPM2502 Support Documentation
TAPM2502NEW!Metric Tap, M2.5 x 0.2 Thread
$53.05
5-8 Days
TAPM302 Support Documentation
TAPM302NEW!Metric Tap, M3 x 0.2 Thread
$54.11
Today
TAPM3025 Support Documentation
TAPM3025NEW!Metric Tap, M3 x 0.25 Thread
$38.73
Today
TAPM4025 Support Documentation
TAPM4025NEW!Metric Tap, M4 x 0.25 Thread
$39.91
Today
TAPM407 Support Documentation
TAPM407NEW!Metric Tap, M4 x 0.7 Thread (M4 Standard)
$10.83
Today
TAPM4505 Support Documentation
TAPM4505NEW!Metric Tap, M4.5 x 0.5 Thread
$34.22
Today
TAPM6025 Support Documentation
TAPM6025NEW!Metric Tap, M6 x 0.25 Thread
$38.73
Today
TAPM605 Support Documentation
TAPM605NEW!Metric Tap, M6 x 0.5 Thread
$28.64
Today
TAPM610 Support Documentation
TAPM610NEW!Metric Tap, M6 x 1.0 Thread (M6 Standard)
$13.05
Today
TAPM7505 Support Documentation
TAPM7505NEW!Metric Tap, M7.5 x 0.5 Thread
$42.49
Today
TAPM805 Support Documentation
TAPM805NEW!Metric Tap, M8 x 0.5 Thread
$33.16
Today
TAPM905 Support Documentation
TAPM905NEW!Metric Tap, M9 x 0.5 Thread
$43.50
Today
TAPM1005 Support Documentation
TAPM1005NEW!Metric Tap, M10 x 0.5 Thread
$50.13
Today
TAPM10505 Support Documentation
TAPM10505NEW!Metric Tap, M10.5 X 0.5 Thread
$61.29
Today
TAPM1105 Support Documentation
TAPM1105NEW!Metric Tap, M11 x 0.5 Thread
$51.46
Today
TAPM1205 Support Documentation
TAPM1205NEW!Metric Tap, M12 x 0.5 Thread
$52.25
Today
TAPM1405 Support Documentation
TAPM1405NEW!Metric Tap, M14 x 0.5 Thread
$60.47
Today
TAPM20505 Support Documentation
TAPM20505NEW!Metric Tap, M20.5 x 0.5 Thread
$115.45
Today
TAPM25075 Support Documentation
TAPM25075NEW!Metric Tap, M25 x 0.75 Thread (M25 Standard)
$146.40
Today

Drill Bit Kit

  • 60 Number-Sized Drill Bits Ranging from #1 Bit to #60 Bit
  • Bit Material: High-Speed Steel
  • 135° Point Angle
  • Sizes Embossed in Steel Case

The DK3 Drill Bit Kit includes 60 drill bits of standard jobber length. The bits are constructed from high-speed steel and have a 135° point angle. This kit holds the bits in a compact, all-steel index case, with the bit sizes, tap sizes, tap drill sizes, and body drill (clearance) sizes embossed in the case.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DK3 Support Documentation
DK360-Piece Drill Bit Kit
$130.49
Today

Universal Tap Wrench

Sliding Crossbar
Click to Enlarge

Ratcheting Selector Knob and Sliding Crossbar
  • Universal Ratcheting Tap Wrench with Sliding Crossbar
  • Accommodates Taps from #0 to 1/4" or M2 to M6
  • Shank Size from 0.141" to 0.255" or 3.6 mm to 6.5 mm

This machinist-quality Hand Tap Wrench is ideally suited for everyday tapping requirements. The rugged stainless steel design provides durability and long life, and the crossbar conveniently slides to provide extra torque when required. Ratcheting in either direction can be selected using the knob at the top of the wrench (see photo to the right). The Hand Tap Wrench can accommodate taps as small as #0 or 2 mm and as large as 1/4" or 6 mm.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
TW25 Support Documentation
TW25Hand Tap Wrench
$61.95
Today

Table Tapping Guide

Repairing a Damaged Tapped Hole

Table Tapping Guide
Click to Enlarge

Once the TTT001(/M) guide is properly aligned over the hole, use the TW25 Hand Tap Wrench with a 1/4"-20 tap (Item # TAP1420) or an M6 tap (Item # TAPM610) to restore the threads.
Table Tapping Guide
Click to Enlarge

To repair a hole with the TTT001(/M) guide, first secure it to the optical table using the included countersunk screws. These screws are designed to center the steel bushing over the damaged hole.
TTT001 Dimensions
Click for Details

TTT001(/M) Tap Guide Dimensions
  • Repair 1/4"-20 or M6 Holes in Optical Tables and Breadboards
  • Bushings Help Ensure Tapped Holes are Perpendicular to the Work Surface
  • Two 1/4"-20 or M6 Countersunk Mounting Screws Supplied

The TTT001(/M) Tap Guide is designed to assist in the re-drilling and re-tapping of an optical table or breadboard damaged by broken screws or cross threading. Two countersunk mounting screws (also known as flat head socket cap screws) are supplied for bolting the guide to the existing 1/4"-20- or M6-threaded hole matrix. A toughened, tool-grade steel bushing insert acts as a precise guide for drilling the broken screw out of the damaged hole. Another steel bushing guides the tap into the drilled-out hole, restoring the threads and ensuring that the resulting tapped hole is perpendicular to the work surface.

The main cause of tap breakage is unwanted sideways motion when the operator attempts to rotate the tap while simultaneously applying a force not purely parallel to the drill axis. This device discourages this costly error. We advise the use of a sharp, carbide-tipped drill bit to drill out the broken screw. When mounting the tap guide, care should be taken not to overtighten the countersunk mounting screws.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
TTT001 Support Documentation
TTT001Table Tapping Guide for 1/4"-20 Threads
$60.87
Today
+1 Qty Docs Part Number - Metric Price Available
TTT001/M Support Documentation
TTT001/MTable Tapping Guide for M6 Threads
$60.87
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image

Last Edited: Sep 09, 2013 Author: Dan Daranciang
