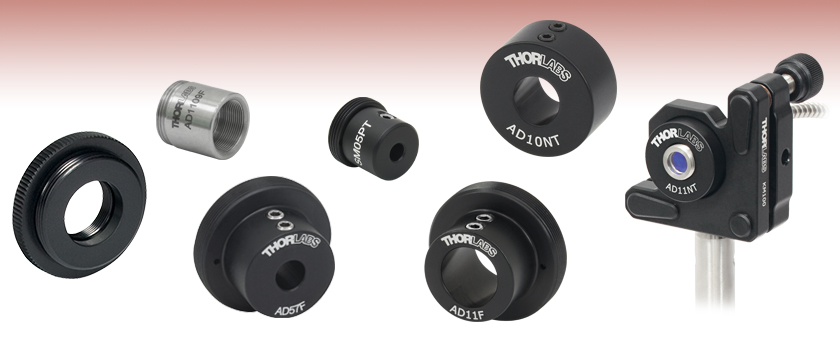

Products HomeFixed Collimator Mounting Adapters
- Mount Collimators in Ø1/2" or Ø1" Optomechanics
- Compatible with Threaded or Smooth Bore Components
- Options for 3.5 to 16 mm Diameters
AD10NT
SM05PT
AD11F
AD1109F

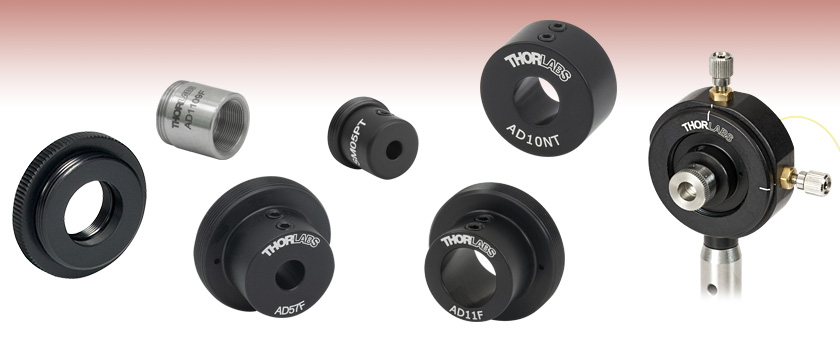

Application Idea
AD9.5F Adapter with a CFC-2X-A Collimator,
LM1XY Translation Mount, and a Ø1/2" Post
RMS11P
AD57F
Please Wait
Features

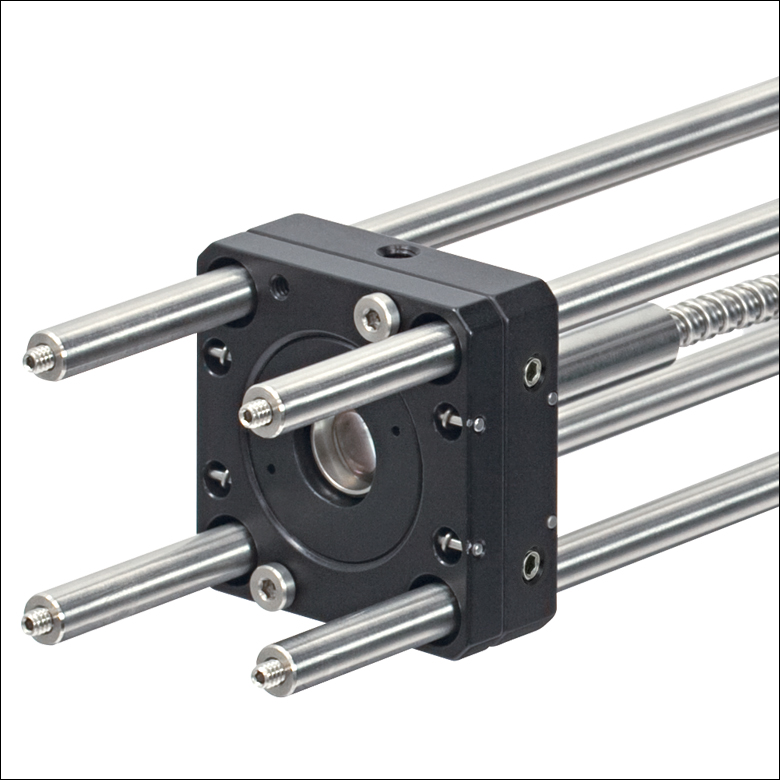

- Integrate Collimators and Other Cylindrical Components into Lens Tubes and Cage Systems
- Align Components to the Optical Axis
- Externally SM05-, SM1-, and RMS-Threaded Adapters
- Externally Unthreaded Adapters with 1/2" (12.7 mm) and 1" (25.4 mm) Outer Diameter Available
- Designed for Components with Smooth or Threaded Housings
- Smooth Bore Diameters: 3.5 mm, 4 mm, 4.7 mm, 5.72 mm, 8 mm, 9 mm, 9.5 mm, 10 mm, 11 mm, 12 mm, 12.7 mm (1/2"), 15 mm, and 16 mm
- Threaded Collimators: M9 x 0.5 and M11 x 0.5
- Compatible with Fixed Collimators, Adjustable Collimators, Collimation Tubes, Triplet Collimators, GRIN Collimators, Hexagonal Light Mixing Rods, and Laser Diode Modules
These fixed adapters are designed to facilitate the integration of cylindrical components such as collimators into free-space optical setups. We offer adapters that feature external SM05 (0.535"-40), RMS (0.800"-36), or SM1 (1.035"-40) threading as well as adapters that have a smooth 1/2" or 1" outer diameter. The threaded adapters are compatible with our lens tube systems, cage systems, and numerous components in our product line. The non-kinematic unthreaded adapters are best suited for use in kinematic mirror mounts, allowing a collimated beam to be steered by the mount. Each adapter is designed so that the optical axis of the cylindrical component will be centered with respect to the outer diameter of the adapter.
In addition to these fixed adapters, we offer smooth bore and SM1-threaded (1.035"-40) kinematic collimator adapters with pitch and yaw adjustment for Ø8 mm, Ø11 mm, or Ø12 mm cylindrical components. We also offer a post-mountable kinematic mount for Ø11 mm cylindrical components, which is part of our Mini-Series line.

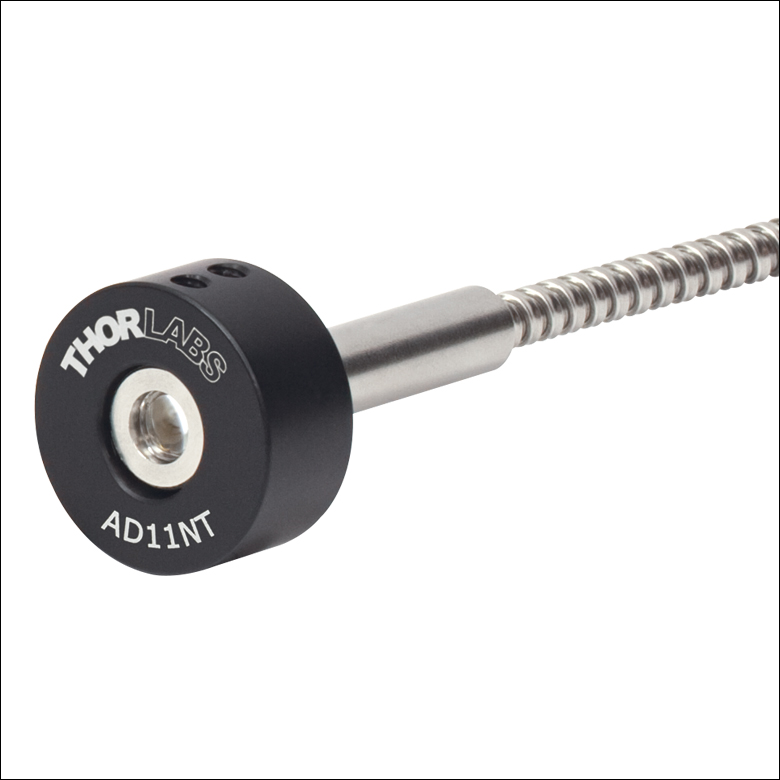

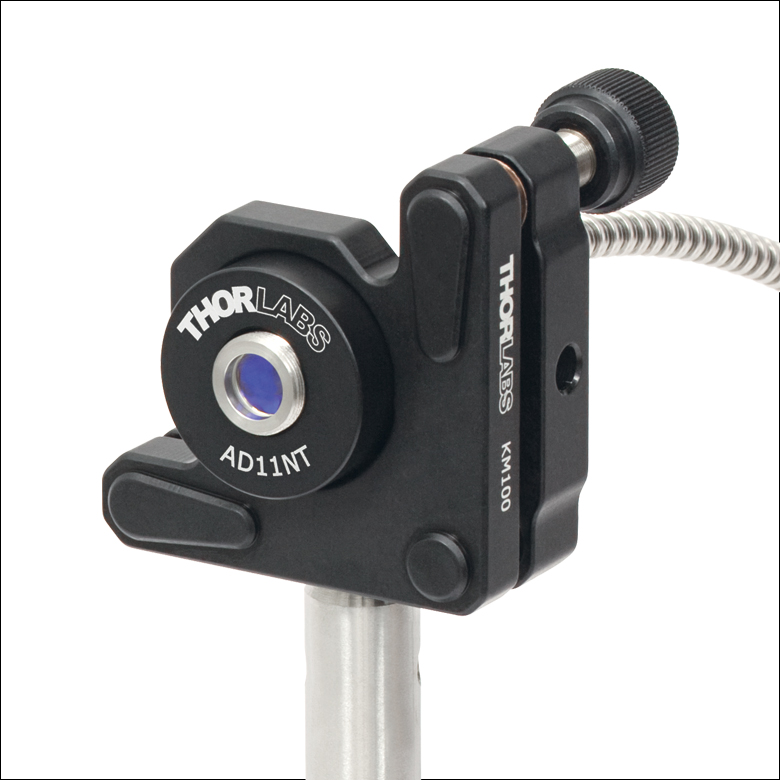

Click to Enlarge AD11NT Adapter Used to Mount a F671SMA-405 Fiber Collimator in a KM100 Kinematic Mirror Mount

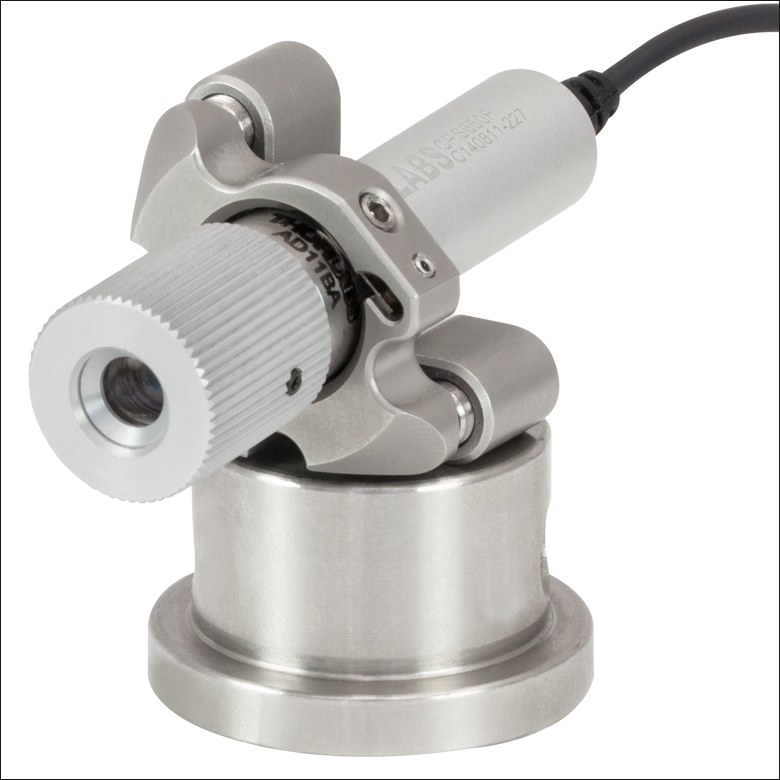

Click to Enlarge AD11BA Ø1/2" Adapter Used to Mount a CPS650F Diode Module into a POLARIS-K05 Mirror Mount

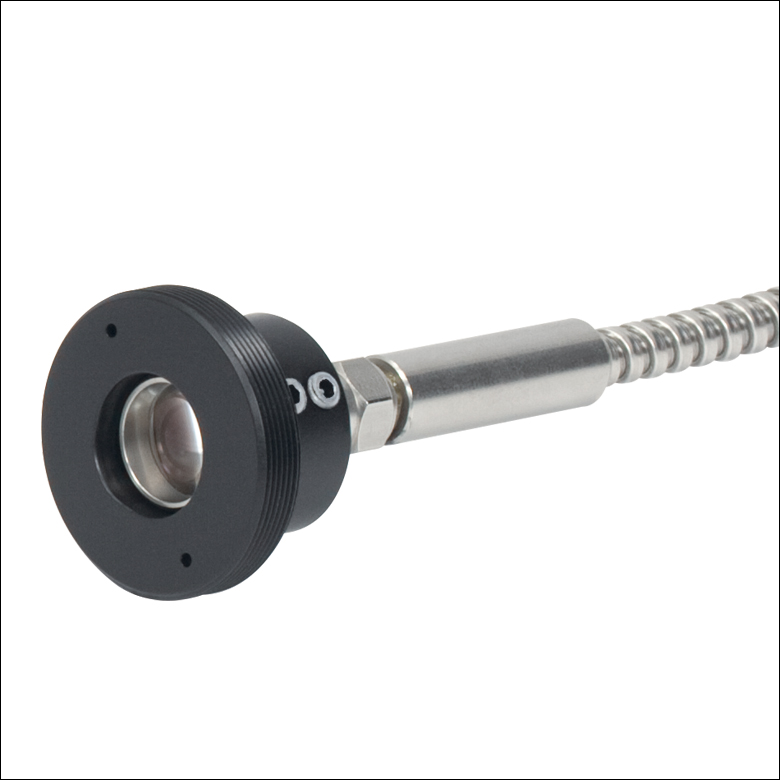

Click to Enlarge AD12F Adapter Used to Mount an F240SMA-A Collimator with Attached Fiber Patch Cable in a 30 mm Cage System
Insights into Best Lab Practices
Scroll down to read about a practice we follow when setting up lab equipment.
- Fiber Collimators: Tip for Mounting with Adapters
Click here for more insights into lab practices and equipment.
Fiber Collimators: Tip for Mounting with Adapters
Click to Enlarge
Figure 1: The components shown above are joined using threaded interfaces. Since unscrewing the fiber connector could unintentionally loosen connections between the other components, Thorlabs suggests applying epoxy to the other two interfaces to immobilize them.
Fiber collimators are often used to introduce light into an optical setup from a fiber coupled source. Thorlabs offers a variety of fiber collimator packages, some only provide a smooth barrel (like the triplet collimators) and others have a metric thread at the end of the barrel (like the asphere collimators).
For both packages, Thorlabs typically suggests the use of an adapter with a nylon tipped set screw that holds the barrel against a two line contact.
Adapters for the external thread are available (AD1109F) that allow the user to thread the fiber collimator into a mount.
However, the use of these adapters results in a stack up of threaded interfaces (threaded fiber connector, threaded collimator, and threaded adapter). As a result, it is possible that unscrewing the fiber connector could inadvertently loosen another thread interface and create an unknown source of instability in the setup.
For this reason, Thorlabs suggests epoxying the threaded fiber collimators into the threaded mounts if that mounting mechanism is preferred.
Figure 1 indicates the assembly order and places to apply the epoxy.
Date of Last Edit: Dec. 4, 2019
| Posted Comments: | |
user
(posted 2020-12-14 05:11:07.09) good to have advice for dimension and tolerance for using AD12BA as OEM part YLohia
(posted 2020-12-14 01:58:02.0) Hello, we are always happy to provide tolerances on certain dimensions through private channels. Since you did not leave any contact information, please email us at techsupport@thorlabs.com with a request for the specific dimensions/tolerances that you're looking for. user
(posted 2015-10-23 13:50:18.197) Modifying the diameter of smooth cylinder from 0.45" to be < 0.44" will make SM05PT easily to be locked in a SM05 tube using a SM05RR. besembeson
(posted 2015-10-28 01:49:57.0) Response from Bweh at Thorlabs USA: Thanks for your feedback. This seems to be an easy modification for us to make. We will review this. jdwelle
(posted 2015-09-24 12:21:32.687) Our company is moving towards using the KAD11F adapters to align the F220APC-1550 and F220SMA-1550 collimators. It would be much preferable for these collimators to seat in a threaded adapter rather than rely on the set screw to hold them in place.
Thanks! besembeson
(posted 2015-10-01 09:40:40.0) Response from Bweh at Thorlabs USA: That is a good idea. We will review this. For now, the AD1109F is the threaded adapter we have, which hasn't got the pitch/yaw kinematic adjustment of the KAD11F. user
(posted 2015-05-15 09:54:14.5) Could you please make a AD9.5NT? It would be super useful to mount adjustable collimators in standard mirror mounts with a non-threaded adapter! Thanks! cdaly
(posted 2015-05-27 03:04:59.0) Response from Chris at Thorlabs: Thank you for your feedback. We will look into the possibility of adding a 9.5mm to 1" smooth bore adapter to the current line of adapters. cafortin
(posted 2013-11-11 13:14:13.18) Thoses adapters are very usefull, but some important sizes are missing in the list : 10 mm, 12.7 mm (for fiber of various white light source) and 16 mm (Fianium and Leukos supercontinuum laser collimators). Each time I need one of them I have to machine a standard adapter. cdaly
(posted 2013-11-14 04:21:56.0) Response from Chris at Thorlabs: We can likely provide these bore sizes as customs for the time being. We will discuss introducing these as standard parts internally as well. Thank you very much for your detailed suggestion, I will contact you directly about your inquiry. Thorlabs
(posted 2010-10-06 23:15:26.0) Response from Javier at Thorlabs to last poster: We have added this information to the item descriptions. The required hex size is 1/16". user
(posted 2010-10-04 14:07:17.0) it would be helpful for us if we can know here which HEX wrench is needed. klee
(posted 2009-10-23 17:56:48.0) A response from Ken at Thorlabs: We have now changed "Collimated Laser Diode Packages" to "Laser Diode Modules" and added it to AD11F and AD11NT. klee
(posted 2009-10-20 17:15:08.0) A response from Ken at Thorlabs to wwu: Thank you for your feedback. We will change "Collimated Laser Diode Packages" to "Laser Diode Modules" and add to AD11F and AD11NT shortly. wwu
(posted 2009-10-20 16:20:23.0) You should include "Collimated Laser Diode Packages" under the intended uses for AD11F, since some of your laser diode packages require the 11 mm version. Just having it under AD8F led to confusion on which part to order. Tyler
(posted 2009-03-10 10:53:13.0) A response from Tyler at Thorlabs to Jesper: After posting your idea to our internal forum I got in touch with the mechanics BU and he said that it would be no problem to run off a few modified AD11Fs if you need them. I will have someone in our tech support department contact you with more information. Tyler
(posted 2009-03-10 08:02:09.0) A response from Tyler at Thorlabs to Jesper: Thank you for using this feedback forum to let us know about how you wish to use our products in your lab. As you might have noticed, many of our products have customer inspired tags (you can find them in the price tables). At Thorlabs we value this type of feedback and are always trying to better serve our customers by understanding their needs. I posted your idea on our internal forum where it has the possibility of being adopted by an engineer and turned into a customer inspired product. If you need a more immediate solution, please contact our technical support department as they have the tools to offer additional options. jlm
(posted 2009-03-10 04:25:10.0) Often there are situations were it would be nice with an ADllF without a outer thread, such it was possible to mount in a KM100 holder. For instance if a CPS180 were to be used as an alignment laser. Best regards Jesper technicalmarketing
(posted 2008-01-15 11:55:55.0) We have added a link for SM1-Compatible Mounts in the family image and hope that this helps you to choose the best mount for your application. Thank you for the suggestion! acable
(posted 2007-12-31 08:05:01.0) It would be nice to have a link to the compatible mounts for this product, perhaps having one Related Products link that covers all Collimators would free up a place to put a link that covers the SM1 series mounts. |
Zoom
Click to Enlarge AD12BA Adapter Used to Mount an F240FC-A Collimation Package into a Ø1/2" KM05 Mirror Mount
Click for Details

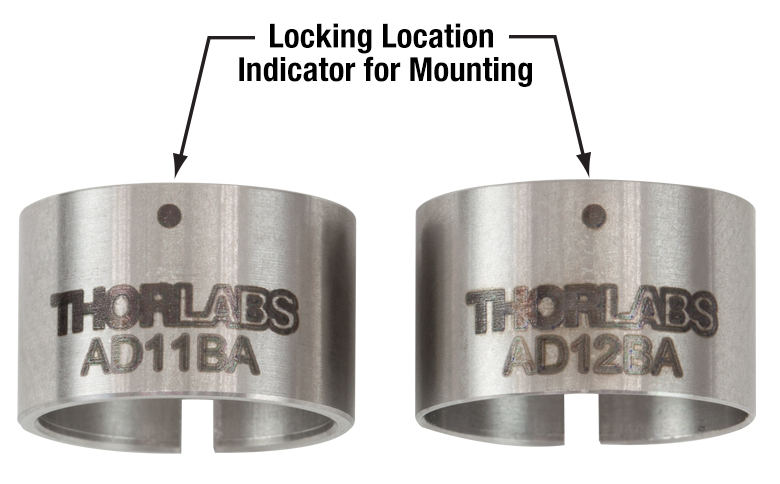

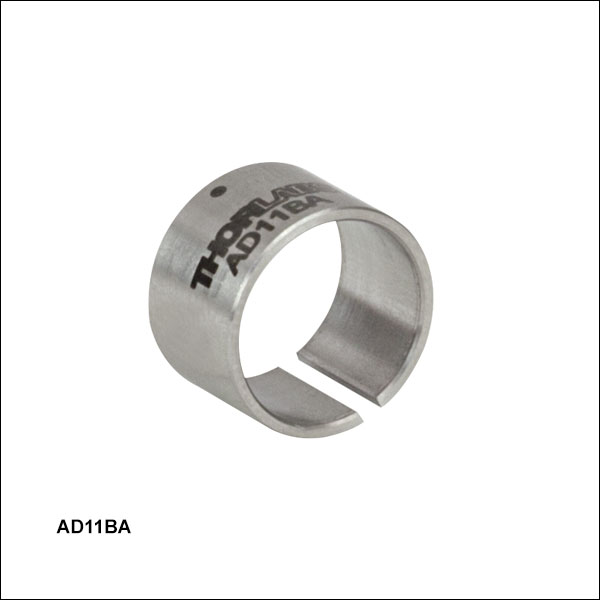

An Engraved Dot Opposite to the Slot Indicates the Region where the Adapter Should be Clamped
- Smooth 1/2" (12.7 mm) Outer Diameter
- Stainless Steel Split Bushing Design Clamps Around Component When Mounted Within Ø1/2" Mounts
- Engraved with Item # and a Dot Opposite of the Slot for Locking Location Identification
- Compatible with Ø11 mm or Ø12 mm Fixed Collimators, Laser Diode Modules, or Other Cylindrical Components
These collimator adapters are designed to mount Ø11 mm or Ø12 mm fixed collimation packages in Ø1/2" (Ø12.7 mm) smooth bore mounts. Each adapter has a split bushing design with a smooth bore center hole and an unthreaded 1/2" (12.7 mm) outer diameter. The adapter is fitted over the component and then placed into a smooth bore mount, where it is secured. When being secured within the mount, the adapter will clamp around the component due to the split bushing design, holding the component in place.
The adapter design centers the collimator within the outer diameter, which in turn aligns the collimated beam to the center of the mount it is held in. A black dot is engraved on each adapter, opposite to the split bushing slot, to indicate the location where the adapter should be clamped within a mount.
| Item # | Length | Intended for Use With: | Compatible Component Diameter |
|---|---|---|---|
| AD11BA | 0.31" (7.9 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators and Laser Diode Modules | 11 mm |
| AD12BA | 0.31" (7.9 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators and TC12 and TC18 Triplet Collimators (FC/PC and FC/APC) | 12 mm |
Zoom
Click to Enlarge

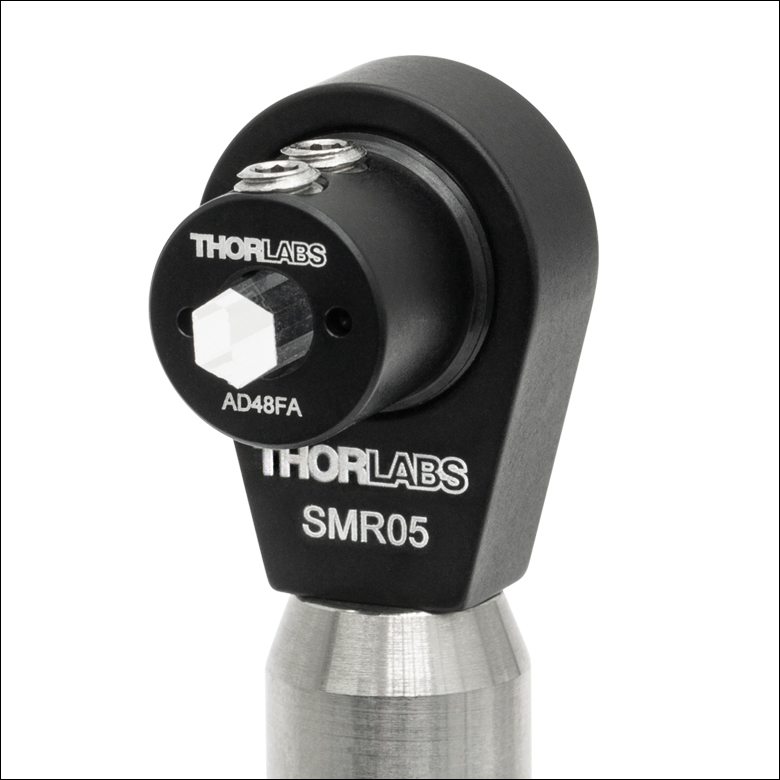

An HMR425 Hexagonal Light Mixing Rod Mounted in an AD48FA Mounting Adapter in an SMR05 Lens Mount
- External SM05 (0.535"-40) Threads
- Smooth Bore Diameters: 3.5 mm or 4.7 mm
- Nylon-Tipped Setscrew Secures Component

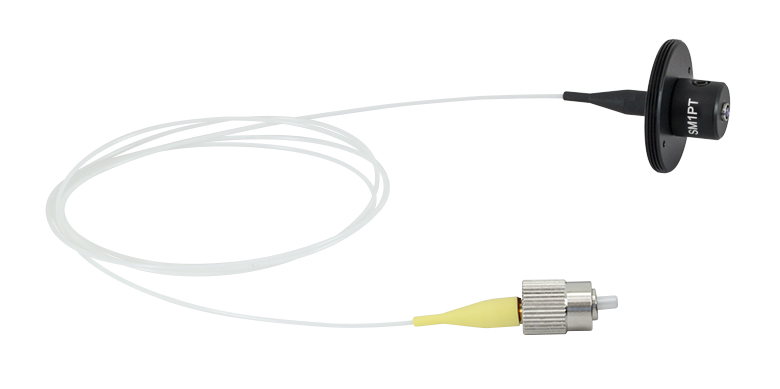

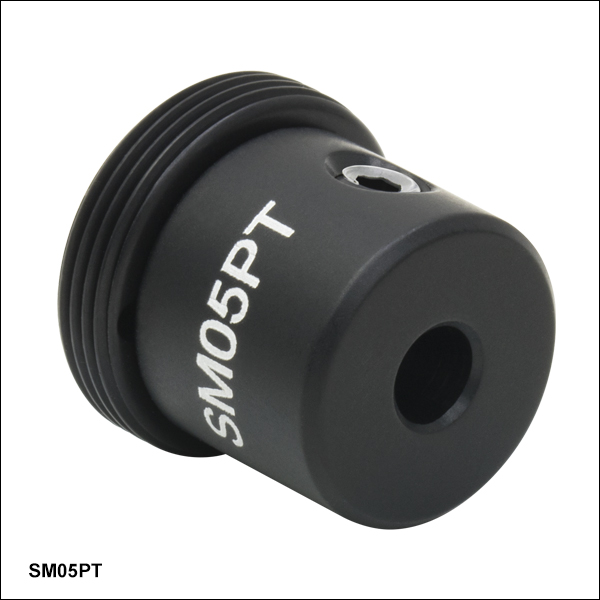

The SM05PT and AD48FA adapters are designed to mount Thorlabs' GRIN Lens Fiber Collimators or Hexagonal Light Mixing Rods, respectively, in SM05-compatible mounts, lens tubes, and cage components. Each adapter's design ensures that the center of the component is aligned with the optical axis when mounted into a SM05 lens tube. Nylon-tipped setscrews secure the component against the two lines of contact created by the double-bored mounting hole. Additionally, there are holes on opposing sides of the central bore that are mechanically compatible with our spanner wrenches listed below.
There are two methods of mounting the hexagonal rods in the AD48FA adapter. Fixing the two setscrews onto a planar side of the rod will provide more mechanical stability. Please note TIR will be interrupted where the nylon touches the planar surface of the rod. Mounting the rod with the nylon-tipped setscrews in contact with an edge of the hexagonal rod will limit the contact between the setscrew and the optical surface, improving the optical performance. It is recommended that the mixing rod be mounted centered in the mount, so that no more than 5 mm of the rod extends past the edge of the mount on either side.
A version of these mounts with SM1 threading is available; please see the SM1PT and AD48F adapters below.
| Item # | Length | Intended for Use With: | Setscrews | Compatible Spanner Wrench |
Compatible Component Size | |
|---|---|---|---|---|---|---|
| Diameter | Lengtha | |||||
| SM05PT | 0.50" (12.7 mm) | GRIN Lens Fiber Collimators | One, 1/16" (1.5 mm) Hex | SPW908 or SPW801 | 3.5 mm | ≥0.26" (6.6 mm) |
| AD48FA | 0.59" (15.0 mm) | Hexagonal Light Mixing Rods or Ø4.7 mm Components |
Two, 5/64" (2.0 mm) Hex | SPW801 | 4.7 mm | ≥0.35" (8.9 mm) |
Zoom
Click to Enlarge

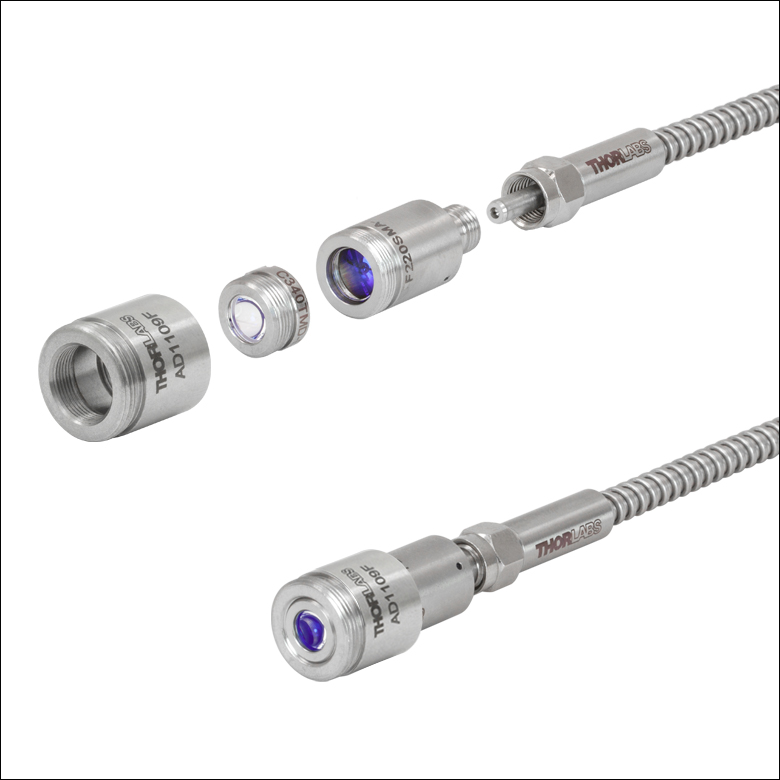

F220SMA-780 Fiber Collimator and C340TMD-B Mounted Asphere Focus Light Exiting an
MHP365L02 Patch Cable Using the AD1109F Adapter
- External SM05 (0.535"-40) Threads
- Internal M11 x 0.5 and M9 x 0.5 Threads
- Compatible with Many Collimation Packages and Aspheric Lens Cells
The AD1109F adapter is designed to mount optical components with external M11 x 0.5 or M9 x 0.5 threading in SM05-compatible mounts, lens tubes, and cage components. This adapter can be paired with the SM1A6 adapter that converts external SM05 threading to external SM1 threading so that the AD1109F can be used in SM1-compatible mounts, lens tubes, and cage components.
| Item # | Length | Internal Threading | Intended for Use With: |
|---|---|---|---|
| AD1109F | 0.56" (14 mm) |
M11 x 0.5 | FC/PC, FC/APC, or SMA905 Fixed Collimators |
| M9 x 0.5 | Mounted Aspheric Lenses |
Zoom
Click to Enlarge
F220SMA-780 SMA Fiber Collimator with a MHP200L02 Patch Cable Mounted in the RMS11P Collimator Adapter
- Internal M11 x 0.5 Threads
- External RMS (0.800"-36) Threads
- Compatible with Our F220, F230, and F260 Collimators
The RMS11P is designed to integrate M11 x 0.5 threaded collimation packages into internally RMS-threaded (0.800"-36) components. The knurled outer edge allows the adapter to be secured without a spanner wrench.
| Item # | Length | Internal Threading | Intended for Use With: |
|---|---|---|---|
| RMS11P | 0.25" (6 mm) | M11 x 0.5 | FC/PC, FC/APC, or SMA905 Fixed Collimators |
Zoom
Click to Enlarge

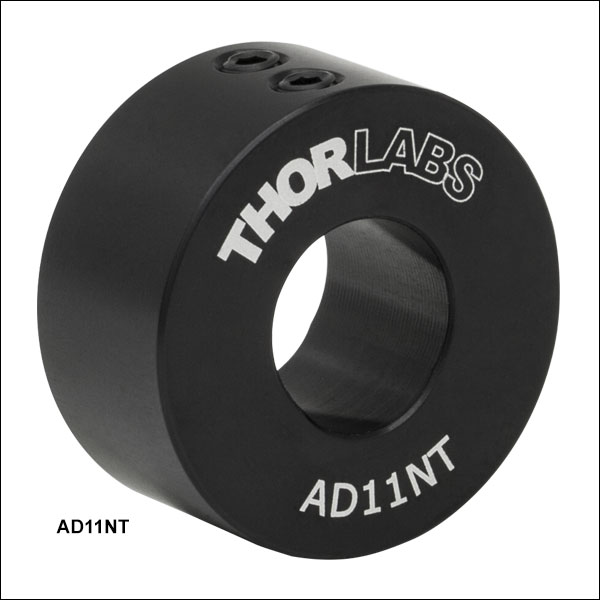

F671SMA-405 SMA Fiber Collimator with an MHP200L02 Patch Cable Secured in an AD11NT Adapter
- Smooth 1" (25.4 mm) Outer Diameter
- Two Setscrews Secure Collimator in Adapter
- Versions for Fixed Collimators, Collimation Tubes, and Other Cylindrical Components
These collimator adapters are designed to mount fixed collimation packages in Ø1" (Ø25.4 mm) mounts. Each adapter has a double bored center hole and an unthreaded 1" (25.4 mm) outer diameter. Two nylon-tipped setscrews hold the collimation package against the two lines of contact created by the double bore. Both setscrews feature a 1/16" (1.5 mm) hex socket. The adapter design centers the collimator within the outer diameter, which in turn aligns the collimated beam to the center of the mount it is held in.
| Item # | Length | Intended for Use With: | Compatible Component Size | |
|---|---|---|---|---|
| Diameter | Lengtha | |||
| AD10NT | 0.48" (12.2 mm) | Ø10 mm Components | 10 mm | ≥0.41" (10.4 mm) |
| AD11NT | 0.48" (12.2 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators and Laser Diode Modules |
11 mm | |
| AD12NT | 0.48" (12.2 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators, TC12 and TC18 Triplet Collimators (FC/PC and FC/APC) |
12 mm | |
| AD127NT | 0.48" (12.2 mm) | Ø1/2" (Ø12.7 mm) Components | 1/2" (12.7 mm ) | |
| AD15NT | 0.48" (12.2 mm) | F810 Doublet Collimators, LT Collimation Tubes, TC18 Triplet Collimators (FC/PC and FC/APC) |
15 mm | |
| AD16NT | 0.48" (12.2 mm) | Ø16 mm Components | 16 mm | |
Zoom
Click to Enlarge
F240SMA-A Fiber Collimator with an MHP200L02 Patch Cable Secured in the AD12F Collimator Adapter
- External SM1 (1.035"-40) Threads
- Setscrews Secure Component in Adapter
- Versions for Fixed Collimators, Collimated Laser Diodes, Collimation Tubes, Hexagonal Light Mixing Rods, and Other Cylindrical Components

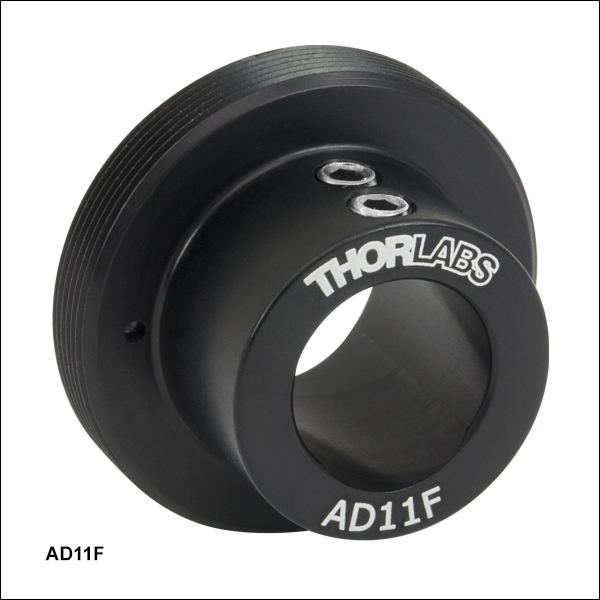

These SM1-threaded (1.035"-40) adapters are designed to mount Ø3.5 to Ø16 mm collimators and cylindrical components in SM1-compatible mounts, lens tubes, and cage systems. Each adapter has external SM1 threads and a double-bored center hole. All adapters include setscrews with nylon tips that are used to press the collimation package against the two lines of contact created by the double bore (see the mechanical drawing to the right) and position the collimation package so that its optical axis is coincident with the center of the SM1-compatible mount in which that the adapter is placed. The size and number of setscrews included in each component is listed in the table below.
Except for the AD8F and AD15F, each of these adapters contains holes on opposing sides of the central hole that are mechanically compatible with our SPW909 and SPW801 spanner wrenches.
| Item # | Length | Intended for Use With: | Setscrews | Compatible Component Size | |
|---|---|---|---|---|---|
| Diameter | Lengtha | ||||
| SM1PT | 0.50" (12.7 mm) | GRIN Lens Fiber Collimators | One, 1/16" (1.5 mm) Hex | 3.5 mm | ≥0.26" (6.6 mm) |
| AD4F | 0.50" (12.7 mm) | CFS2 or CFP2 Pigtailed Aspheric Fiber Collimators | One, 1/16" (1.5 mm) Hex | 4 mm | ≥0.26" (6.6 mm) |
| AD48F | 0.59" (15 mm) | Hexagonal Light Mixing Rods or Ø4.7 mm Components | Two, 5/64" (2.0 mm) Hex | 4.7 mm | ≥0.35" (8.9 mm) |
| AD57F | 0.59" (15 mm) | CFS5 or CFP5 Pigtailed Aspheric Fiber Collimators | Two, 1/16" (1.5 mm) Hex | 5.72 mm | ≥0.35" (8.9 mm) |
| AD8F | 0.59" (15 mm) | Laser Diode Modules | Two, 1/16" (1.5 mm) Hex | 8 mm | ≥0.35" (8.9 mm) |
| AD9F | 0.59" (15 mm) | CFS11 or CFS18 Pigtailed Aspheric Fiber Collimators | Two, 1/16" (1.5 mm) Hex | 9 mm | ≥0.35" (8.9 mm) |
| AD9.5F | 0.32" (8.1 mm) | Ø9.5 mm Components | One, 1/16" (1.5 mm) Hex | 9.5 mm | ≥0.18" (4.6 mm) |
| AD10F | 0.59" (15 mm) | Ø10 mm Components | Two, 1/16" (1.5 mm) Hex | 10 mm | ≥0.35" (8.9 mm) |
| AD11F | 0.59" (15 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators and Laser Diode Modules |
Two, 1/16" (1.5 mm) Hex | 11 mm | |
| AD12F | 0.59" (15 mm) | FC/PC, FC/APC, or SMA905 Fixed Collimators TC12 and TC18 Triplet Collimators (FC/PC or FC/APC) |
Two, 1/16" (1.5 mm) Hex | 12 mm | |
| AD127F | 0.59" (15 mm) | Ø1/2" (Ø12.7 mm) Components | Two, 1/16" (1.5 mm) Hex | 1/2" (12.7 mm) | |
| AD15F2 | 0.32" (8.1 mm) | CFC Adjustable Aspheric Collimators, F810 Doublet Collimators, LT Collimation Tubes, TC18 Triplet Collimators (FC/PC or FC/APC), |
One, 5/64" (2.0 mm) Hex | 15 mm | ≥0.18" (4.6 mm) |
| AD15F | 0.59" (15 mm) | F810 Doublet Collimators, LT Collimation Tubes, TC18 Triplet Collimators (FC/PC or FC/APC) |
Two, 1/16" (1.5 mm) Hex | 15 mm | ≥0.35" (8.9 mm) |
| AD16F | 0.59" (15 mm) | Ø16 mm Components | Two, 1/16" (1.5 mm) Hex | 16 mm | |
Fixed Fiber Collimator Adapters
