Cage System Iris Diaphragms

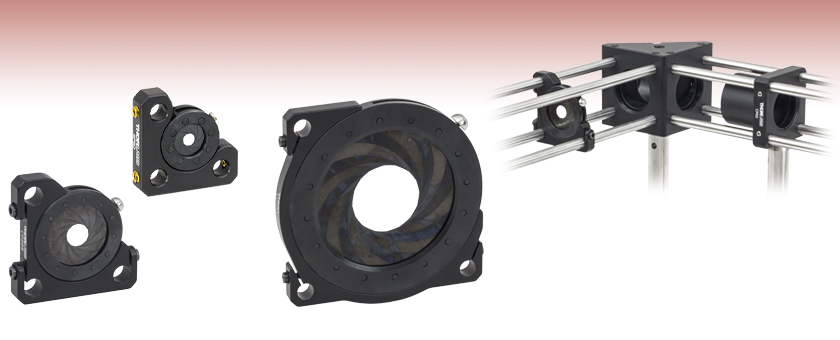

16 mm, 30 mm, or 60 mm Cage System Compatible Irises
Continuously Variable Lever-Actuated Aperture
Button Head Lever Allows Actuation while Iris is Installed

CP20D

For 30 mm
Cage Systems

LCP50D

For 60 mm
Cage Systems

Application Idea

CP20S Iris in a Cage System with
KCB1C Right-Angle Kinematic Mount and
CP33 Cage Plate Holding an SM1L10 Lens Tube

SP8D

For 16 mm Cage Systems

Please Wait

Overview
Feedback

Video 1.1 Thorlabs’ Cage System Irises are designed for use within a cage system. The button head lever on these irises clears the fourth cage rod, allowing for aperture adjustments within the cage system.

Iris Selection Guide
Post-Mountable Irises
Unmounted Irises
SM-Threaded Lever-Actuated Irises
SM-Threaded Ring-Actuated Irises
Cage System Irises
Motorized Irises

Features

One-Piece Irises for 16 mm, 30 mm, or 60 mm Cage System
Continuously Variable Iris Diaphragms
- SP8D: Ø0.7 mm to Ø8.0 mm Aperture
- CP20D: Ø0.8 mm to Ø20.0 mm Aperture
- LCP50D: Ø2.0 mm to Ø50.0 mm Aperture
Ultra-Thin Cage Plate Design
- SP8D: 0.23'' (5.7 mm) Thick
- CP20D: 0.28" (7.0 mm) Thick
- LCP50D: 0.40" (10.1 mm) Thick
Black-Anodized Aluminum Housing Limits Reflection

These lever-actuated, continuously variable, cage-system-compatible iris diaphragms are designed to provide smooth operation over many thousands of cycles. These irises are mounted in ultra-thin, cage-system-compatible plates. Three cage rods are engaged with locking screws that accept a 0.05" (1.3 mm) hex key for the SP8D or a 5/64" (2.0 mm) hex key for the CP20D and LCP50D. If replacement setscrews are needed for the SP8D, we offer SS4B013 brass setscrews, which use a 0.05" (1.3 mm) hex. The steel leaves that comprise the iris are actuated by a button head lever that clears the fourth cage rod, as shown in Video 1.1, allowing for operation within a cage system. The SP8D, CP20D, and LCP50D irises have maximum apertures of Ø8.0 mm, Ø20.0 mm, and Ø50.0 mm, respectively, and are permanently installed in the cage plates.

In addition to the cage system irises sold on this page, our SM-threaded ring-actuated irises can also be utilized in a cage system with the use of an SM-threaded cage plate. However, the cage system irises featured on this page offer thinner profiles and larger maximum apertures than the equivalent ring-actuated irises. For non-cage system use, we also offer post-mountable irises, SM-threaded lever-actuated irises, and unmounted irises with no mounting holes.
