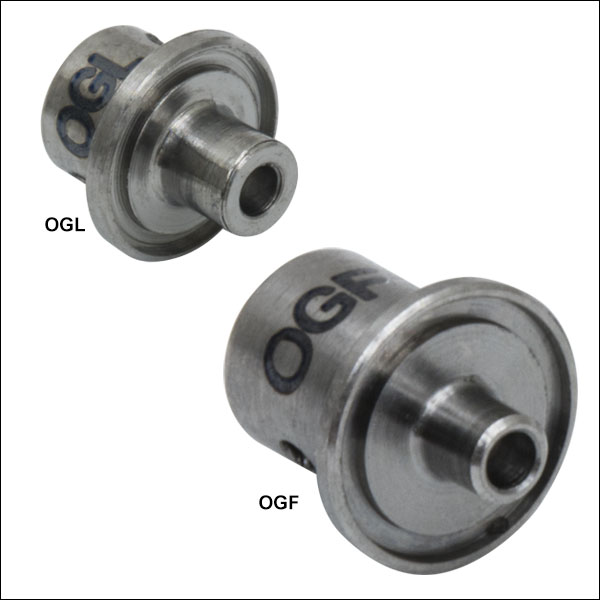

Cannula Implant Guides
- Improves Adhesion and Stability of Cannula Implants
- Versions Compatible with Ø1.25 mm and Ø2.5 mm Cannulae
- Lightweight Surgical Titanium Construction
Ø2.5 mm Cannula Implant Guide
Ø1.25 mm Cannula Implant Guide
Implant guides can be used with cannula holders for compatibility with stereotaxic guidance equipment.
Click for Details
Cross Section Drawing of OGL with CFML22L05 Cannula (Not Included)
Click to Enlarge
Add glue via the two weep holes when affixing the ferrule within the implant guide.
Click for Details

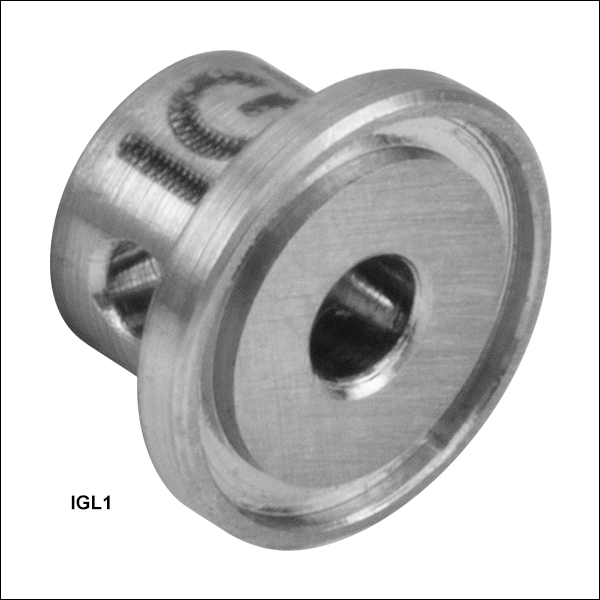

Mounting Surface of OGF Cannula Impant Guide
- Improves Adhesion and Stability During Implantation
- Compatible with Ø1.25 mm and Ø2.5 mm Fiber Optic Cannulae with ≥5 mm Length
- Ø3.8 mm (OGL) or Ø5.1 mm (OGF) Mounting Surface with Grooved Ring for Dental Cement
- Lightweight Surgical Titanium Construction (≤0.11 g)
- Weep Holes for Glue and Epoxy to Secure a Cannula
- Compatible with Stereotaxic Cannula Holders
These Cannula Implant Guides are designed to provide guidance and stability for a fiber optic cannula during an implantation procedure. The bottom surface of each implant guide features a roughened surface and circular groove (see image to the right) that increases the surface area available to dental cement and improves adhesion to the specimen. A 1.6 mm long protrusion on the implant guide helps stabilize the guide when implanted. Each implant is constructed using lightweight surgical titanium (≤0.11 g) which can be sterilized prior to use. For convenience, the cannula guides are offered below in packs of one or five.
For best results when implanting a cannula, the OGL and OGF should be used with a cannula holder and stereotaxic guidance equipment. To affix the cannula within the implant guide, first insert the cannula into the receptacle of the implant guide. Then, add a small amount of cement or epoxy to the cannula via the two Ø0.8 mm weep holes (see image above). Finally, attach the cannula ferrule to an XCL (Ø1.25 mm ferrule) or XCF (Ø2.5 mm ferrule) cannula holder (see image above).
The OGL implant guide is compatible with our standard Ø1.25 mm cannulae (ceramic and stainless steel) and the OGF implant guide is compatible with our standard Ø2.5 mm cannulae (ceramic and stainless steel). When assembled, the effective length of the protruding fiber is reduced by 1 mm (Item # OGL) or 2 mm (Item # OGF); therefore, these implant guides cannot be used with our 2 mm long cannulae. Additionally, due to the fiber separation distance, the implant guides cannot be used with our dual-core cannulae.
|One Light Source to One Cannula Implant|
|One Light Source to Two Cannula Implants Using Rotary Joint Splitter|
|One or Two Light Sources to Two Cannula Implants|
|Two Light Sources into One Dual-Core Cannula Implant|
|Fiber-Coupled LEDs and Drivers|
Optogenetics Selection Guide
Thorlabs offers a wide range of optogenetics components; the compatibility of these products in select standard configurations is discussed in detail here. Please contact Technical Support for assistance with items outside the scope of this guide, including custom fiber components for optogenetics.
The most straightforward method for in vivo light stimulation of a specimen is to use a single fiber optic with a single LED light source. The single wavelength LED is powered by an LED driver, and then the illumination output is fiber-coupled into a patch cable, which connects to the implanted cannula. See the graphics and expandable compatibility tables below for the necessary patch cables and cannulae to create this setup. To choose the appropriate LED and driver, see below or the full web presentation.
Click on Each Component for More Information
Click to See Ø1.25 mm (LC) Ferrule Compatible Patch Cables, Cannulae, and Interconnects
Click to See Ø2.5 mm (FC) Ferrule Compatible Patch Cables, Cannulae, and Interconnects
The ability to accurately and simultaneously direct light to multiple locations within a specimen is desired for many types of optogenetics experiments. For example, bilateral stimulation techniques typically target neurons in two spatially separated regions in order to induce a desired behavior. In more complex experiments involving the simultaneous inhibition and stimulation of neurons, delivering light of two different monochromatic wavelengths within close proximity enables the user to perform these experiments without implanting multiple cannulae, which can increase stress on the specimen.
Bilateral stimulation can be achieved with several different configurations depending on the application requirements. The sections below illustrate examples of different configurations using Thorlabs' optogenetics products.
Thorlabs' RJ2 1x2 Rotary Joint Splitter is designed for optogenetics applications and is used to split light from a single input evenly between two outputs. The rotary joint interface allows connected patch cables to freely rotate, reducing the risk of fiber damage caused by a moving specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.
Click to See Ø1.25 mm (LC) Ferrule Components Recommended for Use with RJ2 Rotary Joint Splitter
Click to See Ø2.5 mm (FC) Ferrule Components Recommended for Use with RJ2 Rotary Joint Splitter
If the intent is for one LED source to connect to two cannulae for simultaneous light modulation, then a bifurcated fiber bundle can be used to split the light from the LED into each respective cannula. For dual wavelength stimulation (mixing two wavelengths in a single cannula) or a more controlled split ratio between cannula, one can use a multimode coupler to connect one or two LEDs to the cannulae. If one cable end is left unused, the spare coupler cable end may be terminated by a light trap. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.
Click on Each Component Below for More Information
For bilateral stimulation applications where the two cannulas need to be placed in close proximity (within ~1 mm), Thorlabs offers dual-core patch cables and cannulae that are designed for this specific application. Each core is driven by a separate light source, enabling users to stimulate and/or supress nerve cells in the same region of the specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.
Click on Each Component for More Information
|Part Selection Table (Click Links for Item Description Popup)|
|Common Fiber Properties|
|Core Diameter||200 µm|
|Wavelength Range||400 - 2200 nm|
|Ferrule Stylea||FC (Ø2.5 mm)|
|Dual-Core Patch Cable||FC/PC Input||BFY32FL1|
|Compatible Mating Sleeve/Interconnect||ADAF1
|Dual-Core Fiber Optic Cannulaec||Stainless Steel||CFM32L10
|LED Item #||Wavelengtha||Typical Opsin||Output Powerb||Color|
|M385F1c||385 nm||EBFP, moxBFP||10.7 mW||UV|
|M405F1c||405 nm||mmilCFP, hcriGFP||3.7 mW||UV|
|M430F1||430 nm||ChR2||7.5 mW||Violet|
|M455F3||455 nm||ChIEF, bPAC||24.5 mW||Royal Blue|
|M470F3||470 nm||ChR2, ChR2-SFO||21.8 mW||Blue|
|M490F3||490 nm||Rh-CT, ChR2 (E123A)||3.1 mW||Blue|
|M505F3||505 nm||ChRGR, Opto-α1AR, Opto-β2AR||11.7 mW||Cyan|
|M530F2||530 nm||C1V1, VChR1||9.6 mW||Green|
|M565F3||565 nm||Arch, VChR1-SFO||13.5 mW||Lime|
|M595F2||595 nm||ChR2-SFO, eNpHR3.0||11.5 mW||Amber|
|M625F2||625 nm||ReChR||17.5 mW||Red|
Click to Enlarge
Our fiber-coupled LEDs are ideal light sources for optogenetics applications. They feature a variety of wavelength choices and a convenient interconnection to optogenetics patch cables. Thorlabs offers fiber-coupled LEDs with nominal wavelengths ranging from 280 nm to 1050 nm. See the table to the right for the LEDs with the most popular wavelengths for optogenetics. A table of compatible LED drivers can be viewed by clicking below.
