Piezoelectric Benders


  • Low-Voltage Bimorph Benders with 150 V Max Voltage
  • Sub-Millisecond Response Time
  • ±135 µm and ±450 µm Maximum Displacement
  • Available with or without Holder

PB4VB2W

Piezoelectric Bimorph Bender
with Wires, ±135 µm Displacement

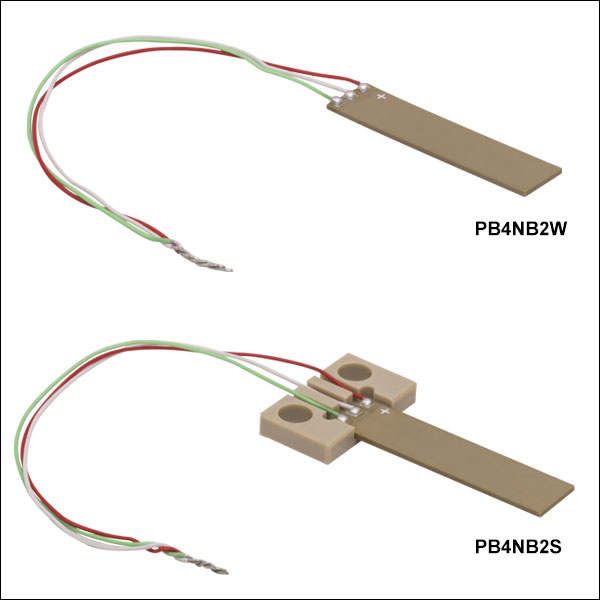

PB4NB2S

Piezoelectric Bimorph Bender with Wires and Holder, ±450 µm Displacement

Holder with Two Ø4.3 mm Through Holes for Mounting the Piezoelectric Bender

PB4NB2W

Piezoelectric Bimorph Bender
with Wires, ±450 µm Displacement

32 mm
(28 mm Active)

20 mm
(16 mm Active)

Related Items


Please Wait
Piezo Selection Guidea
Piezo Chips
Square
Square with Through Hole
Round
Ring
Tube
Shear
Benders
Piezo Stacks
Discrete, Square
Discrete, Square with Through Hole
Discrete, Round
Discrete, Ring
Discrete, Shear (1D to 3D Positioners)
Co-Fired, Square
Co-Fired or Discrete, Square with Strain Gauges
Piezo Actuators
Mounted
  • For more information about the design and function of piezoelectric chips, please see our piezoelectric tutorial.
Webpage Features
 info icon Clicking this icon below will open a window that contains item specific specifications and mechanical drawings.
Button to Download Piezo Actuator Brochure
Piezo Tutorial

Features

  • Sub-Micron Resolution
  • Two Displacement Options Available:
    • 16 mm Active Free Length, ±135 µm Displacement
    • 28 mm Active Free Length, ±450 µm Displacement
  • Drive Voltage Range: 0 to 150 V
  • Ideal for OEM Applications
  • Available with or without a Pre-Attached PEEK Holder

Thorlabs' Piezoelectric Benders provide a tip deflection whose magnitude and direction is a function of the applied bias voltages. This is useful for applications such as wire bonding, electrical switches, beam deflection, valves, and acceleration sensors. Featuring either a
16 mm or 28 mm active free length, these bimorph benders provide displacements of up to
±135 µm and ±450 µm, respectively.

The piezo benders include three pre-soldered wire leads, and are available without a holder or pre-mounted in a rigid PEEK (polyether ether ketone) holder. For more information on mounting recommendations for the bare piezos, see the Operations tab. The pre-attached PEEK holder features two Ø4.3 mm through holes on 12.5 mm centers that accept 8-32, M3, or M4 screws. This holder it is not detachable.

Piezo Operation
These benders are constructed of multiple, co-fired piezoceramic layers, in which the voltage bias across the top half of the layers is controlled independently of the voltage bias across the bottom half of the layers. The length of the layers increases as the voltage applied across them increases. Tip deflection of the bender occurs when the top and bottom sets of layers elongate by different amounts. For example, downward displacement of the bimorph bender occurs when the top layer elongates while the length of the bottom layer remains the same.

Any voltage driver with a voltage limit of at least 150 V can be used to drive these piezo bender actuators. Electrical connections to the three electrodes are located on the top surface, and each electrode is connected to a wire lead; the electrode connected to the red lead should always be positively biased and is marked with a silver plus sign. Providing a bias over only the top or bottom layers can be used to operate the bender in single-side voltage control mode, when deflection is limited to one direction. Providing different bias over these two sets of layers enables deflection in either direction. Examples of these cases are shown below. Do not apply a voltage bias in excess of 150 V between any two leads, as this can damage the bender. For details on the different voltage control modes, see the Operation tab.


Click to Enlarge

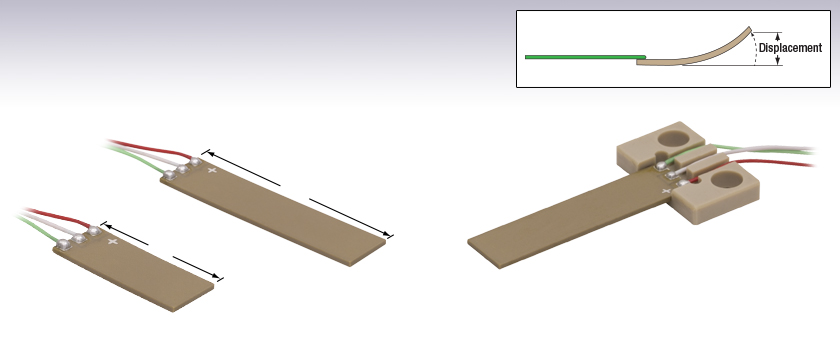

These bimorph piezoelectric benders flex when
a voltage is applied. Please see the Operation
tab for additional information.
Single-Side Voltage Control
Bimorph Bender
Click to Enlarge
Differential Voltage Control
Bimorph Bender
Click to Enlarge

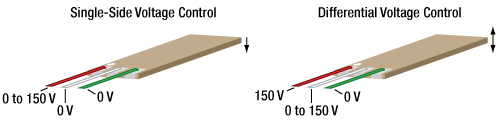

These Piezoelectric Bender Actuators can be controlled using either Single-Side or
Differential Voltage Control. An example of each is illustrated above, and more
options are described in the Operation tab.

Note: The bare piezoelectric actuators are compatible with vacuum environments of >10-7 Torr. The versions pre-attached to a PEEK holder are not recommended for use in vacuum environments.

Piezoelectric benders with custom dimensions and voltage ranges are available. Additionally, we support high-volume orders. Please contact Tech Support for more information.

Item #a Info Displacement Free Lengthb Dimensions Resonant Frequency (No Load) Blocking Force Pre-Attached Holder
PB4VB2W info ±135 µm ± 15% 16 mm 20.0 mm x 8.0 mm x 0.8 mmc 930 Hz 1.4 N
(0.31 lbs)
No
PB4VB2S info 27.0 mm x 19.0 mm x 3.0 mmc,d Yes
PB4NB2W info ±450 µm ± 15% 28 mm 32.0 mm x 7.8 mm x 0.8 mmc 370 Hz 1.5 N
(0.33 lbs)
No
PB4NB2S info 39.0 mm x 19.0 mm x 3.0 mmc,d Yes
  • For complete specifications, please see the Info Icons () above.
  • This is measured from the edge of the piezo without the electrodes towards the silver plus sign.
  • Does Not Include Wires
  • Includes Holder with Ø4.3 mm Mounting Through Holes
Piezo Manufacturing

Click to Enlarge

Dicing the PZT Block into Individual Elements

Click to Enlarge

Chips After Binder Burnout and Sintering

Thorlabs' In-House Piezoelectric Manufacturing

Our piezoelectric chips are fabricated in our production facility in China, giving us full control over each step of the manufacturing process. This allows us to economically produce high-quality products, including custom and OEM devices. A glimpse into the fabrication of our piezoelectric chips follows. For more information about our manufacturing process and capabilities, please see our Piezoelectric Capabilities page.

  • Build Blocks from Flexible Sheets of Lead Zirconate Titanate (PZT) Powder
    • Screen Print Electrodes on Each Individual Sheet
    • Layer the Printed Sheets One Top of Another
    • Consolidate the Layered Sheets in an Isostatic Press
  • Dice the Block into Individual Elements
  • Purge Solvent and Binder Material Residues by Heat Treating the Elements
  • Sinter the Elements to Fuse the Piezoelectric Pressed Powder and Grow PZT Crystals
  • Lap the Elements to Achieve Tight Dimensional Tolerances: ±5 µm for Each Element
  • Screen Print the Outer Electrodes on the Elements
  • Align the Individual PZT Crystals Along the Same Axis by Poling the Elements

Click to Enlarge

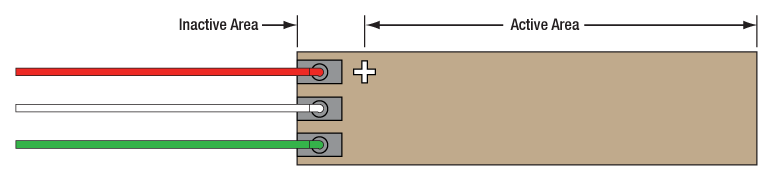

Figure 1: The active area, which expands in response to the applied voltage, is measured from the end of the piezo towards the silver plus sign. The inactive area does not respond to the applied voltage.

Operation Notes

Mounting
Thorlabs' piezoelectric bimorph benders are offered with or without a holder for mounting. The PB4VB2W and PB4NB2W, which come without a holder, can be mounted either by mechanical clamping or gluing.

We recommend attaching the piezo bending actuator to a rigid holder (ceramic, PEEK, etc.) in order to maintain elastic compliance and avoid additional drift cause by deformation of the holder. When selecting a holder, ensure that the contact surfaces are sufficiently flat to allow proper attachment of the bender. If a metal holder is used, ensure that the contact area between the piezoelectric bender and the holder is insulating in order to prevent short circuits that can be caused by contact between the three external electrodes and the metal holder.

Bimorph Bender
Click to Enlarge

Figure 2: If using a clamp to mount the PB4VB2W or PB4NB2W, the clamp should be applied to the approximately 1.5 mm wide portion of the inactive area located between the center of the + mark and the edge of the electrodes.

When using glue to mount the bender, ensure that the glued contact surface is restricted to cover only the inactive part of the piezo bender, shown in Figure 1, in order to avoid reducing the stroke. Adhesive with a low Young's modulus is recommended for mechanical assembly, and the curing temperature should be as low as possible to reduce thermo-mechanical stress in the support.

If mounting by mechanical clamping, the clamping pressure should be as low as possible while maintaining the mechanical stability of the assembly, approximately 5 times the specified blocking force. To achieve full stroke and avoid damaging the wire connections by crushing the solder points, apply the clamp to the region of the inactive area between the electrodes and the center of the + mark, as illustrated in Figure 2.

Electrical Connections
Each piezoelectric bender actuator has three electrodes: the electrode that must receive positive bias, marked with silver plus sign, is attached to a red wire, while the other two electrodes are soldered to white and green wires.

Soldering Wire Leads to the Electrodes
If wire leads must be attached or reattached to the electrodes, a soldering temperature no higher than 370 °C (700 °F) should be used, and heat should be applied to each electrode for a maximum of 2 seconds. Solder the lead to the middle of the electrode and keep the region over which heat is applied as small as possible.

Bimorph Bender
Click to Enlarge

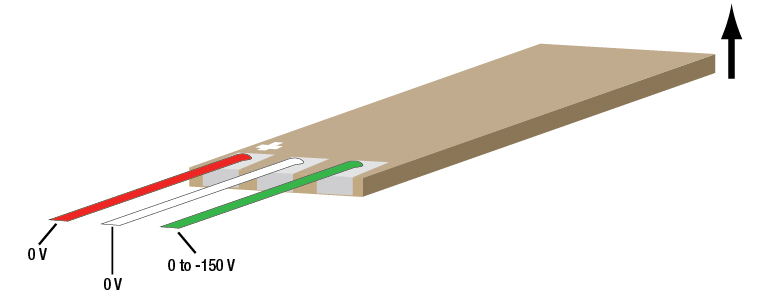

Figure 3b: Single-Side Voltage Control with Negative Bias (Option 2 in the Table)
Bimorph Bender
Click to Enlarge

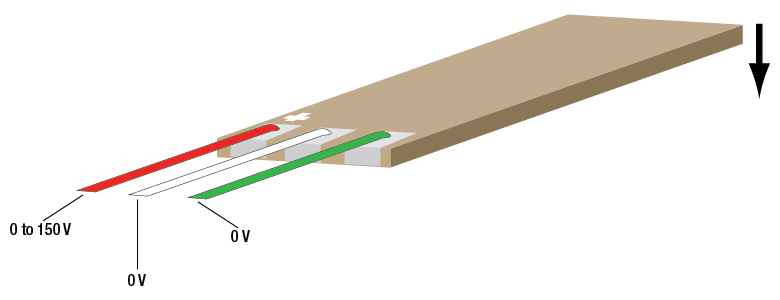

Figure 3a: Single-Side Voltage Control with Positive Bias (Option 1 in the Table)

Driving Modes
These piezoelectric benders can be operated using one of two basic driving principles. The table summarizes the configurations of the different driving options.

Bimorph Bender Driving Modes
Wire Color Red White Green
Single-Side Voltage Control
Option 1 0 V to 150 V 0 V 0 V
Option 2 0 V 0 V 0 V to -150 V
Differential Voltage Control
Option 3 150 V 0 V to 150 V 0 V
Option 4 75 V -75 V to 75 V -75 V

Single-Side Voltage Control
Single-Side Voltage Control is useful for cases where the piezoelectric bimorph bending actuator only needs to flex in one direction. In this driving mode, the white wire is held at 0 V, while the voltage on either the red or green wire is varied to cause the bimorph bender to flex. The maximum displacement in either direction is 450 µm.

With the bimorph bender oriented so that the plus sign faces up, a positive voltage between 0 and 150 V applied to the red wire will cause top layers to elongate while the length of the bottom layers remains the same. The unfixed end of the bender flexes downwards, as shown in Figure 3a, as the applied voltage increases.

If a negative voltage between 0 and -150 V is applied to the green wire, the bottom layers elongate while the top layers do not change length. The unfixed end of the bender flexes upwards, as shown in Figure 3b.

When using single-side voltage control, never vary the voltage on both the red and green lead at the same time, as a voltage difference of more than 150 V between these two leads will damage the actuator.

Bimorph Bender
Click to Enlarge

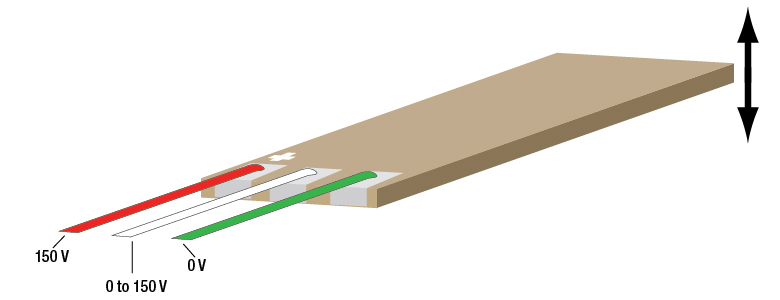

Figure 4: Differential Voltage Control Example  (Option 3 in the Table)

Differential Voltage Control
Differential Voltage Control is useful for cases where the bending actuator needs to flex in both directions. Applying a varying voltage to the center white wire, while applying constant voltages to the green and red wires, allows the operator to control how much the top layers elongate with respect to the bottom layers. This controls the direction and magnitude of the displacement.

Differential voltage contol of the piezo bender can be performed by configuring the device as described by Option 3 or Option 4 in the table. For both driving configurations, a 150 V voltage difference is established between the red and the green wire and the maximum displacement is reached. In the case of Option 3, this is accomplished by holding the red wire at 150 V and the green wire at 0 V, while the voltage on the white wire is varied between 0 and 150 V. In the case of Option 4, the red wire is held at 75 V and the green wire at -75 V, while the voltage on the white wire is varied from -75 to 75 V.

For example, if the PB4NB2W piezo bender actuator is configured according to Option 3 and the voltage applied to the white wire is 75 V, the magnitude of the voltage applied across the top and bottom layers is the same: the elongation of the top and bottom layers are the same and there is no displacement of the tip. When 0 V is applied to the white wire, the top layer elongates, the length of the bottom layer does not change, and displacement is 450 µm downwards. When 150 V is applied to the white wire, the bottom layer elongates, the length of the top layer does not change, and displacement is 450 µm upwards. For intermediate voltages applied to the white wire, the top and bottom layers elongate to different lengths and the magnitude and direction of the displacement varies accordingly.

Long Term Operation
These piezoelectric bimorph bending actuators were tested for long term durability at room temperature (25 °C) and an ambient humidity of 45%; at frequencies at or below 100 Hz, the actuators were still functional after 1 x 108 cycles.


Posted Comments:
user  (posted 2019-06-04 10:22:04.087)
Hello, I have two questions, the first is: What is the minimun range or displacement This kind of devices is compatible with clean room and cells ??? this last question due to I would like move cell with this devices Thank for your attention and I hope your soon answer
Francisco Moreno  (posted 2019-06-04 10:16:40.6)
Hello, I have two questions, the first is: What is the minimun range or displacement This kind of devices is compatible with clean room and cells ??? this last question due to I would like move cell with this devices Thank for your attention and I hope your soon answer
YLohia  (posted 2019-06-13 08:51:30.0)
Hello, thank you for contacting Thorlabs. The minimum displacement (or resolution) of a piezo device is determined by the minimum voltage step (or noise) of the control voltage source. We reached out to you directly to gather more information about your clean room application.
