Stabilized Deuterium UV Light Source

Overview
Specs
Graphs
Bulb Replacement
Feedback
Lamp Selection Guide

Click to Enlarge

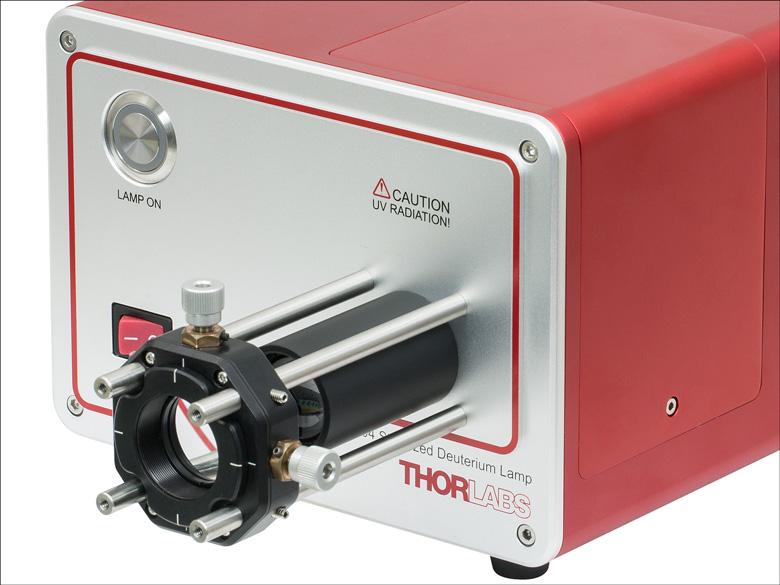

The fiber adapter and dust cap on the output port can be removed to use 30 mm cage system components and SM1-threaded components with the SLS204.

Click to Enlarge

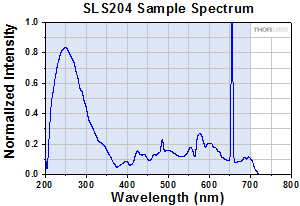

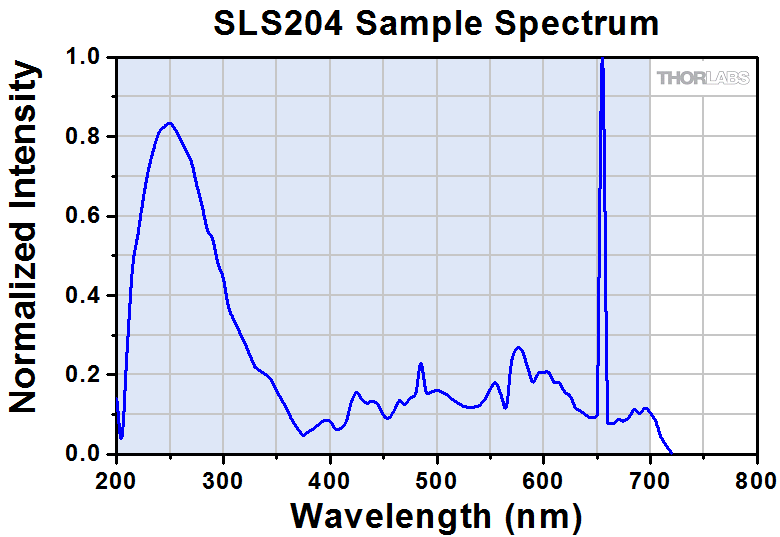

The measured spectral power distribution for the SLS204 Light Source. The blue-shaded region indicates the lamp's operating wavelength range. Click here for raw data.

Features

Deuterium Light Source for 200 - 700 nm
Stabilized 30 W Bulb Intensity Using Closed-Feedback Loop
0.02% Per Hour and 0.1% Per °C Output Power Drift
SMA905 Fiber-Coupled Output with Dust Cover
Internally SM1-Threaded (1.035"-40) Aperture
Compatible with 30 mm Cage Systems and Ø1" Lens Tubes
Replacement Light Bulb Available Separately
Location-Specific Power Cord Included

Thorlabs' SLS204 Deuterium Light Source provides stable illumination from 200 nm to 700 nm. The strong continuous spectrum at short UV wavelengths (200 - 400 nm) makes this an ideal source for UV spectroscopy applications. A closed-loop feedback system stabilizes the 30 W bulb which is coupled into a SMA905 bulkhead for connecting to a fiber patch cable. A low-noise fan cools the light source and bulb enabling continuous operation for >50 hours (see the Graphs tab for lamp stability over time). Each SLS204 includes a location-specific power cord.

The SLS204 includes a M114L01 Solarization-Resistant Multimode Fiber Patch Cable. The light source has a typical fiber-coupled output power of 0.1 mW using the included patch cable and a typical 2 mW output power when used in a free-space configuration.

Within the light source housing is a deuterium bulb and a series of UV fused silica lenses to focus the emitted light on the fiber port. Within the bulb, an electric arc is generated that excites the gaseous deuterium causing molecular emission of a continuous UV spectrum. In addition, two other major spectrum peaks occur at 486 nm and 656 nm. The deuterium bulb in the SLS204 has a lifetime of 2000 hours. Replacement bulbs are available for purchase separately. Please see the Bulb Replacement tab for detailed instructions on how to replace the bulb in these lamps.

The SLS204 comes equipped with an SMA905 fiber adapter on the output aperture and a hinged dust cap. The adapter can be removed to expose internal SM1 (1.035"-40) threading that is compatible with other externally SM1-threaded fiber adapters. The dust cap can also be removed using the included 5/64" hex key or balldriver in order to access the two of the four 4-40 tapped holes for 30 mm cage rods that provide compatibility with 30 mm cage system components. Using the cage system, it is possible to incorporate various optic mounts that are centered along the optical center of the lamp (as seen in the image above).

Please note that the SLS204 generates high-intensity UV light. Wear appropriate eye protection and do not look directly at the output during operation. Do not place hands or body parts in the path of the beam.

Item #	SLS204
Wavelength Range	200 - 700 nm
Bulb Electrical Power	30 W
Output Fiber	M114L01 Patch Cable (Included) Ø600 µm, 0.22 NA, SMA905 Connectors
Fiber-Coupled Output Power^a	0.1 mW (Typical)
Free-Space Output Power^b	2 mW (Typical)
Output Power Drift	0.02% Per Hour (Typical) 0.1% Per °C (Typical)
Output Power Stability^c	<0.06%
Bulb Lifetime^d	2000 h
Power Supply	100 - 240 VAC, 50 - 60 Hz
Operating Temperature	0 - 40 °C
Storage Temperature	-15 - 70 °C
Dimensions (L x W x H)	246.3 mm x 170.0 mm x 129.8 mm (9.70" x 6.69" x 5.11")

Measured with M114L01 Fiber Patch Cable at Beginning of Bulb Lifetime
Measured at the Output Port with the Fiber Adapter Removed at Beginning of Bulb Lifetime
Standard deviation of optical power measured at room temperature over a 1 hour period (after 45 minutes of warm-up) with a 1 Hz sampling rate.
Defined as the time it takes for the bulb to decrease to ≤50% of the initial output intensity at 230 nm.

Click to Enlarge

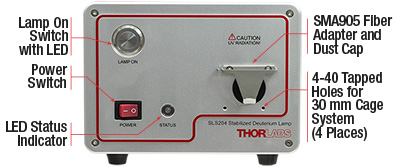

SLS204 Front Panel

Click to Enlarge

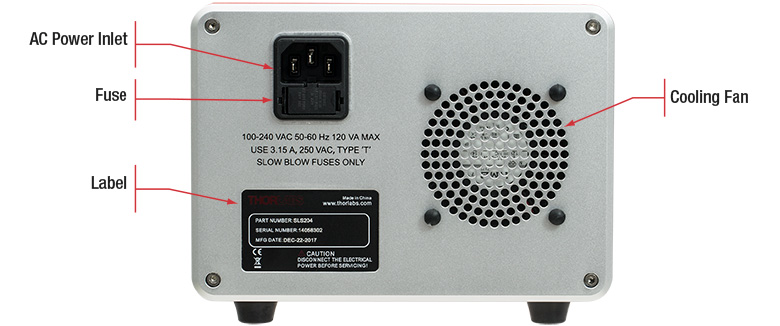

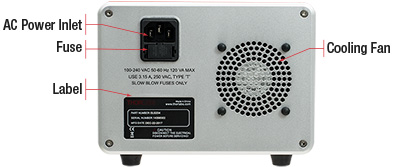

SLS204 Back Panel

Patch Cable Item #	Wavelength Range	NA	Core Diameter	Cladding Diameter	Coating Diameter	Bend Radius (Short Term)	Bend Radius (Long Term)
M114L01	180 - 1200 nm	0.22	600 ± 12 µm	660 ± 6 µm	750 ± 20 µm	80 mm	159 mm

Click to Enlarge

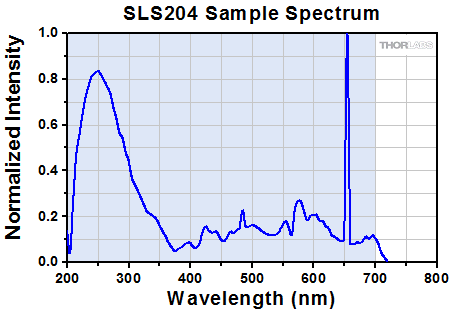

The measured spectral power distribution for the SLS204 Light Source. The blue-shaded region indicates the lamp's operating wavelength range. The continuous spectrum of the deuterium lamp extends from 200 nm - 400 nm. Please note that the lower apparent intensity of the output is due to detection limitations from 300 to 400 nm and <225 nm.

Click to Enlarge

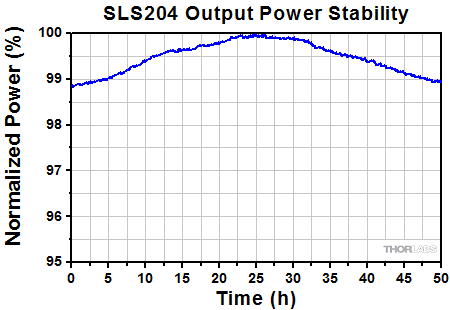

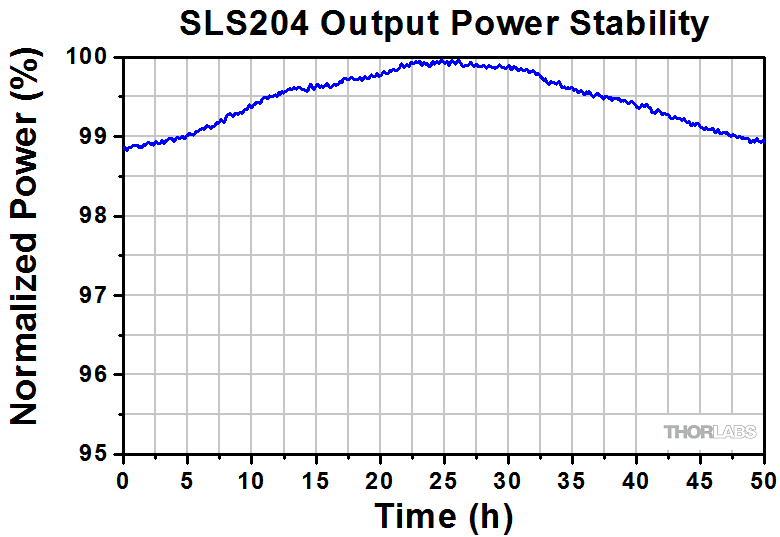

The output of the SLS204 over 50 hours of continuous operation. This graph does not include 45 minutes of warm-up to ignite the source and stabilize the output.

Click to Enlarge

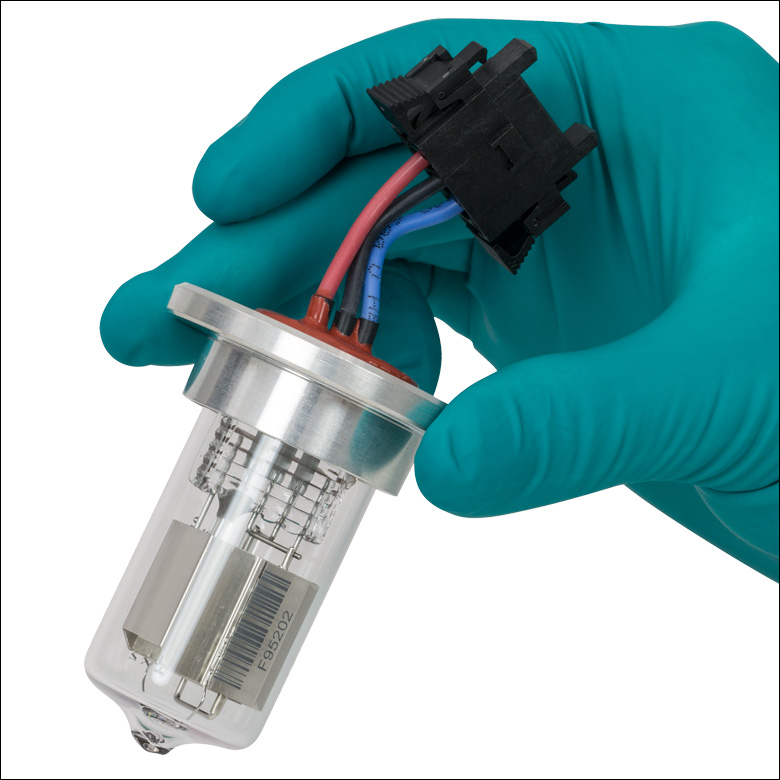

The bulb can be held by the metal casing with gloved hands. Avoid making contact with the bulb envelope directly.

Bulb Handling

The bulbs used in a deuterium lamp operate at a very high temperature. If handled incorrectly, they will become a serious hazard to users and could potentially cause severe injury. It is critical to follow safety instructions when handling them.

The guidelines below describe correct bulb handling.

Any dust or grease on the bulb will compromise the integrity of the bulb envelope, increasing the chance that the bulb will burst. Clean any dirt, oil, or lint away from the bulb with alcohol and a lint free cloth or tissue.
Never bump, drop, apply excessive stress, or scratch the bulb. This could cause it to burst.
Always transport the bulb in the provided protective case or cover until installation.
Save the protective case or cover and packaging materials (box) for bulbs that have been used to their rated service life.
Always wear gloves when handling the bulb; never hold the bulb by its envelope (see photo to the right). Thorlabs offers gloves that can be used for bulb handling.
The bulb generates very high-intensity UV light output; wear the appropriate laser safety glasses during operation.
The bulb gets very hot during operation. Always wait at least 10 minutes for the bulb to cool down before handling the bulb after operation.
Electrostatic discharge (ESD) protection is recommended when handling the bulb.

Click to Enlarge

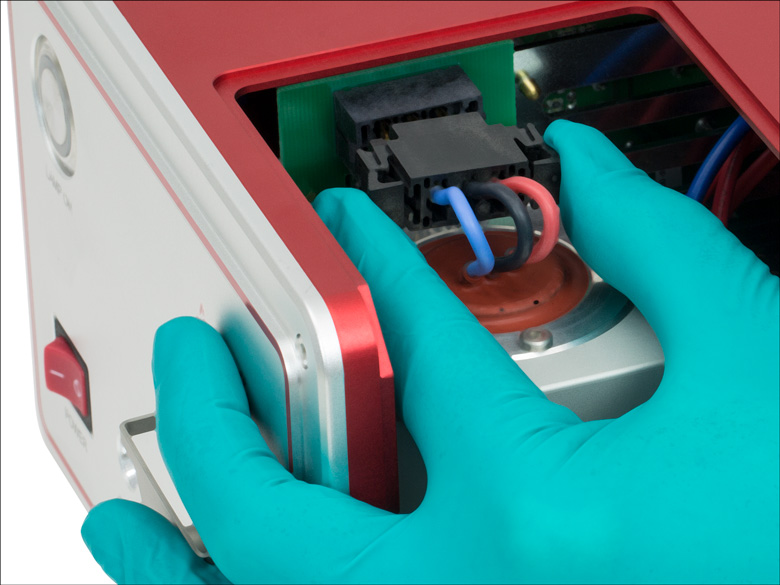

Step 3: Press Clamps and Pull Connector

Click to Enlarge

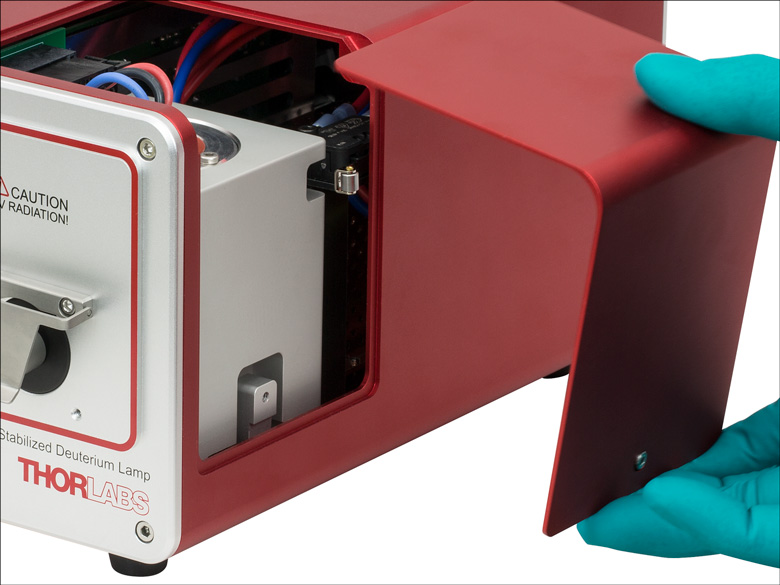

Step 2: Remove the Bulb Cover

Click to Enlarge
Step 1: Loosen Panel Screw

Click for Details

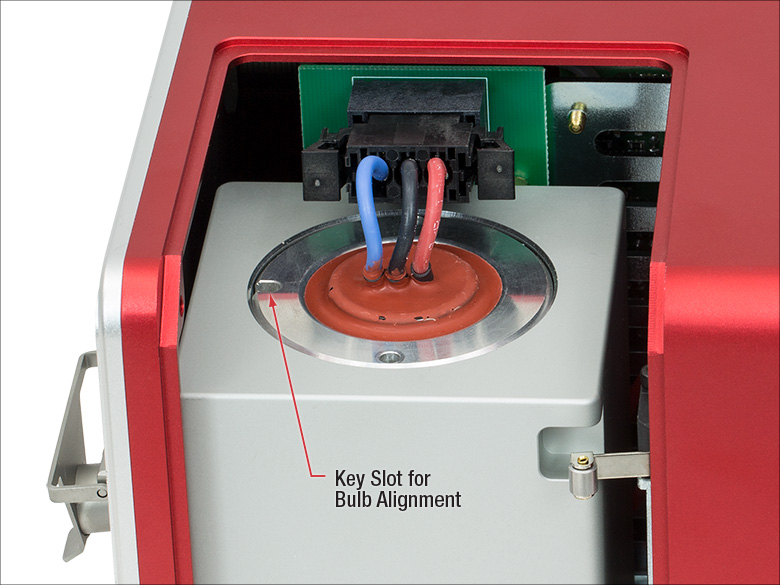

Step 6: Replace with New Bulb

Click to Enlarge
Step 5: Remove Bulb from Holder

Click to Enlarge

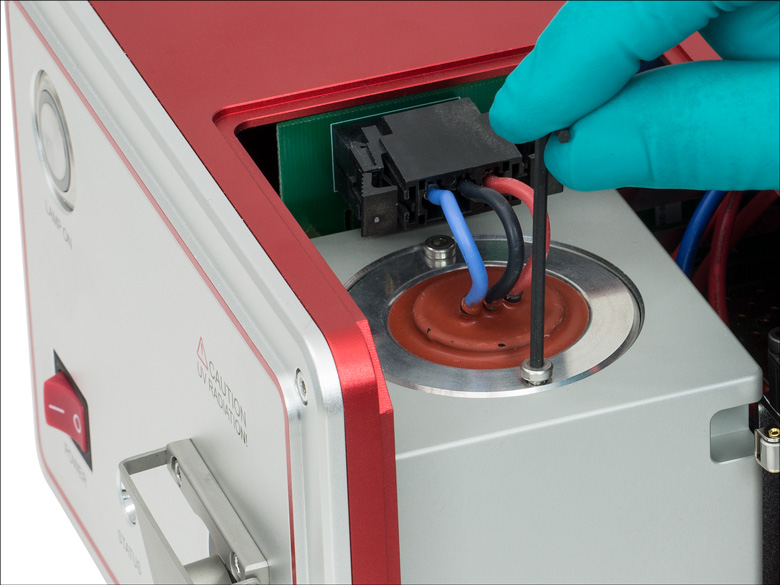

Step 4: Unscrew Bulb

Bulb Installation

The instructions and photos to the right detail the recommended procedure for replacing the bulbs in the SLS204 Deuterium Light Source. Do not attempt to change the light bulb while the bulb and unit are hot. Allow at least 10 minutes after turning the lamp off before attempting to replace the light bulb.

We strongly recommend wearing gloves when replacing the bulb to prevent skin oils from being deposited onto the bulb. If you suspect the bulb is dirty, carefully clean it with alcohol before connecting it to a power supply.

Open the Lamp Housing

Use the included 2 mm (5/64") hex key to loosen the panel screw on the side of the light source.
Hold the bulb cover and pull to remove it.

Remove the Old Bulb

Press the two clamps on the sides of the connector at the same time and pull the connector from the socket to electrically disconnect the bulb.
Use the 2 mm (5/64") hex key to remove the two cap screws holding the bulb within the lamp.
Pull out the bulb by the metal housing; do not touch the bulb envelope.

Install the New Bulb

Place the replacement bulb within the lamp aligning the slot in the bulb base with the pin on the front side of the bulb holder. Tighten the two cap screws with the hex key and plug in the black connector to connect the bulb. Afterwards, replace the side panel and tighten the panel screw with the hex key.

Posted Comments:

masonkn608 (posted 2019-01-02 16:24:20.267)

Can you advise a filter to remove the visible lines from the deuterium lamp SLS204, but still passs 200-400nm? Regards, Ken Mason

YLohia (posted 2019-01-03 09:13:37.0)

Hello Ken, thank you for contacting Thorlabs. Unfortunately, we currently do not offer a short pass filter that passes the UV region and blocks the visible light. I have posted your request on our internal engineering forum for further consideration.

ktothejw (posted 2018-07-16 22:11:31.62)

Unlike the equipment spec, the intensity is greatly reduced around 275 nm (using CCS200). If you give me mail, I will send the data together. Best regard.

YLohia (posted 2018-07-17 08:42:59.0)

Hello, thank you for contacting Thorlabs. In general, you can reach us via email at techsupport@thorlabs.com. That being said, this attenuation is to be expected when using the CCS200. For one, amplitude correction is not available below 380nm, so the spectrum curves will not be true. To add to that, a large difference in the relative response of the system from the UV to the visible inhibits reliable power readings in the UV when performing broadband measurements. Features in the UV may still be visible with the use of a bandpass or shortpass filter to prevent saturation at longer wavelengths.

Below is a selection guide for all of our white-light, broadband illumination sources (or lamps). In addition to these sources, Thorlabs also offers an unmounted white-light LED, five white-light mounted LEDs, two white-light fiber-coupled LEDs, and three high-powered, white-light Solis™ LEDs.

Lamp Selection Guide
Item #	(Click to Enlarge; Not to Scale)	Emitter Type	Wavelength	Spectrum Plot	Output Coupling	Output Power	Bulb Electrical Power	Color Temperature	Lifetime	Replacement Bulb
HPLS343		Plasma	350 nm - 800 nm		Liquid Light Guide	4 W^a (Typ.)	-	6000 K^b	10 000 h^c	HPLSB
HPLS345		Plasma	350 nm - 800 nm		Liquid Light Guide	7 W^a (Typ.)	-	6000 K^b	10 000 h^c	HPLSB
SLS201L(/M)		Tungsten-Halogen	360 nm - 2600 nm		Fiber Coupled (SMA), Liquid Light Guide, or Free Space	10 mW^d 500 mW^e	9 W	2796 K	10 000 h (Avg.)	SLS251
SLS202L(/M)		Tungsten	450 nm - 5500 nm		Fiber Coupled (SMA), Liquid Light Guide, or Free Space	2 mW^f 400 mW^e	7.2 W	1900 K	10 000 h (Avg.)	SLS252
SLS203L(/M)		Silicon Nitride Globar	500 nm - 9000 nm		Free Space	>1.5 W^e	24 W	1500 K	10 000 h (Avg.)	SLS253
SLS204		Deuterium	200 nm - 700 nm		Fiber Coupled (SMA) or Free Space	0.1 mW^g,h 2 mW^e (Typ.)	30 W	N/A	2000 h^c	SLS254B
SLS301		Tungsten-Halogen	360 nm - 3800 nm		Free Spaceⁱ	>1.6 W^h	150 W	3400 K	1000 h^j (Avg.)	SLS301B
SLS303		Silicon Nitride Globar	550 nm - 15 µm		Free Space	>4.5 W^h	70 W	1200 K	5000 h^j (Avg.)	SLS303B
SLS401		Xenon Arc	240 nm - 2400 nm		Free Spaceⁱ	>1.3 W^h	150 W	5800 K	2000 h^c	SLS401B
SLS402		Mercury-Xenon Arc	240 nm - 2400 nm		Free Spaceⁱ	>1.3 W^h	150 W	6000 K	2000 h^c	SLS402B
OSL2		Tungsten-Halogen	400 nm - 1300 nm		Fiber-Coupled Fiber Bundle	1.4 W^k	150 W	3200 K	1000 to 10 000 h to 50% Brightness	OSL2B, OSL2B2, or OSL2BIR
QTH10(/M)		Quartz Tungsten-Halogen	400 nm - 2200 nm	-	Free Space	50 mW^l (Typ.)	10 W	2800 K^m (Typ.)	2000 h	QTH10B
XCITE120LED		LED	370 nm - 700 nm		Free Space	Not Available	Not Available	Not Available	>25 000 h	Not Available
XCITE200DC		Mercury Arc	340 nm - 800 nm		Liquid Light Guide	Not Available	Not Available	Not Available	>2500 h (Typ.)	Not Available

Measured at the output of the liquid light guide, when both the bulb and the LLG are at start-of-life.
Prior to LLG
Average lifetime of bulb, defined as the total operation time before the maximum optical output power of the bulb reaches 50% of its original output.
Fiber-coupled optical power, measured with included M28L01 fiber patch cable at beginning of bulb lifetime.
Free-space optical power, measured at the output port of the light source with the fiber coupler removed.
Measured with Thorlabs' MZ41L1 ZrF₄ MIR patch cable at the beginning of bulb lifetime.
Measured with Thorlabs' M114L01 Solarization-Resistant Patch Cable at the beginning of bulb lifetime.
At Beginning of Bulb Lifetime
Liquid light guide (LLG) adapters are available separately to couple the free-space output.
Average lifetime of bulb, defined as the time elapsed when the controller cannot stabilize the output power of the bulb.
Power of Fiber Tip at Maximum Bulb Intensity
Measured by focusing the output beam after the ACL5040U condenser lens onto an S302C thermal power sensor with an MPD508762-90-P01 protected silver off-axis parabolic mirror.
Color temperature will vary from unit to unit.
