Micrometer Drives, 1/2" (13 mm)
The MT1 Translation Stage

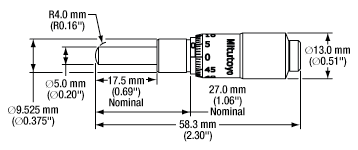

The 148-811ST and 148-811ST-H micrometers provide a travel range of 0.500" and feature engraved graduations every 0.001", while the 148-801ST and 148-801ST-H micrometers provide a travel range of 13.00 mm with 10 µm spacing between graduations. Item numbers ending in -H incorporate a 5/64" (2 mm) hex, allowing them to be actuated in space-constrained environments.
The spherical spindle tip provides a single point of contact, which minimizes positioning alignment errors. Thorlabs can integrate these micrometers into many of our standard products; please contact Tech Support for details.
