Products Home / Actuators, Adjusters, & Transducers / Micrometer Heads / Manual Micrometer Heads, 1/4" (6.5 mm) TravelManual Micrometer Heads, 1/4" (6.5 mm) Travel
- 1/4" (6.5 mm) Travel Range
- 0.001" (10 µm) of Travel per Division
- Spherical and Flat Tips
- Avaliable With or Without a 5/64" (2 mm) Hex on the End
148-202FT-H
Flat Tip
Spherical Tip
148-206ST
148-206ST-H
5/64" Hex (2 mm)
Please Wait
| Item Number | 148-206ST(-H) | 148-202FT-H | 148-205ST(-H) | 148-201FT-H |
|---|---|---|---|---|
| Travel Range | 0.250" | 6.50 mm | ||
| Graduation | 0.001" per Division | 10 µm per Division | ||
| Distance per Rev | 0.025" | 0.5 mm | ||
| Tip Geometry | Spherical R = 0.12" (3.0 mm) |
Flat | Spherical R = 0.12" (3.0 mm) |
Flat |
| Barrel Diameter | 1/4" | 6.0 mm | ||
| Hexa | 5/64" | 2 mm | ||
| Load Capacity | 2 kg (Max) | |||
| Scale Surface | Hard-Chrome Plating | |||
Features
- Chrome-Plated Polished Spindle
- Knurled Adjustment Knob for Grip
- Small Ø1/4" (Ø6 mm) Mounting Barrel
- Durable Engraved Graduations for Easy Viewing
- Versions with 5/64" (2 mm) Hex Available
The 148-206ST(-H) and 148-202FT-H micrometers provide a travel range of 0.250" and feature engraved graduations every 0.001", while the 148-205ST(-H) and 148-201FT-H micrometers provide a travel range of 6.50 mm with 10 µm spacing between graduations. Item numbers ending in -H incorporate a 5/64" (2 mm) hex, allowing them to be actuated in space-constrained environments.
These micrometers are available with two different tip geometries. The 148-202FT-H and
148-201FT-H micrometers feature a flat tip. The spherical spindle tip, available with the
148-206ST(-H) and 148-205ST(-H) micrometers, provides a single point of contact, which minimizes positioning alignment errors. Dimensions for the 148-206ST-H and 148-202FT-H are provided in Figures 1.1 and 1.2 and complete dimensions for each micrometer can be found by clicking the Docs icon (
). Thorlabs can integrate these micrometers into many of our standard products; please contact Tech Support for details.
Click to Enlarge
Figure 1.1 148-206ST-H Spherical Tip Micrometer Head
Click to Enlarge
Figure 1.2 148-202FT-H Flat Tip Micrometer Head
Click to Enlarge

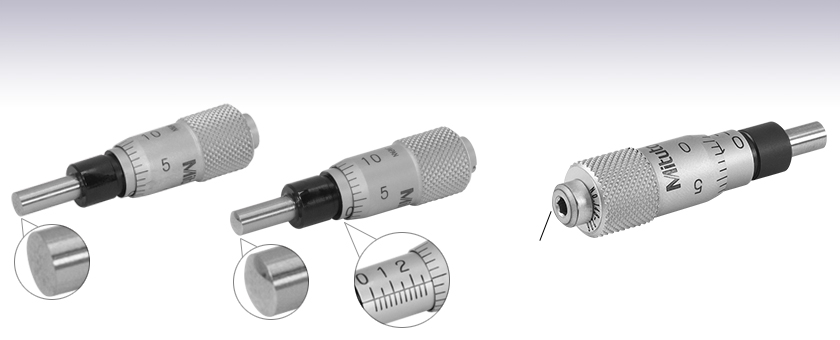

Figure 1.3 Hex on Micrometers with Item Numbers Ending in -H
