Manual Differential Drive, 18 mm Travel

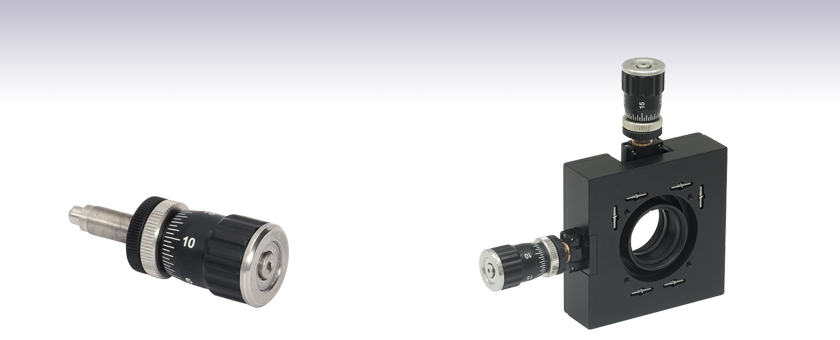

Our ST1XY-D Translation Stage

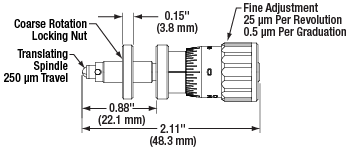

The DM22 Differential Adjuster uses two internal leadscrews; one pushes the center spindle forward at 400 µm per revolution while the other pulls it back at 375 µm per revolution. The resultant total forward motion of the center spindle is just 25 µm for one complete revolution of the graduated knob. Each small graduation of the fine control knob is 0.5 µm; the smallest incremental move for the DM22 is approximately 50 nm. When performing fine adjustment the coarse adjustment mechanism can be locked by means of a small locking collar. For more details on the operating mechanism of the DM22, please refer to the DM22 Operation tab.
Prior to installation, the adjuster should be greased slightly. To install the adjuster, screw the threads into the bushing by hand. Ensure that cross threading does not occur in order to avoid damage to the adjuster and bushing.
If the fine adjustment knob on the DM22 is ever removed from the actuator body, it can be reattached. Please see the DM22 Knob Attachment tab for more details. Follow the reattachment instructions carefully so that the actuator functions properly.
Fine Adjustment Knob Reattachment for Differential Adjusters
Differential Adjuster Operation Mechanisms
A differential adjuster consists of four basic parts: outer body, coarse adjustment lock, inner spindle, and fine adjustment knob. Using the DM22 as an example, the video to the left demonstrates how these four parts come together to create a device that allows for coarse and fine adjustments. Also detailed are two different methods of mounting these actuators into an assembly.
Differential Adjuster Mechanisms
