Rotation Mount with Resonant Piezoelectric Motors


  • SM1-Threaded Rotation Mount with Closed-Loop Positioning
  • Open Frame Design for OEM Applications
  • Control via Interface Board, GUI, or ASCII Message Calls
  • Fully Integrated Drive Electronics

ELL14K

Rotation Mount Bundle

Rotation Mount for Ø1" or Ø25.0 mm Optics
(Also Available Individually)

Interface Board

Application Idea

The ELL14K rotates a mounted, SM1-Threaded polarizer within a 60 mm cage assembly.

Related Items


Please Wait
Key Specificationsa
Travel
(No Limit Switches)b
360° Continuous
Homing Repeatability 4.36 mrad (0.25°)
Bidirectional Repeatability 873 µrad (0.05°)
Velocity (Maximum) 430 °/s
Maximum Total Load 50 g (1.76 oz)c
DC Voltage Input 4.5 to 5.5 V
Weight of Mount 80 g (2.82 oz)
Minimum Lifetime 100 km (>600 000 Revolutions)
Mount Dimensions
66.0 mm x 82.5 mm x 19.0 mm
(2.6" x 3.25" x 0.75")
  • See the Specs tab for complete specifications.
  • Not Intended for Continuous Operation
  • Maximum Load Must Be Centered in Mount
The Connected Components of the ELL4K Rotation Stage Bundle
Click to Enlarge

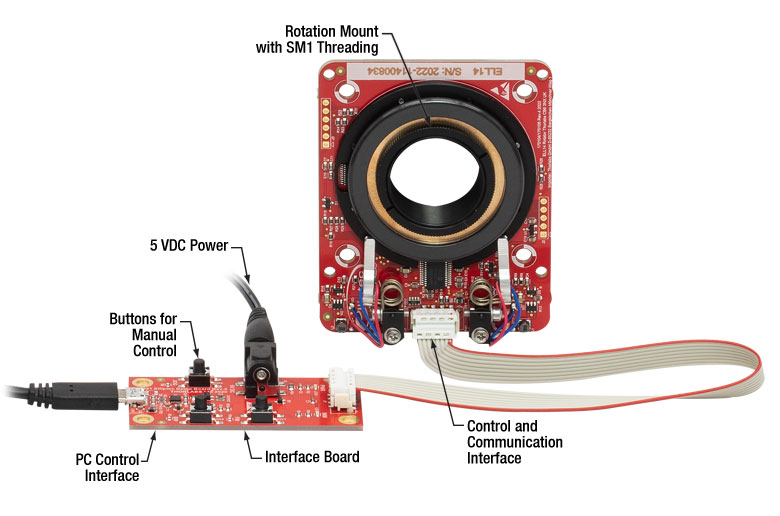

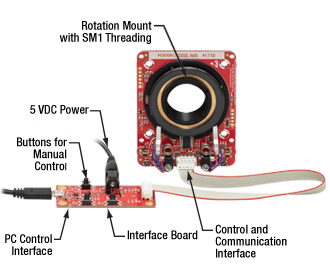

The components of the ELL14K Rotation Mount Bundle are shown connected and with key features labeled.
Elliptec OEM PageThorlabs' Elliptec Technology for OEM
View Imperial Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
ELLA11Post Mount Adapter for ELL6 and ELL9
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
TR21Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
SH8S03818-32 Stainless Steel Cap Screw, 3/8" Long, Pack of 50
View Metric Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
ELLA11Post Mount Adapter for ELL6 and ELL9
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
TR50/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm
SH4MS061M4 x 0.7 Stainless Steel Cap Screw, 6 mm Long, Pack of 50
The rotation mount can be adapted for post mounting using SR025 cage rods and the ELLA1 post mounting adapter.

Features

  • Ideal for OEMs and Applications Requiring Rapid and Precise Optic Rotation
  • Micro-B USB and Picoflex®* Connectors for Control Signals
  • Multi-Drop Serial Communication Protocol Supported
  • SM1-Threaded Rotation Mount for Ø1" or Ø25.0 mm Optics
  • Absolute Home Position Found with Infrared and Magnetic Sensor Technologies
  • Magnetic Encoder Used to Position Mount

Driven by Thorlabs' Elliptec™ piezoelectric resonant motor technology, this rotation mount is designed to be a compact solution for applications requiring optic rotation. Thorlabs offers the ELL14K rotation mount bundle, which contains the ELL14 rotation mount, an interface board for manual control of the mount, power supply, and cables for connecting the mount and interface board to each other and to a PC. The ELL14 can also be purchased separately.

The rotating cell of each mount is internally SM1 (1.035"-40) threaded and includes two SM1RR retaining rings for mounting Ø1" or Ø25.0 mm optics. It is designed to be lightweight and compact, and the closed-loop operation provides rotation to specified orientations with a repeatability of 873 µrad. The assembled components of the ELL14K are shown in the image to the right, with key features labeled. Please see The Elliptec™ Motor tab for more information.

The motors are highly dynamic and have no gearing. The tips of both motor housings are in firm contact with the plastic track at the base of mount, as can be seen in the image at the right. The motors are installed with opposite orientations and translation in both directions occurs when one motor pushes the track forward while the other pulls it backward. The rotation mount is not designed for continuous operation. We recommend operation with duty cycles of 40% or less. When power is not applied to the motors, the stage is held in place by an approximately 0.01 N·m combined torque exerted by the stationary arms of the motors.

The open frame format, versatility, and simplicity of this rotation mount makes it attractive for OEM applications, as it can be customized according to customer requirements and produced in high-volume quantities. Please contact us to discuss your specific requirements so that we may tailor a solution to meet the needs of your application.

Control
There are multiple options for powering, driving, and controlling this rotation mount, which are detailed in the Positioning the Rotation Mount section of the Operation tab. The mount possesses a 3.3 V serial bus and is designed to be operated with or without the interface board; the Pin Diagram tab provides pin assignments. Thorlabs offers software for our Elliptec products capable of providing full and independent control of the mount. When the interface board is used as an accessory to change the position of the mount, its status in the software is automatically updated.

Elliptec Resonant Motor Products
Dual Position Slider ELL17 Linear Stage ELL20 Linear Stage ELL18 Rotation Stage ELL14 Rotation Mount
Multi-Position Sliders 28 mm Linear Stage 60 mm Linear Stage Rotation Stage Rotation Mount

The multi-drop communications bus on the interface board offers the option of connecting the mount to a hybrid network of up to 16 Elliptec resonant motor products using a custom cable and controlling the connected units with a device such as a microprocessor. When multiple units are connected to the same interface board, all the units react simultaneously to comands from the buttons on the interface board while software commands can be sent to control individual stages. Please see the manual for details.

*Picoflex is a registered trademark of Molex Incorportated.

Specificationsa
Performance
Travel 360° Continuousb
Maximum Speedc 430 °/s
Bidirectional Repeatabilityd 873 µrad (0.05°)
Homing Repeatability 4.36 mrad (0.25°)
Bidirectional Accuracye 6.98 mrad (0.4°)
Backlash 226.9 µrad (0.013°)
Encoder Resolution (Relative Magnetic Encoder) 143360 counts/rev
(43.8 µrad/count)
(0.0025°/count)
Minimum Incremental Motion 34.9 µrad (0.002°)
Minimum Holding Torque (Both Motors Engaged) 0.01 N•m
Axis Wobblef 244.3 µrad (0.014°)
Maximum Total Loadg 50 g (0.11 lb)
Minimum Lifetimeh >600 000 Revolutions (100 km)
Electrical
Motor Type Elliptec Resonant Piezo
DC Voltage Input 4.5 to 5.5 V
Typical Current Consumption, During Movement 800 mA
Typical Current Consumption, During Standby 50 mA
Communications
Bus Multi-Drop 3.3 V/5 V TTL RS232
Connector on Rotation Stage Board Picoflex®
Connectors on Interface Board Picoflex®, Micro USB, DC Jack [6.3mm OD (GND), 2.1mm ID (+5V)]
Speed 9600 baud
Data Length (1 Stop Bit, No Parity) 8 bit
Protocol Data Format ASCII HEX
Module Address and Command Format Mnemonic Character
Mechanical
Mounting Thread SM1
Dimensions of the Rotation Mount Board 66.0 mm x 82.5 mm x 19.1mm
(2.6" x 3.25" x 0.75")
Weight of Rotation Mount Board  80 g (0.176 lb)
Environmental Operating Conditions
Temperature Range 15 to 40 °C (59 to 104 °F)
Maximum Relative Humidity (Non-Condensing) <80% at 31 °C
Maximum Altitude 2000 m
  • Performance specifications are given for the case when the rotation stage is mounted as recommended in the Operation tab. All values were measured with a load of 64 g and a moment of inertia of 6600 g·mm2.
  • We recommend a duty cycle of 15 s running followed by 20 s cooling down. A shorter running time requires a shorter cool down time.
  • Some natural variability in the maximum speed may be experienced. Max speed will increase with usage.
  • Maximum Difference Between Clockwise and Counterclockwise Movement to the Same Position
  • Maximum Deviation from True
  • Maximum Deviation from the Center of Rotation
  • The maximum load must be centered in the mount.
  • The rotation stage is not designed for continuous operation.

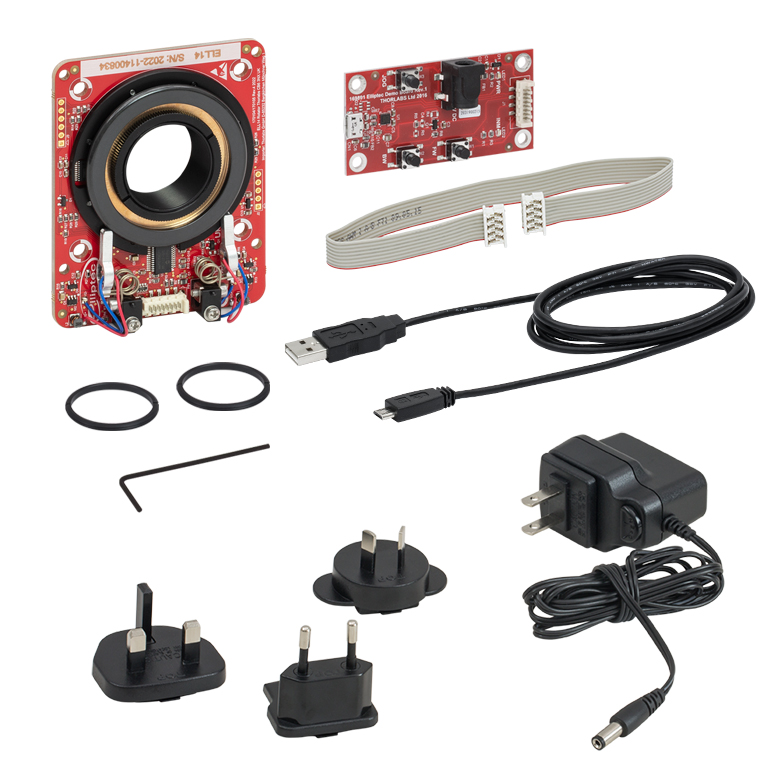

Components of the ELL14K Bundle
Click to Enlarge

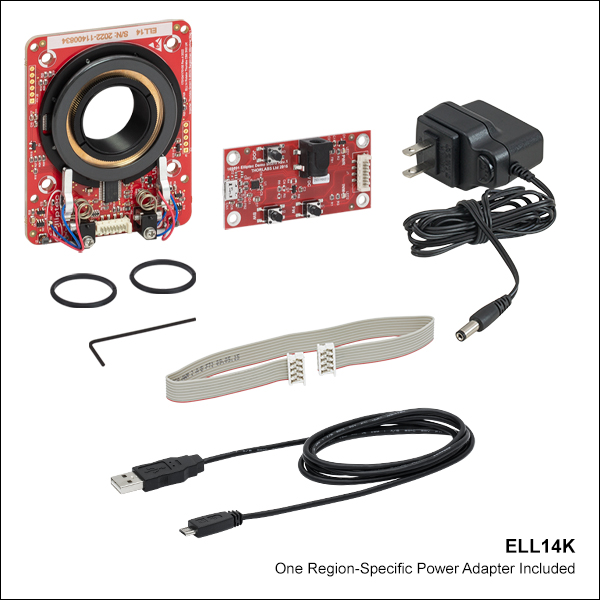

Components of the ELL14K Bundle
(One Region-Specific Power Adapter Included with the Power Supply)

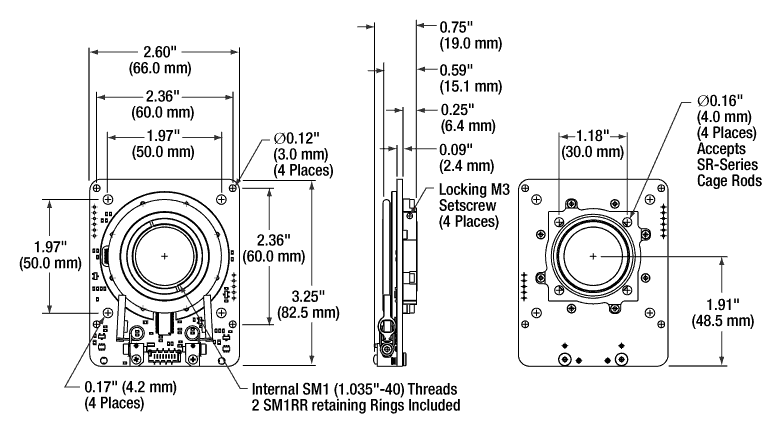

Mechanical Drawings of the Elliptec Rotation Mount
Click to Enlarge

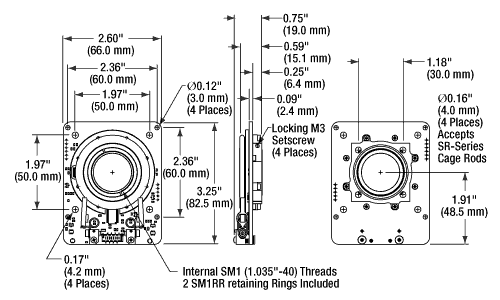

Mechanical Drawing of the Rotation Mount
For more information on mounting options see the Operation tab.
Mechanical Drawings of the Remote Handset
Click to Enlarge

Mechanical Drawing of the Interface Board
Connector J1 Pinouta
Pin Type Function
1 PWR Ground
2 OUT OTDX - Open Drain Transmit 3.3 V TTL RS232
3 IN RX Receive - 3.3 V TTL RS232
4 OUT In Motion, Open Drain Active Low Max 5 mA
5 IN JOG/Mode, Active Low Max 5 V
6 IN BW Backward, Active Low Max 5 V
7 IN FW Forward, Active Low Max 5 V
8 PWR VCC +5 V ±10%; 800 mA
  • Connector Model Number MOLEX 90814-0808;
    Mating Connector Model Number MOLEX 90327-0308

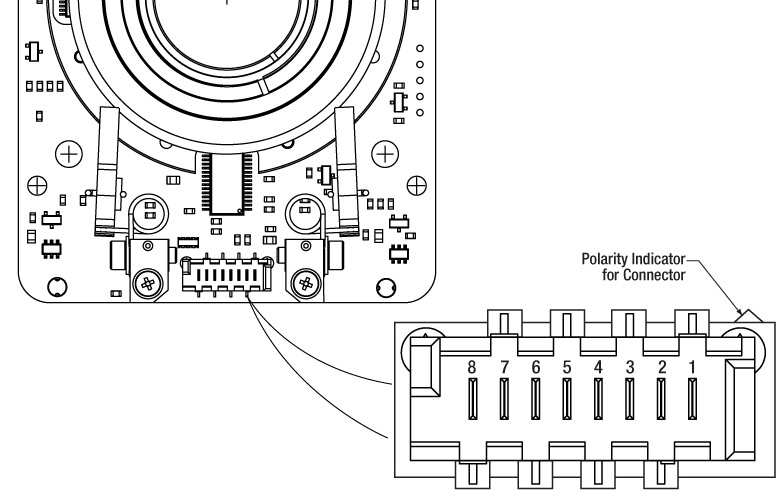

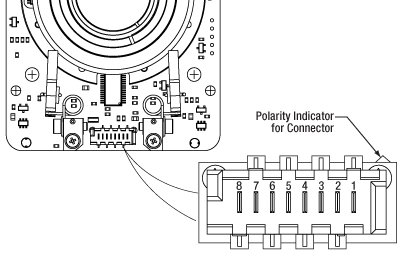

Pinout Diagram of the Picoflex Connector on the Rotation Mount PCB
Click to Enlarge

Pinout diagram of the Picoflex connector is shown referended to a cut-away diagram
of the ELL14 Rotation Mount Board.

Operation Notes

This tab contains information on handling, mounting, and operating the ELL14K Rotation Mount Bundle.

Contents

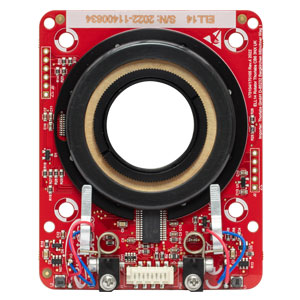

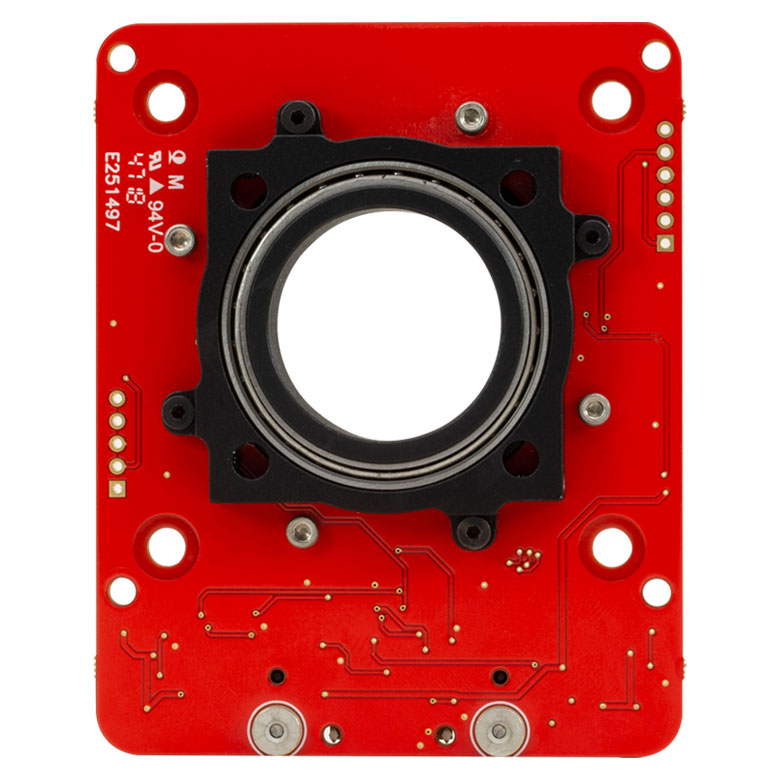

The Rotation Mount, Back
Click to Enlarge

The Rotation Mount, Back

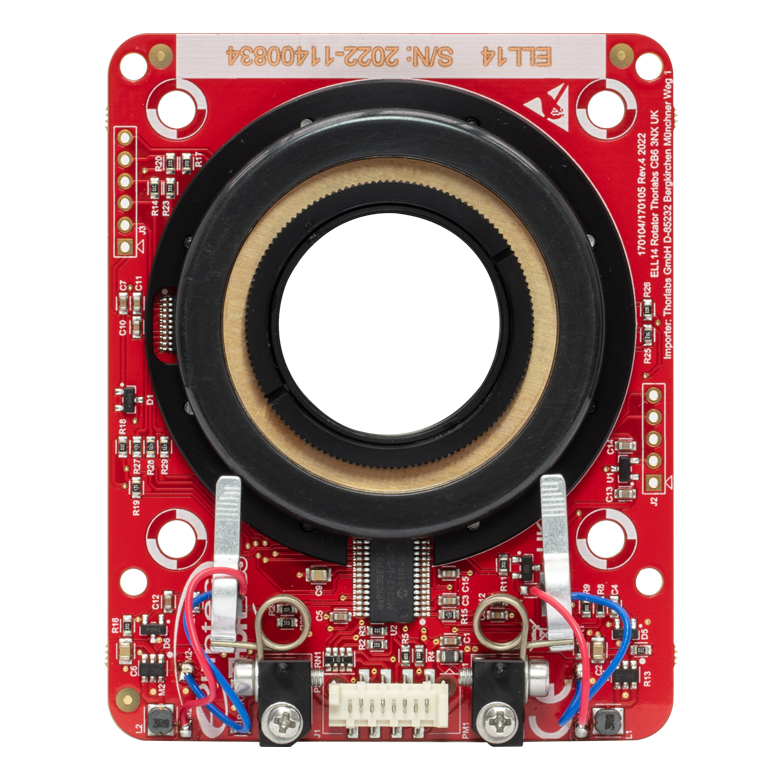

The Rotation Mount, Front
Click to Enlarge

The Rotation Mount, Front

Handling

The rotation mount and interface board included in the ELL14K bundle are robust to general handling. To ensure reliable operation, keep the surface of the plastic track contacted by the motors free of oils, dirt, and dust. It is not necessary to wear gloves while handling the rotation mount, but avoid touching the track to keep it free of oils from fingerprints. If it is necessary to clean the track, it may be wiped with isopropyl alcohol or mineral spirits (white spirit). Do not use acetone, as this solvent will damage the plastic track.

The open frame format of the ELL14 can tolerate up to 8 kV of static discharge. ESD precautions should be taken, as an electrostatic discharge can produce an electrical signal that may cause an unintended movement of the mount. A bending load in excess of 500 g applied to the board may cause the PCB to deform, which will degrade the performance of the rotation mount. As readings from a magnetic sensor are used during the homing and positioning of the mount, avoid subjecting the structural PCB to excessive loads or magnetic fields. Limit the strength of magnetic fields in proximity to the magnetic sensor to ±5 mT to avoid negatively affecting the homing and positioning operations.

Mounting and Loading the Rotation Mount

The rotation mount may be mounted either vertically or horizontally. The Elliptec motors should be facing up if the mount is used horizontally. The mount has several mounting features that can be used with Thorlabs components or within a custom OEM assembly. Four Ø0.12" (3.0 mm) through holes are spaced 60 mm apart and provide compatibility with our 60 mm cage system. These holes can pass 4-40 or M3 screws for mounting to custom structures. Additionally, there are four Ø4.2 mm (Ø0.17") through holes spaced 50 mm apart which can be used with 6-32 or M5 screws for custom mounting. The back of the mount features four Ø4.0 mm (0.16") holes 30 mm apart with locking M3 setscrews for use with our SR-Series cage rods. A 1.5 mm hex key comes with the mount for locking these screws. SR-Series cage rods can be used to attach the ELLA1 adapter to allow for post mounting or to attach ER-Series cage rods for integration into a 30 mm cage system. The images below show three mounting options.

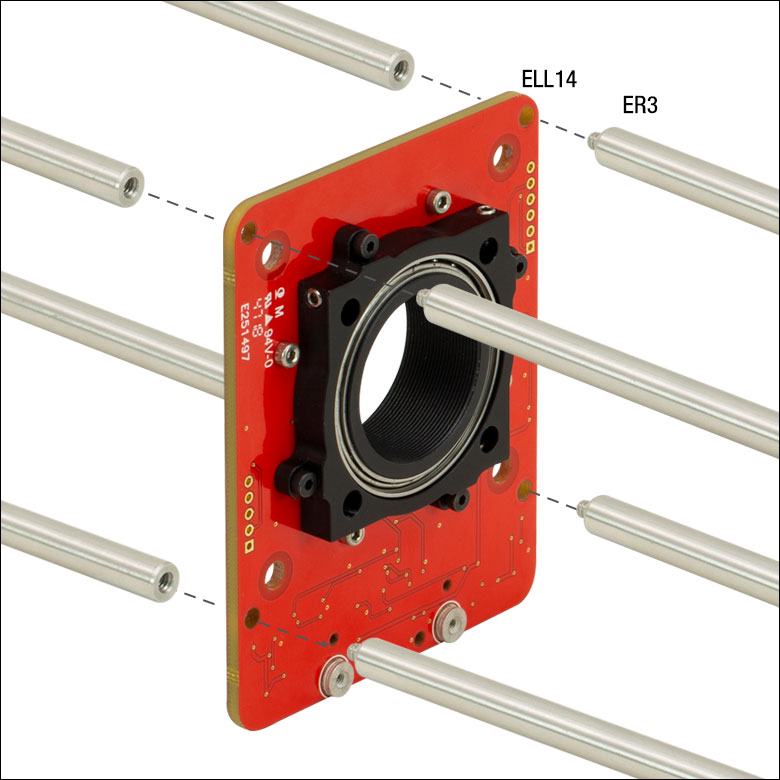

Mounting the ELL14 in a 60 mm Cage System
Click for Details
View Product List
Item #QtyDescription
ELL141Rotation Mount: SM1 Threaded
ER3-P42Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
The rotation mount can be mounted in a 60 mm cage system by sandwiching the PCB between two cage rods using the Ø0.12" (3.0 mm) holes in the corners.
Mounting the ELL14 in a 30 mm Cage System
Click for Details

View Imperial Product List
Item #QtyDescription
ELL141Rotation Mount: SM1 Threaded
ER3-P41Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
CP021SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, 8-32 Tap
View Metric Product List
Item #QtyDescription
ELL141Rotation Mount: SM1 Threaded
ER3-P41Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
CP02/M1SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, M4 Tap
The rotation mount can be adapted to a 30 mm cage system using SR025 cage rods in the Ø0.16" (4.0 mm) holes on the back of the mount.
Mounting the ELL14 on a post
Click for Details

View Imperial Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
ELLA11Post Mount Adapter for ELL6 and ELL9
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
TR21Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
SH8S03818-32 Stainless Steel Cap Screw, 3/8" Long, Pack of 50
View Metric Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
ELLA11Post Mount Adapter for ELL6 and ELL9
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
TR50/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm
SH4MS061M4 x 0.7 Stainless Steel Cap Screw, 6 mm Long, Pack of 50
The rotation mount can be adapted for post mounting using SR025 cage rods and the ELLA1 post mounitng adapter.

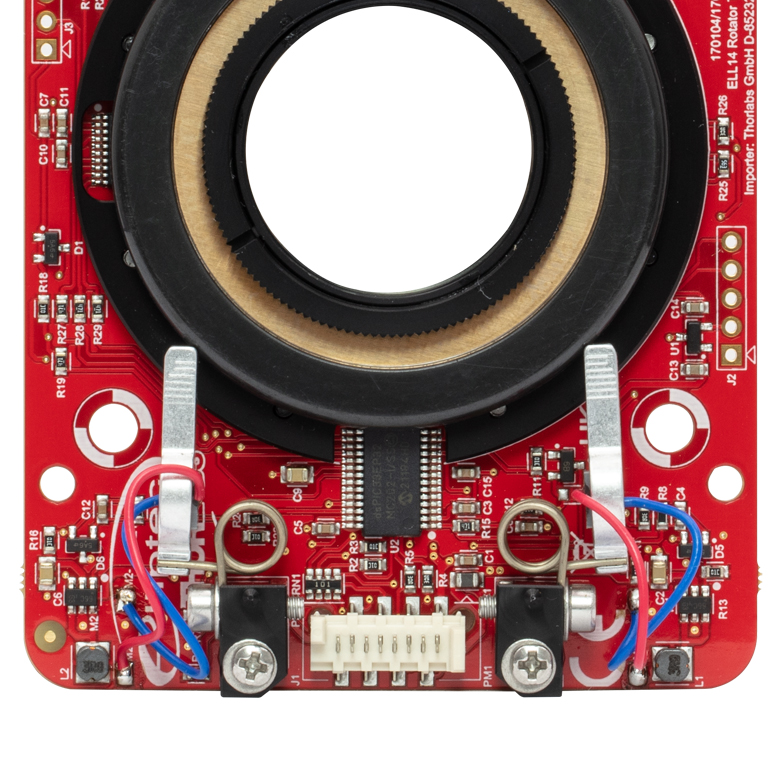

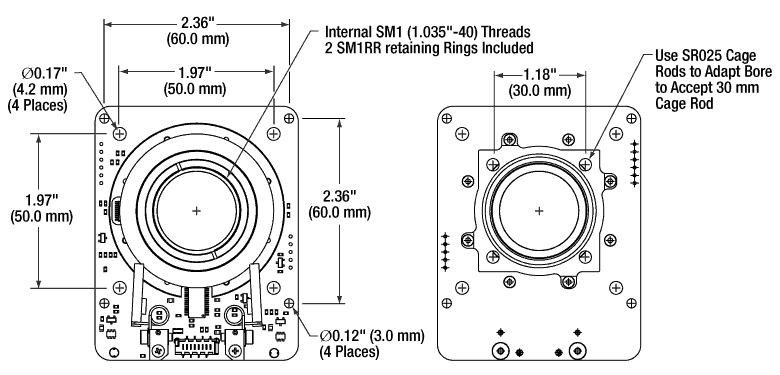

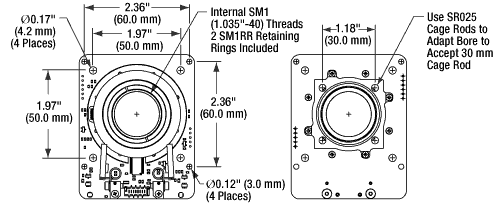

Features of the Rotation Stage
Click to Enlarge

Features of the Rotation Mount

The maximum allowed weight of the mounted optic is 50 g. The load must be centered on the mount in order to acheive 50 g. In all cases of mounting and loading, ensure that nothing interferes with the moving parts of the rotation mount and that the mount and its load are securely fastened to prevent jostling during movement. Jostling of the stage or the load can cause an encoder error.

Supplying Power

When the setup includes the interface board, power may be supplied through the Micro-B USB connector and/or the 5 VDC power socket located on the board. The electronics on the interface board convert the applied DC signal to a sinusoidal signal oscillating at the required resonance frequency.

The ELL14K bundle includes a 5 VDC power supply whose connector mates with the power socket on the interface board. Delivering power through this socket also allows the Micro-B USB connector to be used for a computer to control the mount remotely. The power supplied by a computer through the USB 2.0 connection is not sufficient to power the mount. If computer control is not necessary, another option for supplying power to the mount is a portable USB 5 V battery pack connected to the Micro-B USB connector on the interface board.

When the implementation does not include the interface board, the connection with the power source is made using the pins on the Picoflex connector that is included on the rotation mount board. A pinout diagram of this connector is included in the Pin Diagram tab, and information on powering and addressing the rotation mount is given in the manual and the communications protocol manual, respectively.

Operation of the Motors

The motion of the rotation mount is controlled by forcing the piezoelectric elements to vibrate at specific ultrasonic frequencies. For each motor, there is one ultrasonic resonant frequency that will push the mount forward, and another that will pull the mount backward. Operating a motor at one of its resonance frequencies causes the tip of the motor to continuously cycle in a tight clockwise elliptical path. When the motor is driven at its other resonant frequency, the tip of the motor cycles through that same path in a counterclockwise direction. Both resonant frequencies are around 100 kHz. The total displacement at the tip of motor is a function of the mechanical load it is driving and the voltage supplied to the piezo element. In the case of no loading and a 5 V maximum driving voltage at a resonant frequency, the tip of the motor expands and contracts no more than a few microns while tracing the elliptical path. Please see The Elliptec™ Motor tab for more information and an animation illustrating the operational principle of the motors.

Homing the Rotation Mount

The Interface Board
Click to Enlarge

The Interface Board
The Interface Board
Click to Enlarge

Features of the Interface Board

To Home the mount, press the BW button on the interface board, click the Home button in the Elliptec software's graphical user interface (GUI) or send the appropriate ASCII message as is specified in the communications protocol manual.

The default Home position is referenced to a fixed feature on the mount assembly. If desired, the user may redefine the position of Home to be offset from the default position by up to +90° (a quarter turn in the clockwise direction). Being able to customize the Home position can be useful when synchronizing the orientations of two or more mounts. When executing the Home command, the mount first finds the approximate location of Home, and then a fine-positioning procedure is used to orient the mount at Home with an accuracy of 288.0 µrad. The user can specify whether the mount rotates in a clockwise or counterclockwise direction (as defined from the perspective of looking down on the surface of the mount) during the first phase of the homing procedure, but the fine-positioning phase is always performed in the counterclockwise direction for repeatability.

Positioning the Rotation Mount

Note that the rotation mount is not intended for continuous operation. We recommend operation with duty cycles of less than 40% during general use, while operation with duty cycles greater than 60% should be limited to a few seconds.

Before the mount may be positioned, the Home position of the mount must be found. Please see the previous section for details. The movement of the mount may be controlled through computer control via the Elliptec™ software package that may be downloaded, or by sending simple signals to digital lines on the mount's board. A link to download the software and accompanying documentation can be found in the Software tab. It is also possible to effect the simultaneous movement of several rotation mounts by connecting all to the communications bus. When this is done, the software can send separate commands to each mount, while commands originating from buttons pressed on the handset will be sent to all connected mounts simultaneously. The communications protocol manual describes how to use the software to individually address each connected mount.

The default increment to move the mount forward and backward is 45°, and a custom increment can be set using the Elliptec software or by sending the appropriate ASCII message(s) as specified in the communications protocol manual. The Elliptec software can be used to move the mount to absolute and relative positions, in addition to jogging the mount forward or backward. The software is also used to set the jog step size, read the position of the mount, and adjust the position of Home, as is described in the previous section.

Readings from the magnetic sensor, which can resolve angular increments of 23.8 µrad, are used to position the mount and when executing the Home command. The travel range of the mount is not limited, but the reported orientation of the mount is always expressed as a value between 0° and 359.99°. The minimum incremental movement of the mount is 34.9 µrad, and it can be positioned with a repeatability of 873 µrad in response to signals from the magnetic sensor.

The mount learns to efficiently position itself precisely using a position error compensation algorithm. After the mount moves into a new position, it detects the error between the requested and actual positions. The position of the mount is then corrected, and an error compensation value is calculated. The algorithm is then updated with the error compensation value, so that it is applied when the mount is move to its next position. Typically, an optimum error compensation value is found after between two and six movements.

Resonance Frequencies

On power-up, the factory default setting instructs each motor driving the rotation mount to search for the resonance frequencies that will deliver the best performance. During this process, the rotation mount will translate a forward and backward by a small amount. If movement on start-up is undesirable, it is possible to disable this calibration procedure by using the serial port to initialize the frequencies on power-up. A new search for optimal resonance frequencies may be performed at any time; to maintain optimal performance, it is recommended that new searches be performed after changes in loading and/or ambient temperature. Please see the manual for details.

The Components of the Elliptec Motor
Click to Enlarge

The Components of the Elliptec Motor
The Elliptec Piezoelectric Resonant Motor
Click to Enlarge

The Elliptec Piezoelectric Resonant Motor

The Elliptec™ Piezoelectric Resonant Motor

Thorlabs' Elliptec™ piezo resonant motor, shown at right, is lightweight, with a mass of 1.2 g, and compact: the dimensions of the resonator housing, excluding the spring, are 8 mm x 4 mm x 20 mm.

Components of the Motor

The components that compose the motor are shown at far-right. The piezoelectric element is press fit into the aluminum resonator, which has been precisely designed and machined to produce the desired elliptical motion at the tip and to interface optimally with the driven module. The free ends of the spring are integrated with the resonator housing. The wires, which are soldered to the top and bottom of the piezoelectric element, deliver the voltage signal that induces the piezoelectric element to vibrate at ultrasonic frequencies.

When the motor is built into a system, the open loop of the spring is bolted to a sturdy surface that is stationary with respect to the item to be driven, and the tip of the resonator is placed in contact with the item. The purpose of the spring is to maintain constant contact between the tip of the resonator and the driven item, and the direction of motion is determined by the resonance frequency at which the piezo element is driven.

Elliptical Motion and Comparison with Conventional Motors

Elliptec motors quickly and precisely position stages and mounts while never seeming to move. Their microscopic movements occur at ultrasonic frequencies and are invisible to the naked eye.

The motor is operated by driving it at one of its two resonance frequencies. A voltage signal oscillating at an ultrasonic frequency is applied to the piezoelectric chip, which responds by expanding less than a micron and then contracting back to its original dimensions at the frequency of the driving signal. This rapid-cycling change in the chip's dimensions causes a vibration in the aluminum resonator housing. When the vibration is at one of the housing's resonance frequencies, a pushing motion results at the tip of the motor. When the vibration is at the other resonance frequency a pulling motion results.

As illustrated in the video, the pulling and pushing motions result from the tip of the motor tracing an elliptical path in space when the motor operates at resonance. The selected resonance frequency controls the direction of the cyclical motion. The motor's tip traces one half of the ellipse as it expands and the other half as it contracts. When the motor pushes the driven item, the motor's tip is in contact with the item while the tip expands; the two are not in contact while the tip contracts. The converse is true when the motor pulls the driven item in the opposite direction. The total displacement at the tip of the motor is a function of both the mechanical load it is driving and the voltage supplied to the piezo element. The maximum displacement can be up to a few microns when the peak driving voltage is 5 V.

The motor behaves in many ways like a DC or electromagnetic stepper motor, but it does not suffer from many of the drawbacks of these conventional motors. Unlike conventional electromagnetic motors, which must overcome inertial delays to come to a stop, the highly dynamic Elliptec motor can stop within microseconds. As it has no gears, it does not exhibit backlash. Since it possesses no magnets, it is compatible with use in environments sensitive to electromagnetic interference. The motion of the driven element is continuous and smooth. As the tip of the motor must be in contact with the driven item to induce motion, the motor possesses the safety feature of an inherent friction brake. When in contact with a plastic surface, the motor operates virtually silently.

For OEM applications, the motor can be manufactured in volume at low cost, and it can be driven by inexpensive analog electronics. It does not require microprocessors or software; however it is compatible for use with them.

Screen Capture of the Elliptec Piezoelectric Resonant Motor Control Software GUI
Click to Enlarge

The Elliptec Piezoelectric Resonant Motor Control Software GUI

Software for Devices Driven by Elliptec™ Piezoelectric Resonant Motors

All devices based on the Elliptec™ resonant piezo motor may be controlled by the Elliptec system software, which features an intuitive graphical user interface (GUI). The source code, in C# format, is included in software bundle available for download, and custom applications can be created in any language. The image at right shows a screen capture of the GUI, and the button that follows links to the download page.

Commands are entered in the Sequencer command / wait order section located at the center-left of the GUI. An example of a sequence of commands that might be sent to the device is "Aho0" to move to the rotation stage at address "A" to the home position in the clockwise direction, and then "Afw" to move the stage at address "A" forward by the jog increment. The command "As1" is used to perform the frequency search that will identify the optimal resonant frequencies, for the current operating conditions, for Motor 1 at adddress "A."

Software

Version 1.5.0

Includes the Elliptec System Software, with an easy-to-use GUI. Also available for download is the Communications Protocol manual, which details the communication commands for the Elliptec software package.

Software Download

Posted Comments:
Yi Wei Ho  (posted 2019-05-29 01:22:31.817)
The Solidworks file is missing (only 24kb) while the .step file design is different than the actual product. Please kindly update the 3D model files as it is an interesting product to use in our setup.
AManickavasagam  (posted 2019-05-30 06:07:43.0)
Response from Arunthathi at Thorlabs: Thanks for your feedback. We are working on resolving the issue and aiming to upload the files asap.

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item # MRM05(/M) RSP05(/M) CRM05 PRM05(/M)a SRM05 KS05RS CT104
Click Photo
to Enlarge
Features Mini Series Standard External SM1
(1.035"-40) Threads
Micrometer 16 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation Compatible with CT1 Cage Translator Stage and 1/4" Translation Stagesb
Additional Details
  • This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
  • The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
  • The CT104 is compatible with the CT1 cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item # RSP1(/M) LRM1 RSP1D(/M) DLM1(/M) CLR1(/M) RSP1X15(/M) RSP1X225(/M) PRM1(/M)a
Click Photo
to Enlarge
LRM1
Features Standard External SM1
(1.035"-40) Threads
Adjustable Zero Two Independently Rotating Carriages Rotates Optic Within
Fixed Lens Tube System
Continuous 360° Rotation
or 15° Increments
Continuous 360° Rotation
or 22.5° Increments
Micrometer
Additional Details
  • This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item # LM1-A &
LM1-B(/M)
CRM1(/M) CRM1L(/M) CRM1P KS1RS K6XS
Click Photo
to Enlarge
Features Optic Carriage Rotates Within Mounting Ring 30 mm Cage-Compatiblea 30 mm Cage-Compatible
for Thick Opticsa
30 mm Cage-Compatible
with Micrometera
±4° Kinematic Tip/Tilt Adjustment Plus Rotation Six-Axis
Kinematic Mounta
Additional Details
  • This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item # RSP2(/M) RSP2D(/M) PRM2(/M) LM2-A &
LM2-B(/M)
LCRM2(/M) KS2RS
Click Photo to Enlarge
Features Standard Adjustable
Zero
Micrometer Optic Carriage Rotates Within Mounting Ring 60 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item # RP005(/M) MSRP01(/M) RP01(/M) RP03(/M) QRP02(/M)
Click Photo
to Enlarge
Continuous Rotation Mount
Features Standard Two Hard Stops
Additional Details



Manual Rotation Stages
Item # XRR1(/M) PR01(/M) CR1(/M) XYR1(/M) OCT-XYR1(/M)
Click Photo
to Enlarge
Features Fine Rotation Adjuster and
3" Wide Dovetail Quick Connect
Fine Rotation Adjuster and
SM1-Threaded Central Aperture
Fine Pitch Worm Gear Rotation and 1/2" Linear XY Translation
Additional Details
  • The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with 3" dovetails.
  • The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages
Item # DDR25(/M) K10CR1(/M) PRM1Z8(/M)a PRMTZ8(/M)b DDR100(/M) HDR50(/M) ELL18(/M)c
Click Photo
to Enlarge
Features Compatible with
SM05 Lens Tubes,
16 mm Cage System,
30 mm Cage System
Compatible with SM1 Lens Tubes and
30 mm Cage System
Tapped Mounting Platform for Mounting Prisms or Other Optics Compatible with
SM1 Lens Tubes,
16 mm Cage System,
30 mm Cage System
Compatible with
SM2 Lens Tubes
Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details
  • This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
  • This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
  • This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Rotation Mount Bundle

The Tips of the Motors Contacting the Edge of the Rotation Stage
Click to Enlarge

The motors' aluminum tips contact the black plastic track encircling the rotation mount. This track should not be touched to prevent debris and oil building up on the track.
Application Idea Using Rotation Stage
Click to Enlarge

View Imperial Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
LC6W160 mm Cage Cube
LB3C1Mounting Platform for 60 mm Cage Cube, Imperial Taps
LB5C11Ø2" Optic Mount for 60 mm Cage Cube with Setscrew Optic Retention
BSN161Ø2" 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 8 mm
TR23Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
PH13Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 1"
SH25S10011/4"-20 Stainless Steel Cap Screw, 1" Long, Pack of 25
W25S05011/4" Washer, M6 Compatible, Stainless Steel, Pack of 100
LCP02R160 mm Cage System Rotation Mount with SM1-Threaded Aperture, 1/4"-20 Taps
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
ER3-P42Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
ER108Cage Assembly Rod, 10" Long, Ø6 mm
LPVISC100-MP22Ø25.0 mm SM1-Mounted Linear Polarizer, 510 - 800 nm
View Metric Product List
Item #QtyDescription
ELL14K1Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
LC6W160 mm Cage Cube
LB3C/M1Mounting Platform for 60 mm Cage Cube, Metric Taps
LB5C11Ø2" Optic Mount for 60 mm Cage Cube with Setscrew Optic Retention
BSN161Ø2" 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 400-700 nm, t = 8 mm
TR50/M3Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm
PH20/M3Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=20 mm
SH6MS251M6 x 1.0 Stainless Steel Cap Screw, 25 mm Long, Pack of 25
W25S05011/4" Washer, M6 Compatible, Stainless Steel, Pack of 100
LCP02R/M160 mm Cage System Rotation Mount with SM1-Threaded Aperture, M6 Taps
SR0254Compact Cage Assembly Rod, 1/4" Long, Ø4 mm
ER3-P42Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
ER108Cage Assembly Rod, 10" Long, Ø6 mm
LPVISC100-MP22Ø25.0 mm SM1-Mounted Linear Polarizer, 510 - 800 nm
The ELL14K Rotation Bundle rotates a test polarizer between a master polarizer and a beamsplitter in a 60 mm Cage System.
  • Ideal for OEM Evaluation Testing
  • Easily Integrate into a Setup
  • Operate using Manual and/or Computer Control
  • Included Power Supply is Required for Powering the Mount

The Rotation Mount Bundle is a complete package that includes the ELL14 rotation mount. The ELL14K package facilitates quick integration of the rotation mount into laboratory setups and other experimental applications. It also provides a convenient means to evaluate incorporating this technology into OEM applications.

The tips of both motor housings are in firm contact with the plastic track encircling the rotation mount, as can be seen in the image at the far-right. The motors are installed with opposite orientations and clockwise (and counterclockwise) rotation occurs when one motor pushes the track forward while the other pulls it backward.

Included in the ELL14K Bundle
ELL14 Rotation Mount 5 V Power Supply with Region-Specific Power Adapter
Interface Board 8-Conductor 28 AWG Ribbon Cable
USB Cable  PC-Based Software for Download
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ELL14K Support Documentation
ELL14KNEW!Rotation Mount Bundle: ELL14 Mount, Interface Board, Power Supply, Cables
$531.00
Today

Rotation Mount

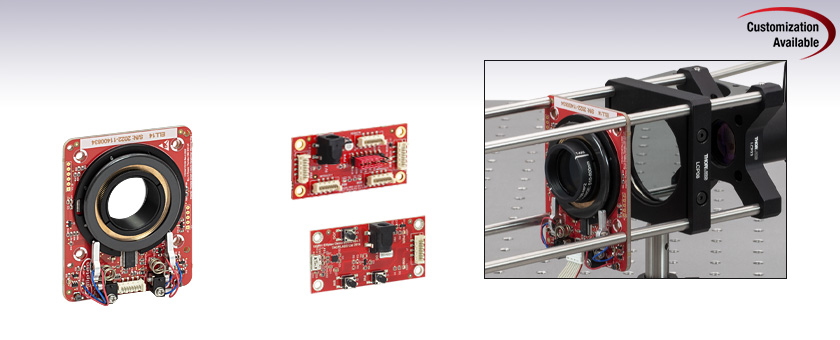

Features of the Rotation Stage
Click to Enlarge

Features of the Rotation mount

This Rotation Mount is offered to meet the needs of applications whose designs require multiple networked Elliptec resonant motor products. It possesses an SM1-threaded mount for holding Ø1" optics. Details describing the dimensions, including the spacing of mounting holes, and other specifications of the mount are given in the Specs tab. Please contact us to discuss customizing the rotation mount.

The PCB of the rotation mount incorporates a male 8-pin Picoflex connector (header). Each ELL14 mount ships with the female 8-pin Picoflex connector (receptacle) that mates with the connector (header) on the board.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ELL14 Support Documentation
ELL14NEW!Rotation Mount: SM1 Threaded
$448.00
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
