Quick Connect Rotation Stage with Crossed-Roller Bearings

Continuous 360° Manual Rotation with ±5° Fine Adjustment
Vernier Scale Provides 5 arcmin Resolution
Low Axial Wobble and High Load Capacity
Integrated 3" Dovetails for Quick-Connect Construction

Rotation
Locking Screw

Fine Adjuster
Engagement Screw

Fine Adjuster

Dovetail
Locking Screw

XRR1

Rotation Stage

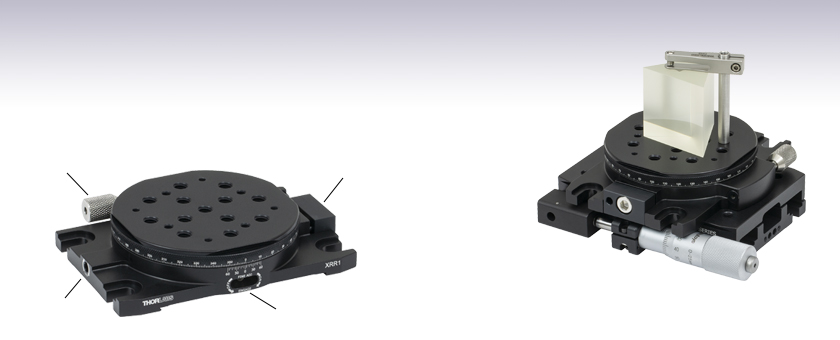

Application Idea

The XRR1 Rotation Stage is directly compatible with our XR25 and XR50 Series Translation Stages. Here it is shown mounted on an XR25P stage with a dispersing prism and PM5 Clamping Arm.

Related Items

25 mm Quick Connect Stages

50 mm Quick Connect Stages

Other Manual Rotation Stages

Motorized Rotation Stages

Ball Drivers and Hex Keys

Prisms

Diffraction Gratings

Adjuster Screws

Please Wait

Overview
Vernier Scales
Feedback
Rotation Mounts and Stages

Specifications
Item #	XRR1(/M)
Coarse Rotation Range	360°, Continuous
Fine Adjustment Range	±5°
Fine Adjustment Resolution (Nominal)	5.78 mrad/rev (0.331°/rev)
Axial Wobble	<500 µrad (0.028°)
Horizontal Load Capacity	Overall: 50 lbs (22.7 kg) Fine Adjustment: 15 lbs (6.80 kg)
Vertical Torque Capacity^a	9 lb-in (1.02 N·m)
Platform Size	Ø3.19" (Ø81.0 mm)
Platform Mounting Holes	1/4"-20 (M6 x 1.0) (13 Places) 8-32 (M4 x 0.7) (4 Places) 6-32 (M4 x 0.7) (4 Places)
Mounted Platform Height	On Breadboard: 0.91" (23.0 mm)^b Dovetail Stacked: 0.83" (21.1 mm)
Base Dimensions	4.33" x 3.58" (110.0 mm x 91.0 mm)
Base Mounting Features	3" Quick Connect Dovetails
Base Mounting Features	Mounting Slot for 1/4"-20 (M6 x 1.0) Cap Screws (4 Places)

The maximum torque about an axis orthogonal to the rotation axis, commonly encountered when the stage's base is mounted on a vertical surface. The center of mass should be as close as possible to the center of rotation.
The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with 3" dovetails.

Click to Enlarge
The 3" female dovetails on the bottom of the stage mate with the male dovetails on another stage to form multi-axis configurations. The left female dovetail is on a retractable clamping arm, allowing stages to be dropped into place.

The XRR1(/M) Rotation Stage provides 360° of coarse rotation
and ±5° of fine rotation. Each stage features 3" dovetails on the top and bottom plate that allow for quick construction of multi-axis systems. The top stage can be locked at any location along the dovetail, allowing for coarse positioning. The base of the stage also has counterbores for mounting directly to optical breadboards.

Features

360° of Continuous Coarse Rotation and ±5° Fine Adjustment
Vernier Scale Provides 5 arcmin Resolution
Radial Crossed-Roller Bearing for High Load Capacity and Low Axial Wobble
Circumference is Laser Engraved at 1° Increments
Quickly Connect XR25 or XR50 Series Translation Stages and Accessories Using 3" Dovetails
Tapped Holes for Standard Optomechanics and Clamping Arms
Optional Accessories Provide Additional Functionality:

Vertical Assembly Kits: Mount Stages Orthogonally to Breadboard
Rail Carriers: Removable Plates with Additional Mounting Options
Rail Plate: Deck Height Matches XR25 and XR50 Series Stages
Mounting Adapters: Mount 3" Dovetail Stages to 2" Dovetail Stages or 3" Rails
Base Plate: Coarse Alignment of Stage with Table Hole Matrix
Clamping Arms: Provide Clamping Force for Prisms or Other Components

Thorlabs' XRR1(/M) Rotation Stage provides 360° of continuous manual rotation and features a side-mounted screw for fine adjustment. It also incorporates a radial crossed-roller bearing for high load capacity and low axial wobble. This dedicated, zero-clearance bearing mechanism also provides an axial constraint for the rotating world, resulting in superior stiffness compared to other bearing types. The top and bottom plates are machined from cast tool and jig aluminum for minimal internal stress and improved stability. The rotating world features an array of mounting holes and 3" male dovetails for compatibility with our XR25 or XR50 translation stages or the accessories sold below. We also offer the XRNR1 Compact Rotation Stage with 2" male dovetails.

When the fine adjustment is disengaged, the stage can be smoothly and continuously rotated by hand through a full 360°, measured by the 1° graduation marks on the side of the mount. When the fine adjustment is engaged, the fine adjuster screw provides ±5° of fine adjustment, measured with 5 arcmin resolution by the vernier scale. The end of the adjuster screw incorporates a 5/64" (2.0 mm) hex allowing it to be actuated in space-constrained environments. The adjuster knob can also be removed using a hex key, as illustrated in the video on our kinematic mirror mounts page. The rotating platform is lockable using the 5/64" (2.0 mm) hex screw on the end of the base. The top plate of each stage is tapped with an array of mounting holes. The base can be attached to an optical table or breadboard using the four 1/4" (M6) counterbored clearance slots.

Each stage features 3" mating female dovetails on the bottom plate and male dovetails on the top plate (as shown in the image above) that allow for quick construction of multi-axis systems using no additional hardware. Refer to the photos in the vertical assembly kits section below to see how multi-axis systems can be quickly constructed using this novel design. The 3" dovetails on our XRR1(/M) rotation stage are directly compatible with the dovetails on our XR25 or XR50 series translation stages. Additional functionality is provided by a complete line of accessories that include multi-axis assembly kits, rail carriers, baseplates, and stage positioners. An adapter plate for mounting compact 25 mm stages with integrated 2" dovetails is also available. For more information about a specific accessory, please click on the link in the table below.

XR Quick Connect Rotation Stage Accessories

Rotation Stage	Vertical Assembly Kits	Rail Carriers	Rail Plate

Mounting Adapters	Base Plate with Rotational Adjustment	3" Dovetail Rails	Clamping Arms

Click to Enlarge
Figure 1: An example of how to read a vernier scale. The red arrow indicates what is known as the pointer. Since the tick mark labeled 10 on the vernier scale aligns with one of the tick marks on the main scale, this vernier scale is reading 75.60 (in whatever units the tool measures).

Reading a Vernier Scale

Vernier scales are typically used to add precision to standard, evenly divided scales (such as the scale on Thorlabs' rotation mounts). A vernier scale has found common use in many precision measurement tools, the most common being calipers and micrometers. The direct vernier scale uses two scales side-by-side: the main scale and the vernier scale. The vernier scale has a slightly smaller spacing between its tick marks (10% smaller than the main). Hence, the lines on the main scale will not line up with all the lines on the vernier scale. Only one line from the vernier scale will match well with one line of the main scale, and that is the trick to reading a vernier scale.

Figures 1 through 3 show a vernier scale system for three different situations. In each case, the scale on the left is the main scale, while the small scale on the right is the vernier scale. When reading a vernier scale, the main scale is used for the gross number, and the vernier scale gives the precision value. In this manner, a standard ruler or micrometer can become a precision tool.

The 0 on the vernier scale is the "pointer" (marked by a red arrow in Figs. 1 - 3) and will indicate the main scale reading. In Figure 1 we see the pointer is lined up directly with the 75.6 line. Notice that the only other vernier scale tick mark that lines up well with the main scale is 10. Since the vernier 0 lines up with the main scale’s 75.6, the reading from Figure 1 is 75.60 (in whatever units the tool measures in).

That is essentially all there is to reading a vernier scale. It's a very straightforward way of increasing the precision of a measurement tool. To expound, let’s look at Figure 2. Here we see that the pointer is no longer aligned with a scale line, instead it is slightly above 75.6, but below 75.7; thus the gross measurement is 75.6. The first vernier line that coincides with a main scale line is the 5, shown with a blue arrow. The vernier scale gives the final digit of precision; since the 5 is aligned to the main scale, the precision measurement for Figure 2 is 75.65.

Since the vernier scale is 10% smaller than the main scale, moving 1/10 of the main scale will align the next vernier marking. This asks the obvious question: what if the measurement is within the 1/10 precision of the vernier scale? Figure 3 shows just this. Again, the pointer line is in between 75.6 and 75.7, yielding the gross measurement of 75.6. If we look closely, we see that the vernier 7 (marked with a blue arrow) is very closely aligned to the main scale, giving a precision measurement of 75.67. However, the vernier 7 is very slightly above the main scale mark, and we can see that the vernier 8 (directly above 7) is slightly below its corresponding main scale mark. Hence, the scale on Figure 3 could be read as 75.673 ± 0.002. A reading error of about 0.002 would be appropriate for this tool.

As we've seen here, vernier scales add precision to a standard scale measurement. While it takes a bit of getting used to, with a little practice, reading these scales is fairly straightforward. All vernier scales, direct or retrograde, are read in the same fashion.

Click to Enlarge
Figure 2: An Example of a vernier scale. The red arrow indicates the pointer and the blue arrow indicates the vernier line that matches the main scale. This scale reads 75.65.

Click to Enlarge
Figure 3: An Example of a vernier scale. The red arrow indicates the pointer and the blue arrow indicates the vernier line that matches the main scale. This scale reads 75.67, but can be accurately read as 75.673 ± 0.002.

Posted Comments:

user (posted 2020-09-26 13:23:29.417)

Dear Sir/Madam, Is Your rotation stage XRR1/M compatible with the XR25N/M (Translation Stage Positioner) and XR25N1/M (Translation Stage Return Positioner)? Best Regards

llamb (posted 2020-09-29 08:10:04.0)

Thank you for contacting Thorlabs. While these three products can certainly be mounted together onto our XR25DR- series dovetail rails for positioning, the XRR1/M stage's contact points for either the XR25N/M positioner or the XR25N1/M return positioner are not ideal. You'll either be contacting the curved side around the stage's fine adjuster screw, or otherwise contacting the bore on the other side of the stage for the fine adjustment clutch screw, so you would lose access to engaging/disengaging the fine adjustment screw.
