19" Rack Enclosures for Electronic Devices


  • Aluminum Enclosures for 19" Racks
  • Mounting Board and Breadboards
  • Accessories for Benchtop Usage Available

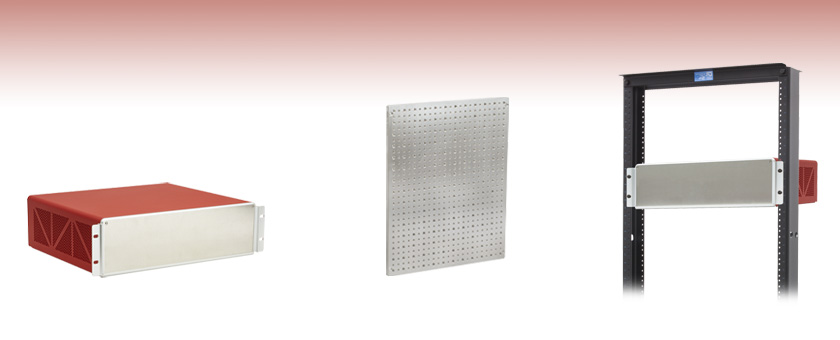

EC3U

19" Rack Enclosure,
482.6 mm x 377.2 mm x 88.4 mm

MSBU3038

Breadboard for EC2U and EC3U,
8-32 and 1/4"-20 Taps

EC3U Enclosure Mounted in 19" Rack

Application Idea

Related Items


Please Wait
Enclosure
Item #
Height in Rack Units Enclosure Dimensionsa
(W x D x H)
EC2U 2U 482.6 mm x 377.2 mm x 88.4 mm
(19.00" x 14.85" x 3.48")
EC3U 3U 482.6 mm x 377.2 mm x 132.9 mm
(19.00" x 14.85" x 5.23")
  • These dimensions measure the outside of the enclosure, including the mounting brackets. Detailed dimensions of each enclosure are available by clicking on the red Docs icons () below.

Features

  • 2 Sizes of Aluminmum Housings Available (See Table to the Right)
  • Designed for 19" Equipment Rack
  • Aluminum Mounting Board for Mounting Components Inside Enclosures
  • Breadboard for EC2U and EC3U Enclosures

Thorlabs offers enclosure options for customers interested in assembling their own 19" rack-mounted electronic devices. Our enclosures are available with one of two rack unit (U) heights: 2U or 3U. The front and rear panels of the enclosure are blank; input and output ports can be added by the user depending on the application.

A mounting board or breadboard (sold separately below) can be secured inside either the EC2U or EC3U enclosures. The ECUMB mounting board provides a surface with 18 mm x 5 mm slots for assembling electronic components, such as PCBs, development boards, and power supplies. Alternatively, the MSBU3038(/M) breadboard features a high-density hole pattern of 8-32 (M4) and 1/4"-20 (M6) tapped holes to allow optomechanical components to be mounted inside the enclosure. Both the mounting board and breadboard are secured using the 2 mm hex key and four M3 button head cap screws included with the enclosure.

The EC2US and EC3US mounting strips may be used to replace the mounting brackets and reduce the profile of the EC2U and EC3U, respectively. The ECUF rubber feet may be attached to either enclosure for benchtop usage.

For housings that hold smaller, custom electronic circuits, such as electrical filters, voltage dividers, or impedance matchers, see our compact customizable electronics housings. For housings that are not designed to be mounted in a 19" rack, please view our benchtop customizable electronic housings.


Posted Comments:
Peter Vandenabeele  (posted 2020-06-22 05:47:18.3)
Dear sir, dear madame, When looking at the page of the smaller benchtop enclosures, I see that it is possible to design where holes are cut into the enclosure. It is even possible to print your custom text on it. For the 19" racks, I don't see this option. Is it possible to process in the same way the 19" racks? For my applications, the benchtop racks are too small. If not, how are we supposed to make holes in the aluminium housing (drilling is possible for small ones, but larger holes, like for power supply or fan are not easily drilled in a nice way - at least not by me... Thanks for your advice. Peter.
YLohia  (posted 2020-06-23 08:38:47.0)
Hello, thank you for contacting Thorlabs. Custom products can be requested by emailing techsupport@thorlabs.com. We can provide 19" rack options with holes and custom text. We will reach out to you directly to discuss this further.

19" Rack Electronics Enclosures


Click to Enlarge

Exposed Interior of EC2U
  • Empty Housings for Electronic Assemblies
  • Designed for 19" Racks
  • 2U and 3U Sizes Available

The aluminum enclosures sold here come with blank front and rear panels, as well as two mounting brackets. The mounting brackets allow these enclosures to be stored in standard 19" equipment racks. A mounting board for the inside of each enclosure can be purchased separately below; compatible breadboards are also sold below. Four M3 button head cap screws are included with the enclosure for securing the mounting board or breadboard inside.

To open the enclosure, remove the countersunk screws on both the rear and bottom panels using the included 2 mm hex key, and then slide off the top of the enclosure. Once the enclosure is open, the four M3 mounting holes can be used to secure a mounting board or breadboard.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
EC2U Support Documentation
EC2U19" Rack 2U Enclosure for Electronics, 482.6 mm x 377.2 mm x 88.4 mm
$269.78
5-8 Days
EC3U Support Documentation
EC3U19" Rack 3U Enclosure for Electronics, 482.6 mm x 377.2 mm x 132.9 mm
$324.66
Today

Mounting Board for Enclosures


Click to Enlarge

EC2U with Housing Removed and ECUMB Mounting Board Installed
  • 380.0 mm x 300.0 mm x 2.0 mm
  • 18.0 mm x 5.0 mm Slot Holes for Mounting Electronics
  • 1.6 mm (0.06") Thru Holes for Securing to an Enclosure

The ECUMB mounting board provides a surface for assembling electronic components such as PCBs, development boards, and power supplies. This mounting board is designed to fit both the EC2U and EC3U Enclosures.

Once the top of the enclosure is removed, the mounting board can be secured inside the enclosure using four M3 button head cap screws and a 2 mm hex key (included with enclosure). Each mounting board is 2 mm thick. When secured inside the enclosure, the mounting board is 6 mm above the bottom of the enclosure.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ECUMB Support Documentation
ECUMBMounting Board for 19" Rack Enclosures, 380.0 mm x 300.0 mm x 2.0 mm
$20.21
5-8 Days

Breadboard for Enclosures


Click to Enlarge

MSBU3038 Breadboard Inside EC2U Enclosure
  • 15.00" x 11.98" x 0.37" (375.4 mm x 304.3 mm x 9.5 mm)
  • 8-32 (M4) and 1/4"-20 (M6) Taps for Mounting
  • Four M3 Counterbored Holes for Securing to an Enclosure

The MSBU3038(/M) breadboards are available to fit inside the 19" rack enclosures sold above. These breadboards allow the user to add and remove optomechanical components within the enclosures easily and securely.

The MSBU3038(/M) hole patterns consist of 8-32 (M4 x 0.7) and 1/4"-20 (M6 x 1.0) through-tapped holes, in the same layout as our Mini-Series breadboards. Four counterbored M3 mounting holes are used to secure the breadboard to the mounting studs inside the enclosure. When a breadboard is mounted inside of the EC2U enclosure, the top of the enclosure is 64.25 mm above the top surface of the breadboard; inside the EC3U, the top of the enclosure is 108.8 mm above the top of the breadboard. The bottom of the breadboard is 6 mm above the bottom of the enclosure in both cases.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MSBU3038 Support Documentation
MSBU3038Aluminum Breadboard for EC2U and EC3U Enclosures, 15.00" x 11.98" x 0.37", 8-32 and 1/4"-20 Taps
$350.20
Today
+1 Qty Docs Part Number - Metric Price Available
MSBU3038/M Support Documentation
MSBU3038/MAluminum Breadboard for EC2U and EC3U Enclosures, 375.4 mm x 304.3 mm x 9.5 mm, M4 and M6 Taps
$350.20
Today

19" Rack Enclosure Accessories


Click to Enlarge

EC2U Enclosure with ECUF Rubber Feet and EC2US Plates Installed
  • ECUF Rubber Feet for Benchtop Usage
  • EC2U and EC3U Plates to Replace Mounting Brackets

Accessories are available to convert the EC2U and EC3U rack enclosures into enclosures that are more suited for benchtop use. The EC2US and EC3US plates can replace the mounting brackets of the EC2U and EC3U respectively and reduce their profile. To install them, remove the countersunk screws on the rear and bottom panels of the EC2U or EC3U to remove the top of the enclosure. Remove the M3 screws that secure the mounting brackets to the enclosure chassis and use the M3 screws to secure the EC2U or EC3U to the chassis.

The ECUF rubber feet can be installed on the bottom of the EC2U or EC3U enclosures. The included M4-14 cap screws and 3 mm hex key fasten the rubber feet to the M4 screw holes located on the bottom of the enclosure.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ECUF Support Documentation
ECUFRubber Feet for EC2U and EC3U Enclosures
$51.50
Today
EC2US Support Documentation
EC2USPlates for EC2U Enclosure
$28.00
Today
EC3US Support Documentation
EC3USPlates for EC3U Enclosure
$33.58
Today
