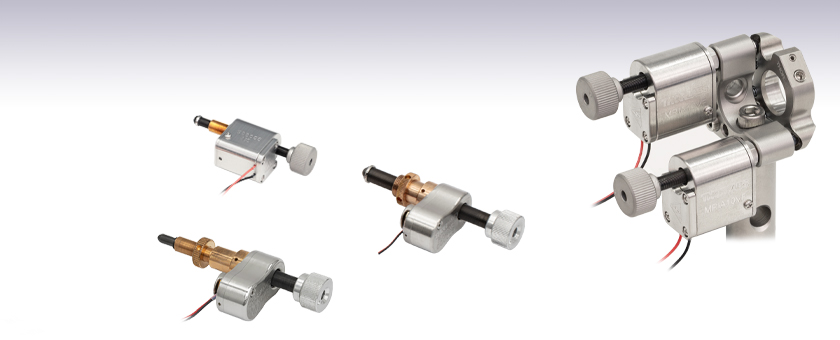

Vacuum-Compatible Piezoelectric Inertia Actuators


  • Vacuum-Compatible Down to 10-6 Torr
  • 20 nm Typical Step Size
  • 2 mm/minute Typical Speed
  • 2.5 kg Max Axial Load Capacity

PIA13VF

13 mm Travel Range,
3/8"-40 Thread and Ø3/8" Barrel

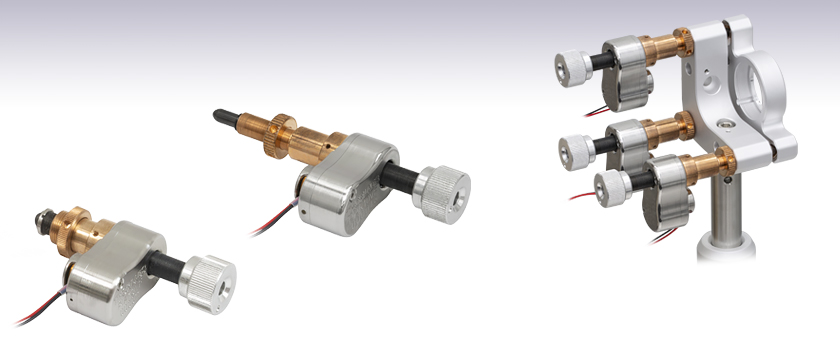

Application Idea

Three PIAK10VF Piezo Inertia Actuators can be used
in place of the 1/4"-100 adjustment screws
in our KS1TV Mirror Mount.

PIAK10VF

10 mm Travel Range,
1/4"-100 Thread and Ø3/8" Barrel

Related Items


Please Wait
Key Specificationsa
Item # PIAK10VF PIA13VF
Travel 10 mm (0.39") 13 mm (0.51")
Typical Step Sizeb,c 20 nm
Maximum Step Size 30 nm
Step Size Adjustabilityc ≤30%
Maximum Step Frequency 2000 Hz
Maximum Active Preloadd 30 N 25 N
Recommended Maximum
Axial Load Capacitye
2.5 kg (5.51 lbs)
Speed (Continuous Stepping) 2 mm/minute (Typical)
<3.5 mm/minute (Maximum)
Drive Screw 1/4"-80 Thread, Hard PVD Coated
Motor Type Piezoelectric Inertia
Primary Mounting Feature 1/4"-100
Threadf
Ø3/8" (Ø9.525 mm)
Barrel
Vacuum Rating 10-6 Torr
Required Controllerg KIM001 or KIM101
  • Specifications are measured using the KIM101 Piezo Inertia Controller. See the Specs tab for complete specifications.
  • This value can vary by up to 20% due to component variance, change of direction, and application condition.
  • This can be adjusted by changing the piezo drive voltage - refer to the controller manual for more details.
  • The axial force applied to the drive tip to achieve the specified step size. A minimum of 5 N is recommended to enhance stepping behavior.
  • A higher maximum load is possible but it may decrease the typical step size.
  • This actuator is not compatible with our Polaris mirror mounts.
  • Controllers are sold separately. These actuators can also be controlled using the legacy TIM101 T-Cube™ controller.
Inertia Motor
Click for Details

The flying lead can be adjusted up to 110° for space-constrained applications.

Features

  • Compact Design: 31.5 mm x 17.0 mm (W x H)
  • 20 nm Typical Step Size
  • Manual Adjustment via Knob on Adjuster Screw
  • Rated Down to 10-6 Torr
  • 125 V Maximum Operating Voltage
  • PIAK10VF: 1/4"-100 Mounting Thread for Compatibility with KS1TV Mirror Mount
  • PIA13VF: Ø3/8" Mounting Barrel for Compatibility with Translation Stages
  • Ideal for Set-and-Hold Applications that Require High-Resolution Relative Positioning
  • Control Cable can be Adjusted up to 110° for Space-Constrained Applications

Thorlabs' Vacuum-Compatible Piezoelectric Inertia Actuators provide high-resolution linear motion control with long piezo translation ranges in compact, vacuum-compatible packages. Each actuator can support loads up to 2.5 kg with typical movements of 20 nm and no backlash. The step size can be adjusted up to 30% to a maximum of 30 nm using the KIM001 or KIM101 Controllers (sold separately below). Due to the open-loop design, hysteresis, and application conditions, the achieved step size of the system can vary by up to 20%. An external feedback system will need to be used to overcome this variance. We also offer standard piezo inertia actuators for non-vacuum applications.

These actuators are self-locking when at rest and when there is no power supplied to the piezo, making them ideal for set-and-hold applications that require nanometer resolution and long-term alignment stability. Manual adjustments can be made using the knob on the adjuster screw, as long as the piezo is not actively translating the screw; the knob is also compatible with 5/64" (2.0 mm) hex keys.

Powered by 10 mm long discrete piezo stacks, these actuators operate at speeds of up to 3.5 mm/minute. The design of the piezo motor, detailed below, will rotate the tip of the lead screw during translation.

Mounting Options
The PIAK10VF actuator features a 1/4"-100 threaded barrel for compatibility with the KS1TV mirror mount or other mounts with non-matched 1/4"-100 actuators. Note that this actuator is not compatible with our Polaris® mirror mounts; see below for details.

The PIA13VF actuator has a Ø3/8" (Ø9.525 mm) barrel that can be mounted in a manual stage that has a Ø3/8" mounting clamp.

Each actuator has an integrated 0.75 m flying lead, plus 1.0 m of cored cable for wiring outside the vacuum chamber. The flying leads and cored cable lengths can be cut down as needed, but the total length (inside and outside) should not exceed 2.0 m. As shown in the image above, the flying lead for each actuator can be rotated up to 110° for space-constrained applications.

Required Controller
A KIM001 or KIM101 Controller, available below, is required to operate this actuator; it cannot be driven using a standard piezo controller. These drivers have an internal sawtooth voltage signal generator capable of sending sub-millisecond pulses (steps) with controllable amplitudes from 85 V to 125 V.

Inertia Motor
Click to Enlarge

Simplified Illustration Showing the Operation of an Inertia Piezo Actuator

Piezoelectric Inertia "Slip-Stick" Motor

A piezo stack mounted perpendicular to the lead screw axis actuates the screw via a design based on the system's inertia and coefficients of friction. Two decoupled arms, or jaws, are located on either side of the piezo. These arms extend across the top and bottom of the main lead screw, as illustrated in the diagram to the left.

The piezo reacts to a custom sawtooth voltage waveform, causing it to expand or contract. The waveform is asymmetric, slowly ramping up to the specified voltage and then quickly dropping the voltage to zero on a nanosecond timescale. As shown in the bottom illustration to the left, the jaws will "stick" to the lead screw during the slow voltage ramp due to static friction, turning the screw similar to a person using their thumb and forefinger. The nanosecond voltage drop will cause the arms to "slip" due to the screws' inertia and the lower coefficient of dynamic friction, allowing the arms to return to their original position without undoing the rotation of the screw. This mechanism allows a single piezo element to translate a lead screw along its entire length.

Due to a number of factors that include the application conditions, piezo hysteresis, component variance, and the axial load, the achieved step size will vary and is not repeatable. To help overcome this variance, an external feedback system will need to be used. Alternatively, a stepper motor actuator can also be substituted depending on the application.

Item #a PIAK10VF PIA13VF
Travel 10 mm (0.39") 13 mm (0.51")
Typical Step Sizeb,c 20 nm
Maximum Step Size 30 nm
Step Size Adjustabilityc ≤30%
Maximum Step Frequency 2000 Hz
Backlash None
Maximum Active Preloadd 30 N 25 N
Typical Angular Resolutione KS1TV Ø1" Mirror Mount: 0.5 µrad N/A
Recommended Maximum
Active Axial Load Capacityf
2.5 kg (5.51 lbs)
Speed (Continuous Stepping) 2 mm/minute (Typical)
<3.5 mm/minute (Maximum)
Drive Screw 1/4"-80 Thread, Hard PVD Coated
Actuator Tip Tungsten-Carbide-Coated Ball
Lifetime >1,000,000,000 Steps
Motor Type Piezoelectric Inertia
Piezo Specifications
Max Operating Voltage 125 V
Capacitance 175 nF
Resonant Frequency 125 kHz (No Load)
Physical Specifications
Dimensionsg (L x W x H) 77.7 mm x 31.5 mm x 17.0 mm
(3.06" x 1.24" x 0.67")
59.4 mm x 31.5 mm x 17.0 mm
(2.34" x 1.24" x 0.67")
Mounting Feature
(Auxiliary)
1/4"-100 Thread with Lock Nuth
(Ø3/8" [Ø9.525 mm] Barrel)
Ø3/8" (Ø9.525 mm) Barrel
(3/8"-40 Thread with Lock Nut)
Vacuum Rating 10-6 Torr
Operating Temperature 5 to 130 °C (41 to 266 °F)
Cable Length 0.75 m (2.48 ft) Flying Lead for Vacuum,
1.0 m (3.3 ft) of Cored Cable for Wiring Outside Chamber
Connector Type SMC Female
Cable Exit Adjustability ±55° for Left- or Right-Hand Exit
Compatible Controlleri KIM001 or KIM101
  • Specifications are measured using the KIM101 Piezo Inertia Controller.
  • This value can vary by up to 20% due to component variance, change of direction, and application condition.
  • This can be adjusted by changing the piezo drive voltage - refer to the controller manual for more details.
  • The axial force applied to the drive tip to achieve the specified step size. A minimum of 5 N is recommended to enhance stepping behavior.
  • The angular resolution when a PIAK10VF Actuator is fitted to a KS1TV Ø1" Mirror Mount. This does not apply to the PIA13VF Actuator.
  • A higher maximum load is possible but it may decrease the typical step size.
  • Dimensions do not include the cable.
  • This actuator is not compatible with our Polaris® mirror mounts.
  • Controllers are sold separately. These actuators can also be controlled using the legacy TIM101 T-Cube™ controller.

Thorlabs offers two platforms to drive our wide range of motion controllers: our Kinesis® software package or the legacy APT™ (Advanced Positioning Technology) software package. Either package can be used to control devices in the Kinesis family, which covers a wide range of motion controllers ranging from small, low-powered, single-channel drivers (such as the K-Cubes™ and T-Cubes™) to high-power, multi-channel, modular 19" rack nanopositioning systems (the APT Rack System).

The Kinesis Software features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications. Low-level DLL libraries are included for applications not expected to use the .NET framework. A Central Sequence Manager supports integration and synchronization of all Thorlabs motion control hardware.

Kinesis Software
Kinesis GUI Screen
APT Software
APT GUI Screen

Our legacy APT System Software platform offers ActiveX-based controls which can be used by 3rd party developers working on C#, Visual Basic, LabVIEW™, or any Active-X compatible languages to create custom applications and includes a simulator mode to assist in developing custom applications without requiring hardware.

By providing these common software platforms, Thorlabs has ensured that users can easily mix and match any of the Kinesis and APT controllers in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from single-axis to multi-axis systems and control all from a single, PC-based unified software interface.

The software packages allow two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

A range of video tutorials is available to help explain our APT system software. These tutorials provide an overview of the software and the APT Config utility. Additionally, a tutorial video is available to explain how to select simulator mode within the software, which allows the user to experiment with the software without a controller connected. Please select the APT Tutorials tab above to view these videos.

Software

Kinesis Version 1.14.24

The Kinesis Software Package, which includes a GUI for control of Thorlabs' Kinesis and APT™ system controllers.

Also Available:

  • Communications Protocol
Software Download

Software

APT Version 3.21.4

The APT Software Package, which includes a GUI for control of Thorlabs' APT™ and Kinesis system controllers.

Also Available:

  • Communications Protocol
Software Download

Thorlabs' Kinesis® software features new .NET controls which can be used by third-party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications.

C#
This programming language is designed to allow multiple programming paradigms, or languages, to be used, thus allowing for complex problems to be solved in an easy or efficient manner. It encompasses typing, imperative, declarative, functional, generic, object-oriented, and component-oriented programming. By providing functionality with this common software platform, Thorlabs has ensured that users can easily mix and match any of the Kinesis controllers in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from the low-powered, single-axis to the high-powered, multi-axis systems and control all from a single, PC-based unified software interface.

The Kinesis System Software allows two methods of usage: graphical user interface (GUI) utilities for direct interaction and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

For a collection of example projects that can be compiled and run to demonstrate the different ways in which developers can build on the Kinesis motion control libraries, click on the links below. Please note that a separate integrated development environment (IDE) (e.g., Microsoft Visual Studio) will be required to execute the Quick Start examples. The C# example projects can be executed using the included .NET controls in the Kinesis software package (see the Kinesis Software tab for details).

C Sharp Icon Click Here for the Kinesis with C# Quick Start Guide
Click Here for C# Example Projects
Click Here for Quick Start Device Control Examples
C Sharp Icon

LabVIEW
LabVIEW can be used to communicate with any Kinesis- or APT-based controller via .NET controls. In LabVIEW, you build a user interface, known as a front panel, with a set of tools and objects and then add code using graphical representations of functions to control the front panel objects. The LabVIEW tutorial, provided below, provides some information on using the .NET controls to create control GUIs for Kinesis- and APT-driven devices within LabVIEW. It includes an overview with basic information about using controllers in LabVIEW and explains the setup procedure that needs to be completed before using a LabVIEW GUI to operate a device.

Labview Icon Click Here to View the LabVIEW Guide
Click Here to View the Kinesis with LabVIEW Overview Page
Labview Icon

These videos illustrate some of the basics of using the APT System Software from both a non-programming and a programming point of view. There are videos that illustrate usage of the supplied APT utilities that allow immediate control of the APT controllers out of the box. There are also a number of videos that explain the basics of programming custom software applications using Visual Basic, LabView and Visual C++. Watch the videos now to see what we mean.

  Click here to view the video tutorial

To further assist programmers, a guide to programming the APT software in LabView is also available.

Labview Icon Click here to view the LabView guide Labview Icon

Posted Comments:
No Comments Posted

Vacuum-Compatible Piezoelectric Inertia Actuators

  • Actuators Provide High-Resolution Linear Motion in a Compact Package
  • PIAK10VF: 1/4"-100 Mounting Thread for Compatibility with KS1TV Mirror Mount
  • PIA13VF: Ø3/8" (Ø9.525 mm) Barrel for Mounting to Manual Stages with Ø3/8" (Ø9.525 mm) Mounting Clamps
  • KIM001 or KIM101 Controller Required for Operation (Sold Separately Below)

These Vacuum-Compatible Piezoelectric Inertia Actuators are ideal for set-and-forget vacuum applications, particularly where space is limited. Their primary function is to set a relative position and hold; switching off power to the actuator will result in the same drift as a 1/4"-80 drive screw. The PIAK10VF actuator is designed for use with the KS1TV mirror mount and the PIA13VF actuator is designed for use with our range of small positioning stages, and each actuator provides nanometer resolution with long-term alignment stability. Manual adjustments can be made using the knob on the adjuster screw, as long as the piezo is not actively translating the screw; the knob is also compatible with 5/64" (2.0 mm) hex keys. To order vacuum-compatible versions of our stages and mirror mounts, please contact Technical Support.

The "slip-stick" nature of this device uses very short pulse widths and continuous stepping of the actuator will result in an audible noise at a typical level of 60 to 70 dB.

Note: The PIAK10VF actuator is not compatible with Polaris® mounts that use 1/4"-100 adjusters. These mounts require a specific actuator ball size and tip design to ensure that the ball contact is centered on the sapphire end stone and that there is proper screw clearance during full translation. In the case of the PIAK10VF actuator, the side of the screw, rather than the ball tip, will contact the sapphire end stone and, as a result, the actuator should not be used with Polaris mounts.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PIAK10VF Support Documentation
PIAK10VFCustomer Inspired! Vacuum-Compatible Piezo Inertia Actuator, 10 mm Travel, 1/4"-100 Mounting Thread
$795.00
Today
PIA13VF Support Documentation
PIA13VFCustomer Inspired! Vacuum-Compatible Piezo Inertia Actuator, 13 mm Travel, Ø3/8" Mounting Barrel
$795.00
5-8 Days

K-Cube™ Controllers for Piezo Inertia Stages and Actuators

Key Specificationsa
Item # KIM001 KIM101
Piezoelectric Outputs (SMC Male) One Four
Piezo Output Voltage 85 to 125 VDC 85 to 125 VDC per Channel
Top Panel Controls Scroll Wheel Dual-Axis Joystick
External Input
(SMA Female)
±10 V ± 2%
Input Power +15 VDC @ 2 A
Housing Dimensionsb
(W x D x H)
60.0 mm x 60.0 mm x 47.0 mm
(2.36" x 2.36" x 1.85")
121.0 mm x 60.0 mm x 47.0 mm
(4.76" x 2.36" x 1.85")
Compatible Software Kinesis Kinesis & Legacy APT
  • For complete specifications, please see the manuals by clicking the red Docs icons () below.
  • Not Including Mounting Plate
  • Compact Footprints
  • Adjustable Voltage Output from 85 V to 125 V
  • Single-Channel and Four-Channel Versions Available
  • Standalone Operation via Top Panel Controls and Display or PC Control via USB Plug and Play

These compact K-Cube Controllers provide easy manual and PC control of our piezo inertia stages, actuators, and optic mounts. They feature adjustable voltage output from 85 V to 125 V. The top panel display screen enables operation as soon as the unit is turned on, without the need for connection to a PC. Alternatively, both controllers have USB connectivity that provides 'Plug-and-Play' PC-controlled operation with our Kinesis® software package (included). The KIM101 controller can also be operated with our legacy APT™ (Advanced Positioning Technology) software package.

These units have small footprints and may be mounted directly to the optical table using the 1/4" (M6) counterbored slots in the base plate. Their compact size allows these controllers to be positioned close to the motorized system for added convenience when manually adjusting motor positions using the top panel controls. Tabletop operation also allows minimal drive cable lengths for easier cable management.

Please note that these controllers do not ship with a power supply. The compatible KPS101 power supply is sold below.

KIM001 Single-Channel Controller
This single-channel piezo inertia controller provides a voltage output for a single piezo inertia stage or actuator. The top panel features a spring-loaded scroll wheel for driving the stage or actuator as well as selecting menu options.

KIM101 Four-Channel Controller
This four-channel controller features four SMC outputs to drive piezo inertia devices. The channels can be controlled independently or simultaneously in pairs using the dual-axis joystick on the controller's top panel. The controller can be configured to operate up to four PD series piezo inertia stages, up to four PIA seies piezo inertia actuators, or up to two PIM series piezo inertia optic mounts; one KIM101 can only concurrently drive devices that use the same "Select Stage" configuration in the controller's menu options (see the manuals for more details).

For more information, please see the full web presentation.

Power Supply Options
The KIM001 and KIM101 Motor Controllers do not ship with a power supply. A compatible power supply is our KPS101, sold below.

Note: Due to the nature of its design, and its non-linear high frequency switching, the KIM001 and KIM001 units are not compatible with the KCH301 and KCH601 hubs. Use only the KPS101 power supply unit.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KIM001 Support Documentation
KIM001Customer Inspired! Single-Channel K-Cube Piezo Inertia Motor Controller (Power Supply Sold Separately)
$747.00
Lead Time
KIM101 Support Documentation
KIM101Four-Channel K-Cube Piezo Inertia Motor Controller (Power Supply Sold Separately)
$1,058.78
5-8 Days

Compatible Power Supply

  • Power Supply Compatible with KIM001 and KIM101 Motor Controllers
  • Universal Input: 90 - 264 VAC
  • Interchangeable AC Plug

The KPS101 power supply outputs +15 VDC at up to 2.4 A and can power a single K-Cube or T-Cube with a 3.5 mm jack. It plugs into a standard wall outlet.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$35.36
Today
