Products HomePrecision Measuring Tools
- Calipers, Micrometer, and Indicator Available
- Analog Dial or High-Resolution Digital Readouts
- Measurements Made in Imperial or Metric Units

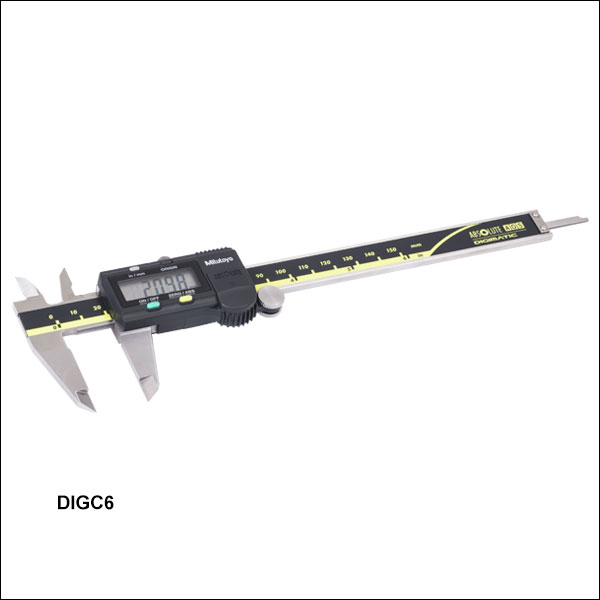

DIGC6
6" (150 mm) Digital Caliper

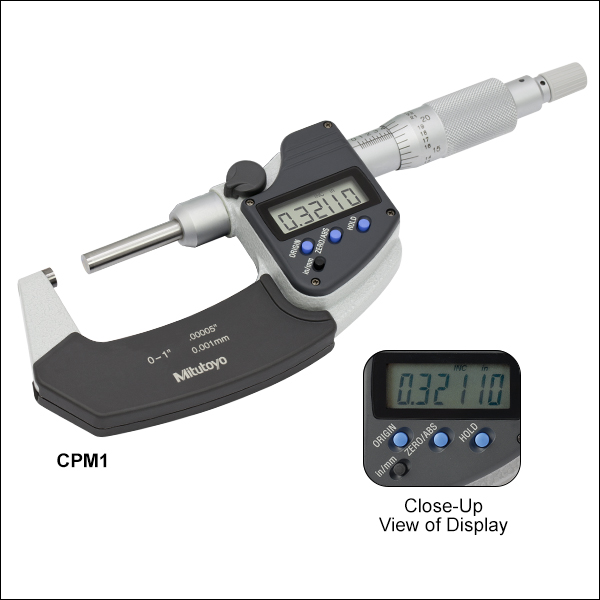

CPM1
0-1" Digital Micrometer
DGM05
1/2" (12.7 mm)
Digital Indicator
(Includes Barrel Adapter)
Ø3/8" to Ø1/2" Barrel Adapter

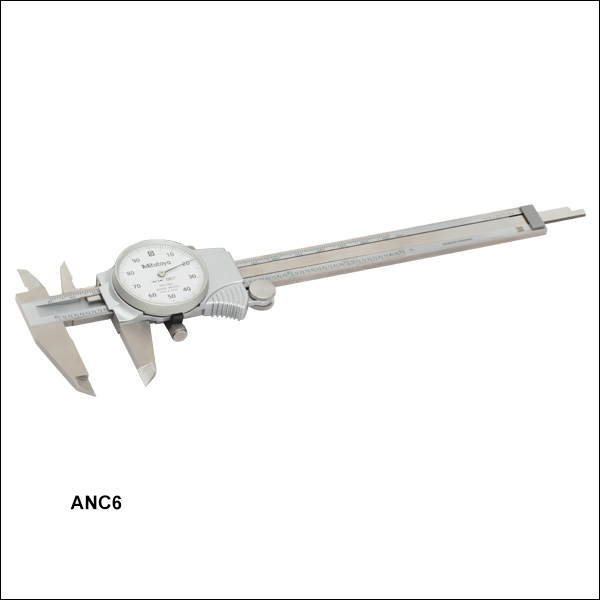

ANC6
6" Dial Caliper
Please Wait

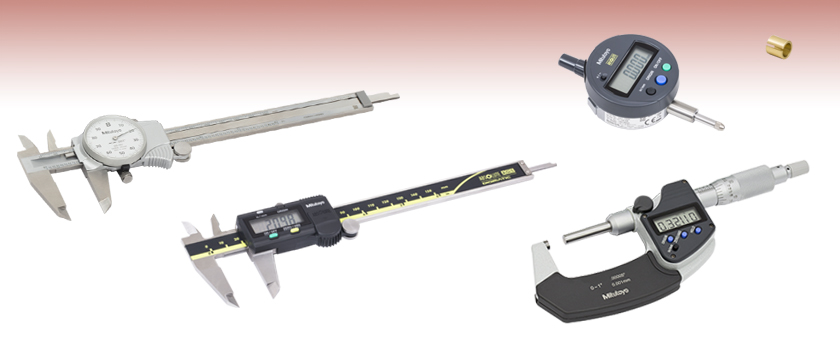

Thorlabs provides dial calipers, digital calipers, a micrometer, and an indicator for precision measurements or inspections.
| Posted Comments: | |
Joseph Donovan
(posted 2023-08-22 13:25:10.697) Hi, I noticed an error in the product listing.
The description says "Contact Points Carbide-Tipped"
However these caliper are just hardened steel, not carbide tipped (these are Mitutoyo 500-196-30, the carbide tipped equivalent model would be 500-159-30) cdolbashian
(posted 2023-08-23 02:24:04.0) Thank you for noting this error in our web presentation. We will be updating it soon with the correct information. technicalmarketing
(posted 2008-01-22 16:38:13.0) Thank you for pointing out the mispelled word. pmirer
(posted 2008-01-22 14:15:05.0) http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=1423&pn=AGR1
Not to nitpick, but this page includes a link to "vices."
"Vises" are used to hold workpieces. "Vices" include gambling, drinking, etc.
Paul TechnicalMarketing
(posted 2007-10-16 15:17:25.0) Thank you for pointing out that the presentation was missing the accuracy specification; it has now been added to the presentation. We are continually working to improve the content of our web pages in order to serve our customers and the value of user feedback in this effort is immense. The SBC-COMM can be used to interface the CPM1 with a computer; however the SBC-COMM was designed to be used with a Soleil-Babinet compensator. As a result, the included programs only include one micrometer specific LabVIEW VI with limited functionality (it only reads the output of the micrometer). acable
(posted 2007-10-11 19:48:40.0) Does the computer interface SBC-COMM sold with the Soleil-Babinet compensator also work for th CPM1, same question applies to the digital micrometer head that appears to be made by the same manufacturer. acable
(posted 2007-10-11 19:41:53.0) Please provide the resolution, precission, and accuracy of your measurement tools. Saying that the device accurately reads up to 0.001", implies that the accuracy specification (which is missing) would apply only to measurements of less than 0.001" which is not reasonable for these devices. For the calipers as well as the micrometer it seems that the number given for the strangely worded accurately reads specification is actually the display resolution which for a digital device is typically the resolution. What i really need to know is what the accuracy of the device. acable
(posted 2007-08-27 15:00:31.0) It would be nice to have the digital micrometer head as a Rleated Product. |
Zoom
Click to Enlarge

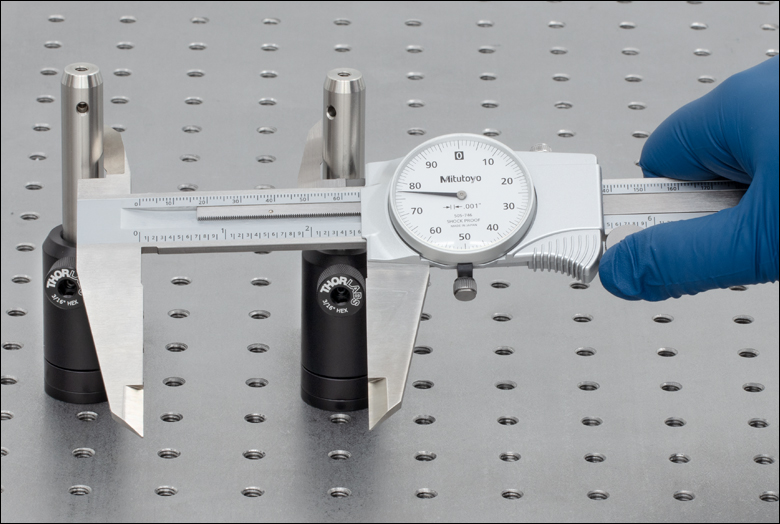

ANC12 Dial Caliper Measuring the
Distance Between Optical Posts
- Measure Dimensions Up to 12.00" (300 mm)
- Four Methods of Measurement: Inside, Outside, Step, and Depth
- Knurled Thumb Wheel
- Thumbscrew Locks Caliper Position
These dial calipers have engraved scales with 0.1" (1 mm) graduations for coarse measurement and dials with 0.001" (0.02 mm) graduations for precise measurement. They can perform four types of measurement: inside, outside, step, and depth. Options are available for measurements up to 12.00" or 300 mm, outlined in the table below. Each caliper comes in a fitted plastic case for protection.
| Specifications | ||||||
|---|---|---|---|---|---|---|
| Item # | ANC6 | ANC8 | ANC12 | ANC150/M | ANC200/M | ANC300/M |
| Measurement Range | 6.00" | 8.00" | 12.00" | 150 mm | 200 mm | 300 mm |
| Graduation | 0.001" | 0.02 mm | ||||
| Distance per Dial Revolution | 0.1" | 2 mm | ||||
| Accuracy | ±0.001" | ±0.002" | ±0.03 mm | ±0.04 mm | ||
Zoom
Click to Enlarge

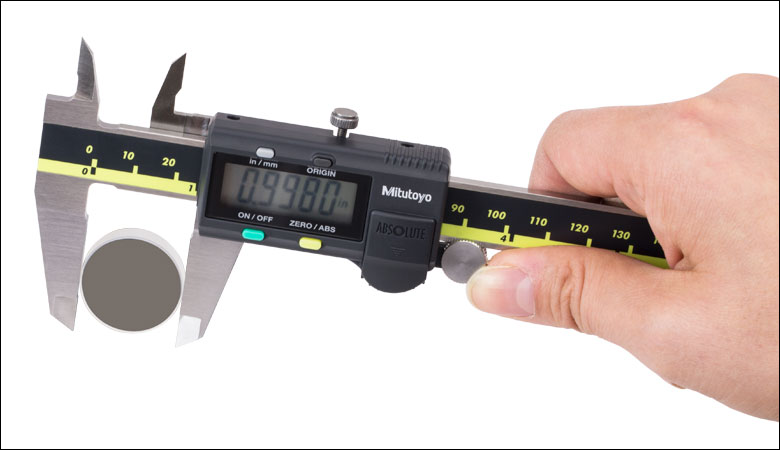

DIGC6 Digital Caliper Measuring the Diameter of a Mirror
Click to Enlarge

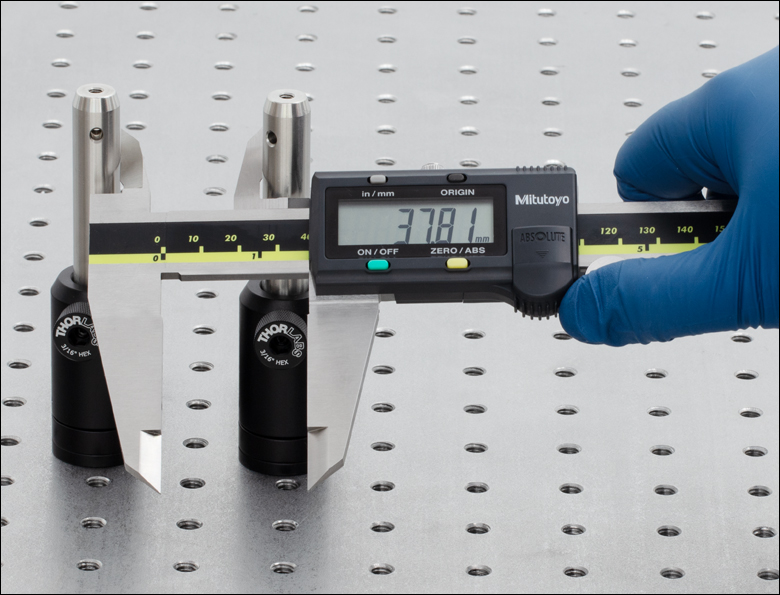

DIGC12 Digital Caliper Measuring the Distance Between Optical Posts
- Measure Dimensions Up to 12.00" (300 mm) (See Table Below)
- Four Methods of Measurement: Inside, Outside, Step, and Depth
- Knurled Thumb Wheel
- Convert from Imperial to Metric with the Push of a Button
- Thumbscrew Locks Caliper Position
These Digital Calipers have linearly encoded digital readouts that can be switched between imperial and metric scales. They can perform four types of measurement: inside, outside, step, and depth. Options are available for measurements up to 12.00" (300 mm), outlined in the table below. Each caliper comes in a fitted plastic case for protection.
| Specifications | ||||
|---|---|---|---|---|
| Item # | DIGC4 | DIGC6 | DIGC8 | DIGC12 |
| Measurement Range | 4.00" (100 mm) | 6.00" (150 mm) | 8.00" (200 mm) | 12.00" (300 mm) |
| Resolution | 0.0005" (0.01 mm) | |||
| Repeatability | 0.0005" (0.01 mm) | |||
| Accuracya | ±0.0010" (±0.02 mm) | ±0.0015" (±0.03 mm) | ||
Zoom
Click to Enlarge

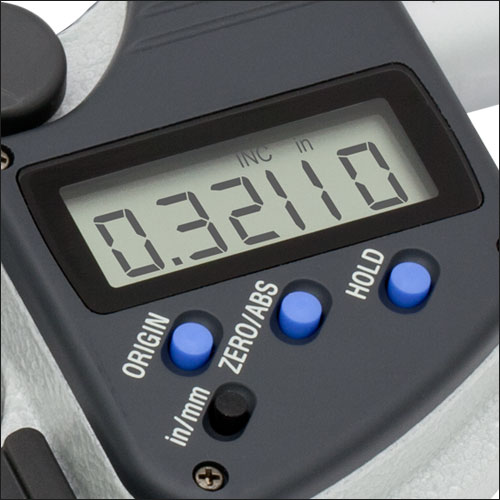

Close-Up View of Display
| Specifications | |
|---|---|
| Measurement Range | 0-1.00" (25.4 mm) |
| Resolution | 1 µm (0.00005") |
| Accuracya | ±3.8 µm (±0.00015") |
| Contact Points | Carbide-Tipped |
- Measures Dimensions up to 1.00" (25.4 mm)
- Linearly Encoded Digital Readout
- Converts from Imperial to Metric with the Push of a Button
- Thumbscrew Locks Micrometer Position
- Compatible with SPC System
The CPM1 Digital Micrometer is an ideal inspection device used to precisely measure the thickness of almost all materials. The design features a non-rotating carbide-tipped spindle that eliminates torque on the work piece thus producing an accurate measurement while simultaneously minimizing the deformation and wear of the work piece. Although the SBC-COMM was designed for our SBC series of Soleil-Babinet Compensators, it can also be used to interface the CPM1 with a computer. The SBC-COMM package provides the equipment necessary to establish an interface between the CPM1 and a computer via an RS-232 interface along with a simple LabVIEW VI that reads the output position displayed on the micrometer.
Zoom| Specifications | |
|---|---|
| Measurement Range | 1/2" (12.7 mm) |
| Resolution | 1 µm (0.00005”) |
| Accuracya | <2 µm (0.0001") |
| Hysteresisa | <2 µm (0.0001") |
| Repeatabilitya | <2 µm (0.0001") |
| Mounting Barrel | Ø3/8" (9.5 mm) |
| Measuring Force | ≤1.5 N |
| Battery Life | ~18,000 Hours, Continuous Use |
| Contact Point | Carbide-Tipped |
- 1/2" (12.7 mm) Measurement Range
- Converts from Imperial to Metric with the Push of a Button
- Ø3/8" Mounting Barrel (RBA1 Ø3/8" to Ø1/2" Barrel Adapter Included)
- SPC Output for CPU Connection (SPC Cable Not Included)

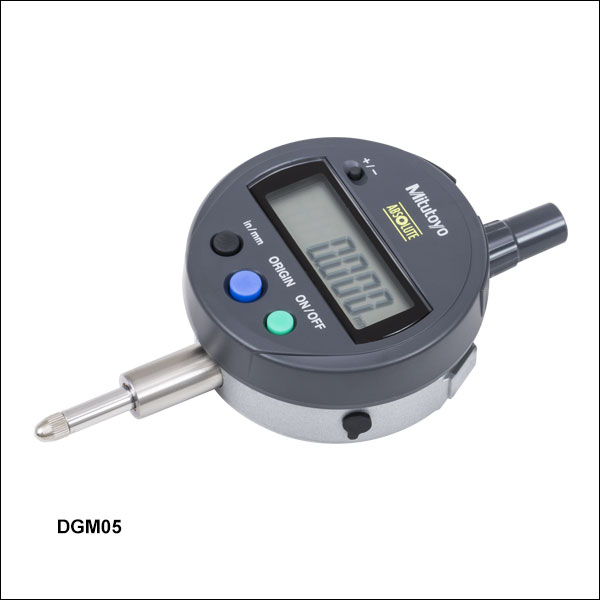

The DGM05 Digital Indicator is an inspection tool commonly used to check the position of a stage or the flatness of a breadboard or optical table. It has a 1/2" (12.7 mm) measurement range with an easy-to-read LCD screen. In addition to this LCD screen, the front face includes buttons that switch between imperial and metric scales, reset the origin, switch the count direction with respect to the spindle, or power the unit on or off. Connection to a computer is possible via the top-located SPC output, however, the required SPC cable is not included.
Each unit has a Ø3/8" mounting barrel and includes an RBA1 Ø3/8" to Ø1/2" Barrel Adapter for increased mounting options. Two mounting options are shown in the images below and can be purchased by clicking on the View Imperial Product List or View Metric Product List links located below the images.
Click to Enlarge

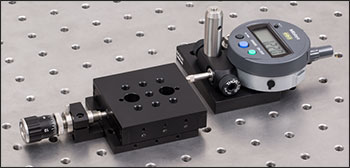

DGM05 Indicator Being Used to Inspect the Translation Range of Thorlabs' MT1A 1/2" Translation Stage

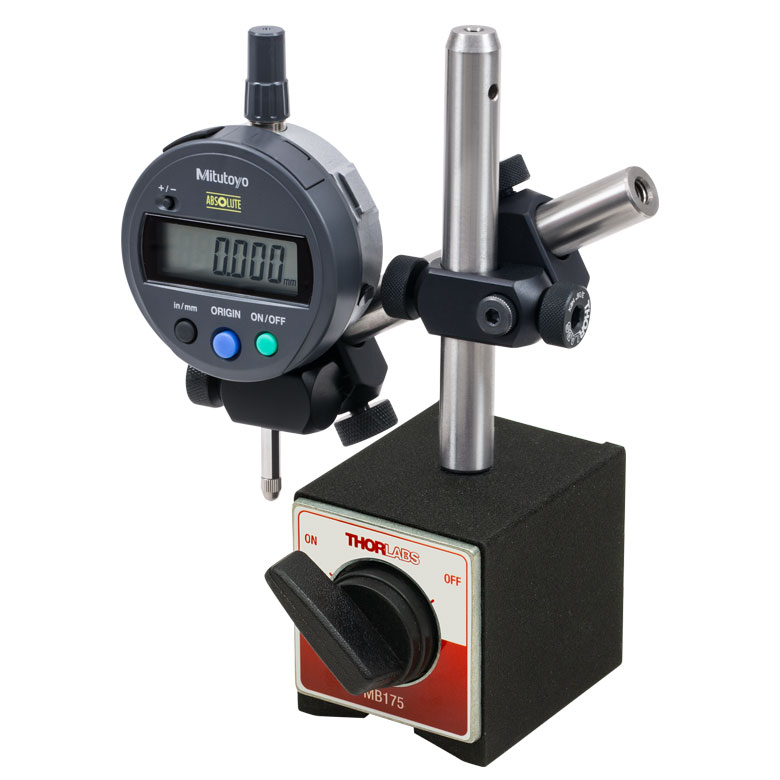

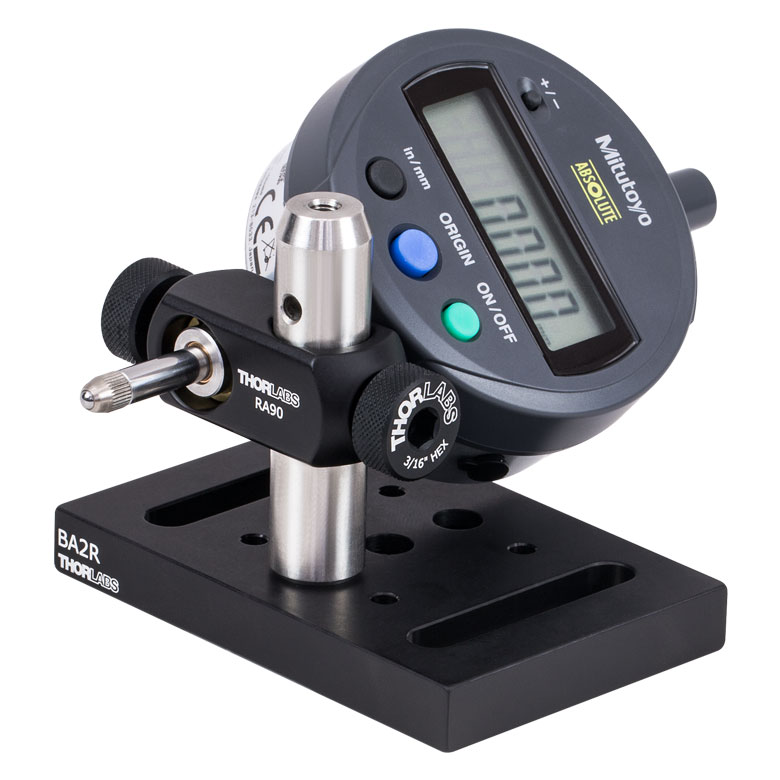

Mounting Kit Options
Click to Enlarge
View Imperial Product List
Click to Enlarge
View Imperial Product List
