ORIC® Piezo Inertia Stage Controller

  • Open- and Closed-Loop Operation Available
  • High Positioning Resolution Up to 10 nm
  • Piezo Inertia Linear and Rotation Stages Supported
  • Multiple Controllers can be Linked to Drive Multiple Stages


Software Package Provides GUI, Drivers, and Third-Party Programming Support

Related Items

Please Wait
Piezo Inertia Drive Stage
Click to Enlarge

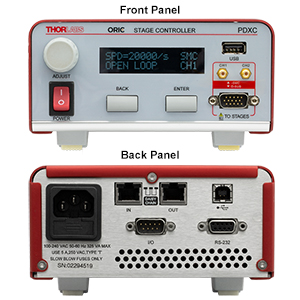

Front and Back Panel Views of the PDXC
(See the Pin Diagrams Tab for More Information)


  • Supports Both Open- and Closed-Loop Operation
  • SMC and 15-Pin D-Sub Ports Available
  • Piezo Inertia Linear and Rotation Stages Supported
  • Modular Linear Amplifier Paired with High-Power Power Supply Outputs Peak Current of 10 A
  • High Current Coupled with Optimized Waveforms Stably Drive Stages at Up to 20 mm/s
  • High Positioning Resolution Up to 10 nm
  • Optimized PID Parameters Provide ±2% Speed Deviation in Closed-Loop Mode
  • Stage Stays at Any Precise Position Within a 10 nm Range With Dynamic Adjustment in Closed-Loop Mode
  • Supports Daisy-Chain Mode where Several Controllers Work Together to Simultaneously Control Multiple Stages
  • Low Time Delay Between Devices When in Daisy-Chain Mode

Thorlabs' ORIC® Piezo Inertia Stage Controller is designed to drive our PDX1(/M) piezo inertia linear translation stage with encoder, which connects to the controller via a 15-pin D-Sub port on the front panel, in both open- and closed-loop modes. The controller also has two SMC ports on the front panel that allows it to drive our open-loop PD1(/M) single-axis and PD1D(/M) dual-axis translation stages and PDR1(/M) rotation stage. Up to two PD1(/M) or PDR1(/M) stages can be driven simultaneously with the same step size and in the same direction.

Embedded software allows this unit to be fully operated using the on-unit buttons, LCD display, and knob or using external trigger signals. For convenient local control, the unit can switch between D-Sub and SMC output modes and switch between open-loop and closed-loop operations as well as perform homing and encoder calibration using the LCD display without being connected to a PC. A general HID mouse can also be connected to the USB port on the front panel to control the stage movement by scrolling the wheel back and forth. The controller can also support remote PC control with our available software platform via the USB or RS-232 ports on the back panel.

Daisy-chain mode, which can be activated by connecting multiple controllers with RJ-45 cables between them, allows multiple controllers to move multiple stages at very low delay. External I/O control for stages with an encoder is also supported via a 9-pin I/O port, including analog input and outputs for the stage position and trigger input and output signals. An I/O cable comes included to breakout the Trigger In, Trigger Out, Analog In, and Analog Out pins to BNCs. There are several built-in external trigger modes to support either single- or multi-channel operation, thus enabling applications that require more than one axis of motion, such as raster scanning.

The unit comes with a compatible region-specific power cord. For all applications, use an IEC320 compatible power cord fitted with a plug appropriate for your particular power socket. Ensure the line voltage rating marked on the rear panel agrees with your local power supply and that the appropriate fuses are installed. The PDXC controller is compatible with 100 - 240 VAC, 50 - 60 Hz power sources.

Piezo Inertia Drive Stage
Click to Enlarge

PDXC Mechanical Drawing. Please See the Pin Diagrams Tab for More Information.

Performance Specificationsa
SMC Port Number of Ports Two
Voltage 0 to 40 V
Frequency 20 kHz Max
D-Sub Port Number of Ports One
Voltage -10 to 50 V
Frequency 20 kHz Max
Max Current Limit 10 A
Front USB Type A, USB Host 2.0
Back USB Type B, USB Device 2.0
I/O Port Voltage of Analog In/Out -10 to 10 V, ±2%
Voltage of Trigger In/Out 0 to 5 V, TTL
Daisy Chain Ports Two RJ-45 Ports
Dimensions (L x W x H) 314.2 mm x 150.0 mm x 83.7 mm
(12.37” x 5.91” x 3.30”)
Weight 5 kg
Operating Temperature 10 - 35°C
Input Power 100 - 240 VAC, 50 - 60 Hz
Compatible Stages PDX1(/M)
  • For complete information on all the ports, please see the Pin Diagrams tab.
  • The PDXC operates at higher frequencies but outputs a lower maximum voltage than the KIMx01 controllers. It will drive the PD1(/M), PD1D(/M), and PDR1(/M) stages at a higher speed with a smaller step size and lower driving force/torque.

PDXC Front Panel

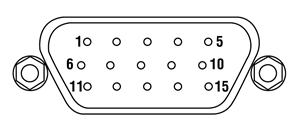

15-Pin D-Sub

For PDX1(/M) Stage

D-SUB 15
For open- and closed-loop operations, with a resolution up to 10 nm and speed up to 20 mm/s.
Pin(s) Voltage Range Name Description
1 -7.5 to +12.5 V Encoder_B_N Encoder B-
2 -7.5 to +12.5 V Encoder_B_P Encoder B+
3 0 V GND Digital Ground
4 -7.5 to +12.5 V Encoder_A_N Encoder A-
5 -7.5 to +12.5 V Encoder_A_P Encoder A+
6,7 - - Reserved
8 +5 V +5 V 5 V Power
9 -7.5 to +12.5 V Encoder_Z_N Encoder Z-
10 -7.5 to +12.5 V Encoder_Z_P Encoder Z+
11 -10 to +50 V SigOut2 Piezo Output 2
12 0 V PGND Power Ground
13 -10 to +50 V SigOut1 Piezo Output 1
15 - - Reserved

CH1 & CH2
SMC Male

For PD1(/M), PD1D(/M), and PDR1(/M) Stages

SMC Male
0 to 40 V
The SMC ports can be used to control open-loop stages.

USB (Type A)

USB Type A
Connects a general HID mouse to control the stage movement by scrolling the wheel back and forth. When the device is set in open-loop operation, it will move a set number of pulses with each scroll, while in closed-loop operation it will move at a set step distance with each scroll.

PDXC Back Panel

Two RJ-45 Ports

SMC Male
Connects to another PDXC device either using the IN or OUT port with the included ethernet cable. Up to 12 devices can be connected in series.

I/O Port

15 Pin IO
An I/O cable is provided to breakout the Trigger In, Trigger Out, Analog In, and Analog Out pins to BNCs.
Pin Voltage Range Name Description
1 5 V TTL Ext_Sync_p Daisy-Chain Clock
2 5 V TTL Ext_Sync_n Daisy-Chain Clock
3 - N.C. Not Connected
4 0 V GND Ground Pin
5 0 V GND Ground Pin
6 - N.C. Not Connected
7 -10 to +10 V RS_485_p Positive Differential Signal of Daisy-Chain
8 -10 to +10 V RS_485_n Negative Differential Signal of Daisy-Chain
Pin Voltage Range Name Description
1 -10 to +10 V Analog In Input a New Target Position
2 0 V GND Ground Pin
3 0 to 5 V Trigger In Trigger to Update New Target Position
4 0 V GND Ground Pin
5 - - Reserved
6 -10 to +10 V Analog Out Output to Reflect the Actual Position
7 0 to 5 V Trigger Out Trigger When Actual Position is on Target
8 0 V GND Ground Pin
9 - - Reserved

Computer Connections

USB (Type B)

USB 3.0
The USB port connects to a computer for software or command-line control.


Connects to a computer for command-line control.
Pin(s) Voltage Range Name Description
1 - N.C. Not Connected
2 -15 to +15 V TXD Transmits Data
3 -15 to +15 V RXD Receives Data
4 - N.C. Not Connected
5 0 V GND Ground Pin
6,7,8,9 - N.C. Not Connected

The following accessories are included with each PDXC Controller:

  • 2 m Ethernet Cable, Male Cat5e Connector to Male Cat5e Connector
  • 0.5 m I/O Cable, Female 9-Pin D-Sub Connector to 4 Male BNC Connectors
  • 2 m USB Cable, Male Type A Connector to Male Type B Connector
  • 1.5 m Power Supply Cable (Region Specific), Male NEMA 5-15-P Connector to Female IEC 320 C13/C14 Connector


PDXC Version 1.2.0

The PDXC Software Package, which includes a GUI, drivers, and LabVIEW™/C++/Python SDK for third-party development.

Software Download

Thorlabs offer a PDXC software package to control the PDXC Piezo Stage Controller. This controller is designed to drive our PD1(/M) and PD1D(/M) Piezo Inertia Linear Translation Stages, PDX1(/M) Piezo Inertia Linear Translation Stage with an Optical Encoder, and PDR1(/M) Piezo Inertia Rotation Stage. The software package allows two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces for third-party development of custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice (LabVIEW™/C++/Python SDK).
