Ø1" Adapters for Unmounted Optics


  • Mounting Solutions for Optics from Ø5 mm to Ø2"
  • Adapt Optics to Either Smaller or Larger Mount
  • Unthreaded, Internally Threaded, or Externally Threaded Mounts

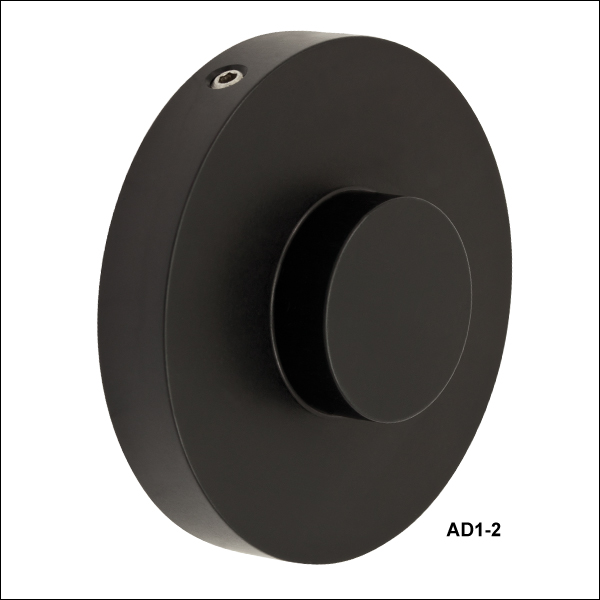

AD1-2

Adapts Ø2" Optics
to Ø1" Mounts

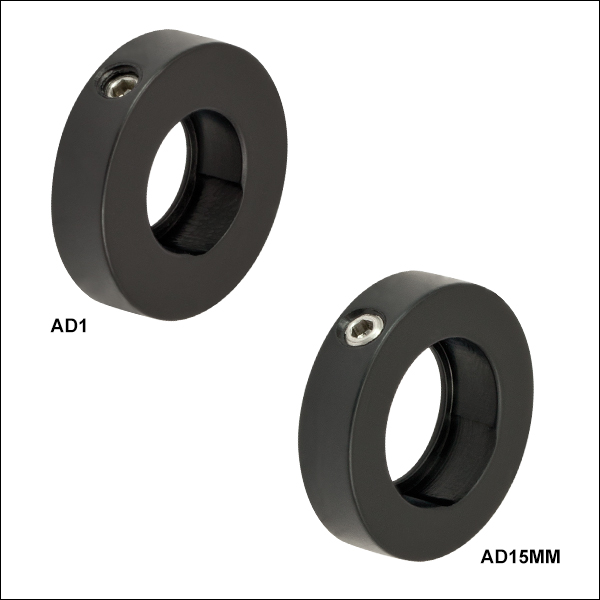

AD1

Ø1/2" Smooth Bore
Ø1" Smooth Outer Surface

SM1AD10

Externally and
Internally Threaded
Adapter

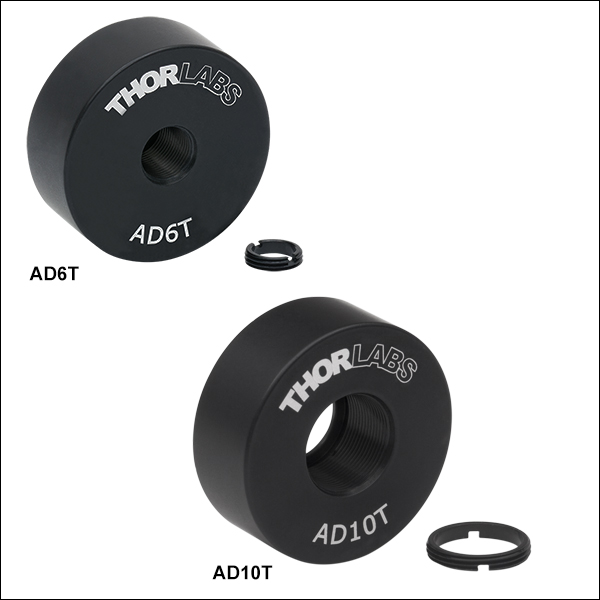

AD6T

Internally
Threaded
Adapter

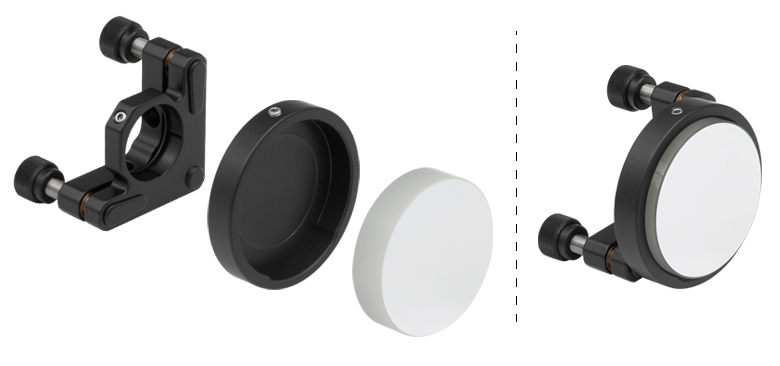

Application Idea

Ø2" Mirror Mounted in KM100 Mount
Using AD1-2 Adapter
(Optic and Mount Sold Separately)

Related Items


Please Wait

Thorlabs offers these versatile mounts to adapt easily between various optic diameter standards. With options for Ø5 mm to Ø2" optics, this family of adapters offers a wide range of solutions for adapting optics to Ø1" optomechanical systems, including optical mounts and lens tubes.


Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining  8000
Posted Comments:
Poster:james.parker
Posted Date:2014-09-10 05:28:43.873
An AD1/2-1 would be very useful, but could be even better if it had as large as possible a hole straight through so that 1" filters could be mounted into, e.g., a VM05
Poster:jlow
Posted Date:2014-09-18 01:34:08.0
Response from Jeremy at Thorlabs: Thank you very much for your feedback. If you need something like this right away, you could put together adapters like SM05AB1, SM1A1, and SM1P1 to hold Ø1" optic in VM05.
Poster:sam
Posted Date:2013-05-08 12:45:32.45
Hi: This is a suggestion to add a soft-tipped set-screw on the side to adapters like the AD8T so that optics can be swapped quickly. This could be in addition to the locking ring, in place of it, or for a separate product. Thanks! --- lasersam
Poster:cdaly
Posted Date:2013-05-09 16:14:00.0
Response from Chris at Thorlabs: Thank you for your feedback. At the moment we currently offer these for the most common sized optics like the 1/2" AD1 and 15mm AD15MM. For the time being, you could use the LMRA8 adapter to get a 1/2" diameter for use with the AD1. I will log your request within our internal discussions to see if we can expand this line of adapters.
Poster:ntrail
Posted Date:2013-03-05 18:15:22.69
Can you confirm if the SM1AD9 can mount (internal threads) the AC064-015-A-ML? The "M9x0.5" vs. "M9.5x0.5" is throwing me off... Thank you!
Poster:cdaly
Posted Date:2013-03-06 18:55:00.0
Response from Chris at Thorlabs: Thank you for using our web feedback. The 9 and 9.5 in M9x0.50 and M9.5x0.50 call out the major diameter, so these threads are of a different size. To adapt the AC064-015-A-ML to an SM1 threading, you would want the S1TM09 adapter.
Poster:jlow
Posted Date:2012-08-20 14:24:00.0
Response from Jeremy at Thorlabs: The LMRA6.35 adapter might work better than the SM1AD7 in this case. I will get in contact with you to discuss about this further.
Poster:perrin1
Posted Date:2012-08-15 16:58:57.0
Is the SM1AD7 compatible with 6.25mm-6.1mm optics or is a 6.35mm diameter the limit?
Poster:tholste
Posted Date:2012-07-27 11:38:00.0
A response from Tor at Thorlabs to John: Thank you very much for your suggestion. I am sharing this with our product development team; please let us know if you have more suggestions, as we'd love to hear them!
Poster:johndgiese
Posted Date:2012-07-25 16:21:20.0
It would be nice if there was an adapter kit, that came with a variety of adapter parts.
Poster:jjurado
Posted Date:2011-05-13 16:32:00.0
Response from Javier at Thorlabs to cbrideau: Thank you for your feedback. There is actually a link to this page in the optomechanical adapters page. Regarding the search tool, it is possible that certain search parameters were not internally mapped to the adapters page. Please contact us at techsupport@thorlabs.com if you would like to discuss this a bit further.
Poster:cbrideau
Posted Date:2011-05-12 16:41:39.0
There is no link to get to this page from the "Adapters" page. It was very hard to find this page via the search box.
Poster:jjurado
Posted Date:2011-04-04 13:42:00.0
Response from Javier at Thorlabs to last poster: Thank you very much for your feedback. I will share your comments with our mechanics engineers. You can check back with us at techsupport@thorlabs.com in case you have any questions this adapter or about any of our products.
Poster:
Posted Date:2011-04-04 10:33:44.0
How about an AD1/2-1?
Poster:rbjaculbia
Posted Date:2010-11-16 23:11:43.0
What we actually need is an adapter with an external SM1 thread and the other end should be able to mount a Ø2" optic using a setscrew
Poster:
Posted Date:2010-11-16 00:04:29.0
What we actually need is an adapter with an external SM1 thread and the other end should be able to mount a Ø2" optic using a setscrew
Poster:tor
Posted Date:2010-11-11 13:09:16.0
A response from Tor at Thorlabs to rbjaculbia: We offer a stock adapter, SM1A2, that features internal SM2 threads and external SM1 threads. The SM1A2 affords compatibility between SM1 lens tubes and Ø2" optics mounts. Please do not hesitate to contact us at techsupport@thorlabs.com if you would like to explore other possible solutions.
Poster:rbjaculbia
Posted Date:2010-11-11 05:28:38.0
Could you customize the AD1-2 so that the Ø1" side has SM1 threads? This would allow us to mount a Ø2" optics to the end of an SM1 lens tube or to some other SM1 threaded holders. I think this would also be a nice addition to your adapters
Poster:klee
Posted Date:2009-08-19 12:08:29.0
A response from Ken at Thorlabs to mados123: We do not have plan for making a 2" optic to 3" tube adapter as a standard item at this moment. We can do this as a special though. Please email us at techsupport@thorlabs.com if you would like to get a quote for that.
Poster:mados123
Posted Date:2009-08-11 02:02:24.0
Are you considering making a 2" optic adapter for a 3" tube?

Unthreaded Mounting Adapters: Small Optic to Ø1" Mount

ADx Drawing

Click to Enlarge

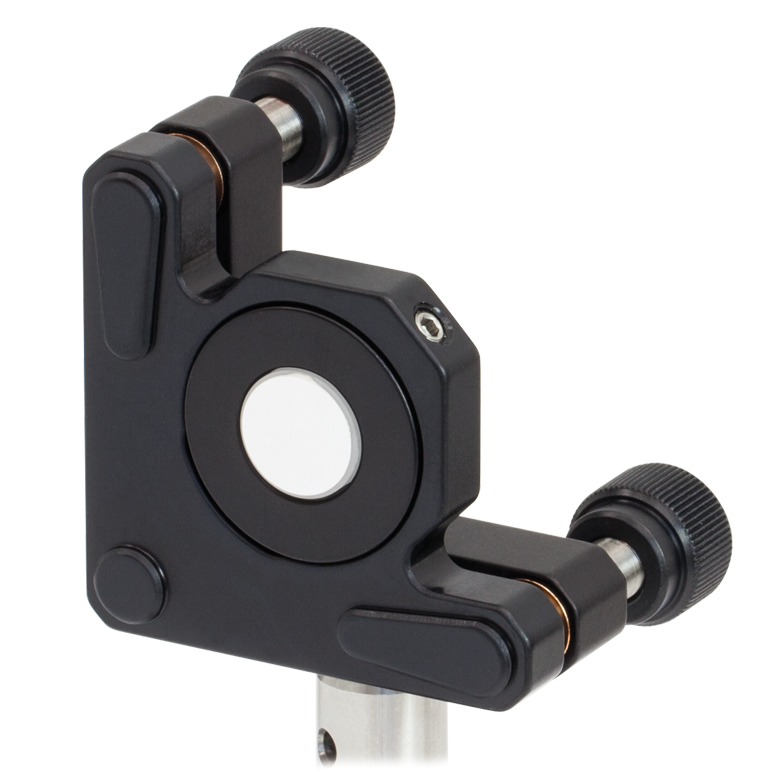

Ø1/2" Optic Mounted in a Ø1" KM100 Mirror Mount Using an AD1 Adapter

These unthreaded adapters both feature a smooth Ø1" outer surface. The AD1 has a Ø1/2" counterbore while the AD15MM offers a Ø15 mm counterbore; optics are secured against two contact lines using a nylon-tipped setscrew.

Item # Counterbore OD Optic Thickness (Max)a Optical Thickness (Min) Mount Thickness (T)
AD1 Ø0.50" (Ø12.7 mm) Ø1.00" 0.22" (5.6 mm) 0.13" (3.3 mm) 0.25" (6.4 mm)
AD15MM Ø0.60" (Ø15.0 mm) Ø1.00" 0.22" (5.6 mm) 0.13" (3.3 mm) 0.25" (6.4 mm)
  • This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
AD1 Support Documentation
AD1Ø1" OD Adapter for Ø1/2" Optic, 0.25" Thick
$15.30
Today
AD15MM Support Documentation
AD15MMØ1" OD Adapter for Ø15 mm Optic, 0.25" Thick
$16.40
Today

Unthreaded Mounting Adapter: Ø2" Optic to Ø1" Mount

AD1-2 Drawing

Click to Enlarge

Ø2" Mirror Mounted in a Ø1" KM100 Mirror Mount Using an AD1-2 Adapter

The AD1-2 features an internal 2" mounting diameter with an external 1" mounting diameter compatible with Ø1" mounts. A nylon-tipped setscrew holds the optic securely against two contact lines machined into the inside diameter. Optics must have a minimum thickness of 0.20" (5.13 mm) to be properly retained.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
AD1-2 Support Documentation
AD1-2Ø1" Mount Adapter for Ø2" Optic, 0.40" Thick
$29.75
Today

Mounting Adapters with Internal Threads

ADxT Drawing

These internally threaded mounting adapters are ideal for stress-free mounting for optics from Ø5 mm to Ø20 mm. Retaining rings can be used to hold these adapters in an SM1 lens tube. With a smooth outer diameter, the AD1T is especially well-suited for mounting Ø1/2" optics into Ø1" mounts. One retaining ring is included for securing optics in the adapter; for detailed specifications for each type of thread, please see our retaining ring presentation.

Alternatively, Thorlabs offers internally threaded, post-mountable fixed mounts for mounting optics from Ø5 mm to Ø4".

Item # Optic CAa OD Optic Thickness (Max)b Internal Thread Retaining Ring Mount Thickness Spanner Wrench
AD5T Ø5 mm Ø3.8 mm Ø1" 0.29" (7.4 mm) M5.5 x 0.5 SM5RR 0.38" (9.7 mm) SPW801
AD6T Ø6 mm Ø4.8 mm Ø1" 0.29" (7.4 mm) M6.5 x 0.5 SM6RR
AD7Tc Ø7 mm Ø5.8 mm Ø1" 0.26" (6.6 mm) M7.5 x 0.5 SM7RR
AD8Td Ø8 mm Ø6.9 mm Ø1" 0.26" (6.6 mm) M8.5 x 0.5 SM8RR
AD9T Ø9 mm Ø7.9 mm Ø1" 0.29" (7.4 mm) M9.5 x 0.5 SM9RR
AD10T Ø10 mm Ø8.8 mm Ø1" 0.29" (7.4 mm) M10.5 x 0.5 SM10RR
AD11T Ø11 mm Ø9.1 mm Ø1" 0.25" (6.4 mm) M11.5 x 0.5 SM11RR
AD12Te Ø12 mm Ø10.9 mm Ø1" 0.26" (6.6 mm) SM05 (0.535"-40) SM05RR
AD1Tf Ø1/2" Ø12.0 mm Ø1" 0.14" (3.6 mm) SM05 (0.535"-40) SM05RR 0.23" (5.8 mm)
AD13T Ø13 mm Ø10.7 mm Ø1" 0.25" (6.4 mm) M13.5 x 0.5 SM13RR 0.38" (9.7 mm)
AD14T Ø14 mm Ø11.7 mm Ø1" 0.25" (6.4 mm) M14.5 x 0.5 SM14RR
AD15T Ø15 mm Ø12.7 mm Ø1" 0.29" (7.4 mm) M15.5 x 0.5 SM15RR
AD16T Ø16 mm Ø13.6 mm Ø1" 0.22" (5.6 mm) M16.5 x 0.5 SM16RR
AD17T Ø17 mm Ø14.5 mm Ø1" 0.22" (5.6 mm) M17.5 x 0.5 SM17RR
AD18T Ø18 mm Ø15.7 mm Ø1" 0.27" (6.9 mm) 0.750"-40 SM18RR
AD19T Ø19 mm Ø16.3 mm Ø1" 0.27" (6.9 mm) M19.5 x 0.5 SM19RR
AD20T Ø20 mm Ø17.3 mm Ø1" 0.27" (6.9 mm) M20.5 x 0.5 SM20RR
  • Clear Aperture of Retaining Ring
  • Maximum Optical Thickness: This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
  • The AD7T can also be used to secure Ø6.35 mm optics.
  • The AD8T can also be used to secure Ø7.4 mm optics.
  • The AD12T can also be used to secure Ø12, Ø12.5, and Ø12.7 mm optics.
  • The AD1T can also be used to secure Ø12.5 mm optics.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
AD5T Support Documentation
AD5TØ1" OD Adapter for Ø5 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD6T Support Documentation
AD6TØ1" OD Adapter for Ø6 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD7T Support Documentation
AD7TØ1" OD Adapter for Ø7 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD8T Support Documentation
AD8TØ1" OD Adapter for Ø8 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD9T Support Documentation
AD9TØ1" OD Adapter for Ø9 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD10T Support Documentation
AD10TØ1" OD Adapter for Ø10 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD11T Support Documentation
AD11TØ1" OD Adapter for Ø11 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD12T Support Documentation
AD12TØ1" OD Adapter for Ø12 mm Optic, Internally SM05 Threaded, 0.38" Thick
$17.90
Today
AD1T Support Documentation
AD1TØ1" OD Adapter for Ø1/2" Optic, Internally SM05 Threaded, 0.23" Thick
$17.90
Today
AD13T Support Documentation
AD13TØ1" OD Adapter for Ø13 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD14T Support Documentation
AD14TØ1" OD Adapter for Ø14 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD15T Support Documentation
AD15TØ1" OD Adapter for Ø15 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD16T Support Documentation
AD16TØ1" OD Adapter for Ø16 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD17T Support Documentation
AD17TØ1" OD Adapter for Ø17 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD18T Support Documentation
AD18TØ1" OD Adapter for Ø18 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD19T Support Documentation
AD19TØ1" OD Adapter for Ø19 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today
AD20T Support Documentation
AD20TØ1" OD Adapter for Ø20 mm Optic, Internally Threaded, 0.38" Thick
$17.90
Today

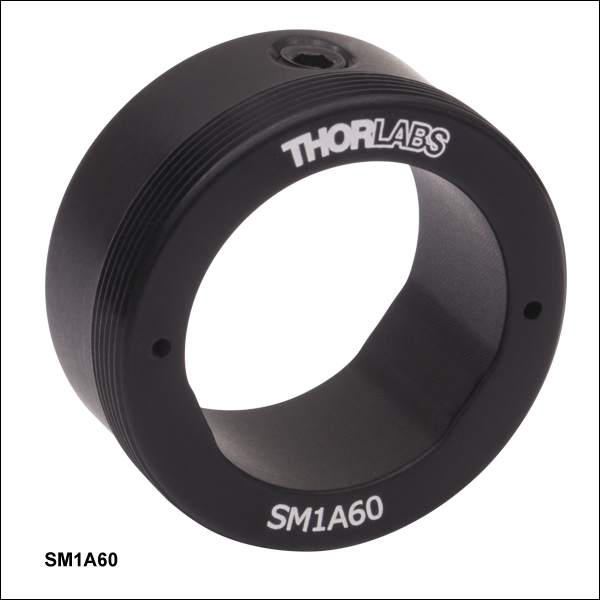

Mounting Adapter with External Threads


Click to Enlarge

SM05 Lens Tube Mounted in KM100 Mirror Mount Using SM1A60 Adapter

The SM1A60 adapter features an internal Ø0.7" bore with external SM1 (1.035"-40) threads as well as an external Ø1" smooth bore. This allows our SM05 Lens Tubes to be mounted within our SM1 Lens Tube System, as well as within SM1-threaded mounts, such as the LMR1. The outer surface of the adapter also has a smooth section which can be used to secure it into a Ø1" optics mount with a smooth bore, such as the KM100.

Item # Bore OD Optic Thickness (Max) Mount Thickness External Thread Spanner Wrench
SM1A60 Ø0.7" (Ø17.8 mm) Ø1.00" (Ø25.4 mm) N/Aa 0.45" (11.4 mm) SM1 (1.035"-40) SPW801
  • This adapter has a center bore through the length of the part, so the thickness of the mounted object is not limited.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
SM1A60 Support Documentation
SM1A60Customer Inspired!Externally SM1-Threaded Mounting Adapter with Ø0.7" Bore and 1" Outer Diameter
$20.40
Today

Mounting Adapters with Internal and External Threads

Threaded Mounting Adapter
Click to Enlarge

Ø1/2" Optic Mounted in a
Ø1" ST1XY-D XY Translator
Using an SM1A6T Adapter

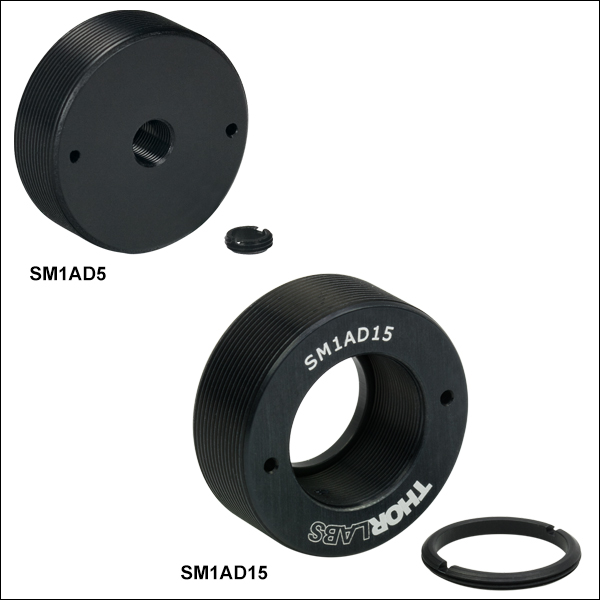

SM1 Series Adapters

The SM1 Series Adapters are internally threaded adapters for optics from Ø5 mm to Ø20 mm. Featuring an SM1-threaded outer diameter, these adapters are designed to mount with Ø1" lens tubes or other internally SM1-threaded components. Two retaining rings are included for securing optics in the adapter; for detailed specifications for each type of thread, please see our retaining ring presentation.

Alternatively, Thorlabs offers internally threaded, post-mountable fixed mounts for mounting optics from Ø5 mm to Ø4".

Item # Optic CAa Optic Thickness (Max)b Internal Thread External Thread Retaining Ring Mount Thickness Spanner Wrench
SM1AD5 Ø5 mm Ø3.8 mm 0.27" (6.9 mm) M5.5 x 0.5 SM1 (1.035"-40) SM5RR 0.40" (10.2 mm) SPW801
SM1AD6 Ø6 mm Ø4.8 mm 0.27" (6.9 mm) M6.5 x 0.5 SM1 (1.035"-40) SM6RR
SM1AD7c Ø7 mm Ø5.8 mm 0.27" (6.9 mm) M7.5 x 0.5 SM1 (1.035"-40) SM7RR
SM1AD8d Ø8 mm Ø6.9 mm 0.27" (6.9 mm) M8.5 x 0.5 SM1 (1.035"-40) SM8RR
SM1AD9 Ø9 mm Ø7.9 mm 0.27" (6.9 mm) M9.5 x 0.5 SM1 (1.035"-40) SM9RR
SM1AD10 Ø10 mm Ø8.8 mm 0.27" (6.9 mm) M10.5 x 0.5 SM1 (1.035"-40) SM10RR
SM1AD11 Ø11 mm Ø9.1 mm 0.27" (6.9 mm) M11.5 x 0.5 SM1 (1.035"-40) SM11RR
SM1A6Te Ø1/2" Ø10.9 mm 0.27" (6.9 mm) SM05 (0.535"-40) SM1 (1.035"-40) SM05RR
SM1AD13 Ø13 mm Ø10.9 mm 0.27" (6.9 mm) M13.5 x 0.5 SM1 (1.035"-40) SM13RR
SM1AD14 Ø14 mm Ø11.7 mm 0.27" (6.9 mm) M14.5 x 0.5 SM1 (1.035"-40) SM14RR
SM1AD15 Ø15 mm Ø12.7 mm 0.27" (6.9 mm) M15.5 x 0.5 SM1 (1.035"-40) SM15RR
SM1AD16 Ø16 mm Ø13.6 mm 0.24" (6.1 mm) M16.5 x 0.5 SM1 (1.035"-40) SM16RR
SM1AD17 Ø17 mm Ø14.5 mm 0.24" (6.1 mm) M17.5 x 0.5 SM1 (1.035"-40) SM17RR
SM1AD18 Ø18 mm Ø15.7 mm 0.24" (6.1 mm) 0.750"-40 SM1 (1.035"-40) SM18RR
SM1AD19 Ø19 mm Ø16.3 mm 0.24" (6.1 mm) M19.5 x 0.5 SM1 (1.035"-40) SM19RR
SM1AD20 Ø20 mm Ø17.3 mm 0.24" (6.1 mm) M20.5 x 0.5 SM1 (1.035"-40) SM20RR
  • Clear Aperture of Retaining Ring
  • Maximum Optical Thickness: This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
  • The SM1AD7 can also be used to secure Ø6.35 mm optics.
  • The SM1AD8 can also be used to secure Ø7.4 mm optics.
  • The SM1A6T can also be used to secure Ø12.5 mm optics.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
SM1AD5 Support Documentation
SM1AD5Externally SM1-Threaded Adapter for Ø5 mm Optic, 0.40" Thick
$20.80
Today
SM1AD6 Support Documentation
SM1AD6Externally SM1-Threaded Adapter for Ø6 mm Optic, 0.40" Thick
$20.80
Today
SM1AD7 Support Documentation
SM1AD7Externally SM1-Threaded Adapter for Ø7 mm Optic, 0.40" Thick
$20.80
Today
SM1AD8 Support Documentation
SM1AD8Externally SM1-Threaded Adapter for Ø8 mm Optic, 0.40" Thick
$20.80
Today
SM1AD9 Support Documentation
SM1AD9Externally SM1-Threaded Adapter for Ø9 mm Optic, 0.40" Thick
$20.80
Today
SM1AD10 Support Documentation
SM1AD10Externally SM1-Threaded Adapter for Ø10 mm Optic, 0.40" Thick
$20.80
Today
SM1AD11 Support Documentation
SM1AD11Externally SM1-Threaded Adapter for Ø11 mm Optic, 0.40" Thick
$20.80
Today
SM1A6T Support Documentation
SM1A6TCustomer Inspired!Adapter with External SM1 Threads and Internal SM05 Threads, 0.40" Thick
$20.20
Today
SM1AD13 Support Documentation
SM1AD13Externally SM1-Threaded Adapter for Ø13 mm Optic, 0.40" Thick
$20.80
Today
SM1AD14 Support Documentation
SM1AD14Externally SM1-Threaded Adapter for Ø14 mm Optic, 0.40" Thick
$20.80
Today
SM1AD15 Support Documentation
SM1AD15Externally SM1-Threaded Adapter for Ø15 mm Optic, 0.40" Thick
$20.80
Today
SM1AD16 Support Documentation
SM1AD16Externally SM1-Threaded Adapter for Ø16 mm Optic, 0.40" Thick
$22.00
Today
SM1AD17 Support Documentation
SM1AD17Externally SM1-Threaded Adapter for Ø17 mm Optic, 0.40" Thick
$22.00
Today
SM1AD18 Support Documentation
SM1AD18Externally SM1-Threaded Adapter for Ø18 mm Optic, 0.40" Thick
$22.00
Today
SM1AD19 Support Documentation
SM1AD19Externally SM1-Threaded Adapter for Ø19 mm Optic, 0.40" Thick
$22.00
Today
SM1AD20 Support Documentation
SM1AD20Externally SM1-Threaded Adapter for Ø20 mm Optic, 0.40" Thick
$22.00
3-5 Days
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2017 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
