Instrumentation Bases


  • Convenient Solution for Optical Sensors
  • Large Base & Bottom Relief Cut Allow for Temporary,
    Clamp-Free Positioning

IB3

Instrumentation Base

PMB3

Magnetic Base

Application Ideas



Ø1/2" Post Holders Mounted
on Instrumentation Bases
(Post Holders, Posts, and Power Sensors Sold Separately)

Related Items


Please Wait

Features

  • Designed for Temporary Placement of Instruments or Optical Sensors in a Setup
  • Bottom-Located 1/4" (M6) Counterbore Enables Post Mounting

Thorlabs' instrumentation bases are designed to allow instruments or optical sensors, such as photodetectors, to be positioned temporarily into an optomechanical assembly. These bases essentially eliminate the need to securely fasten a base to an optical table. Additionally, the base provides a greater range of positional flexibility, as it does not require alignment with the standard hole pattern found on an optical table. After the mount is removed from a setup, the base can simply be placed elsewhere on the optical table or nearby shelf without requiring extra handling or storage precautions.


Posted Comments:
No Comments Posted

Instrumentation Base

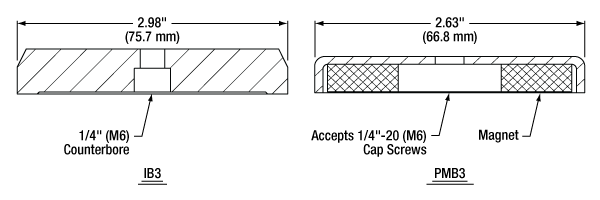

  • Ø2.98" (75.7 mm) x 1/2" (12.7 mm)
  • Precision-Machined Aluminum with Bottom Relief Cut for Flat, Stable Mounting
  • Counterbored Mounting Hole Accepts 1/4"-20 (M6) Cap Screws

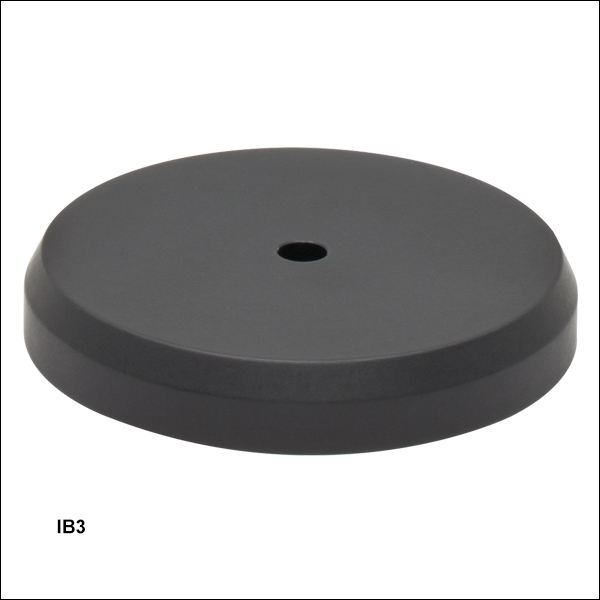

The IB3 Instrumentation Base provides a convenient means by which to temporarily position the optical head of an instrument into an optomechanical setup. The wide diameter and bottom relief cut provides excellent stability without the need to clamp the IB3 to the optical table.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
IB3 Support Documentation
IB3Instrumentation Base
$20.89
Today

Permanent Magnetic Base

  • Ø2.63" (66.8 mm) x 3/8" (9.5 mm)
  • Ceramic Magnet in Base Provides Excellent Holding Force: 70 lbs (311 N)
  • Precision-Machined for Flat, Stable Mounting
  • Counterbored Mounting Hole Accepts 1/4"-20 (M6) Cap Screws

The PMB3 Base is a permanent magnetic version of our IB3 Instrumentation Base. The magnet is sufficiently strong to securely hold the base in place without clamping to an optical table. This base is only compatible with magnetic optical tables and breadboards. These are ideal for components which will temporarily be in a beam path, such as power meters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PMB3 Support Documentation
PMB3Permanent Magnetic Base
$14.40
Today
