Height Spacers


  • Easily Adjust Optic Heights
  • Thicknesses Available from 0.01" (0.25 mm) to 2" (50 mm)
  • Equipped with an Array of Mounting Holes and Slots

BA2S6/M

12.5 mm Thick Spacer

BA2S1

0.010" Thick Spacer

BA2S8

2.0" Thick Spacer

LMR2
with Lens

TR Post

BA2
Base

BA2S7
Spacer

Related Items


Please Wait

Click to Enlarge

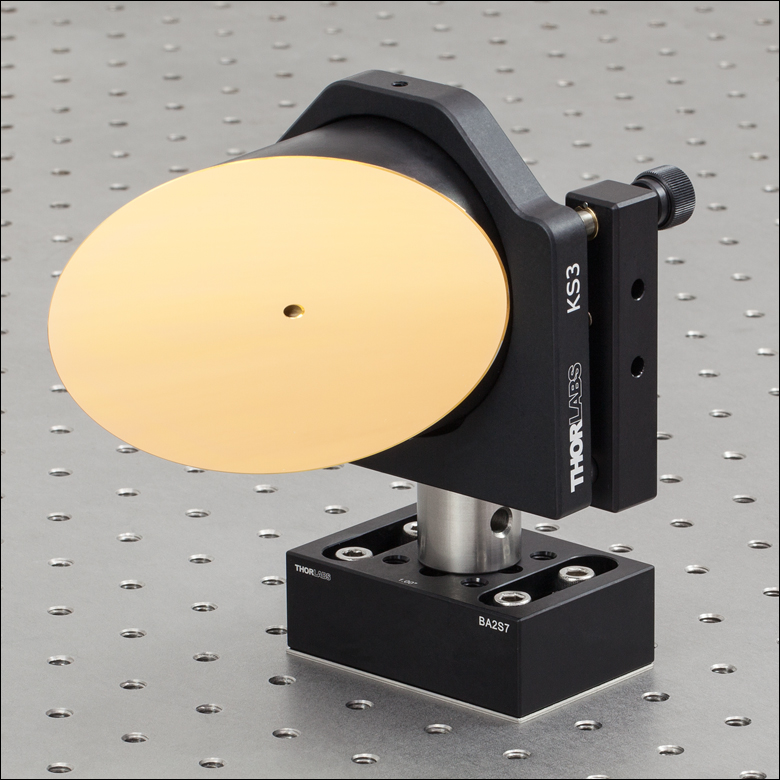

Fixed Ø3" Kinematic Optic Mount Shown with BA2S3 (Silver Spacer Just Above the Breadboard) and BA2S7 (Black Spacer).

Features

  • Quick, Stable Adjustment of Fixed-Height Optical Systems
  • Thicknesses Available from 0.010" (0.25 mm) to 2" (50 mm)
  • Spacers Equipped and Various Hole Patterns (See Below for Details)

These spacers, which are based on the outer profile of our BA2 Mounting Plate, are available in an array of thicknesses and are manufactured to facilitate changes in beam heights. The three thinnest spacers are fabricated from stainless steel while the five thickest ones are fabricated from black anodized aluminum. Each spacer is equipped with two counterbored mounting slots that accept 1/4"-20 (M6) capscrews and an arrangement of tapped, clearance, and/or through holes (see the tables below for details). The configuration of holes and slots provided makes it easy to bolt multiple plates together and to create fixed-height optical systems.


Posted Comments:
No Comments Posted

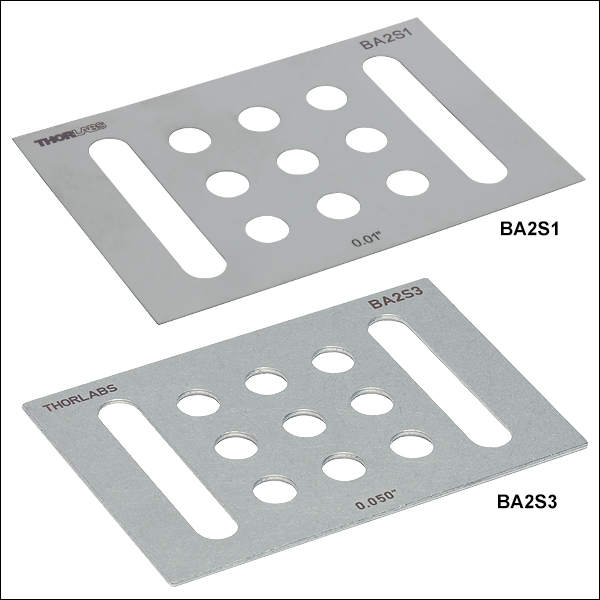

Spacers, Stainless Steel

Item#ThicknessMaterialMounting Options
BA2S1
BA2S1/M
0.010"
(0.25 mm)
Stainless Steel • 2 Clearance Slots: Ø0.27" (Ø6.7 mm)
• 9 Through Holes: Ø0.27" (Ø6.7 mm)
BA2S2
BA2S2/M
0.025"
(0.50 mm)
BA2S3
BA2S3/M
0.050"
(1.25 mm)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
BA2S1 Support Documentation
BA2S1Customer Inspired! Spacer, 2" x 3", 0.010" Thick
$15.44
Today
BA2S2 Support Documentation
BA2S2Customer Inspired! Spacer, 2" x 3", 0.025" Thick
$18.28
Today
BA2S3 Support Documentation
BA2S3Customer Inspired! Spacer, 2" x 3", 0.050" Thick
$22.38
Today
+1 Qty Docs Part Number - Metric Price Available
BA2S1/M Support Documentation
BA2S1/MCustomer Inspired! Spacer, 50 mm x 75 mm, 0.25 mm Thick
$15.44
Today
BA2S2/M Support Documentation
BA2S2/MCustomer Inspired! Spacer, 50 mm x 75 mm, 0.50 mm Thick
$18.28
Today
BA2S3/M Support Documentation
BA2S3/MCustomer Inspired! Spacer, 50 mm x 75 mm, 1.25 mm Thick
$22.38
Today

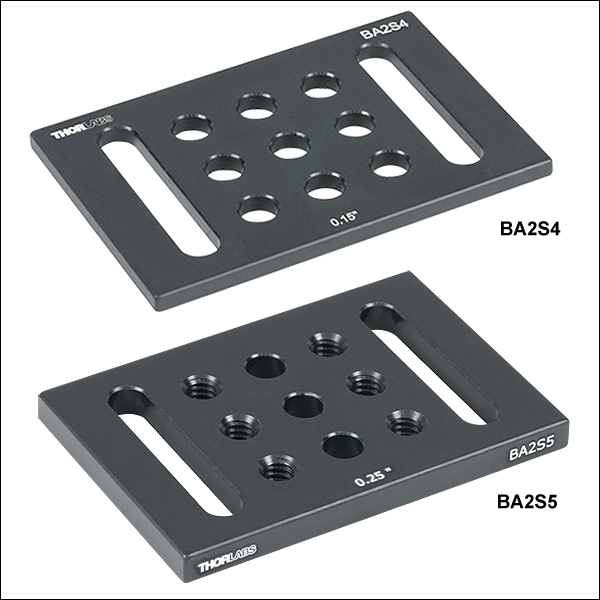

Spacers, Black Anodized without Counterbored Holes

Item #ThicknessMaterialMounting Options
BA2S4
BA2S4/M
0.150"
(4 mm)
Black Anodized Aluminum • 2 Clearance Slots: Ø0.27" (Ø6.7 mm)
• 9 Through Holes: Ø0.27" (Ø6.7 mm)
BA2S5
BA2S5/M
0.250"
(6.25 mm)
• 2 Clearance Slots: Ø0.27" (Ø6.7 mm)
• 3 Through Holes: Ø0.27" (Ø6.7 mm)
• 6 Taps: 1/4"-20 (M6)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
BA2S4 Support Documentation
BA2S4Customer Inspired! Spacer, 2" x 3", 0.150" Thick
$23.22
Today
BA2S5 Support Documentation
BA2S5Customer Inspired! Spacer, 2" x 3", 0.250" Thick
$25.42
Today
+1 Qty Docs Part Number - Metric Price Available
BA2S4/M Support Documentation
BA2S4/MCustomer Inspired! Spacer, 50 mm x 75 mm, 4 mm Thick
$23.22
Today
BA2S5/M Support Documentation
BA2S5/MCustomer Inspired! Spacer, 50 mm x 75 mm, 6.25 mm Thick
$25.42
Today

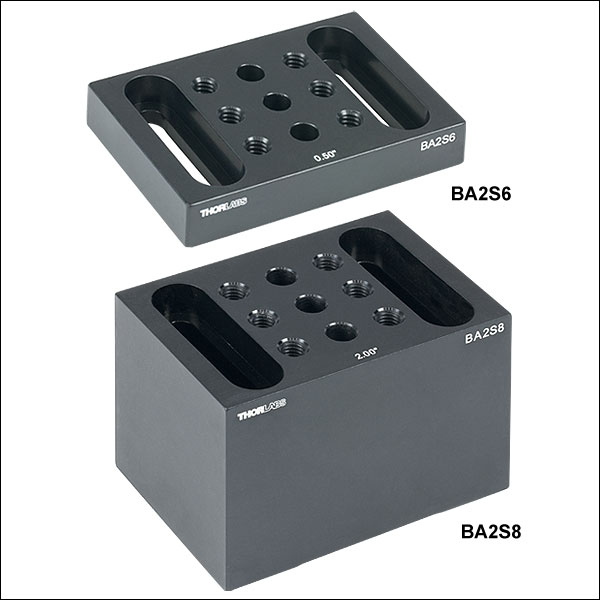

Spacers, Black Anodized with Counterbored Holes

Item#ThicknessMaterialMounting Options
BA2S6
BA2S6/M
0.500"
(12.5 mm)
Black Anodized Aluminum• 2 Clearance Slots: Ø0.27" (Ø6.7 mm)
• 6 Mounting Holes: 1/4"-20 (M6)
• 3 Counterbored Holes: Accept 1/4"-20 (M6) Cap Screws
BA2S7
BA2S7/M
1.000"
(25 mm)
BA2S8
BA2S8/M
2.000"
(50 mm)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
BA2S6 Support Documentation
BA2S6Customer Inspired! Spacer, 2" x 3", 0.500" Thick
$28.89
Today
BA2S7 Support Documentation
BA2S7Customer Inspired! Spacer, 2" x 3", 1.000" Thick
$35.46
Today
BA2S8 Support Documentation
BA2S8Customer Inspired! Spacer, 2" x 3", 2.000" Thick
$46.49
Today
+1 Qty Docs Part Number - Metric Price Available
BA2S6/M Support Documentation
BA2S6/MCustomer Inspired! Spacer, 50 mm x 75 mm, 12.5 mm Thick
$28.89
Today
BA2S7/M Support Documentation
BA2S7/MCustomer Inspired! Spacer, 50 mm x 75 mm, 25 mm Thick
$35.46
Today
BA2S8/M Support Documentation
BA2S8/MCustomer Inspired! Spacer, 50 mm x 75 mm, 50 mm Thick
$46.49
Today
