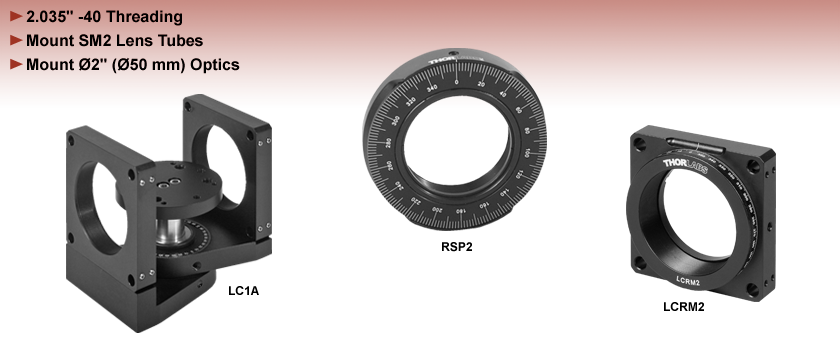

SM2-Compatible Rotation Mounts


  • 2.035"-40 Threading
  • Mount SM2 Lens Tubes
  • Mount Ø2" (Ø50.8 mm) Optics

LC1A

Swivel Mount for
60 mm Cage Systems

RSP2

Ø2" Rotation Mount

LCRM2

Ø2" Rotation Mount for
60 mm Cage Systems

Related Items


Please Wait

Features

  • Mounts Feature Internal SM2 (2.035"-40) Threads
  • Accept Ø2" (50.8 mm) Optics
  • 360° Continuous Rotation
  • Engraved Direct Read Scale

This page is a compilation of all of the SM2 (2.035"-40) threaded rotation mounts. Thorlabs also has a similar compilations of SM threaded rotation mounts for Ø1/2" (12.7 mm) and Ø1" (50.8 mm) optics. For our entire selection of rotation mounts, please see the Rotation Mounts and Stages tab.

SM2-Threaded components are designed to mount or integrate Ø2" (50.8 mm) optics into optical systems. These SM2-threaded rotation mounts allow for the 360° degree rotation positioning of the optic.

Thorlabs introduced the SM Series Threading standards to ensure compatibility over a broad range of product lines. SM Series Threaded components offer a simple and efficient solution for building optomechanical structures. The SM Threaded products available, including lens tubes and cage system components, fixed and kinematic mounts, irises and diaphragms, provide flexibility when constructing complex optical systems. Please see the Threading Specs tab for more information on Thorlabs' SM thread standards.

Thorlabs' Threading Specifications

Thorlabs' lens tubes utilize a series of non-standard threadings. Threading specifications are given below for our SM threadings utilized in our lens tube and cage system components so that you can machine mating components to suit your application. We also offer products with C-Mount and RMS threadings, and the specifications for these threadings are also given below. Please note that other manufacturers may have different tolerances for these threads. For other thread specifications that are not listed here, please contact Tech Support.

SM05 Threading: Ø1/2" Lens Tubes, 16 mm Cage Systems
External Thread, 0.535"-40.0, UNS-2A Internal Thread, 0.535"-40.0, UNS-2B
Max Major Diameter 0.5340" Min Major Diameter 0.5350"
Min Major Diameter 0.5289" Min Pitch Diameter 0.5188"
Max Pitch Diameter 0.5178" Max Pitch Diameter 0.5230"
Min Pitch Diameter 0.5146" Min Minor Diameter (and 83.3% of thread) 0.508"
Max Minor Diameter 0.5069" Max Minor Diameter (and 64.9% of thread) 0.514"
RMS Threading: Objective, Scan, and Tube Lenses
External Thread, 0.800"-36.0, UNS-2A Internal Thread, 0.800"-36.0, UNS-2B
Max Major Diameter 0.7989" Min Major Diameter 0.8000"
Min Major Diameter 0.7934" Min Pitch Diameter 0.7820"
Max Pitch Diameter 0.7809" Max Pitch Diameter 0.7866"
Min Pitch Diameter 0.7774" Min Minor Diameter (and 83.3% of thread) 0.770"
Max Minor Diameter 0.7688" Max Minor Diameter (and 64.9% of thread) 0.777"
C-Mount Threading: Machine Vision LensesCCD/CMOS Cameras
External Thread, 1.000"-32.0, UN-2A Internal Thread, 1.000"-32.0, UN-2B
Max Major Diameter 0.9989" Min Major Diameter 1.0000"
Min Major Diameter 0.9929" Min Pitch Diameter 0.9797"
Max Pitch Diameter 0.9786" Max Pitch Diameter 0.9846"
Min Pitch Diameter 0.9748" Min Minor Diameter (and 83.3% of thread) 0.966"
Max Minor Diameter 0.9651" Max Minor Diameter (and 64.9% of thread) 0.974"
SM1 Threading: Ø1" Lens Tubes, 30 mm Cage Systems
External Thread, 1.035"-40.0, UNS-2A Internal Thread, 1.035"-40.0, UNS-2B
Max Major Diameter 1.0339" Min Major Diameter 1.0350"
Min Major Diameter 1.0288" Min Pitch Diameter 1.0188"
Max Pitch Diameter 1.0177" Max Pitch Diameter 1.0234"
Min Pitch Diameter 1.0142" Min Minor Diameter (and 83.3% of thread) 1.008"
Max Minor Diameter 1.0068" Max Minor Diameter (and 64.9% of thread) 1.014"
SM30 Threading: Ø30 mm Lens Tubes
External Thread, M30.5x0.5 Internal Thread, M30.5x0.5
Max Major Diameter 30.480 mm Min Major Diameter 30.500 mm
Min Major Diameter 30.371 mm Min Pitch Diameter 30.175 mm
Max Pitch Diameter 30.155 mm Max Pitch Diameter 30.302 mm
Min Pitch Diameter 30.059 mm Min Minor Diameter (and 83.3% of thread) 29.959 mm
Max Minor Diameter 29.938 mm Max Minor Diameter (and 64.9% of thread) 30.094 mm
SM1.5 Threading: Ø1.5" Lens Tubes
External Thread, 1.535"-40, UNS-2A Internal Thread, 1.535"-40, UNS-2B
Max Major Diameter 1.5339" Min Major Diameter 1.535"
Min Major Diameter 1.5288" Min Pitch Diameter 1.5188"
Max Pitch Diameter 1.5177" Max Pitch Diameter 1.5236"
Min Pitch Diameter 1.5140" Min Minor Diameter (and 83.3% of thread) 1.508"
Max Minor Diameter 1.5068" Max Minor Diameter (and 64.9% of thread) 1.514"
SM2 Threading: Ø2" Lens Tubes, 60 mm Cage Systems
External Thread, 2.035"-40.0, UNS-2A Internal Thread, 2.035"-40.0, UNS-2B
Max Major Diameter 2.0338" Min Major Diameter 2.0350"
Min Major Diameter 2.0287" Min Pitch Diameter 2.0188"
Max Pitch Diameter 2.0176" Max Pitch Diameter 2.0239"
Min Pitch Diameter 2.0137" Min Minor Diameter (and 83.3% of thread) 2.008"
Max Minor Diameter 2.0067" Max Minor Diameter (and 64.9% of thread) 2.014"
SM3 Threading: Ø3" Lens Tubes
External Thread, 3.035"-40.0, UNS-2A Internal Thread, 3.035"-40.0, UNS-2B
Max Major Diameter 3.0337" Min Major Diameter 3.0350"
Min Major Diameter 3.0286" Min Pitch Diameter 3.0188"
Max Pitch Diameter 3.0175" Max Pitch Diameter 3.0242"
Min Pitch Diameter 3.0133" Min Minor Diameter (and 83.3% of thread) 3.008"
Max Minor Diameter 3.0066" Max Minor Diameter (and 64.9% of thread) 3.014"

Posted Comments:
No Comments Posted

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item # MRM05(/M) RSP05(/M) CRM05 PRM05(/M)a SRM05 KS05RS CT104
Click Photo
to Enlarge
Features Mini Series Standard External SM1
(1.035"-40) Threads
Micrometer 16 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation Compatible with CT1 Cage Translator Stage and 1/4" Translation Stagesb
Additional Details
  • This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
  • The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
  • The CT104 is compatible with the CT1 cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item # RSP1(/M) LRM1 RSP1D(/M) DLM1(/M) CLR1(/M) RSP1X15(/M) RSP1X225(/M) PRM1(/M)a
Click Photo
to Enlarge
LRM1
Features Standard External SM1
(1.035"-40) Threads
Adjustable Zero Two Independently Rotating Carriages Rotates Optic Within
Fixed Lens Tube System
Continuous 360° Rotation
or 15° Increments
Continuous 360° Rotation
or 22.5° Increments
Micrometer
Additional Details
  • This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item # LM1-A &
LM1-B(/M)
CRM1(/M) CRM1L(/M) CRM1P KS1RS K6XS
Click Photo
to Enlarge
Features Optic Carriage Rotates Within Mounting Ring 30 mm Cage-Compatiblea 30 mm Cage-Compatible
for Thick Opticsa
30 mm Cage-Compatible
with Micrometera
±4° Kinematic Tip/Tilt Adjustment Plus Rotation Six-Axis
Kinematic Mounta
Additional Details
  • This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item # RSP2(/M) RSP2D(/M) PRM2(/M) LM2-A &
LM2-B(/M)
LCRM2(/M) KS2RS
Click Photo to Enlarge
Features Standard Adjustable
Zero
Micrometer Optic Carriage Rotates Within Mounting Ring 60 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item # RP005(/M) MSRP01(/M) RP01(/M) RP03(/M) QRP02(/M)
Click Photo
to Enlarge
Continuous Rotation Mount
Features Standard Two Hard Stops
Additional Details



Manual Rotation Stages
Item # XRR1(/M) PR01(/M) CR1(/M) XYR1(/M) OCT-XYR1(/M)
Click Photo
to Enlarge
Features Fine Rotation Adjuster and
3" Wide Dovetail Quick Connect
Fine Rotation Adjuster and
SM1-Threaded Central Aperture
Fine Pitch Worm Gear Rotation and 1/2" Linear XY Translation
Additional Details
  • The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with 3" dovetails.
  • The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages
Item # DDR25(/M) K10CR1(/M) PRM1Z8(/M)a PRMTZ8(/M)b DDR100(/M) HDR50(/M) ELL18(/M)c
Click Photo
to Enlarge
Features Compatible with
SM05 Lens Tubes,
16 mm Cage System,
30 mm Cage System
Compatible with SM1 Lens Tubes and
30 mm Cage System
Tapped Mounting Platform for Mounting Prisms or Other Optics Compatible with
SM1 Lens Tubes,
16 mm Cage System,
30 mm Cage System
Compatible with
SM2 Lens Tubes
Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details
  • This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
  • This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
  • This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Continuous Rotation Mount for Ø2" Optics

  • Mount Ø2" Optics up to 0.51" (13 mm) Thick
  • Compatible with SM2 Lens Tubes
  • One SM2RR Retaining Ring Included
  • Bottom-Located 8-32 (M4) Tapped Hole for Post Mounting

The RSP2(/M) Continuous Rotation Mount utilizes two precision bearings for smooth rotation. The aperture features internal SM2 (2.035"-40) threading and accepts Ø2" optics up to 0.51" (13 mm) thick as well as any SM2-threaded component. Secure the optic using the included SM2RR retaining ring.

The mount has a knurled edge for rotation. A 360° laser-engraved scale marked at 2° increments allows for precise, repeatable positioning and fine angular adjustment. A top-located setscrew can be tightened with a 5/64" (2.0 mm) hex key or balldriver to lock the rotation of the mount.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
RSP2 Support Documentation
RSP2Rotation Mount for Ø2" (Ø50.8 mm) Optics, 8-32 Tap
$165.99
Today
+1 Qty Docs Part Number - Metric Price Available
RSP2/M Support Documentation
RSP2/MRotation Mount for Ø2" (Ø50.8 mm) Optics, M4 Tap
$165.99
Today

Continuous Rotation Mount for Ø2" Optics with Adjustable Zero


This animation shows the movable scale of the RSP2D Mount being rotated to align with the fast axis of a wave plate.
  • Mount Ø2" Optics up to 0.54" (13.7 mm) Thick
  • Dial Face can be Rotated Independently of Mounted Optics
  • 5 arcmin Vernier Scale
  • Compatible with SM2 Lens Tubes
  • One SM2RR Retaining Ring Included
  • Bottom-Located 8-32 (M4) Tapped Hole for Post Mounting

The RSP2D(/M) Ø2" Continuous Rotation Mount offers the same features as the RSP2 featured above but also incorporates a rotatable dial that can be used, for example, to align a wave plate's optical axis after mounting. Like the RSP2(/M) above, this mount utilizes two precision bearings for smooth, backlash-free rotation. The aperture is threaded with our internal SM2 threading (2.035"-40) and accepts Ø2" optics up to 0.54" (13.7 mm) thick. Secure the optic's position using the included SM2RR retaining ring. The SM2 threading also provides a means to connect SM2 lens tubes and other Thorlabs components to the mount.

This mount has a 360° laser-engraved scale marked at 2° increments to allow for precise, repeatable positioning and fine angular adjustment. The front dial scale can be unlocked and rotated using a 5/64" (2.0 mm) hex key so that the scale can be aligned to the axis of an optic for calibration purposes. A top-located setscrew can be tightened with a 5/64" (2.0 mm) hex key or balldriver to lock the rotation of the mount.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
RSP2D Support Documentation
RSP2DRotation Mount for Ø2" (Ø50.8 mm) Optics with Adjustable Zero, 8-32 Tap
$149.19
Today
+1 Qty Docs Part Number - Metric Price Available
RSP2D/M Support Documentation
RSP2D/MRotation Mount for Ø2" (Ø50.8 mm) Optics with Adjustable Zero, M4 Tap
$149.19
Today

High-Precision Rotation Mount for Ø2.00" Optics

  • Accepts Ø2" (Ø50.8 mm) Optics up to 0.48" (12.2 mm) Thick
  • 360° Continuous Coarse Rotation
  • Direct Read 1° Graduations Engraved on Rotation Dial Face
  • ±7° of Micrometer-Driven Fine Rotation when Locked
  • Vernier Scale with 5 arcmin Resolution
  • Compatible with our SM2 Lens Tubes and 60 mm Cage System
  • One SM2RR Retaining Ring Included
  • Bottom-Located 8-32 (M4) Tapped Hole for Post Mounting

The PRM2(/M) high-precision rotation mount for Ø2" optics combines 360° of continuous coarse manual rotation with precise, backlash-free micrometer adjustment. The SM2-threaded (2.035"-40) inner bore accepts Ø2" optics up to 0.48" (12.2 mm) thick as well as any of our SM2-threaded components. Optics are secured with one SM2RR retaining ring (included with each mount).

The rotation dial face features a laser-engraved scale marked at 1° increments and can be rotated manually using the knurled outer surface (see drawing to the right). The thumbscrew, located on the lower right side of the mount, locks the dial face and engages the micrometer for fine adjustment. When locked, the micrometer provides ±7° of rotation at approximately 2.4 arcmin per micrometer division. This rotation mount also features a 0.05" hex setscrew on both sides that can lock both the fine and coarse rotational movement.

The PRM2(/M) is also compatible with our 60 mm cage system. The cage system can be mounted to the unit using ER cage assembly rods attached to the four 4-40 tapped holes located on the rotation dial face or the four 4-40 tapped holes located on the back side of the mount. The cage system attached to the back of the mount does not rotate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
PRM2 Support Documentation
PRM2High-Precision Rotation Mount for Ø2" (50.8 mm) Optics
$396.08
Today
+1 Qty Docs Part Number - Metric Price Available
PRM2/M Support Documentation
PRM2/MHigh-Precision Rotation Mount for Ø2" (50.8 mm) Optics, Metric
$396.08
5-8 Days

60 mm Cage Rotation Mount

  • Mounts Ø2" (Ø50.8 mm) Optics up to 13 mm (0.51") Thick
  • Ø48 mm Clear Aperture
  • 360° of Continuous Rotation
  • 1° Engraved Graduations on Dial, Labeled Every 10°
  • Setscrew Locking Mechanism
  • Compatible with 60 mm Cage System
  • 8-32 (M4) Tapped Hole for Post Mounting

The LCRM2 rotation mount is designed to mount Ø2" (Ø50.8 mm) optics up to 13 mm (0.51") thick in a 60 mm cage system. The optic is secured using the included SM2RR retaining ring (the SPW604 spanner wrench is ideal for tightening this retaining ring). For thicker optics, any of our SM2 lens tubes can be threaded into the carriage. The smooth rotation mechanism allows for precise positioning of the rotation carriage. The mount features a bottom-located 8-32 (M4) tapped mounting hole for post mounting, making it compatible with ourØ1/2" posts.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LCRM2 Support Documentation
LCRM2Customer Inspired! 60 mm Cage Rotation Mount for Ø2" Optics, 8-32 Tap
$137.63
Today
+1 Qty Docs Part Number - Metric Price Available
LCRM2/M Support Documentation
LCRM2/MCustomer Inspired! 60 mm Cage Rotation Mount for Ø2" Optics, M4 Tap
$137.63
Today

Nested Rotation Mount for Ø2" Optics

  • Mount Ø2" Optics Up to 0.46" (11.7 mm) Thick
  • Optic Carriage (LM2-A) and Mounting Ring (LM2-B or LM2-B/M) Sold Separately
  • Rotating Optic Carriage is Interchangeable for Quick Swapping
  • SM2-Threaded Optic Bore in Rotating Optic Carriage
  • Post Mountable via 8-32 (M4) Tap
  • Laser Engraved Scale with Graduations Every 2°, Labeled Every 20°

The LM2-A optic carriage can be nested inside of the LM2-B (LM2-B/M) mounting ring and offers 360° of continuous rotation for Ø2" optics. The optic bore of each carriage features internal SM2 (2.035"-40) threading and can hold an optic up to 0.46" (11.7 mm) thick with the included SM2RR retaining ring an optic in an SM2-threaded housing. The carriage attaches to the main body of the mount using a thumbscrew. To remove the carriage from the mount, simply loosen the thumbscrew. Extra LM2-A interchangeable rotating carriages are available to allow optics to be swapped out quickly at easily.

Each carriage has a 360° laser-engraved scale marked at 2° increments for precise, repeatable positioning. The top-located thumbscrew can be tightened to lock the rotation of the optic carriage and, along with the double bore on the mount, maintains a stable, three-point contact to hold the optic carriage. When the LM2-A is properly fastened in the LM2-B by the thumbscrew, the optic axis is 1.45" (36.8 mm for the LM2-B/M) above the top of the post.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LM2-B Support Documentation
LM2-BRotation Mounting Ring for LM2-A Ø2" Optic Carriage, 8-32 Tap
$31.52
Today
+1 Qty Docs Part Number - Universal Price Available
LM2-A Support Documentation
LM2-ARotating Inner Carriage for Ø2" Optics, One SM2RR Retaining Ring
$28.37
Today
+1 Qty Docs Part Number - Metric Price Available
LM2-B/M Support Documentation
LM2-B/MRotation Mounting Ring for LM2-A Ø2" Optic Carriage, M4 Tap
$31.52
Today

Swivel Mounts/Plates for 60 mm Cage Systems

  • ±90° Angular Displacement Between Two 60 mm Cage Plates
  • Platform with 0.93" (23.6 mm) Vertical Height Adjustment
  • Independently Lockable Plates and Mounting Platform
  • Generous Array of Mounting Holes on Platform

The LC1A(/M) Swivel Mount is ideal for building spectrometers or other prism- and grating-based systems that require arbitrary angular alignment. The swivel plates are internally threaded for compatibility with our SM2 (2.035"-40) Series of Lens Tubes. In addition, the plates and mounting platform of the LC1A(/M) are independently lockable.

The pedestal can rotate through a full 360° and provides 0.93" (23.6 mm) of vertical height adjustment. To aid in alignment, there is an engraved scale with 2° increments below the pedestal. The platform has an array of threaded holes, making it easy to mount a variety of optical elements, such as prisms and gratings, using our PM3(/M) or PM4(/M) clamping arms. See the drawing to the right for more details.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LC1A Support Documentation
LC1ASwivel Mount for 60 mm Cage System, Imperial Taps
$243.74
Today
+1 Qty Docs Part Number - Metric Price Available
LC1A/M Support Documentation
LC1A/MSwivel Mount for 60 mm Cage System, Metric Taps
$243.74
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
