220 mm Linear Translation Stage, Direct-Drive Servo Motor

  • 220 mm Travel at Speeds up to 300 mm/s
  • Brushless DC Servo Motors
  • Direct Drive - No Leadscrew

XY Configurable


Application Example

Our ODL220 Optical Delay Line Kit
Incorporates Our DDS220 Stage

Related Items

Please Wait
Key Specificationsa
Travel Range 220 mm (8.6")
Velocity (Max) 300 mm/s
Min Achievable Incremental Movement 0.1 µm
Bidirectional Repeatabilityb ±0.25 µm
Horizontal Load Capacity (Max) 3.0 kg (6.6 lbs)
Actuator Type Brushless DC Servo Motor
Cable Length 2.7 m (8.9 ft)
Recommended Controller apt™ Servo Motor Controllers
  • Please see the Specs tab for a complete specifications list.
  • The average of the repeatability when a set position is approached from both directions.


  • High Speeds: Up To 300 mm/s
  • High Repeatability: 0.25 µm
  • Positional Accuracy: <3.0 µm
  • Low Profile: 44 mm (1.73")
  • Integrated, Brushless DC Linear Servo Motor Actuators
  • Linear Optical Encoders
  • High-Quality, Precision-Engineered Linear Bearings
  • 4-40, 8-32, and 1/4"-20 or M3, M4, and M6 Tapped Holes for Mounting Optomechanics

Thorlabs' DDS220 low-profile, direct-drive translation stage provides 220 mm of travel with 50 nm resolution and a maximum speed of 300 mm/s. This stage is ideal for applications that require high speeds and high positioning accuracy, including automated alignment, surface inspection, mapping, and probing.

An innovative, low-profile design with integrated, brushless linear motors eliminates the external housings that create mechanical clash points and impede access to the moving platform. The direct-drive technology removes the need for a lead screw, eliminating backlash and internal flexible ducting ensures cables cannot become trapped as the mechanism moves. Twin, precision-grooved linear bearings provide superior rigidity and linearity with excellent on-axis accuracy. This backlash-free operation coupled with high-resolution, closed-loop optical feedback ensures a minimal bidirectional repeatability of ±0.25 μm. The DDS220 stage is at the core of our ODL220 Optical Delay Line kit.

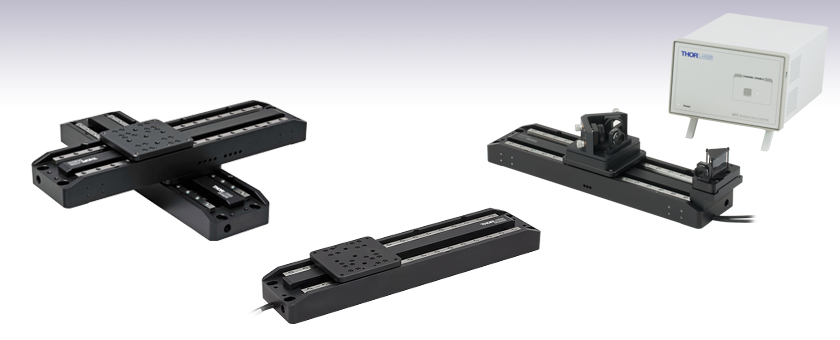

XY ConfigurationDDS220 with Controller and Joystick

Dual-Axis Configuration
For dual-axis applications, two stages can be directly bolted together in an XY configuration without the need for an adapter or spacer plate, thereby keeping the vertical profile to a minimum. Furthermore, end users can choose to bolt the upper stage on centrally (as shown at the top of the page) or off center (as shown to the left).

Please note that these stages are not suitable for operation in a vertical (Z-axis) orientation.

Controller Options
The recommended controller for the DDS220 direct-drive, linear translation stage is the BBD201 single-axis or BBD202 dual-axis Brushless DC Motor Controller. These controllers provide a user-configurable, S-curve acceleration/deceleration profile that enables fast, smooth positioning without vibration or shock. See below for a brief overview, or click here to view the full presentation for these Brushless DC Motor Controllers.

Joystick Option
An optional 2-axis joystick console (MJC001) is also available for remote positioning applications. See the presentation below for more details.

Accessory Mounting Plates
A range of mounting plates is also available. The DDSA01 and DDSA02 adapter plates allow accessories to be fixed to the moving platform, or either end of the stage. The DDS220P1 allows a NanoMax or MicroBlock stage to be bolted to the moving platform of the DDS220 stage. See the presentations below for more details.

DDS220 Stage
Travel Range 220 mm (8.6")
Speed (Max) 300 mm/s
Acceleration (Max) 5000 mm/s2
Bidirectional Repeatabilitya ±0.25 µm
Backlashb N/A
Load Capacityc 3.0 kg (6.6 lb)
Incremental Movement (Min)d 0.1 µm
Absolute On-Axis Accuracy ±2.0 µm
Home Location Accuracy (Unidirectional) ±0.25 µm
Straightness ± 5.0 µm
Pitche ±175 µrad
Yawe ±175 µrad
Continuous Motor Force 7.0 N
Peak Motor Force (2 sec) 15 N
Weight (Including Cables) 2.4 kg (5.3 lbs)
Limit Switches Yes
Operating Temperature Range 5 to 40 °C (41 to 104 °F)
Bearing Type Precision Linear Bearing
Motor Type Brushless DC Linear Motor
Dimensions 370.0 mm x 90.0 mm x 44.0 mm
(14.57" x 3.54" x 1.73")
Weight 2.4 kg (5.3 lbs)
Recommended Controller BBD201 (1-Channel)
BBD202 (2-Channel)
  • The average of the repeatability when a set position is approached from both directions.
  • The stage does not suffer from backlash because there is no leadscrew.
  • The stage can carry higher loads at a lower acceleration. The acceleration is limited by the motor force.
  • The measured minimum incremental motion that the stage can achieve, also referred to as the minimum step size.
  • Pitch and yaw are measured by moving the stage over its full travel range and taking an angular robust laser interferometry (RLI) measurement at 20 equidistant points along the travel. This is repeated 10 times and the maximum discrepancy between minimum and maximum value in the pitch and yaw directions is taken.
BBD201 Controller
Drive Connector 8-Pin DIN, Round, Female
Feedback Connector 15-Pin D-Type
Continuous Drive Output 5 A
PWM Frequency 40 kHz
Operating Modes Position and Velocity
Control Algorithm 16-Bit Digital PID Servo Loop with Velocity and Acceleration Feedforward
Velocity Profile Trapezoidal/S-Curve
Position Count 32 Bit
Position Feedback Incremental Encoder
Encoder Bandwidth 2.5 MHz
10 M Counts/s
Encoder Supply 5 V
AUX Control Connector 15-Pin D-Type
Power Supply Input Power: 250 VA
Voltage: 85 to 264 VAC
Frequency: 46 to 63 Hz
Fuse: 3.15 A
Dimensions 240 mm x 337.9 mm x 124.8 mm
(9.5" x 13.3" x 4.9")
Weight 3.46 kg (7.6 lbs)

The flying leads are terminated in a male 15-pin D-Type and male 8-pin round DIN connector. Pin details are given below.

Feedback Connector


Motor Drive Connector


1 Not Used 9 Ground
2 Ground 10 Limit Switch +
3 Not Used 11 Limit Switch -
4 Enc Index - 12 Enc Index +
5 QB - 13 QB +
6 QA - 14 QA +
7* 5 V 15 Not Used
8* 5 V

*Pins 7 and 8 are shorted together internally

1 Motor Phase V
2 Ground
3 Thermistor (Not Used)
4 Motor Phase U
5 Stage ID
6 Ground
7 Motor Phase W
8 Enable

Posted Comments:
KC Woo  (posted 2019-08-02 04:07:36.613)
Hi. I've been using DDS220 & BBD201 for years, and recently I've got some troubles while attempting to access the encoder functions with LabView control. Since it is written with 'linear optical encoders' in the specification, I expected that my device would work with rapid scanning (as in doi: 10.1063/1.3455809). However, I've faced with the error messages with code# 13021512 (Description: Encoder Not Found) (Notes: An attempt has been made to access encoder functionality when no encoded stage/actuator has been associated with this channel.), when I tried with the Invoke Node with the encoder methods such as 'CalibrateEnc'. Could you give me any advice on this problem. Thanks in advance.
rmiron  (posted 2019-08-06 04:30:05.0)
Response from Radu at Thorlabs: It is difficult to tell why this error is being raised without seeing your virtual instrument. I will contact you directly in order to troubleshoot your application.
adri-vlc96  (posted 2018-04-16 12:23:41.867)
Hi I'm studying a cryogenic 3d printer which is using the motor DDS220/M, and with temperatures between -5 and -15 ºÇ the tolerances get bigger. I understand that the ideal range is beetween 5 and 40ºÇ but which part of the motor work worse when the temperatures go down? Or maybe it is related with the decrease of the resistance of the cooper? Thanks for your time.
bhallewell  (posted 2018-05-15 08:32:57.0)
Response from Ben at Thorlabs: Thank you for your email here. You will find on our website that the majority of our stages are rated at 5-40degC. Below 5degC, the greatest problem would be the build up of condensation which can potentially lead to a short within the hardware electronics.
Jane.Yang  (posted 2017-09-29 17:14:38.563)
What's the minimal velocity for this stage - smooth moving without "vibration" at low speed? Thanks!
bwood  (posted 2017-10-06 04:00:04.0)
Response from Ben at Thorlabs: Thank you for your feedback, unfortunately it's hard to define a minimum velocity as it will be highly application specific. All brushless DC motor stages work based on a servo mechanism, (i.e. error feedback via an encoder), which needs to have certain level of velocity fluctuations when the stage is demanded to perform a constant speed in its sequence. This is due to the nature of the closed loop algorithm in the controller, which is in opposition to the resultant resistive force of the bearing carriage/rail, magnetic flux density fluctuations of the magnet rod (at various positions) and so on. The position loop PID algorithm needs to continuously overshoot and undershoot in following the demanded constant speed according to the feedback position error. As such we do not have any firm real world values as the PID parameters can be tuned for a specific application.
arkadiusz.jarota  (posted 2017-03-30 08:08:44.583)
Dear Thorlabs, Do you have Labview drivers for DDS220/M delay stage for 64-bit Windows 10. We have drivers for 32 bit systems, but these are not working. Best Regards, Arkadiusz Jarota
bwood  (posted 2017-03-30 11:52:30.0)
Response from Ben at Thorlabs: Thank you for your question. The files required to operate the DDS220/M with LabView are included with Kinesis, our motion control software. As long as you have downloaded 64bit version of Kinesis, the files should be available.
user  (posted 2016-05-10 12:38:19.193)
What is the meaning of the pitch and yaw values? Is it wobbling if the load changes, is it a change of angle over the whole length of the stage, or is it just an initial error? For example, if we use two 220mm stages in an x-y-configuration, the top stage positioned at an end, then the error of +-175µrad of the bottom stage would result in an error of +-19µm on the top platform. It would make a big difference if this is all wobbling or just an initial error.
bhallewell  (posted 2016-05-12 03:29:02.0)
Response from Ben at Thorlabs: Thank you for your question here. We define the pitch as how much the top plate tilts as the stage translates. Pitch is measured by moving the stage over its full travel range and taking an angular robust laser interferometry (RLI) measurement in the pitch axis at 20 equidistant points along the travel. This is repeated 10 times and the maximum discrepancy between minimum and maximum value taken. Yaw is measured using the same procedure. We specify our Pitch/Yaw values assuming the stage is bolted to an optical table surface in a single axis configuration with a nominal torque of per screw. When mounted in XY, the torque of the bolt screws can either cause freedom of movement from the top plate contributing to system wobble or deflection of the stage due to over-tightening. The bearing rail/carriages are preloaded however heavier loads can increase this effect. I will contact you directly to discuss this further. If you are considering purchase of a new XY stage assembly I would advise also taking a look at our DDS300-E option as this employs a stiffer bearing set & housings, with wider paired bearing ways when compared to the 220mm range.
szwackerow  (posted 2016-04-25 12:52:13.64)
The download link for the controller software for 32bit Windows does not work. Could you send me a working link?
besembeson  (posted 2016-04-25 09:32:05.0)
Response from Bweh at Thorlabs USA: The control software for these stage are available at the following link: We will contact you to determine which link you used that wasn't active.
johan.stigwall  (posted 2015-11-18 09:09:01.3)
The pitch/yaw specs of the DDS220 is +- 0.01 degree which is equal to 175 µrad. The DDS300 on the other hand is specified as 100/150 µrad. Is the DDS300 really better in pitch/yaw, or is this difference only due to rounding error? Another question: Is it possible to buy the DDS300 without controller and drive one DDS300 + one DDS220 using a two-channel BBD202 controller?
msoulby  (posted 2015-11-18 06:04:36.0)
Response from Mike at Thorlabs: The DDS300 is an updated version of the older DDS220, and thus the pitch and yaw specs have been improved. The BBD202 controller can control both a DDS220 and DDS300 on the separate channels. We will contact you directly with a quotation for only the DDS300 stage without the controller.
dasaerod  (posted 2014-05-13 13:26:54.687)
Dear Sir/Madam, I am writing to you because I am considering to buy one of your translation stage (DDS220/M) to use for fibre bragg grating inscription. Once I read the characteristics some question has arisen to me. First, I would like to know if this translation stage is able to work at speeds of 1 micron/s or less and what is the velocity error. Second, I would like to know what is the exact meaning of flatness. In this case there are a variation of 5 microns, it means that the height of the stage can vary 5 microns during the whole travel (from 0 to 220 mm) or it is an oscillation of the height during the travel? Best regards, Dr David Saez Rodriguez
bhallewell  (posted 2014-05-19 10:04:33.0)
Response from Ben at Thorlabs: Thank you for your email & web feedback post. The DDS220/M contains a brushless DC servo motor which is optimised for precision motion at high acceleration & velocity through a PID closed-loop algorithm. This form of control will provide fluctuating motion at these low speeds. A piezo solution such as our NFL5DP20S/M platform would be more suitable for your low velocity requirement however would be limited in travel range. With regards to flatness, this is the vertical shift in the position of a single point on the top plate when the stage travels from 0 to 220mm.
pascal.dufour  (posted 2013-04-03 14:57:33.34)
What is the operating temperature range of the DDS220?
tcohen  (posted 2013-04-04 12:29:00.0)
Response from Tim at Thorlabs: We recommend using this stage within the temperature range of 5-40C.
jlow  (posted 2012-10-10 17:00:00.0)
Response from Jeremy at Thorlabs: The load capacity of the stage is dependent on the acceleration. If you lowered the acceleration by half, the load capacity will increase by two times. For example, if you set the acceleration of the bottom DDS220 to 2500mm/s^2, then you can put a maximum load of 3.6kg on the top DDS220.
mingsong.chen  (posted 2012-10-09 12:16:25.0)
Hello, for Dual-Axis Configuration of DDS220, what is the load capacity? I noticed that the load capacity for single DDS220 is 3kg, and the weight of DDS220 is 2.4kg, can I say that the load capacity of dual-axis of DDS220 (two DDS220) is (3-2.4)=0.6kg? Thanks.
bdada  (posted 2011-11-03 10:20:00.0)
Response from Buki at Thorlabs: Thank you for participating in our Feedback forum. The DDS220/M stage does not work in environments up to 180 degrees Celcius and we do not recommend using it in a dusty environment. We will contact you to learn more about your application in order to recommend a more suitable product.
a.lodermeyer.stud  (posted 2011-11-03 13:39:37.0)
Dear Sir or Madam, I've got two questions on your product DDS220/M: 1. Does it work at a temperature of around 180°C? 2. Does it word in dusty conditions? (i.e. when powder is in the working area of the linear stage) Thank you very much for your support! Best regards, Alexander Lodermeyer Bayerisches Laserzentrum, Erlangen, Germany
