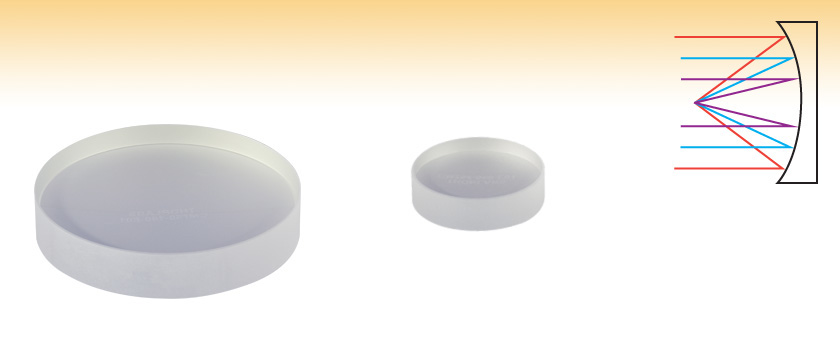

Concave Mirrors: UV Broadband Dielectric Coating (350

Overview
Graphs
Feedback
Concave Mirror Guide

Common Specifications
Available Diameters	Ø1/2", Ø1", and Ø75 mm
Dielectric Coating Range	350 - 400 nm; R_avg >99%
Clear Aperture	>90% of Diameter
Surface Irregularity	λ/4 @ 633 nm
Surface Quality	20-10 Scratch-Dig
Diameter Tolerance	+0.0/-0.2 mm
Thickness Tolerance	±0.2 mm
Substrate	N-BK7^a
Backside Surface	Fine Ground and Engraved with Part Number (Not Polished)

Click Link for Detailed Specifications on the Substrate

Dielectric Concave Mirrors Selection Guide
UV	350 - 400 nm
Visible	400 - 750 nm	400 - 750 nm, Back Side Polished
NIR	750 - 1100 nm	750 - 1100 nm, Back Side Polished
Telecom	1280 - 1600 nm

See the Concave Mirror Guide tab, above, for our complete selection of concave mirrors.

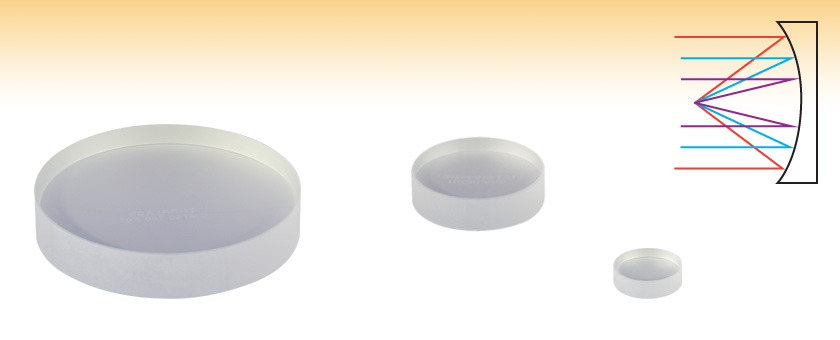

Features

Dielectric Coating: 350 - 400 nm (-E01)
>99% Average Reflectivity in Dielectric Coating Range
Three Diameter Options: 1/2", 1", or 75 mm
Focal Lengths Range from 25 mm - 500 mm

Thorlabs' Broadband Dielectric Concave Mirrors are designed for light collection, imaging, and focusing applications. These reflective optics focus light without introducing chromatic aberration, making them especially suitable for broadband sources.

All of the mirrors on this page can be mounted by our Precision Kinematic Mirror Mounts.

Thorlabs also offers metallic concave mirrors that operate over a broader wavelength range at the expense of lower reflectivity. Please contact Tech Support for custom versions of these optics.

These plots show the reflectivity of our -E01 dielectric coating for a typical coating run. The shaded region in each graph denotes the spectral range over which the coating is highly reflective. Due to variations in each run, this recommended spectral range is narrower than the actual range over which the optic will be highly reflective. If you have any concerns about the interpretation of this data, please contact Tech Support. For applications that require a mirror that bridges the spectral range between two dielectric coatings, please consider a metallic concave mirror.

Click to Enlarge

Click to Enlarge

Excel Spreadsheet with Raw Data for -E01 Coating, 8° and 45° AOI

Posted Comments:

tcohen (posted 2012-04-05 15:30:00.0)

Update from Tim at Thorlabs: These have fine ground backs and as such will be unusable for your application. However, we are able to offer a custom with a polished backside. I have contacted you with more information.

tcohen (posted 2012-04-05 15:06:00.0)

Response from Tim at Thorlabs: Thank you for your feedback. I am looking into the reflection/transmission of these mirrors when incident light is on the uncoated side and I will update you with the information soon!

junge (posted 2012-04-05 06:19:36.0)

Hello, is the backsurface of the mirror transparent so that it can be used to set up a FPI? Thanks a lot, Christian

Concave Mirrors Options
Mirror Type	High-Reflectance Coating Wavelength
UV Enhanced Aluminum	250 - 450 nm
Aluminum	450 nm - 20 µm
Silver	450 nm - 20 µm
Gold	800 nm - 20 µm
E01 Dielectric	350 - 400 nm
E02 Dielectric	400 - 750 nm
E02 Dielectric, Back Side Polished	400 - 750 nm
E03 Dielectric	750 - 1100 nm
E03 Dielectric, Back Side Polished	750 - 1100 nm
E04 Dielectric	1280 - 1600 nm
Crystalline	1064 or 1550 nm

Concave Mirror Selection Guide

Thorlabs offers concave mirrors with both metallic and dielectric stack reflective coatings. Metallic-coated mirrors offer relatively high reflectivity (90-95%) over a wide wavelength range, while dielectric-coated mirrors provide even higher reflectivity (>99%) but over a smaller wavelength range. See the table to the right for an overview of the various coatings we offer for our concave mirrors. All coating options are available on optics with diameters ranging from Ø1/2" to Ø75 mm. Metallic mirrors are available with focal lengths from 9.5 - 1000 mm, while dielectric mirrors are available with focal lengths from 12 - 1000 mm.

Below are reflectivity plots for our metallic- and dielectric-coated concave mirrors. To view our selection of mirrors available with a particular coating, either click on the graphed line of interest or the corresponding coating name in the legend. Graphs are shown for an angle of incidence (AOI) of 8 or 6 degrees, which are the recommended angles at which to use a concave mirror.

Metallic Concave Mirror 8 AOI Reflectivity

Click on a particular graphed line or the corresponding name in the legend to view concave mirrors with that coating option.
Metallic-Coated Concave Mirrors are available in UV Enhanced Aluminum, Aluminum, Silver, and Gold.

Click to Enlarge
Raw Data
Reflectance of -E01 Dielectric-Coated Concave Mirrors at 8° AOI.

Click to Enlarge
Raw Data
Reflectance of -E02 Dielectric-Coated Concave Mirrors at 8° AOI.
These mirrors are also available with a Back Side Polish.

Click to Enlarge
Raw Data
Reflectance of -E04 Dielectric-Coated Concave Mirrors at 6° AOI.

Click to Enlarge
Raw Data
Reflectance of -E03 Dielectric-Coated Concave Mirrors at 8° AOI.
These mirrors are also available with a Back Side Polish.

Click to Enlarge
Click Here for Theoretical Data From 800 - 1500 nm
Theoretical Reflectance of 1064 nm Crystalline Supermirrors

Click to Enlarge
Click Here for Theoretical Data From 900 - 1900 nm
Theoretical Reflectance of 1397 nm Crystalline Supermirrors

Click to Enlarge
Click Here for Theoretical Data From 1000 - 2000 nm
Theoretical Reflectance of 1550 nm Crystalline Supermirrors

Ø1/2" (12.7 mm) -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

This item will be retired without replacement when stock is depleted. If you require it for line production, please contact our OEM Team.

Item #	Focal Length	Center Thickness	Edge Thickness	Radius of Curvature	Reference Drawing
CM127-025-E01	25 mm	3.0 mm	3.4 mm	50.0 mm (1.97")

Ø1" (25.4 mm) -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

Item #	Focal Length	Center Thickness	Edge Thickness	Radius of Curvature
CM254-025-E01	25 mm	6.0 mm	7.6 mm	50.0 mm (1.97")
CM254-050-E01	50 mm		6.8 mm	100.0 mm (3.94")
CM254-075-E01	75 mm		6.5 mm	150.0 mm (5.91")
CM254-100-E01	100 mm		6.4 mm	200.0 mm (7.87")

Ø75 mm -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

These items will be retired without replacement when stock is depleted. If you require one of these parts for line production, please contact our OEM Team.

Item #	Focal Length	Center Thickness	Edge Thickness	Radius of Curvature
CM750-075-E01	75 mm	12.0 mm	16.7 mm	150.0 mm (5.91")
CM750-150-E01	150 mm		14.3 mm	300.0 mm (11.81")
CM750-200-E01	200 mm		13.7 mm	400.0 mm (15.75")
CM750-500-E01	500 mm		12.7 mm	1000.0 mm (39.37")
