Confocal Microscopy Upgrade

  • Convert Inverted Widefield Microscopes into Confocal Imaging Systems
  • Thorlabs' Team Ensures Compatibility and Provides Lifetime Support

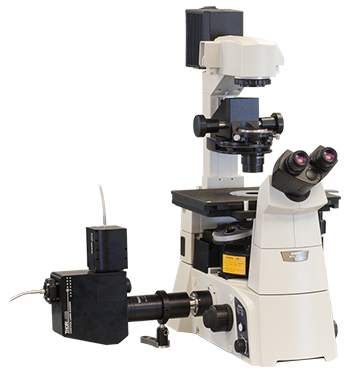

Four-Channel Confocal Upgrade Installed on a Nikon Microscope
(Not Included)

All Confocal Upgrades include a computer, DAQ, and ThorImage®LS Data Acquisition Software.

Related Items

Please Wait
Jason Mills
Sam Rubin
General Manager,
Thorlabs Imaging Systems

Need a Quote?

Contact TSI

Thorlabs' Confocal Microscopy Upgrade

  • Up to 4 Excitation/Emission Channels
  • Self-Contained Scan Head Connects to a C-Mount Camera Port
    • Galvo-Galvo Scanners for User-Defined Scan Geometries
    • Galvo-Resonant Scanners for High-Speed Imaging up to 400 fps
  • 16-Position Pinhole Wheel
    • Round Pinholes for True Diffraction-Limited Imaging
    • Motorized Control to Change Pinhole Size with Minimal Disturbance to the Setup
  • Standard Multialkali or High-Sensitivity GaAsP PMTs
  • Optional Z-Axis Stepper Motor for Z-Stacks
  • Up to Video-Rate Image Acquisition: 512 x 512 Pixels at 30 fps
  • Capture Resolution
    • 2048 x 2048 Pixels (Bi-Directional)
    • 4096 x 4096 Pixels (Uni-Directional)
  • Includes Computer, DAQ Card, and ThorImage®LS Data Acquisition Software

Thorlabs' Confocal Laser Scanning (CLS) Microscopy Upgrade consists of compact modules designed to bring powerful confocal imaging tools within the reach of any research lab. By eliminating signals that originate from outside the focal plane, confocal microscopy provides the ability to acquire high-resolution, optically sectioned images from within a thick sample or to reduce background fluorescence from thin cultures. These CLS upgrades offer turnkey integration with virtually any inverted widefield microscope (not included) using a C-Mount camera port to access the intermediate image plane. The modular components are all developed and built in-house to maximize ease of use, simplify integration with existing imaging setups, and produce high-quality images. The included ThorImageLS software drives the CLS hardware via an intuitive graphical user interface, providing quick data recording and review.

Every Thorlabs confocal upgrade features either a galvo-resonant or galvo-galvo scan head. The galvo-resonant scanner is capable of capturing up to 400 fps and supports rapid imaging of live systems, whereas the galvo-galvo scanner allows users to target selected regions of interest on the sample for applications such as photo-uncaging experiments. Together with a pre-configured laser source with up to four excitation wavelengths, multi-spectral imaging is enabled by a two- or four-channel detection module with included filter sets that have been optimized for the excitation and emission wavelengths of popular fluorophores. Choose from standard multialkali photomultiplier tubes (PMTs) for imaging over a large dynamic range or high-sensitivity GaAsP PMTs to image weakly fluorescent samples. Additionally, each system includes an electronics control unit, a 16-position pinhole wheel with round pinholes for true diffraction-limited imaging, and a computer workstation with the ThorImageLS Data Acquisition Software. A Z-axis stepper motor that connects to the microscope's focus knob is also offered as an optional add-on. Our staff has extensive experience installing these systems on a wide variety of microscopes from major manufacturers and will work with you to ensure compatibility with your system.

To explore the full range of possible system configurations, including laser source and emission filter options, see the Confocal Upgrade tab. For system specifications, please see the Specs tab.

Thorlabs also offers complete single-channel and four-channel confocal systems based on our Cerna® microscopy platform, allowing users to combine confocal imaging capability with our Cerna widefield imaging accessories.

Thorlabs' Confocal Microscopy Upgrade

Confocal System Schematic

Confocal Microscope Schematic
Click to Enlarge

Thorlabs’ Confocal Laser Scanning (CLS) Microscopy Upgrade consists of compact imaging modules specifically designed for infinity-corrected compound microscopes. They provide the ability to acquire high-resolution optical sections from within a thick sample or to reduce background fluorescence from a thin culture. The CLS upgrades offer turnkey integration to almost any inverted microscope using a C-Mount camera port to acess an intermediate image plane. The included ThorImage®LS software has an intuitive graphical interface that allows data to be quickly recorded and reviewed while providing sophisticated peripheral controls for image acquisition. CLS upgrades are user-installable, although on-site installation is also available.

Confocal Microscope
Click to Enlarge

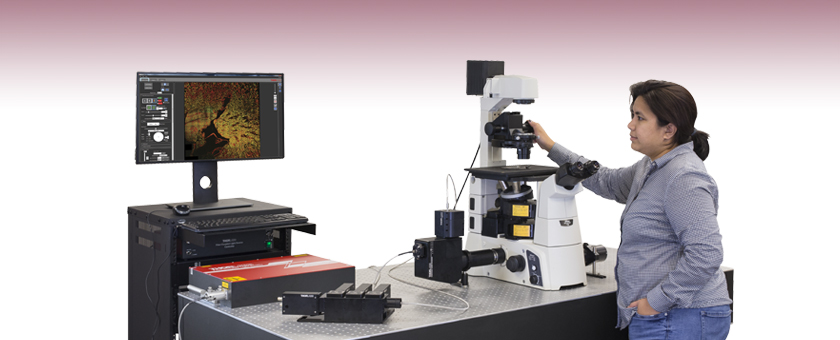

Thorlabs' Confocal Microscopy System mounted on an inverted Nikon microscope.

All hardware components are directly controlled by the ThorImageLS software, including automated Z-step control for optical sectioning (via a piezo or stepper motor) and automatic calculation of Airy disk units based on the combination of the objective magnification and pinhole size. Our intuitive interface allows novice and experienced users alike to obtain high-resolution microscope images quickly and easily.

All complete CLS upgrades include a multi-channel, fiber-coupled laser source, control electronics, scan head, pinhole wheel, detectors, and all fibers and cables needed to interconnect the system. Additionally, each system includes a Windows® computer with a 24" monitor, data acquisition hardware, control boards, and an installation of the ThorImageLS software.

Thorlabs' applications engineers install each confocal upgrade and are available to address technical problems that may occur. We also include a comprehensive installation and operation manual with basic preventative maintenance instructions to ensure that your system performs optimally for years to come. For further details on our confocal upgrades, please contact us at


Confocal Scanner Head
Click to Enlarge

The Scan Head of Thorlabs' Confocal Microscopy Upgrade
Confocal Scanner Head
Click to Enlarge

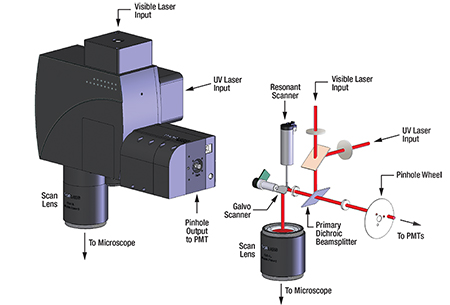

Light Path through the Confocal Scan Head.

Scan Head

The confocal scan head module consists of three principal components: the galvo-resonant or galvo-galvo scanner, a wide field of view scan lens, and a pinhole wheel output. The scanner can be attached to virtually any inverted microscope with access to the intermediate image plane via a C-mount-threaded port (e.g., a camera port) as long as 100% of the output can be directed to this port. As shown in the drawing to the right, light enters the scan head through one of the laser inputs, is reflected onto the galvo-resonant scanner mirrors by the primary filter block, and exits the assembly through the wide field of view scan lens. Light then enters the microscope and excites fluorophores in the sample. The resulting fluorescence travels back through the scan lens and is reflected by the galvo-resonant scanner to the pinhole wheel. The pinhole wheel output is connected to the PMT detection module via an SMA-terminated fiber. Our complete systems come standard with a primary dichroic that reflects four laser lines (405, 488, 532, and 642 nm). Other primary dichroics for use with other wavelengths can be provided upon request.

At the heart of our confocal upgrade system is an efficiently designed scan head that incorporates either an 8 kHz resonant scanner and a galvanometer for fast image acquisition or a galvo-galvo scan system to image user-defined scan geometries. The resonant scanner supports high imaging speeds of up to 400 frames per second (at 512 x 32 pixel resolution). Both systems can image with high spatial resolution of up to 4096 x 4096 pixels. At either extreme, or anywhere in-between, the control and acquisition system creates high-quality, jitter-free images.

MPH16 Schematic
Click to Enlarge

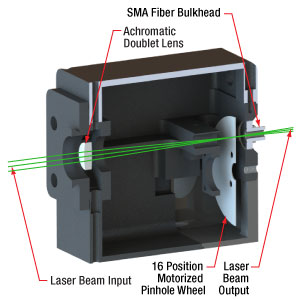

Cross-Section Schematic of the Motorized Pinhole Wheel

Wide Field of View Scan Lens
To complement the large angular range over which the resonant scanner is used, Thorlabs' engineers developed a scan lens optimized for large fields of view. The lens features excellent chromatic aberration correction from 405 to 1100 nm (antireflective coating effective from 405 to 750 nm), superb field flatness, and very low distortion within the field of view. This broad wavelength range adds to the functionality of the system by enabling the use of laser sources down to 400 nm while color correcting fluorescence emissions from even the deepest of red-emitting fluorophores. Coupled with ultra-sensitive, low-noise detectors and control electronics, we are able to provide systems with superb contrast, resolution, and imaging speed at an affordable cost.

MPH16 without Fiber Connector
Click to Enlarge

The motorized pinhole wheel shown disconnected from the confocal scan head with the SMA fiber connector removed for free-space output.

Motorized Pinhole Wheel
The motorized pinhole wheel (also available separately as the MPH16) allows the pinhole size to be adjusted for a variety of imaging configurations and objective numerical apertures in order to simultaneously maximize the in-focus light that reaches the PMT detectors and minimize the transmission of signal from outside the focal plane. A rotating glass plate has 16 sizes of lithographic round pinholes deposited to exceedingly tight tolerances, ensuring that optimal alignment is maintained as each pinhole is rotated into the light path.

For thicker samples, the size of the pinhole should be optimized relative to the NA of the objective in order to maximize signal to noise. With this in mind, our engineers selected each pinhole size to complement a common objective NA. Conversely, for thinner samples that produce less light outside of the focal plane, a larger pinhole size can help improve throughput. Pinhole diameters up to 2 mm provide flexibility so that the system can be easily adapted to different experiments.

A round pinhole is the ideal shape for maximizing the transmission of light generated in the focal plane of your sample while also optimizing the rejection of signal generated above and below the layer that is being scanned.

The pinhole is conveniently powered and controlled over USB. Additionally, the motorized, encoded control of the pinhole ensures perfect alignment and vibration-free movement. The emitted light from the specimen is focused on the pinhole and then collected by a large-core multimode fiber for transmission to the PMT detector system. More details on our motorized pinhole are available here.


Confocal Microscope Laser Source
Click to Enlarge

Four-Channel Laser Source
Confocal Laser Source


The solid state multi-laser source minimizes maintenance with an all-fiber design. Each laser line is individually fiber-coupled using a permanent rigid system. The individual fiber-coupled lasers are then combined in an all-fiber coupler with an FC/PC connector. This design ensures the lasers never go out of alignment by keeping the full power of the lasers coupled to the scan head at all times.

Each confocal upgrade system also includes a filter set, chosen to complement the excitation wavelengths. Available pre-configured laser source wavelength combinations and the included filter sets are outlined in the table below.

The laser source is controlled by a controller box, which includes a safety interlock system and manual control of laser emission. The laser source can also be controlled remotely by way of an auxiliary input.

Laser Source Options
Source #a
Excitation Wavelengths Included Emission Filters
UV Blue Green/
Red Emission Filters
(Center Wavelength/Bandwidth)
Longpass Dichroic Cutoff Wavelength(s)
CMLS-A - 488 nm - 642 nm 525 nm/45 nm and 635 nm/Longpass 562 nm
CMLS-Bb 405 nm 488 nm - 642 nm 447 nm/60 nm, 512/25 nm, and 635 nm/Longpass 495 nm and 538 nm
CMLS-C - 488 nm 532 nm 642 nm 513 nm/17 nm, 582 nm/75 nm, and 635 nm Longpass 538 nm and 649 nm
CMLS-D - 488 nm 561 nm 642 nm 525 nm/45 nm, 607 nm/36 nm, and 535 nm/Longpass 562 nm and 649 nm
CMLS-Eb 405 nm 488 nm 532 nm 642 nm 447 nm/60 nm, 513 nm/17 nm, 582 nm/75 nm, and 635 nm/Longpass 495 nm, 538 nm, and 649 nm
CMLS-Fb 405 nm 488 nm 561 nm 642 nm 447 nm/60 nm, 525 nm/45 nm, 607 nm/36 nm, and 635 nm/Longpass 495 nm, 562 nm, and 469 nm
CMLS-Gb 405 nm 488 nm 588 nm 642 nm 447 nm/60 nm, 525 nm/45 nm, 615 nm/24 nm, and 635 nm/Longpass 495 nm, 605 nm, and 649 nm
CMLS-H - 488 nm - 660 nm 525 nm/39 nm and 697 nm/58 nm 562 nm
CMLS-I - 488 nm - - 525 nm/45 nm N/A
CMLS-J - 488 nm 532 nm - 512 nm/25 nm and 582 nm/75 nm 538 nm
  • The laser source is not offered separately from the Confocal System, but we have provided a laser source # here for ease of identification when discussing a system configuration with one of our representatives. For sources with less than four lasers, slots will be filled from left to right
  • These sources are only compatible with a scan head that has a second fiber input port for the UV.


Photomultiplier Module
Click to Enlarge

Expandable PMT modules are designed for multi-channel laser scanning microscopy applications. The photo shows the 4-channel module with standard sensitivity PMTs.
Confocal Computer
Click to Enlarge

Each Confocal System comes with a 64-bit computer tower with ThorImageLS installed and a 24" monitor for data acquisition and review.
Photomultiplier Module
Click to Enlarge

The filter sets are mounted in dichroic filter cubes for easy exchange. Here, an emission filter is being removed from a 2-channel PMT module with high-sensitivity PMTs.


Detector: Future-proof your experiments with our remotely positioned detector module that can be readily expanded from two to four photomultiplier tubes (PMTs). Sitting in front of each PMT is a quickly exchangeable dichroic mirror and emission filter holder (for included filter sets, see the table above).

The detection module can be configured with our standard sensitivity multialkali PMTs or high sensitivity, ultra-low-noise GaAsP PMTs. The standard sensitivity multi-alkali PMTs provide a low-noise image with high dynamic range that is appropriate for most life-science and industrial applications. For weakly fluorescent or highly photosensitive samples, we also offer the option of high-sensitivity, TEC-cooled GaAsP PMTs. With either choice, the gain of the detector as well as the dynamic range of the digitizer is controlled within the ThorImageLS software.

Filters: Each confocal upgrade includes an appropriate set of emission filters that block laser light from entering the PMTs and provide pass bands at the fluorescence wavelengths of popular fluorophores. The exact configuration is determined by the laser wavelengths in your confocal system. Several common configurations and compatible fluorophores are outlined below. If you have questions concerning the filter set included with a specific laser configuration, please contact for more information.

Computer: Each confocal system includes a 64-bit computer with a 24" monitor. The included ThorImageLS software package provides an all-in-one solution for microscope control, automated data collection, and image review.

Sample Filter Configurations

In addition to the filter set list above, the two sample plots of emission filter pass bands are provided below as an additional example of how Thorlabs' Confocal System can work with popular fluorophores.

The primary dichroic and emission filter sets in the confocal system are typically optimized for one of two excitation wavelength configurations. The most popular configuration is compatible with 405 nm, 488 nm, 561 nm, and 642 nm excitation lasers. The graph to the lower left provides an example of this common emission filter configuration, with the emission spectra of four compatible fluorophores superimposed on the filters' transmission profiles.

The second most common 4-laser configuration exchanges the 561 nm laser for a 532 nm laser, useful for samples that are marked with TRITC. To accommodate this wavelength, the two bandpass filters centered at 525 nm and 593 nm would be replaced with a narrower bandpass filter (25 nm pass bandwidth) centered at 512 nm and a wider bandpass filter (75 nm pass bandwidth) centered at 582 nm.

Filters with 405 nm, 488 nm, 588 nm, and 642 nm Laser Configuration
Click to Enlarge

The solid lines in the plot show the pass bands of the filters, and the shaded areas show the normalized emission spectrum for the fluorophores.
405 nm, 488 nm, 561 nm, and 642 nm Laser Configuration
Click to Enlarge

The solid lines in the plot show the pass bands of the filters, and the shaded areas show the normalized emission spectrum for the fluorophores.


Thorlabs' Confocal Microscopy System

Confocal Microscope System

The photo above shows a confocal system coupled to an Olympus inverted microscope (not included) on one of our Nexus® Optical Tables (not included).

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact or call (703) 651-1700.

Specifications for Thorlabs' Confocal Upgrade are provided in the tables below. For a description of the available modules, see the Confocal Upgrade tab. For more information, contact our sales team and applications engineers at or (703) 651-1700.

Laser Source  1 to 4 Channels (See Table Below for Pre-Configured Options)
Primary Dichroic Mirror Quad-Band Dichroic Beamsplitter(Other Dichroics Available upon Request)
Scan Head 8 kHz Resonant Scanner (X) and Galvo Scanner (Y) Galvo-Galvo Scanner
Scanning Speeds 30 Frames per Second at 512 x 512 Pixels (Bidirectional Scan)
400 Frames per Second at 512 x 32 Pixels (Bidirectional Scan)
2 Frames per Second at 4096 x 4096 Pixels (Unidirectional Scan)
3.2 Frames per Second at 512 x 512 Pixels (Bidirectional Scan)
1.2 Frames per Second at 1024 x 1024 Pixels (Bidirectional Scan)
0.4 Frames per Second at 2048 x 2048 Pixels (Bidirectional Scan)
Dwell Time: 0.4 - 20 µs
Scan Zoom 1X - 16X (Continuous)
Digitization / Sampling Density Up to 2048 x 2048 Bi-Directional Acquisition; Up to 4096 x 4096 Uni-Directional Acquisition
Diffraction-Limited Field of View (FOV) FN25 = 442 µm x 442 µm FOV @ 40X; FN23 = 407 µm x 407 µm FOV @ 40X
Photomultiplier Tubes (PMTs) Standard Multialkali or High-Sensitivity GaAsP
Detection Channels 1 to 4 PMTs
Filters Emission Filter Set and Longpass Dichroic to Complement Multi-Channel Laser Source (See Table Below for  Pre-Configured Options)

The laser wavelengths offered as part of the confocal upgrade are available in one of 10 pre-configured integrated laser sources. Each source is paired with a set of filters optimized for popular fluorophores that can be mounted in the PMT detection module. If you need help selecting a laser source for your system, you can contact our applications engineers by e-mail at or by calling (703) 651-1700.

Laser Source Options
Laser Source #a Excitation Wavelengths Included Emission Filters
UV Blue Green/
Red Emission Filters
(Center Wavelength/Bandwidth)
Longpass Dichroic Cutoff Wavelength(s)
CMLS-A - 488 nm - 642 nm 525 nm/45 nm and 635 nm/Longpass 562 nm
CMLS-Bb 405 nm 488 nm - 642 nm 447 nm/60 nm, 512 nm/25 nm, and 635 nm/Longpass 495 nm and 538 nm
CMLS-C - 488 nm 532 nm 642 nm 513 nm/17 nm, 582 nm/75 nm, and 635 nm Longpass 538 nm and 649 nm
CMLS-D - 488 nm 561 nm 642 nm 525 nm/45 nm, 607 nm/36 nm, and 535 nm/Longpass 562 nm and 649 nm
CMLS-Eb 405 nm 488 nm 532 nm 642 nm 447 nm/60 nm, 513 nm/17 nm, 582 nm/75 nm, and 635 nm/Longpass 495 nm, 538 nm, and 649 nm
CMLS-Fb 405 nm 488 nm 561 nm 642 nm 447 nm/60 nm, 525 nm/45 nm, 607 nm/36 nm, and 635 nm/Longpass 495 nm, 562 nm, and 469 nm
CMLS-Gb 405 nm 488 nm 588 nm 642 nm 447 nm/60 nm, 525 nm/45 nm, 615 nm/24 nm, and 635 nm/Longpass 495 nm, 605 nm, and 649 nm
CMLS-H - 488 nm - 660 nm 525 nm/39 nm and 697 nm/58 nm 562 nm
CMLS-I - 488 nm - - 525 nm/45 nm N/A
CMLS-J - 488 nm 532 nm - 512 nm/25 nm and 582 nm/75 nm 538 nm
  • The laser source is not offered separately from Thorlabs' Confocal Systems and Confocal Upgrade, but we have provided a laser source # here for ease of identification when discussing a system configuration with one of our representatives. For sources with less than four lasers, slots will be filled from left to right.
  • These sources are only compatible with a scan head that has a second fiber input port for the UV.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact or call (703) 651-1700.

Images Obtained with Thorlabs' Confocal Systems

ThorImage®LS Software

(Click Here for Full Web Presentation)

Features of ThorImage®LS

Comprehensive Imaging Platform for:

Seamless Integration with Experiments

  • Simultaneous Multi-Point Photoactivation and Imaging with Spatial Light Modulator
  • Fast Z Volume Acquisition with PFM450E or Third-Party Objective Scanners
  • Electrophysiology Signaling
  • Wavelength Switching with Tiberius® Laser or Coherent Chameleon Lasers
  • Pockels Cell ROI Masking
  • Power Ramped with Depth to Minimize Damage and Maximize Signal-to-Noise

Advanced Software Functionality

  • Multi-Column Customizable Workspace
  • Image Acquisition Synced with Hardware Inputs and Timing Events
  • Live Image Correction and ROI Analysis
  • Independent Galvo-Galvo and Galvo-Resonant Scan Areas and Geometries
  • Tiling for High-Resolution Large-Area Imaging
  • Independent Primary and Secondary Z-Axis Control for Fast Deep-Tissue Scans
  • Automated Image Capture with Scripts
    • Compatible with ImageJ Macros
  • Multi-User Settings Saved for Shared Workstations
  • Individual Colors for Detection Channels Enable Simple Visual Analysis


The full source code for ThorImage®LS is available for owners of a Bergamo, Cerna, or confocal microscope. Click here to receive your copy.

ThorImageLS Brochure

ThorImageLS is an open-source image acquisition program that controls Thorlabs' Bergamo II, DIY Multiphoton Microscope Kitsconfocal microscopes, and Cerna® with hyperspectral imaging, as well as supplementary external hardware. From prepared-slice multiphoton Z-stacks to simultaneous in vivo photoactivation and imaging, ThorImageLS provides an integrated, modular workspace tailored to the individual needs of the scientist. Its workflow-oriented interface supports single image, Z-stacks, time series, and image streaming acquisition, visualization, and analysis. See the video at the top right for a real-time view of data acquisition and analysis with ThorImageLS.

ThorImageLS is included with a Thorlabs microscope purchase and open source, allowing full customization of software features and performance. ThorImageLS also includes Thorlabs’ customer support and regular software updates to continually meet the imaging demands of the scientific community.

For additional details, see the full web presentation.


New Functionality

Version 3.1 - October 25, 2017

Please contact to obtain the latest ThorImageLS version compatible with your microscope. Because ThorImageLS 3.x adds significant new features over 2.x and 1.x versions, it may not be compatible with older microscopes. We continue to support older software versions for customers with older hardware.

New Hardware Support
  • Added Support for Thorlabs' Scientific Monochrome CCD Cameras; Allows Imaging with Supported Cameras
  • Added Support for Spectra-Physics Insight Dual Port Laser
  • Added Support for Coherent Discovery Dual Port Laser
  • Added Support for Thorlabs' Tiberius Tunable TiSapphire Laser; Allows for Fast Sequence Capture
  • Added Support for Hyperspectral Imaging System; Allows Capture of a Hyperspectral Sequential Image Stack
  • Added Support for Spatial Light Modulator (SLM) Photo Activation; Allows for Calibration and User Interface for ROI Generated Patterns (Includes additional digital outputs for Galvo-Galvo)
  • Added Support for Thorlabs' Beam Stabilizer
  • Added Support for External USB National Instruments cards (USB-6363 and USB-6341)
  • Added Support for two additional Digital Shutters (Configured similarly as previous ThorShutterDig)
New Features
  • Added Disconnect State for available devices not to be controlled by ThorImageLS
  • Added Multiple Modalities; Allows user to configure and switch between different Imaging Modalities Easily
  • Added Digital Offset capability for PMT2000; Adjustment allows for same dynamic Range between Galvo-Resonant and Galvo-Galvo
  • Added Pockels Digital Output for Galvo-Resonant Scanner. (Similar to previous Galvo-Galvo functionality; Includes Output of Digital Line During Bleaching and Image Acquisition)
  • Added Pockels Digital Output to be Active during Image Acquisition for Galvo-Galvo (Previously only available during Bleaching)
  • Added Configurable Software Buttons to control NI Digitial PFI lines
  • Added Focus Tilt adjustment for Tile Capture; Allows User to Configure 3 Point Focus Plane to Be Used during Capture and Ensures Focus Across All Tiles.
  • Added Ability to Set the Pockels Power Mapping to Linear
  • Added Option to Turn Off Pockels Blanking a 0% for Galvo-Galvo
  • Added Pockels Phase Shift Setting to Galvo-Galvo (Previously only available for Galvo-Resonant)
  • Added Ability to Configure Min and Max Field Size for Scanners
  • Added PMT Selection for Simultaneous Bleach Imaging; Allows users to select PMT to be used for Simultaneous Bleach Imaging
  • Added Improved Hardware Triggering to Start Acquisition
  • Added Linearization Table for MCLS laser
  • Added Estimated Bleach duration for each Bleaching ROI; Located in Bleach Setup
User Interface (UI) Improvements
  • Added Quick Access Icon for Hardware Settings Window
  • Enhanced Displayed Device Feature; Allows User to Configure which Devices are Displayed in Hardware Setup
  • Added PMT Polarity Option to the UI Under the PMT More Panel
  • Added Search Capability when Editing Application and Device Settings
  • Added Display of Bergamo Rotation Value in Secondary Z Panel (Value saved in Experiment.xml)
  • Added Pockels Minimum Power Indicator on Pockels Slider; Gives indication if Pockels is Operating Below Recommended Minimum power
  • Added Ability to Control a Fourth Pockels for Galvo-Galvo Configurations
  • Added Custom Configuration of Pixel Density List
  • Added Center Bleach Scanner and Pockels Power Control to Bleach Panel
  • Added Do Not Show Message for Fiji Install Location Message
  • Enhanced ROI Calculations (Changed calculations may be slightly diffrent from previous versions, up to 3 decimal places.)
Fixed Bugs
  • Pockels Digital Output not Going Low for Single Point Bleach
  • Delete Experiment Raw file if Capture is Stopped Before First Trigger arrives
  • 3D View not Working Correctly in Image Review for Tiled Experiments
  • ROI Chart, Stats Table and Line Profile View Settings Get Deselected when Deleting all ROIs
  • Field Size Setting Issue with Galvo-Galvo when Using the Up and Down Zoom Buttons
  • Time Series Trigger First Acting like Trigger for Tiling Experiments
  • Streaming Capture Freezes when using Histogram Controls
  • Last Digit in Negative Z Limit Value Cut Off in Z Control Panel
  • Z Position Unit Incorrect (Displays mm instead of µm)
  • Incorrect High Voltage Range for PMT1002 (Can now be set to 1.1V)
  • Application Fault Switching to Capture Tab if Bleaching Power is Non-Whole Number.

Laser Scanning Microscopy Tutorial

Laser scanning microscopy (LSM) is an indispensable imaging tool in the biological sciences. In this tutorial, we will be discussing confocal fluorescence imaging, multiphoton excitation fluorescence imaging, and second and third harmonic generation imaging techniques. We will limit our discussions to point scanning of biological samples with a focus on the technology behind the imaging tools offered by Thorlabs.


The goal of any microscope is to generate high-contrast, high-resolution images. In much the same way that a telescope allows scientists to discern the finest details of the universe, a microscope allows us to observe biological functioning at the nanometer scale. Modern laser scanning microscopes are capable of generating multidimensional data (X, Y, Z, τ, λ), leading to a plethora of high-resolution imaging capabilities that further the understanding of underlying biological processes.

In conventional widefield microscopy (Figure 1, below left), high-quality images can only be obtained when using thin specimens (on the order of one to two cell layers thick). However, many applications require imaging of thick samples, where volume datasets or selection of data from within a specific focal plane is desired. Conventional widefield microscopes are unable to address these needs.

LSM, in particular confocal LSM and multiphoton LSM, allows for the visualization of thin planes from within a thick bulk sample, a technique known as optical sectioning. In confocal LSM, signals generated by the sample outside of the optical focus are physically blocked by an aperture, preventing their detection. Multiphoton LSM, as we will discuss later, does not generate any appreciable signal outside of the focal plane. By combining optical sectioning with incremented changes in focus (Figure 2, below right), laser scanning microscopy techniques can recreate 3D representations of thick specimen.

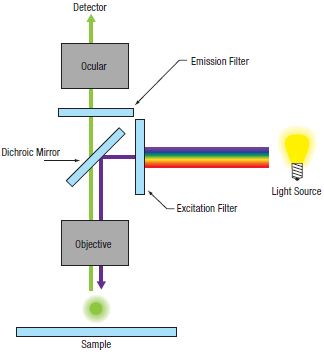

Figure 1 Widefield Epi-Fluorescence

Wide Field Epi-Fluorescence
Click to Enlarge

Figure 2 Optical Sections (Visualization of Thin Planes within a Bulk Sample)

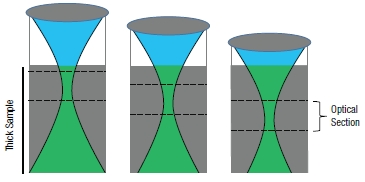

Optical Sectioning in Confocal Microscopy

Optical Sectioning in Confocal Microscopy
Click to Enlarge

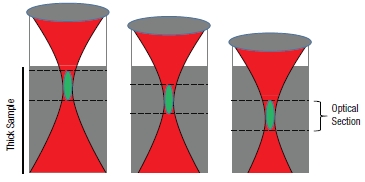

Optical Sectioning in Multiphoton Microscopy

Optical Sectioning in Multiphoton Microscopy
Click to Enlarge

Signal generated by the sample is shown in green. Optical sections are formed by discretely measuring the signal generated within a specific focal plane. In confocal LSM, out-of-focus light is rejected through the use of a pinhole aperture, thereby leading to higher resolution. In multiphoton LSM, signal is only generated in the focal volume. Signal collected at each optical section can be reconstructed to create a 3D image.


Contrast Mechanisms in LSM

Biological samples typically do not have very good contrast, which leads to difficulty in observing the boundaries between adjacent structures. A common method for improving contrast in laser scanning microscopes is through the use of fluorescence.

In fluorescence, a light-emitting molecule is used to distinguish the constituent of interest from the background or neighboring structure. This molecule can already exist within the specimen (endogenous or auto-fluorescence), be applied externally and attached to the constituent (chemically or through antibody binding), or transfected (fluorescent proteins) into the cell.

In order for the molecule to emit light (fluoresce) it must first absorb light (a photon) with the appropriate amount of energy to promote the molecule from the ground state to the excited state, as seen in Figure 3A below. Light is emitted when the molecule returns back down to the ground state. The amount of fluorescence is proportional to the intensity (I) of the incident laser, and so confocal LSM is often referred to as a linear imaging technique. Natural losses within this relaxation process require that the emitted photon have lower energy—that is, a longer wavelength—than the absorbed photon.

Multiphoton excitation (Figure 3B, below) of the molecule occurs when two (or more) photons, whose sum energy satisfies the transition energy, arrive simultaneously. Consequently, the two arriving photons will be of lower energy than the emitted fluorescence photon.

There are also multiphoton contrast mechanisms, such as harmonic generation and sum frequency generation, that use non-absorptive processes. Under conditions in which harmonic generation is allowed, the incident photons are simultaneously annihilated and a new photon of the summed energy is created, as illustrated in Figure 3C below.

Further constituent discrimination can be obtained by observing the physical order of the harmonic generation. In the case of second harmonic generation (SHG), signal is only generated in constituents that are highly ordered and lacking inversion symmetry. Third harmonic generation (THG) is observed at boundary interfaces where there is a refractive index change. Two-photon excitation and SHG are nonlinear processes and the signal generated is dependent on the square of the intensity (I2).

The nonlinear nature of signal generation in multiphoton microscopy means that high photon densities are required to observe SHG and THG. In order to accomplish this while maintaining relatively low average power on the sample, mode-locked femtosecond pulsed lasers, particularly Ti:Sapphire lasers, have become the standard.

Another consideration to be made in nonlinear microscopy is the excitation wavelength for a particular fluorophore. One might think that the ideal excitation wavelength is twice that of the one-photon absorption peak. However, for most fluorophores, the excited state selection rules are different for one- and two-photon absorption.

This leads to two-photon absorption spectra that are quite different from their one-photon counterparts. Two-photon absorption spectra are often significantly broader (can be >100 nm) and do not follow smooth semi-Gaussian curves. The broad two-photon absorption spectrum of many fluorophores facilitates excitation of several fluorescent molecules with a single laser, allowing the observation of several constituents of interest simultaneously.

All of the fluorophores being excited do not have to have the same excitation peak, but should overlap each other and have a common excitation range. Multiple fluorophore excitation is typically accomplished by choosing a compromising wavelength that excites all fluorophores with acceptable levels of efficiency.


Figure 3 Signal Generation in Laser Scanning Microscopy

Absorptive Process (A, B):

The absorption of one or more excitation photons (λEX) promotes the molecule from the ground state (S0) to the excited state (S1). Fluorescence (λEM) is emitted when the molecule returns to the ground state.

Non-Absorptive Process (C):

The excitation photons (λEX) simultaneously convert into a single photon (λSHG,THG) of the sum energy and half (for SHG) or one-third (for THG) the wavelength.

Non-Radiative Energy Losses


Image Formation

In a point-scanning LSM, the single-plane image is created by a point illumination source imaged to a diffraction-limited spot at the sample, which is then imaged to a point detector. Two-dimensional en face images are created by scanning the diffraction-limited spot across the specimen, point by point, to form a line, then line by line in a raster fashion.

The illuminated volume emits a signal which is imaged to a single-element detector. The most common single-element detector used is a photomultiplier tube (PMT), although in certain cases, avalanche photodiodes (APDs) can be used. CCD cameras are not typically used in point-scanning microscopes, though are the detector of choice in multifocal (i.e. spinning disk confocal) applications.

The signal from the detector is then passed to a computer which constructs a two-dimensional image as an array of intensities for each spot scanned across the sample. Because no true image is formed, LSM is referred to as a digital imaging technique. A clear advantage of single-point scanning and single-point detection is that the displayed image resolution, optical resolution, and scan field can be set to match a particular experimental requirement and are not predefined by the imaging optics of the system.

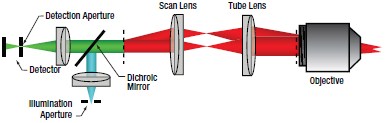

Figure 4 Confocal Optical Path

Confocal Optical Path

Confocal LSM

In confocal LSM, point illumination, typically from a single mode, optical-fiber-coupled CW laser, is the critical feature that allows optical sectioning. The light emitted from the core of the single mode optical fiber is collimated and used as the illumination beam for scanning. The scan system is then imaged to the back aperture of the objective lens which focuses the scanned beam to a diffraction-limited spot on the sample. The signal generated by the focused illumination beam is collected back through the objective and passed through the scan system.

After the scan system, the signal is separated from the illumination beam by a dichroic mirror and brought to a focus. The confocal pinhole is located at this focus. In this configuration, signals that are generated above or below the focal plane are blocked from passing through the pinhole, creating the optically sectioned image (Figure 2, above). The detector is placed after the confocal pinhole, as illustrated in Figure 4 to the right. It can be inferred that the size of the pinhole has direct consequences on the imaging capabilities (particularly, contrast, resolution and optical section thickness) of the confocal microscope.

The lateral resolution of a confocal microscope is determined by the ability of the system to create a diffraction-limited spot at the sample. Forming a diffraction-limited spot depends on the quality of the laser beam as well as that of the scan optics and objective lens.

The beam quality is typically ensured by using a single mode optical fiber to deliver the excitation laser light as a Gaussian point source, which is then collimated and focused into a diffraction-limited beam. In an aberration-free imaging system, obtained by using the highest quality optical elements, the size of this focus spot, assuming uniform illumination, is a function of excitation wavelength (λEX) and numerical aperture (NA) of the objective lens, as seen in Equation 1.

Spot Size

Equation 1 Spot Size

In actuality, the beam isn't focused to a true point, but rather to a bullseye-like shape. The spot size is the distance between the zeros of the Airy disk (diameter across the middle of the first ring around the center of the bullseye) and is termed one Airy Unit (AU). This will become important again later when we discuss pinhole sizes.

The lateral resolution of the imaging system is defined as the minimum distance between two points for them to be observed as two distinct entities. In confocal (and multiphoton) LSM, it is common and experimentally convenient to define the lateral resolution according to the full width at half maximum (FWHM) of the individual points that are observed.

Using the FWHM definition, in confocal LSM, the lateral resolution (Rlateral,confocal) is:

Lateral Resolution, Confocal

Equation 2 Lateral Resolution, Confocal LSM

and the axial resolution (Raxial,confocal) is:

Axial Resolution, Confocal

Equation 3 Axial Resolution, Confocal LSM

where n is the refractive index of the immersion medium.

It is interesting to note that in a confocal microscope, the lateral resolution is solely determined by the excitation wavelength. This is in contrast to widefield microscopy, where lateral resolution is determined only by emission wavelength.

To determine the appropriate size of the confocal pinhole, we multiply the excitation spot size by the total magnification of the microscope:

Pinhole Diameter

Equation 4 Pinhole Diameter

As an example, the appropriate size pinhole for a 60X objective with NA = 1.0 for λEX = 488 nm (Mscan head = 1.07 for the Thorlabs Confocal Scan Head) would be 38.2 μm and is termed a pinhole of 1 AU diameter. If we used the same objective parameters but changed the magnification to 40X, the appropriate pinhole size would be 25.5 μm and would also be termed a pinhole of 1 AU diameter. Therefore, defining a pinhole diameter in terms of AU is a means of normalizing pinhole diameter, even though one would have to change the pinhole selection for the two different objectives.

Theoretically, the total resolution of a confocal microscope is a function of the excitation illumination spot size and the detection pinhole size. This means that the resolution of the optical system can be improved by reducing the size of the pinhole. Practically speaking, as we restrict the pinhole diameter, we improve resolution and confocality, but we also reduce the amount of signal reaching the detector. A pinhole of 1 AU is a good balance between signal strength, resolution, and confocality.

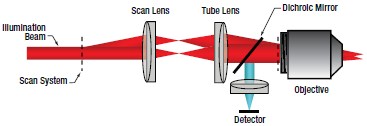

Figure 5 Multiphoton Optical Path

Multiphoton Optical Path

Multiphoton LSM

In multiphoton LSM, a short pulsed free-space laser supplies the collimated illumination beam that passes through the scanning system and is focused by the objective. The very low probability of a multiphoton absorption event occurring, due to the I2 dependence of the signal on incident power, ensures signal is confined to the focal plane of the objective lens. Therefore, very little signal is generated from the regions above and below the focal plane. This effective elimination of out-of-focus signal provides inherent optical sectioning capabilities (Figure 2, above) without the need for a confocal pinhole. As a result of this configuration, the collected signal does not have to go back through the scanning system, allowing the detector to be placed as close to the objective as possible to maximize collection efficiency, as illustrated in Figure 5 to the right. A detector that collects signal before it travels back through the scan system is referred to as a non-descanned detector.

Again using the FWHM defintion, in multiphoton LSM, the lateral resolution (Rlateral,multiphoton) is:

Lateral Resolution, Multiphoton

Equation 5 Lateral Resolution, Multiphoton LSM

and the axial resolution (Raxial,multiphoton) is:

Axial Resolution, Multiphoton

Equation 6 Axial Resolution, Multiphoton LSM

These equations assume an objective NA > 0.7, which is true of virtually all multiphoton objectives.

The longer wavelength used for multiphoton excitation would lead one to believe (from Equation 5) that the resolution in multiphoton LSM, compared to confocal LSM, would be reduced roughly by a factor of two. For an ideal point object (i.e. a sub-resolution size fluorescent bead) the I2 signal dependence reduces the effective focal volume, more than offsetting the 2X increase in the focused illumination spot size.

We should note that the lateral and axial resolutions display a dependence on intensity. As laser power is increased, there is a corresponding increase in the probability of signal being generated within the diffraction-limited focal volume. In practice, the lateral resolution in a multiphoton microscope is limited by how tightly the illumination beam can be focused and is well approximated by Equation 5 at moderate intensities. Axial resolution will continue to degrade as excitation power is increased.


Image Display

Although we are not directly rendering an image, it is still important to consider the size of the image field, the number of pixels in which we are displaying our image (capture resolution) on the screen, and the lateral resolution of the imaging system. We use the lateral resolution because we are rendering an en face image. In order to faithfully display the finest features the optical system is capable of resolving, we must appropriately match resolution (capture and lateral) with the scan field. Our capture resolution must, therefore, appropriately sample the optical resolution.

In LSM, we typically rely on Nyquist sampling rules, which state that the pixel size should be the lateral resolution divided by 2.3. This means that if we take our 60X objective from earlier, the lateral resolution is 249 nm (Equation 2) and the pixel size in the displayed image should be 108 nm. Therefore, for a 1024 x 1024 pixel capture resolution, the scan field on the specimen would be ~111 μm x 111 μm. It should be noted that the 40X objective from our previous example would yield the exact same scan field (both objectives have the same NA) in the sample. The only difference between the two images is the angle at which we tilt our scanners to acquire the image.

It may not always be necessary to render images with such high resolution. We can always make the trade-off of image resolution, scan field, and capture resolution to create a balance of signal, sample longevity, and resolution in our images.


Considerations in Live Cell Imaging

One of LSM's greatest attributes is its ability to image living cells and tissues. Unfortunately, some of the by-products of fluorescence can be cytotoxic. As such, there is a delicate balancing act between generating high-quality images and keeping cells alive.

One important consideration is fluorophore saturation. Saturation occurs when increasing the laser power does not provide the expected concurrent increase in the fluorescence signal. This can occur when as few as 10% of the fluorophores are in the excited state.

The reason behind saturation is the amount of time a fluorophore requires to relax back down to the ground state once excited. While the fluorescence pathways are relatively fast (hundreds of ps to a few ns), this represents only one relaxation mechanism. Triplet state conversion and nonradiative decay require significantly longer relaxation times. Furthermore, re-exciting a fluorophore before it has relaxed back down to the ground state can lead to irreversible bleaching of the fluorophore. Cells have their own intrinsic mechanisms for dealing with the cytotoxicity associated with fluorescence, so long as excitation occurs slowly.

One method to reduce photobleaching and the associated cytotoxicity is through fast scanning. While reducing the amount of time the laser spends on a single point in the image will proportionally decrease the amount of detected signal, it also reduces some of the bleaching mechanisms by allowing the fluorophore to completely relax back to the ground state before the laser is scanned back to that point. If the utmost in speed is not a critical issue, one can average several lines or complete frames and build up the signal lost from the shorter integration time.

The longer excitation wavelength and non-descanned detection ability of multiphoton LSM give the ability to image deeper within biological tissues. Longer wavelengths are less susceptible to scattering by the sample because of the inverse fourth power dependence (I-4) of scattering on wavelength. Typical penetration depths for multiphoton LSM are 250 - 500 μm, although imaging as deep as 1 mm has been reported in the literature, compared to ~100 μm for confocal LSM.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact or call (703) 651-1700.

Thorlabs' sales engineers and field service staff are based out of eight offices across four continents. We look forward to helping you determine the best imaging system to meet your specific experimental needs. Our customers are attempting to solve biology's most important problems; these endeavors require matching systems that drive industry standards for ease of use, reliability, and raw capability.

Thorlabs' worldwide network allows us to operate showrooms in a number of locations where you can see our systems in action. We welcome the opportunity for personal interaction during your visit! A demo can be scheduled at any of our showrooms by contacting

Showroom Icon

Showroom and Customer Support Sites


Sterling, Virginia, USA
Thorlabs Imaging Systems HQ

Thorlabs Imaging Systems
108 Powers Court
Sterling, VA 20166

Appointment Scheduling and Customer Support



Thorlabs China
Room A101, No. 100, Lane 2891, South Qilianshan Road
Shanghai 200331

Appointment Scheduling and Customer Support



Thorlabs Japan, Inc.
3-6-3 Kitamachi
Nerima-ku, Tokyo 179-0081

Appointment Scheduling and Customer Support

Customer Support Sites


Newton, New Jersey, USA
Thorlabs HQ

Thorlabs, Inc.
56 Sparta Avenue
Newton, NJ 07860

Customer Support


United Kingdom

Thorlabs Ltd.
1 Saint Thomas Place, Ely
Ely CB7 4EX

Customer Support



Thorlabs GmbH
Hans-Boeckler-Str. 6
Dachau/Munich 85221

Customer Support



Thorlabs SAS
109, rue des Cotes
Maisons-Laffitte 78600

Customer Support



Thorlabs Vendas de Fotônicos Ltda.
Rua Riachuelo, 171
São Carlos, SP 13560-110

Customer Support

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact or call (703) 651-1700.

Selected Confocal Microscopy Publications



Lewin, A. E. et al. Optogenetic and pharmacological evidence that somatostatin-GABA neurons are important regulators of parasympathetic outflow to the stomach. The Journal of Physiology n/a-n/a (2016). doi:10.1113/JP272069



Dechen, K., Richards, C. D., Lye, J. C., Hwang, J. E. C. & Burke, R. Compartmentalized zinc deficiency and toxicities caused by ZnT and Zip gene over expression result in specific phenotypes in Drosophila. The International Journal of Biochemistry & Cell Biology 60, 23–33 (2015).

Jia, Y. et al. Activation of platelet protease-activated receptor-1 induces epithelial-mesenchymal transition and chemotaxis of colon cancer cell line SW620. Oncol. Rep. 33, 2681–2688 (2015).

Lu, W. et al. Inhibiting the mobilization of Ly6Chigh monocytes after acute myocardial infarction enhances the efficiency of mesenchymal stromal cell transplantation and curbs myocardial remodeling. Am J Transl Res 7, 587–597 (2015).

Lu, W. et al. Photoluminescent Mesoporous Silicon Nanoparticles with siCCR2 Improve the Effects of Mesenchymal Stromal Cell Transplantation after Acute Myocardial Infarction. Theranostics 5, 1068–1082 (2015).

Zuo, S., Hughes, M. & Yang, G.-Z. Novel Balloon Surface Scanning Device for Intraoperative Breast Endomicroscopy. Ann Biomed Eng 1–14 (2015). doi:10.1007/s10439-015-1493-2



Brown, C. M., Melcher, J. T. & Stranick, S. J. Scan Linearization for Resonant Optomechanical Systems. in IM1C.3 (OSA, 2014). doi:10.1364/ISA.2014.IM1C.3

Partridge, J. G., Lewin, A. E., Yasko, J. R. & Vicini, S. Contrasting actions of group I metabotropic glutamate receptors in distinct mouse striatal neurones. J Physiol 592, 2721–2733 (2014).

Qin, X., Qiu, C. & Zhao, L. Maslinic acid protects vascular smooth muscle cells from oxidative stress through Akt/Nrf2/HO-1 pathway. Mol Cell Biochem 390, 61–67 (2014).

9.Liu, J. et al. Oleanolic Acid Suppresses Aerobic Glycolysis in Cancer Cells by Switching Pyruvate Kinase Type M Isoforms. PLOS ONE 9, e91606 (2014).



Hao, X. et al. Contrast reversal confocal microscopy. Optics Communications 298–299, 272–275 (2013).

Lalchandani, R. R., Goes, M.-S. van der, Partridge, J. G. & Vicini, S. Dopamine D2 Receptors Regulate Collateral Inhibition between Striatal Medium Spiny Neurons. J. Neurosci. 33, 14075–14086 (2013).

Posted Comments:
mani.zand  (posted 2018-10-28 22:53:21.47)
Where can I find the list of compatible microscopes with thorlabs confocal upgrade?
nbayconich  (posted 2018-11-01 02:01:00.0)
Thank you for contacting Thorlabs. As long as the correct c-mount thread adapter to the camera port is used and the full aperture of the scan lens can be used, then the confocal upgrade can be used with any inverted microscope system. We've installed this system in microscopes from all four major manufacturers Nikon, Olympus, Leica and Zeiss as well as our Cerna systems. Please see the link below to our Microscope Port adapters page to find a suitable adapter for your microscope.
majie6  (posted 2018-06-10 15:17:53.107)
I'd like to get a price on your laser-scanning confocal systems. I already have the microscope body and lasers and only need the high-sensitivity detectors and scan units.
YLohia  (posted 2018-06-14 09:45:36.0)
Hello, we will reach out to you via email to discuss your requirements. Please contact directly for a quicker response time for microscopy questions/quotes.
80kmh  (posted 2018-02-13 00:04:04.917)
Why this mag. factor of this confocal scannning module is 1.07 ? i can't understand. could you please explain easily?
llamb  (posted 2018-04-11 08:14:53.0)
Hello, thank you for contacting Thorlabs. The magnification of 1.07 for the scan head that we have on the page is based off of a Scan Lens (f=70mm) and the MPH16 pinhole wheel, which has a lens of f=75mm. Therefore 75/70=1.07.
biotecnologiasalud  (posted 2015-12-31 04:23:29.203)
I would like to know the Price of this confocal system to use in a olympus BX50 microscope.
jlow  (posted 2016-01-04 11:46:38.0)
Response from Jeremy at Thorlabs: We will contact you directly about this. You can also contact or call (703) 651-1700 to request a quote.
user  (posted 2014-10-28 09:11:10.407)
Which fiber for delivering light to PMTs do you include in the confocal? can we use 200um or 400 core MMF?
besembeson  (posted 2014-11-04 02:56:13.0)
Response from Bweh at Thorlabs USA: We use a 900um fiber. A 200um or 400um core fiber will lower the collection efficiency and make alignment more tedious. So you can use it but it is not recommended.
cvkelly  (posted 2014-07-23 14:45:18.953)
May I please get ball-park prices for your laser-scanning confocal systems. I currently have my own microscope bodies and lasers, but I would need the high-sensitivity detectors and scan units. Thank you, Chris
jlow  (posted 2014-08-01 11:10:56.0)
Response from Jeremy at Thorlabs: We will contact you directly for the pricing. You can also contact us at to get the pricing.
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000

High Quality Thorlabs Logo 1000px:Save this Image
