Breadboard Mounting Accessories for 25 mm Rails


  • Construct 25 mm Rail Assemblies on Top of Breadboards
  • Options for Horizontal or Vertical Rail Mounting

XE25CL2

Table Clamp with Slot for 1/4"-20 (M6) Cap Screws

XE25A90

Right Angle Bracket with Counterbored Holes for 1/4"-20 (M6) Cap Screws

Bracket Orients Rail Orthogonal
to Plane of Breadboard

AB90H

Right Angle Bracket with Counterbored Slots for 1/4"-20 (M6) Cap Screws

Related Items


Please Wait

Features

  • Mount 25 mm Construction Rails to Breadboards
  • Table Clamp Mounts Rails Horizontally
  • Right-Angle Brackets Orient Rails Vertically

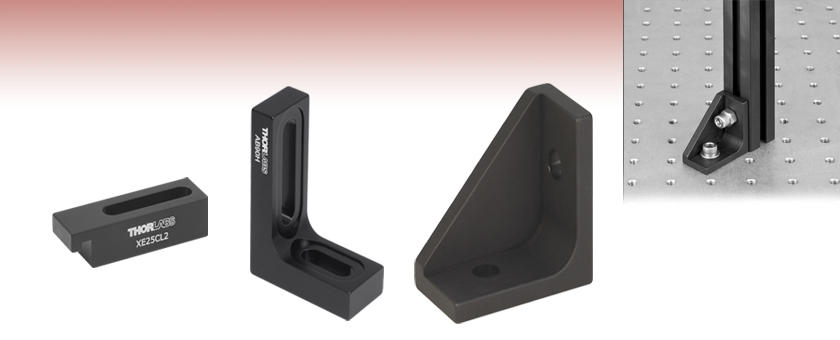

Thorlabs provides options for customers who wish to build a 25 mm rail system on top of an optical table or breadboard. The XE25CL2 Table Clamp secures a rail parallel to the breadboard surface, while the XE25A90 and AB90H Right-Angle Brackets mount a rail in a standing position.

Thorlabs' accessories for assemblies made of 25 mm rails include corner cubes and brackets, T-Nuts, low-profile channel screws, breadboard mounting accessories, rail joiners, and a channel insert. In addition, we offer optical enclosures, enclosure accessories, and do-it-yourself tools like taps, tap guides, and drill guides for home-built XE25-based constructions.


Posted Comments:
No Comments Posted

Table Clamp for 25 mm Rails

  • Mount 25 mm Rails Horizontally on an Optical Table or Breadboard
  • 1" (25.4 mm) Long Clearance Slot for 1/4"-20 or M6 Screws
  • Insert Anywhere Along Rail

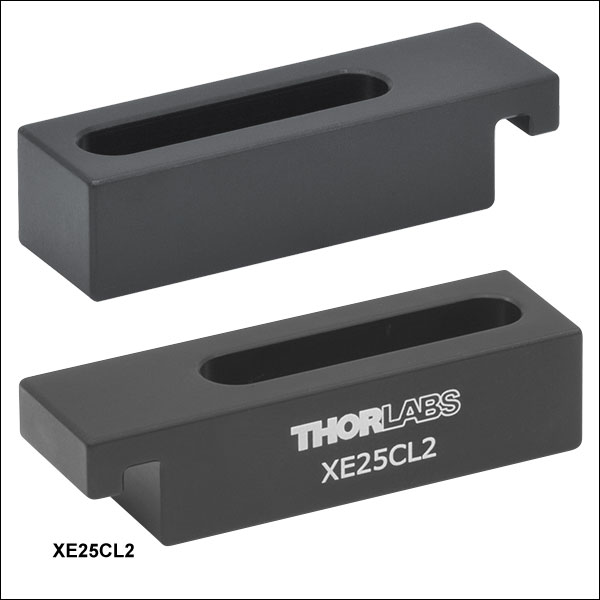

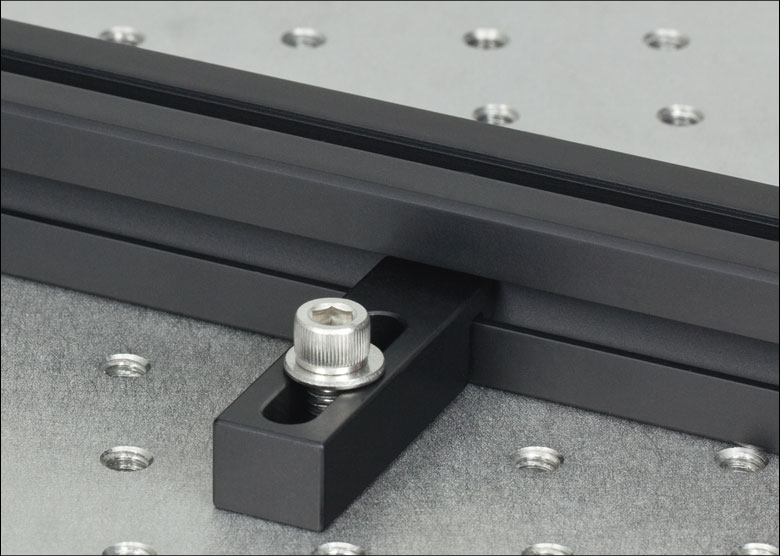

The XE25CL2 Table Clamp mounts a 25 mm rail horizontally to a 1/4"-20 or M6 tapped surface by using a rail channel. It holds the rail in place using a side-located rail channel, while leaving the top rail channel free to accept enclosure panels or T-Nuts. The clamp features a 1" (25.4 mm) long clearance slot compatible with 1/4"-20 and M6 screws, providing mounting for imperial and metric tables.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XE25CL2 Support Documentation
XE25CL2Table Clamp for 25 mm Rails
$12.55
Today

Right-Angle Brackets for 25 mm Rails

XE25A90 Reinforced Corner
Click to Enlarge

Reinforced Corner
XE25A90 as Breadboard Mount
Click to Enlarge

Enclosure Bolted to Optical Table
  • Brace 25 mm Rail Corners or Mount Rails Vertically
  • One-Piece Aluminum Construction for Excellent Rigidity
  • For Use with 1/4"-20 (M6) Cap Screws

The AB90H and XE25A90 Right-Angle Brackets can be used to fasten 25 mm rails to each other using a T-Nut (not included) or to an optical table. Both intended for use with 1/4"-20 (M6) cap screws and washers, the AB90H has a total of two 1/4" wide slots of lengths of 1" (25.4 mm) and 0.5" (12.7 mm), allowing for additional flexibility in positioning the rails on a breadboard, while the XE25A90 has two counterbored holes.

These brackets are ideal for fastening our optical enclosures to an optical table or breadboard.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
AB90H Support Documentation
AB90HCustomer Inspired! Slim Right-Angle Bracket with Counterbored Slots
$27.85
Lead Time
XE25A90 Support Documentation
XE25A90Right-Angle Bracket for 25 mm Rails
$29.22
Today
