Economy Film Polarizers


  • 2" x 2" Polarizer for 400 - 700 nm
  • 2" x 2" and 11.02" x 11.02" Polarizers for 600 - 1100 nm
  • Wide Acceptance Angle of ±30°
  • Larger Sizes or Custom Sizing Available

LPVISE2X2

400 - 700 nm

LPNIRE2X2

600 - 1100 nm

2.00"

2.00"

2.00"

2.00"

11.02"

11.02"

LPNIRE11S

600 - 1100 nm

Related Items


Please Wait
App shot showing two large polarizers in a rotating mount.
Click to Enlarge
View Imperial Product List
Item #QtyDescription
LPVISE2X222" x 2" Dichroic Film Polarizer Sheet, 400 - 700 nm
LCP05260 mm Cage-Compatible Mount for 2" Square Filters Up to 4 mm Thick, 8-32 Tap
PRM21High-Precision Rotation Mount for Ø2" (50.8 mm) Optics
ER18Cage Assembly Rod, 1" Long, Ø6 mm
TR41Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 4"
UPH31Ø1/2" Universal Post Holder, Spring-Loaded Locking Thumbscrew, L = 3"
View Metric Product List
Item #QtyDescription
LPVISE2X222" x 2" Dichroic Film Polarizer Sheet, 400 - 700 nm
LCP05/M260 mm Cage-Compatible Mount for 50 mm Square Filters Up to 4 mm Thick , M4 Tap
PRM2/M1High-Precision Rotation Mount for Ø2" (50.8 mm) Optics, Metric
ER18Cage Assembly Rod, 1" Long, Ø6 mm
TR100/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 100 mm
UPH75/M1Ø12.7 mm Universal Post Holder, Spring-Loaded Locking Thumbscrew, L = 75 mm
A variable polarizing attenuator made with two LPVISE2X2 polarizers. Care should be taken when mounting film polarizers, as considerable stress may change performance.

Features

  • Visible Dichroic Polarizer Extinction Ratios:
    • >100:1 for 400 - 500 nm
    • >1000:1 for 500 - 700 nm
    • >5000:1 for 530 - 690 nm
  • NIR Diffuse Reflective Polarizers Extinction Ratios:
    • >400:1 for 600 - 1100 nm
    • >1000:1 for 600 - 940 nm
  • Custom Sizes of up to 24" x 39" Available (Please Contact Tech Support)

Thorlabs' film polarizers are designed to linearly polarize large, low-power beams of light. Each film polarizer is a square that can be cut to custom sizes or left whole to polarize large beams. There is a protective film on both sides of each polarizer that must be removed prior to use. The polarization axis is marked with an arrow and is aligned to the flat edge of the LPVISE2X2, while the polarization axis of the LPNIRE2X2 and LPNIRE11S is noted by a sticker applied to the protective film.

The polarizing materials are designed and optimized for use within their operating range, denoted in the graphs below by the blue highlighted regions. Outside of this range, the performance of these polarizers' is not guaranteed. Care should be taken when cleaning and mounting these polarizers, as significant stress may cause performance variation. We recommend using compressed air to remove dust and debris.

Larger sizes of up to 24" x 39" are also available. To order a custom-sized film polarizer, please contact Tech Support. We also offer film polarizers with AR-coated windows epoxied on each side in Ø1/2", Ø1", and Ø2" sizes.


Posted Comments:
phillipmyinbox  (posted 2018-05-01 02:29:32.537)
It's simply too small for me.
YLohia  (posted 2018-05-01 08:18:06.0)
Hello, larger sizes of up to 24" x 39" are available. We will contact you directly to find out more about your application and see what size and quantity you are interested in.
dragokirov  (posted 2017-07-20 14:57:56.913)
Hi Sirs, I need 4x4" of this polarizer. Is it possible to order this size?
nbayconich  (posted 2017-07-27 03:25:51.0)
Thank you for contacting Thorlabs. We can provide these as custom items. A techsupport representative will contact you directly.
fb11002.ump  (posted 2016-08-21 17:06:44.46)
Hi, I'm looking for Linear Polarizer sheet(4"x4") with high transmission (>80%) at 405nm wavelength. Is it available here? Please email me.
jbell  (posted 2015-09-03 17:38:47.157)
The transmission is shown as 80% over most of the spectrum. I am measuring more like 40%. Are you certain this is the correct transmission chart? Thanks, John.
besembeson  (posted 2015-09-14 10:59:08.0)
Response from Bweh at Thorlabs USA: The transmission curve is correct and it is for a linearly polarized source. I will followup with you via email regarding your observations.
user  (posted 2015-02-19 17:43:55.29)
What is the damage threshold? Thanks!
besembeson  (posted 2015-02-26 04:17:55.0)
Response from Bweh at Thorlabs: We have not tested these specifically. But we have tested the economy laminated film polarizers whose values you can use as a guide: http://www.thorlabs.de/newgrouppage9.cfm?objectgroup_id=4984&pn=LPVISE050-A#7210
user  (posted 2014-09-22 12:41:28.18)
Is there a temperature SPEC available for this product??
jlow  (posted 2014-09-25 09:36:46.0)
Response from Jeremy at Thorlabs: The polarizing film is rated for -50°C to 70°C.
vkorman  (posted 2014-03-10 14:05:19.773)
What is polarization axis (is it aligned with one of the flat edges, etc, or is it arbitrary)? If it is fixed to an edge, what is the tolerance on that spec (+/- angle)?
jlow  (posted 2014-03-11 08:36:39.0)
Response from Jeremy at Thorlabs: The polarization axis is aligned to one of the flat edges and will be marked with an arrow. The tolerance is ±2°.
debordet  (posted 2013-10-22 19:20:26.817)
Is it possible to get this material in a 4x4" size?
jlow  (posted 2013-10-23 10:53:00.0)
Response from Jeremy at Thorlabs: We can provide this in 4"x4" size. I will contact you directly for a quote.

Polarizer Selection Guide

Thorlabs offers a diverse range of polarizers, including wire grid, film, calcite, alpha-BBO, rutile, and beamsplitting polarizers. Collectively, our line of wire grid polarizers offers coverage from the visible range to the beginning of the Far-IR range. Our nanoparticle linear film polarizers provide extinction ratios as high as 100 000:1. Alternatively, our other film polarizers offer an affordable solution for polarizing light from the visible to the Near-IR. Next, our beamsplitting polarizers allow for use of the reflected beam, as well as the more completely polarized transmitted beam. Finally, our alpha-BBO (UV), calcite (visible to Near-IR), rutile (Near-IR to Mid-IR), and yttrium orthovanadate (YVO4) (Near-IR to Mid-IR) polarizers each offer an exceptional extinction ratio of 100 000:1 within their respective wavelength ranges.

To explore the available types, wavelength ranges, extinction ratios, transmission, and available sizes for each polarizer category, click More [+] in the appropriate row below.

Wire Grid Polarizers
Film Polarizers
Beamsplitting Polarizers
alpha-BBO Polarizers
Calcite Polarizers
Quartz Polarizers
Magnesium Fluoride Polarizers
Yttrium Orthovanadate (YVO4) Polarizers
Rutile Polarizers
  • Click on the graph icons in this column to view a transmission curve for the corresponding polarizer. Each curve represents one substrate sample or coating run and is not guaranteed.
  • Mounted in a protective box, unthreaded ring, or cylinder.
  • Available unmounted or in an SM05-threaded (0.535"-40) mount that indicates the polarization axis.
  • Available unmounted or in an SM1-threaded (1.035"-40) mount that indicates the polarization axis.
  • Available unmounted or mounted in cubes for cage system compatibility.
  • Calcite's transmittance of light near 350 nm is typically around 75% (see Transmission column).
  • Available unmounted or in an unthreaded Ø1/2" housing.
  • The transmission curves for calcite are valid for linearly polarized light with a polarization axis aligned with the mark on the polarizer's housing.
  • The 1064 nm V coating corresponds to a -C26 suffix in the item number.
  • Available unmounted or mounted in a protective box or unthreaded cylinder that indicates the polarization axis.

Dichroic Film Polarizer for Visible Light (400 - 700 nm)

Transmission Graph
Click to Enlarge

Click Here for Raw Data
The transmission data shown here was obtained using a linearly polarized beam. The shaded region in the graph denotes the spectral range over which we recommend using the polarizer.

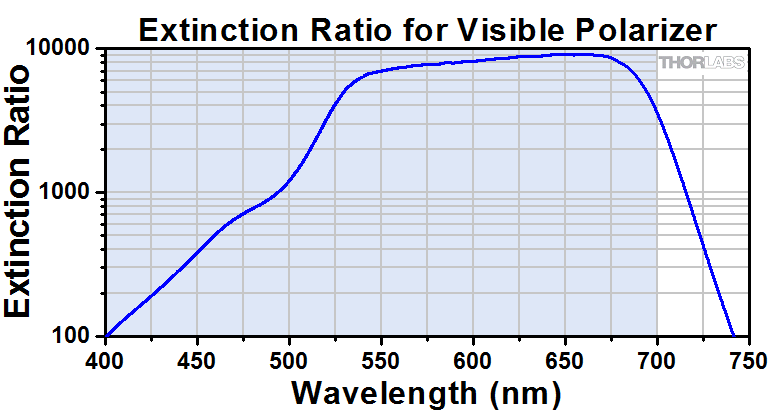

Extinction Ratio Graph
Click to Enlarge

Click Here for Raw Data
The extinction ratio data shown here was obtained with a spectrophotometer. The shaded region in the graph denotes the spectral range over which we recommend using the polarizer. To achieve best results, we suggest using a precision rotation mount and a polarimeter or power meter.
Item # Dimensions Wavelength Range Extinction Ratioa Unpolarized
Transmissionb
Polarization Efficiency Polarizing Material Dimensional
Tolerance
Thickness Thickness Tolerance Acceptance Angle
LPVISE2X2 2" x 2"
(50.8 x 50.8 mm)
400 - 700 nm >100:1 for 400 - 500 nm
>1000:1 for 500 - 700 nm
>5000:1 for 530 - 690 nm
38% >99% Triacetate Film +0.0 / -0.1 mm 0.3 mm ±0.1 mm ±30°
  • The extinction ratio (ER) is the ratio of maximum to minimum transmission of a linearly polarized input. When the transmission axis and input polarization are parallel, the transmission is at its maximum; rotate the polarizer by 90° for minimum transmission.
  • Average Unpolarized Transmission over the Specified Wavelength Range
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LPVISE2X2 Support Documentation
LPVISE2X2Customer Inspired! 2" x 2" Dichroic Film Polarizer Sheet, 400 - 700 nm
$8.61
Today

Diffuse Reflective Film Polarizer for Near-Infrared Light (600 - 1100 nm)

Transmission Graph
Click to Enlarge

Click Here for Raw Data
The transmission data shown here was obtained using a linearly polarized beam. The shaded region in the graph denotes the spectral range over which we recommend using the polarizer.

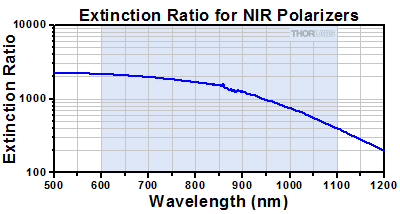

Extinction Ratio Graph
Click to Enlarge

Click Here for Raw Data
The extinction ratio data shown here was obtained with a spectrophotometer. The shaded region in the graph denotes the spectral range over which we recommend using the polarizer. To achieve best results, we suggest using a precision rotation mount and a polarimeter or power meter.
Item # Dimensions Wavelength Range Extinction Ratioa Unpolarized
Transmissionb
Polarization Efficiency Polarizing Material Dimensional
Tolerance
Thickness Thickness Tolerance Acceptance Angle
LPNIRE2X2 2" x 2"
(50.8 x 50.8 mm)
600 - 1100 nm >400:1 for 600 - 1100 nm
>1000:1 for 600 - 940 nm
42% - Thermoplastic Polymer Film +0.0 / -0.1 mm 0.13 mm ±0.05 mm ±30°
LPNIRE11S 280.0 x 280.0 mm
(11.02" x 11.02")
  • The extinction ratio (ER) is the ratio of maximum to minimum transmission of a linearly polarized input. When the transmission axis and input polarization are parallel, the transmission is at its maximum; rotate the polarizer by 90° for minimum transmission.
  • Average Unpolarized Transmission over the Specified Wavelength Range
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LPNIRE2X2 Support Documentation

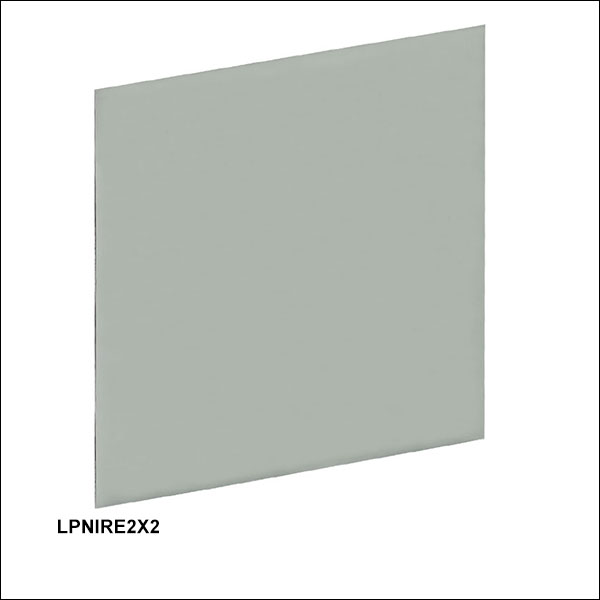

LPNIRE2X2Customer Inspired! 2" x 2" Diffuse Reflective Polarizer Sheet, 600 - 1100 nm
$90.64
Today
LPNIRE11S Support Documentation
LPNIRE11SNEW!Customer Inspired! 280.0 x 280.0 mm Diffuse Reflective Polarizer Sheet, 600 - 1100 nm
$2,050.73
Today
