XYZ Translator for Ø1" Optics
- ±2.5 mm of X and Y Travel and ±1.5 mm of Z Travel
- Compatible with SM1-Threaded Lens Tubes
- 60 mm Cage Compatible and Post Mountable

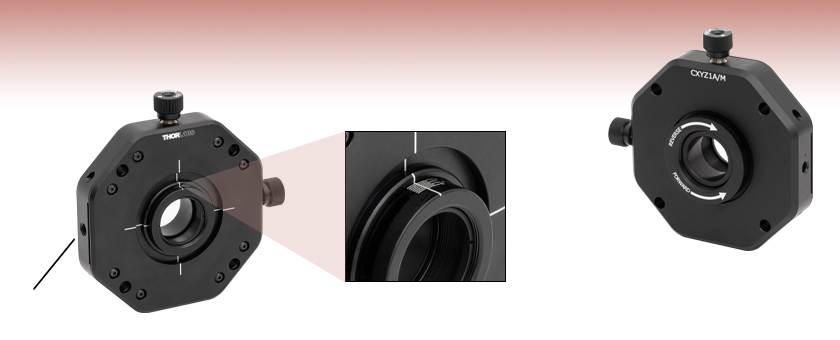

1/4"-20 (M6) Tap,
Tick Marks at 0.25 mm Intervals Indicate How Far
Along the Z-Axis the Optic Cell has been Translated
Knurled Dial Translates
Optic Cell Along the Z-Axis
|X and Y Axis Drivers||1/4"-100 Adjustersa|
|XY Travel||±2.5 mm (±0.10") per Axis|
|XY Adjustment Resolution||254 µm/rev|
|Z-Axis Driver||500 µm/rev Adjustment Dialb|
|Z Travel||±1.5 mm (±0.06")
(Alignment Tick Marks at 0.25 mm Intervals)
|Clear Aperturec||Ø0.90" (Ø22.9 mm)|
|Optic Thickness (Max)||0.39" (10.0 mm)|
|Optic Mounting||Internal SM1 (1.035"-40) Thread|
|Post Mountingd||Two 1/4"-20 (M6) Tapped Holes
(Allows Right- and Left-Handed Orientations)
- ±2.5 mm (±0.10") Travel in X and Y Axes
- ±1.5 mm (±0.06") Non-Rotating Z-Axis Travel
- Accepts Ø1" (Ø25.4 mm) Optics up to 0.39" (10.0 mm) Thick
- SM1 (1.035"-40) Threading for Compatibility with Our Extensive Line of SM1 Lens Tubes
- Compatible with 60 mm Cage Systems
- Two 1/4"-20 (M6) Tapped Holes for Right- and Left-Handed Post Mounting Orientations
The Thorlabs CXYZ1(/M) Translation Mount features X-, Y-, and Z-Axis Travel and holds Ø1" optics, up to 0.39" (10.0 mm) thick, against the back lip of the mount using the provided SM1RR retaining ring. XY functionality allows travel perpendicular to the optical axis, while the Z-axis functionality allows for compensation of focusing errors in applications such as fiber alignment or lens mounting. The optic cell has been designed to offer pure X, Y, and Z translation.

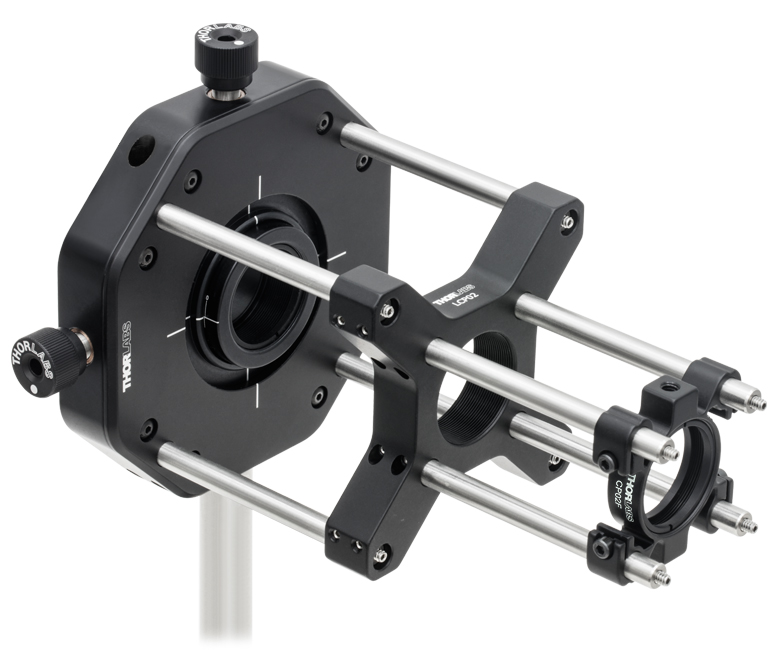

Click to Enlarge LCP02 60 mm to 30 mm Cage Plate Adapter
The optic cell is internally SM1 (1.035"-40) threaded and is translated along the Z-axis by rotating the zoom adjustment dial on the back of the mount. The optic cell does not rotate during translation. An engraving is included on the knurled dial, indicating the direction that it must be turned for translating the optic cell forward and backwards. Laser-engraved tick marks spaced 0.25 mm apart are included on the optic cell for indicating the Z-axis position. The position can be locked using an SM30RR Retaining Ring (sold separately); see the image to the right for more details.
Click to Enlarge

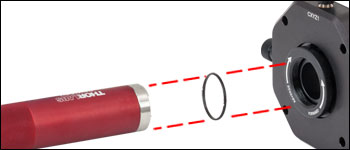

The Z-axis position can be locked by threading an SM30RR retaining ring (sold separately) onto the internal threads of the rear knurled knob. This can be done using the SPW607 Spanner Wrench.
X and Y translation of the optic cell is actuated using the two 1/4"-100 fine adjusters, which can be locked using our LN25100 Locking Nuts (sold separately). The adjuster knobs must be removed in order to properly engage the threads when using locking nuts. Horizontal and vertical witness lines provide a reference for the XY alignment.
The mount has four through holes for use with our Ø6 mm ER cage rods, making it compatible with our 60 mm Cage Systems. Each cage rod mounting hole has two side-located 4-40 locking setscrews, which use a 0.05" hex key. The mount can easily be adapted to 30 mm Cage Systems by using the LCP02 Cage System Size Adapter, as shown in the image to the left. Two 1/4"-20 (M6) tapped holes are also provided on opposite sides of the XY adjusters for post mounting in right- or left-handed orientations.
Thorlabs also offers a 30 mm cage compatible XYZ translation mount for Ø1/2" optics, available here.
|XYZ Translation Mounts Selection Guide||XYZ Translation Mount for Ø1/2" Optics||XYZ Translation Mount for Ø1" Optics|
Cage System Overview
The Cage Assembly System provides a convenient way to construct large optomechanical systems with an established line of precision-machined building blocks designed for high flexibility and accurate alignment.
16 mm, 30 mm, and 60 mm Cage System Standards
Thorlabs offers three standards defined by the center-to-center spacing of the cage assembly rods (see image below). The 16 mm cage, 30 mm cage, and 60 mm cage standards are designed to accomodate Ø1/2", Ø1", and Ø2" optics, respectively. Specialized cage plates that allow smaller optics to be directly inserted into our larger cage systems are also available.
The flexibility of our Cage Assembly System stems from well-defined mounting and thread standards designed to directly interface with a wide range of specialized products. The three most prevalent thread standards are our SM05 Series (0.535"-40 thread), SM1 Series (1.035"-40 thread), and SM2 Series (2.035"-40 thread), all of which were defined to house the industry's most common optic sizes. Essential building blocks, such as our popular lens tubes, directly interface to these standards.
An example of the standard cage plate measurements determining cage system compatibility.
|Standard Cage System Measurements|
|Cage System||16 mm||30 mm||60 mm|
|Rod to Rod Spacing||16 mm (0.63")||30 mm (1.18")||60 mm (2.36")|
|Total Length||25 mm (0.98")||41 mm (1.60")||71.1 mm (2.8")|
|Cage Rods||16 mm||These rods are used to connect cage plates, optic mounts, and other components in the cage system. The SR Series Cage Rods are compatible with our 16 mm cage systems, while the 30 mm and 60 mm cage systems use ER Series Cage Rods.|
|Cage Plates||16 mm||These serve as the basic building blocks for a cage system. They may have SM-threaded central bores, smooth bores sized for industry standard optics or to accommodate the outer profile of our SM Series Lens Tubes, or specialized bores for other components such as our FiberPorts.|
|Optic Mounts||16 mm||Thorlabs offers fixed, kinematic, rotation, and translation mounts specifically designed for our Cage Systems.|
|Cage Cubes||16 mm||These cubes are useful for housing larger optical components, such as prisms or mirrors, or optics that need to sit at an angle to the beam path, such as beamsplitters. Our cage cubes are available empty or with pre-mounted optics.|
|Post and Breadboard Mounts and Adapters||Mounting options for cage systems can be found on our Cage System Construction pages. Cage Systems can be mounted either parallel or perpendicular to the table surface.|
|Size Adapters||Cage System Size Adapters can be used to integrate components from different cage system and threading standards.|
|Specialized Components||Thorlabs also produces specialized cage components, such as Filter Wheels, a HeNe Laser Mount, and a FiberPort Cage Plate Adapter, allowing a wide range of our products to be integrated into cage-mounted optical systems. Explore our Cage Systems Visual Navigation Guide to see the full range of Thorlabs' cage components.|
