XY Translation Stage with Ø1" Through Hole
- 1/2" (13 mm) Travel Along X and Y Axis
- Low Profile Minimizes Optical Path Through Stage
- Ideal for Imaging Applications
XYT1 with SLH1 Slide
Clamps in a Customized
(See Application Info
Tab for Details)
XY Linear Translation Stage with
SM1-Threaded Through Hole
|Horizontal Load Capacity (Max)||10 lbs (4.5 kg)|
|Vertical Load Capacity (Max)a||2 lbs (0.9 kg)|
|Mounting Platform Dimensions||4.25" × 4.20"
(108.0 mm × 106.7 mm)
|Stage Height||1.00" (25.4 mm)|
|Stage Footprint Including Actuators|| 6.33" x 6.1"
(160.8 mm x 154.9 mm)
|Translation Range||1/2" (13 mm)|
|Travel per Revolution||0.025" (0.5 mm)|
|Graduation||0.001" (10 µm) per Division|
|Linear Translation Mechanism||Bearings in V-Groove|
- XY Stage with Central SM1-Threaded Hole for Imaging Applications
- 4.25" × 4.20" (108.0 mm × 106.7 mm) Mounting Platform
- Array of Mounting Options
- 24 1/4"-20 (M6) Taps
- 12 8-32 (M4) Taps (Compatible with SLH1 Microscope Slide Spring Clips)
- 8 4-40 Taps for use with 30 mm or 60 mm Cage Components
Thorlabs' XYT1 Low-Profile Translation Stage provides 1/2" (13 mm) of travel along X and Y, incorporates micrometers that have graduations at 0.001"/div (10 µm/div), and features a central Ø1" hole that is SM1 threaded (1.035"-40), allowing the stage to be used in imaging applications that require illumination from underneath the sample. Translation of the stage in both X and Y will not obstruct the Ø1" through hole.
In addition to the SM1-threaded through hole, the platform also contains an array of 1/4"-20 (M6), 8-32 (M4), and 4-40 taps for mounting of samples and components. The eight 4-40 tapped holes are placed around the central through hole for use with our 30 mm or 60 mm cage systems, while the 8-32 (M4) tapped holes are ideal for mounting our SLH1 Microscope Slide Spring Clips (available below).
The SLH1 spring clips are designed to securely hold various sizes of microscope slides and test targets, and include two 8-32 (M4) threaded shoulder screws with a 3/32" (2.5 mm) hex socket for simple attachment to a variety of stages. Each clip is 2.51" (63.7 mm) long with a 0.20" (5.1 mm) wide tip and can be rotated 360° for easy access to, or positioning of, a slide. These clips come with 3 dowel pins, for use with the XYT1(/M) stage, that will center a 1" × 3" standard microscope slide over the Ø1" through hole.
For applications that require rotation along with X and Y translation, Thorlabs also offers an XY translation and 360° rotation stage.

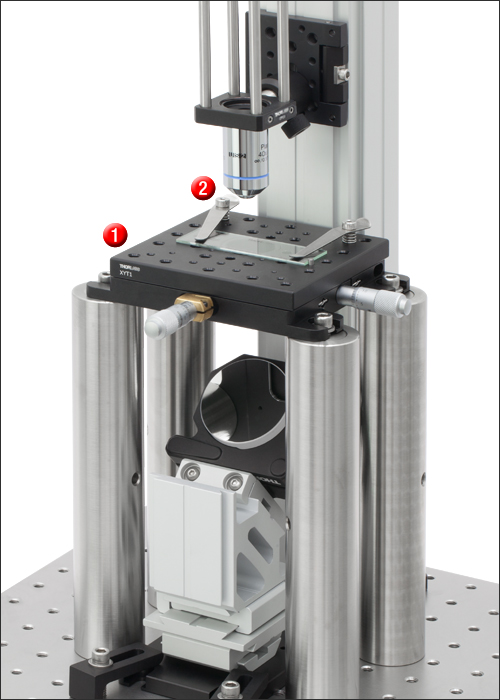

The XYT1 translation stage is an excellent choice for use as a sample stage in a custom imaging application. The base imaging system to the right is constructed using the components listed in the table below.
|Sample Stage Platform|
|XYT1||1||XY Translation Stage with Static Platform|
|SLH1||1||Microscope Slide Spring Clips|
|P8||4||Ø1.5" Posts, 8" Long|
|Microscope Objective Support|
|RMS40X||1||Olympus Microscope Objective, 40X Magnification|
|SM1A3||1||Adapter with Internal RMS and External SM1 Threads|
|XT66-500||1||66 mm Optical Dovetail Rail, 500 mm Long|
|XT66P2||1||Carriage Plate for 66 mm Optical Dovetail Rails|
|XT66P1||1||Vertical Mounting Plate for 66 mm Optical Dovetail Rails|
|TR075||1||Ø1/2" Post, 1/2" Long|
|PH1||1||1/2" Post Holder for a Ø1/2" Post|
|CP33||1||30 mm Cage Plate|
|Periscope Mirror Assembly for Sample Illumination|
|KS2||1||Kinematic Ø2" Mirror Mount|
|PF20-03-G01||1||Ø2" Aluminum Mirror|
|XT66C2||2||66 mm Optical Dovetail Rail Clamp|
|XT66CB||1||Cross Bracket for 66 mm Optical Dovetail Rail|
|XT66C4||1||Clamping Platform for 66 mm Optical Dovetail Rails|
|XT66P1||1||Vertical Mounting Plate for 34 mm & 66 mm Optical Rails|
|XT66RA2||1||45° Adapter for 66 mm Optical Dovetail Rails|
|XT66D2||1||Slotted Dovetail with One Z-Axis Counterbored Slot, 50 mm Long|
|XE25T3||1||T-Nut for 66 mm Optical Dovetail Rail Components|
|AE8E25E||1||Adapter Screw with External 1/4"-20 Threads and Internal 8-32 Threads|
|B1212F||1||Nexus Breadboard, 12" x 12" x 2.4", 1/4"-20 Mounting Holes|
|AV2||1||Sorbothane Feet, 1/4"-20 Thread, 4 Pieces|
|HW-KIT2||1||1/4"-20 Screw Kit|
Click to Enlarge
XYT1 with SLH1 Spring Clips and Slide. Dowel Pins in the Stage Align the Center of the Slide to the Optical Center of the Ø1" Hole.
- Two-Axis Translation Stage with Static Platform
- 1/2" (13 mm) Linear Travel Along X and Y Axes
- Compatible with SLH1 Microscope Slide Spring Clips (Sold Below)
Thorlabs’ XYT1(/M) is a 1.00" (25.4 mm) tall, low-profile, two-axis linear translation stage that features a central SM1-threaded (1.035"-40) through hole. This feature is ideal for imaging applications that require illumination from the underneath of the sample. Both X and Y micrometers offer a 1/2" (13 mm) of travel with graduations every 0.001" (10 µm). These stages are held in position by a spring force on the actuator, and thus, a locking screw is not necessary.
As shown in the image to the right, this stage is also compatible with the SLH1 Microscope Slide Spring Clips sold below. The XYT1(/M) has 3 alignment holes for the Ø1/8" × 1/4" dowel pins (included with the SLH1). These dowel pins center the middle of a 1" × 3" microscope slide over the through hole, as well as allow the user to repeatedly and accurately position the slides on the stage. The spring clips include two 8-32 (M4) threaded shoulder screws with a 3/32" (2.5 mm) hex socket for simple attachment to the stage.
Click to Enlarge
XYR1 Translation Stage with SLH1 Spring Clips and Slide. Dowel Pins in the Stage Align the Center of the Slide to the Optical Center of the Ø1" Hole.
- Pair of Spring Clips Hold Sample Firmly in Place
- Accommodates Microscope Slides and Test Targets of Various Sizes
- Attaches Directly to Any Stage with 8-32 (M4) Tapped Holes
- Dowel Pins Included for Aligning Standard Slides Over the Through Hole in Our XYR1(/M) or XYT1(/M) Translation Stages (See Photo to the Right)
These steel spring clips, ideal for securely holding various sizes of microscope slides and test targets, include two 8-32 (M4) threaded shoulder screws with a 3/32" (2.5 mm) hex socket for simple attachment to a variety of stages. Each clip is 2.51" (63.7 mm) long with a 0.20" (5.1 mm) wide tip and can be rotated 360° for easy access to, or positioning of, a slide. The tip of the clip is curved upwards to help prevent damage and facilitate the mounting of slides, while providing enough holding force to secure them in place.
The inclusion of three Ø1/8" x 1/4" dowel pins make these spring clips an excellent choice for use with our XYT1(/M) (sold above) and XYR1(/M) Translation Stages (see image to the right). These stages have a central Ø1" hole that is SM1 threaded (1.035"-40), and the top plate contains three alignment holes that are used with the Ø1/8" dowel pins. The dowel pins are positioned on the stage so that standard 1" x 3" (25.4 mm x 76.2 mm) slides are centered over the aperture, allowing for repeatable and accurate positioning of the slides.
Please note that any XYR1(/M) stage purchased before June 4, 2014 does not have dowel pin holes in the top mounting plate.
