High-Power UV LEDs with Ball Lens

Overview
Feedback
LED Selection Guide

LED Selection Guide
Single LEDs
Package	Wavelengths	Power^a
Unmounted	245 nm - 4.5 μm	170 mW
Unmounted, High-Power UV	250 - 280 nm	1 mW (Min.)
Circuit Board^b	265 - 1550 nm	900 mW
Heatsink Mounted	265 - 1550 nm	900 mW
Fiber Coupled	280 - 1050 nm	14.5 mW^c
Collimated for Microscopy	365 - 940 nm	500 mW
FLIM Sources^d	365 - 850 nm	N/A
Multiple LED Sources
4-Wavelength	365 - 660 nm	310 mW
Standard Arrays	365 - 850 nm	322 mW
LED Drivers

Maximum Power Unless Otherwise Specified
Metal-Core Printed Circuit Board (MCPCB)
Typical Power for MM Fiber with Ø400 µm Core, 0.39 NA
These high frequency sources are designed for frequency domain Fluorescence Lifetime Imaging (FLIM) applications.

Modified H pin code, in which the cathode is not grounded to the case.

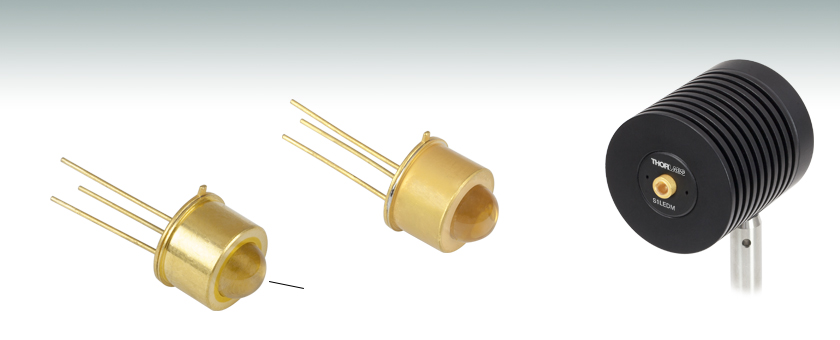

Features

Five Center Wavelengths: 250 nm, 255 nm, 260 nm, 275 nm, or 280 nm
Optical Output Power Exceeds 1 mW
Integrated Ball Lens for Increased Forward Intensity
Lifetime >1000 Hours

These UV LEDs are compact light sources in a hermetically sealed TO-39 package with an integrated ball lens. They provide an output power of at least 1 mW at peak wavelengths from 250 nm to 280 nm, with a small viewing half angle of 7.5°. An exceptionally long lifetime of at least 1000 hours ensures uninterrupted, continuous operation. With these specifications, these UV LEDs are well suited for a wide range of applications including disinfection, forensic analysis, and optical sensing and imaging of biological markers.

These UV LEDs can be mounted in Thorlabs' SM-threaded passive mounts for LEDs, such as the SM1 (1.035"-40) threaded S1LEDM. The LEDs generate up to 1 W of heat and must be kept at a case temperature below 55 °C at a forward current of 100 mA. For temperature regulation, the passive HSLT2 heat sink lens tube is recommended for use with the S1LEDM mount. The TO-39 package of the UV LEDs follows a modified H pin code, in which the cathode is not grounded to the case. In addition to the UV LEDs on this page, Thorlabs also offers a selection of other LEDs in the 245 - 4600 nm spectral range.

Posted Comments:

dhc (posted 2018-07-21 11:42:31.99)

See my other message

dhc (posted 2018-07-21 11:41:17.99)

I sell ~ 100 of the TO-39 ball lens UV LEDs/yr. Are there any discounts for resellers?

YLohia (posted 2018-07-23 08:28:12.0)

Hello, for quotes on stock items, please contact our Sales Team at sales@thorlabs.com. We will reach out to you directly to discuss this.

fgrt (posted 2015-11-02 12:14:54.16)

Dear colleagues! We want to buy UV-LED with wavelength 255 nm to supply our measured equipment. For this purpose we plan on getting next components: 1. UV source with Ball Lens - LED255J 2. SM1-Threaded Mount for TO-39 - S1LEDM 3. Passive-Heatsink - HSLT2 4. Lens Mount with Internal and External SM1 Threads for connection with Passive-Heatsink - LMR1S/M. We ask you to check our choice and to clear for us one problem. We plan on creating UV source with power supply via USB 2.0. However we can’t understand how we can reliably to do the mount between USB cable and LED. What kinds of additional elements are we need? Also please send me your e-mail for fast communication. Ivchenko Aleksey

besembeson (posted 2015-11-04 06:09:00.0)

Response from Bweh at Thorlabs USA: Our Germany division will follow-up with you with suggestions for your application.

Light Emitting Diode (LED) Selection Guide
(Click Representative Photo to Enlarge; Not to Scale)
Wavelength	Unmounted LEDs	Pigtailed LEDs	LEDs in SMT Packages	PCB- Mounted LEDs	Heatsink- Mounted LEDs	Collimated LEDs for Microscopy (Item # Prefix^a)	Fiber- Coupled LEDs^b	High-Power LEDs for Microsocopy	4-Wavelength LED Source Options^c	LED Arrays
Single Color LEDs
245 nm	LED245W (0.07 mW)	-	-	-	-	-	-	-	-	-
250 nm	LED250J (1 mW Min)	-	-	-	-	-	-	-	-	-
255 nm	LED255J (1 mW Min)	-	-	-	-	-	-	-	-	-
260 nm	LED260W (0.3 mW) LED260J (1 mW Min)	-	-	-	-	-	-	-	-	-
265 nm	-	-	-	M265D2 (10 mW Min)	M265L3 (10 mW Min)	-	-	-	-	-
265 nm	-	-	-	M265D3 (24 mW Min)	M265L4 (24 mW Min)	-	-	-	-	-
275 nm	LED275W (0.8 mW) LED275J (1 mW Min)	-	-	M275D2 (45 mW Min)	M275L4 (45 mW Min)	-	-	-	-	-
280 nm	LED280J (1 mW Min)	-	-	-	-	-	-	-	-	-
285 nm	LED285W (0.8 mW)	-	-	M285D3 (50 mW Min)	M285L5 (50 mW Min)	-	M285F4 (420 µW)	-	-	-
290 nm	LED290W (0.8 mW)	-	-	-	-	-	-	-	-	-
300 nm	LED300W (0.5 mW)	-	-	M300D3 (26 mW Min)	M300L4 (26 mW Min)	-	M300F2 (320 µW)	-	-	-
315 nm	LED315W (0.6 mW)	-	-	-	-	-	-	-	-	-
340 nm	LED341W (0.33 mW)	-	-	M340D3 (53 mW Min)	M340L4 (53 mW Min)	-	M340F3 (1.06 mW)	-	-	-
365 nm	-	-	-	M365D1 (190 mW Min)	M365L2 (190 mW Min)	M365L2 (60 mW)^d	M365F1 (4.1 mW)	SOLIS-365C (3.0 W)^e	Available (85 mW)	LIU365A (31 mW)
365 nm	-	-	-	M365D2 (1150 mW Min)	M365LP1 (11-50 mW Min)	M365LP1 (350 mW)^d	M365FP1 (15.5 mW)	SOLIS-365C (3.0 W)^e	Available (85 mW)	LIU365A (31 mW)
375 nm	LED375L (1 mW)	-	-	M375D4 (1270 mW Min)	M375L4 (1270 mW Min)	-	M375F2 (4.23 mW)	-	-	-
375 nm	LED370E (2.5 mW)	-	-	M375D4 (1270 mW Min)	M375L4 (1270 mW Min)	-	M375F2 (4.23 mW)	-	-	-
385 nm	LED385L (5 mW)	-	-	M385D1 (270 mW Min)	M385L2 (270 mW Min)	M385L2 (90 mW)^d	M385F1 (10.7 mW)	SOLIS-385C (5.8 W)^e	Available (95 mW)	-
385 nm	LED385L (5 mW)	-	-	M385D2 (1650 mW Min)	M385LP1 (1650 mW Min)	M385LP1 (520 mW)^d	M385FP1 (23.2 mW)	SOLIS-385C (5.8 W)^e	Available (95 mW)	-
395 nm	LED395L (6 mW)	-	-	M395D3 (400 mW Min)	M395L4 (400 mW Min)	-	M395F3 (6.8 mW)	-	-	-
Wavelength	Unmounted LEDs	Pigtailed LEDs	LEDs in SMT Packages	PCB- Mounted LEDs	Heatsink- Mounted LEDs	Collimated LEDs for Microscopy (Item # Prefix^a)	Fiber- Coupled LEDs^b	High-Power LEDs for Microsocopy	4-Wavelength LED Source Options^c	LED Arrays
Single Color LEDs
405 nm	LED405L (6 mW)	-	-	M405D2 (1500 mW Min)	M405L4 (1000 mW Min)	M405L3 (440 mW)^d	M405F1 (3.7 mW)	SOLIS-405C (3.9 W)^e	Available (290 mW)	-
	LED405L (6 mW)				M405L4 (1000 mW Min)	M405L4 (510 mW)^f	M405F1 (3.7 mW)
	LED405E (10 mW)				M405LP1 (1200 mW Min)	M405LP1 (450 mW)^d	M405FP1 (24.3 mW)
415 nm	-	-	-	M415D2 (1640 mW Min)	M415L4 (1310 mW Min)	-	M415F3 (21.3 mW)	SOLIS-415C (5.8 W)^e	-	-
415 nm	-	-	-	M415D2 (1640 mW Min)	M415LP1 (1640 mW Min)	-	M415F3 (21.3 mW)	SOLIS-415C (5.8 W)^e	-	-
420 nm	-	-	-	-	-	-	-	-	Available (95 mW)	-
430 nm	LED430L (8 mW)	-	-	M430D2 (490 mW Min)	M430L4 (490 mW Min)	-	-	-	-	-
445 nm	-	-	-	-	-	-	-	SOLIS-445C (5.4 W)^e	-	-
450 nm	LED450L (7 mW)	-	LEDS450 (250 mW)	M450D3 (1850 mW Min)	M450LP1 (1850 mW Min)	-	-	-	-	-
455 nm	-	-	-	M455D2 (900 mW Min)	M455L4 (1150 mW Min)	M455L3 (360 mW)^d	M455F3 (24.5 mW)	-	Available (310 mW)	-
455 nm	-	-	-	M455D3 (1150 mW Min)	M455L4 (1150 mW Min)	M455L4 (490 mW)^d	M455F3 (24.5 mW)	-	Available (310 mW)	-
465 nm	LED465E (20 mW)	-	-	-	-	-	-	-	-	-
470 nm	LED470L (170 mW)	EP470S04 (18 mW Min)	-	M470D2 (650 mW Min)	M470L4 (760 mW Min)	M470L4 (330 mW)^d	M470F3 (17.2 mW)	SOLIS-470C (3.0 W)^e	Available (250 mW)	LIU470A (253 mW)
470 nm	LED470L (170 mW)	EP470S10 (100 mW Min)	-	M470D3 (760 mW Min)	M470L4 (760 mW Min)	M470L4 (330 mW)^d	M470F3 (17.2 mW)	SOLIS-470C (3.0 W)^e	Available (250 mW)	LIU470A (253 mW)
490 nm	LED490L (3 mW)	-	-	M490D3 (205 mW Min)	M490L4 (205 mW Min)	-	M490F3 (2.3 mW)	-	Available (50 mW)	-
505 nm	LED505L (4 mW)	-	-	M505D2 (400 mW Min)	M505L3 (400 mW Min)	M505L3 (150 mW)^d	M505F3 (11.7 mW)	SOLIS-505C (1.0 W)^e	Available (170 mW)	-
505 nm	LED505L (4 mW)	-	-	M505D3 (400 mW Min)	M505L4 (400 mW Min)	M505L4 (170 mW)^d	M505F3 (11.7 mW)	SOLIS-505C (1.0 W)^e	Available (170 mW)	-
525 nm	LED525E (2.6 mW Max)	-	-	-	-	-	-	SOLIS-525C (2.4 W)^e	-	LIU525A (111 mW)
	LED525L (4 mW)
	LED528EHP (7 mW)
530 nm	-	-	-	M530D2 (350 mW Min)	M530L4 (370 mW Min)	M530L3 (130 mW)^d	M530F2 (6.8 mW)	-	Available (100 mW)	-
530 nm	-	-	-	M530D3 (370 mW Min)	M530L4 (370 mW Min)	M530L4 (160 mW)^d	M530F2 (6.8 mW)	-	Available (100 mW)	-
554 nm	-	-	-	MINTD3 (650 mW Min)	MINTL5 (650 mW Min)	-	MINTF4 (21 mW Min)	-	-	-
555 nm	LED555L (1 mW)	-	-	-	-	-	-	-	-	-
565 nm	-	-	-	M565D2 (880 mW Min)	M565L3 (880 mW Min)	-	M565F3 (13.5 mW)	SOLIS-4C (3.2 W)^e	Available (106 mW)	-
570 nm	LED570L (0.3 mW)	-	-	-	-	-	-	-	-	-
590 nm	LED590L (2 mW)	EP590S04 (3.5 mW Min)	-	M590D2 (160 mW Min)	M590L3 (160 mW Min)	M590L3 (60 mW)^d	M590F3 (4.6 mW)	SOLIS-590C (350 mW)^e	Available (65 mW)	LIU590A (109 mW)
590 nm	LED591E (2 mW)	EP590S10 (18 mW Min)	-	M590D3 (230 mW Min)	M590L4 (230 mW Min)	M590L4 (100 mW)^d	M590F3 (4.6 mW)	SOLIS-590C (350 mW)^e	Available (65 mW)	LIU590A (109 mW)
595 nm	-	-	-	M595D2 (445 mW Min)	M595L3 (445 mW Min)	-	M595F2 (8.7 mW)	SOLIS-595C (700 mW)^e	-	-
Wavelength	Unmounted LEDs	Pigtailed LEDs	LEDs in SMT Packages	PCB- Mounted LEDs	Heatsink- Mounted LEDs	Collimated LEDs for Microscopy (Item # Prefix^a)	Fiber- Coupled LEDs^b	High-Power LEDs for Microsocopy	4-Wavelength LED Source Options^c	LED Arrays
Single Color LEDs
600 nm	LED600L (3 mW)	-	-	-	-	-	-	-	-	-
610 nm	LED610L (8 mW)	-	-	-	-	-	-	-	-	-
617 nm	-	-	-	M617D2 (600 mW Min)	M617L3 (600 mW Min)	M617L3 (230 mW)^d	M617F2 (10.2 mW)	SOLIS-617C (1.5 mW)^e	Available (210 mW)	-
617 nm	-	-	-	M617D3 (660 mW Min)	M617L4 (660 mW Min)	M617L4 (280 mW)^d	M617F2 (10.2 mW)	SOLIS-617C (1.5 mW)^e	Available (210 mW)	-
623 nm	-	-	-	-	-	-	-	SOLIS-623C (3.8 W)^e	-	-
625 nm	LED625L (12 mW)	-	-	M625D3 (700 mW Min)	M625L4 (700 mW Min)	M625L3 (270 mW)^d	M625F1 (13.2 mW)	-	Available (240 mW)	-
625 nm	LED625L (12 mW)	-	-	M625D3 (700 mW Min)	M625L4 (700 mW Min)	M625L4 (490 mW)^d	M625F1 (13.2 mW)	-	Available (240 mW)	-
630 nm	LED630L (16 mW)	-	-	-	-	-	-	-	-	LIU630A (208 mW)
635 nm	LED631E (4 mW)	-	-	-	-	-	-	-	-	-
635 nm	LED635L (170 mW)	-	-	-	-	-	-	-	-	-
639 nm	LED630E (7.2 mW)	-	-	-	-	-	-	-	-	-
645 nm	LED645L (16 mW)	-	-	-	-	-	-	-	-	-
660 nm	LED660L (13 mW)	-	-	M660D2 (940 mW Min)	M660L4 (940 mW Min)	M660L4 (400 mW)^d	M660F1 (14.5 mW)	SOLIS-660C (2.0 W)^e	Available (210 mW)	-
670 nm	LED670L (12 mW)	-	-	-	-	-	-	-	-	-
680 nm	LED680L (8 mW)	-	-	M680D2 (180 mW Min)	M680L4 (180 mW Min)	-	M680F3 (2.7 mW)	-	-	-
700 nm	-	EP700S04 (5 mW Min)	-	M700D2 (80 mW Min)	M700L4 (80 mW Min)	-	M700F3 (1.7 mW)	-	-	-
700 nm	-	EP700S10 (30 mW Min)	-	M700D2 (80 mW Min)	M700L4 (80 mW Min)	-	M700F3 (1.7 mW)	-	-	-
730 nm	-	-	-	M730D3 (540 mW Min)	M730L5 (540 mW Min)	M730L4 (165 mW)^d	-	-	-	-
740 nm	-	-	-	-	-	-	M740F2 (6.0 mW)	SOLIS-740C (2.0 W)^e	-	-
750 nm	LED750L (18 mW)	-	-	-	-	-	-	-	-	-
760 nm	LED760L (24 mW)	-	-	-	-	-	-	-	-	-
770 nm	LED770L (22 mW)	-	-	-	-	-	-	-	-	-
780 nm	LED780E (18 mW)	-	-	M780D2 (200 mW Min)	M780L3 (200 mW Min)	M780L3 (130 mW)^d	M780F2 (7.5 mW)	-	-	LIU780A (315 mW)
780 nm	LED780L (22 mW)	-	-	M780D3 (800 mW Min)	M780LP1 (800 mW Min)	M780L3 (130 mW)^d	M780F2 (7.5 mW)	-	-	LIU780A (315 mW)
800 nm	LED800L (20 mW)	-	-	-	-	-	-	-	-	-
810 nm	LED810L (22 mW)	EP810S04 (16 mW Min)	-	M810D2 (325 mW Min)	M810L3 (325 mW Min)	M810L3 (210 mW)^d	M810F2 (6.5 mW)	-	-	-
810 nm	LED810L (22 mW)	EP810S10 (90 mW Min)	-	M810D3 (363 mW Min)	M810L4 (363 mW Min)	M810L3 (210 mW)^d	M810F2 (6.5 mW)	-	-	-
830 nm	LED830L (22 mW)	-	-	-	-	-	-	-	-	-
840 nm	LED840L (22 mW)	-	-	-	-	-	-	-	-	-
850 nm	LED851L (13 mW)	-	-	M850D2 (900 mW Min)	M850L3 (900 mW Min)	M850L3 (330 mW)^d	M850F2 (13.4 mW)	SOLIS-850C (2.7 W)^e	-	LIU850A (322 mW)
850 nm	LED851L (13 mW)	-	-	M850D3 (1400 mW)	M850LP1 (1400 mW Min)	M850L3 (330 mW)^d	M850F2 (13.4 mW)	SOLIS-850C (2.7 W)^e	-	LIU850A (322 mW)
870 nm	LED870E (22 mW)	-	-	-	-	-	-	-	-	-
870 nm	LED870L (24 mW)	-	-	-	-	-	-	-	-	-
880 nm	-	-	-	M880D2 (300 mW Min)	M880L3 (300 mW Min)	-	M880F2 (3.4 mW)	-	-	-
890 nm	LED890L (12 mW)	-	-	-	-	-	-	-	-	-
910 nm	LED910L (10 mW)	-	-	-	-	-	-	-	-	-
910 nm	LED910E (12 mW)	-	-	-	-	-	-	-	-	-
930 nm	LED930L (15 mW)	-	-	-	-	-	-	-	-	-
940 nm	LED940E (18 mW)	-	-	M940D2 (800 mW Min)	M940L3 (800 mW Min)	M940L3 (320 mW)^d	M940F3 (14.2 mW)	SOLIS-940C (2.5 W)^e	-	-
970 nm	LED970L (5 mW)	-	-	M970D3 (600 mW Min)	M970L4 (600 mW Min)	-	M970F3 (8.1 mW)	-	-	-
Wavelength	Unmounted LEDs	Pigtailed LEDs	LEDs in SMT Packages	PCB- Mounted LEDs	Heatsink- Mounted LEDs	Collimated LEDs for Microscopy (Item # Prefix^a)	Fiber- Coupled LEDs^b	High-Power LEDs for Microsocopy	4-Wavelength LED Source Options^c	LED Arrays
Single Color LEDs
1050 nm	LED1050E (2.5 mW)	-	-	M1050D1 (50 mW Min)	M1050L2 (50 mW Min)	-	-	-	-	-
1050 nm	LED1050L (4 mW)	-	-	M1050D3 (160 mW Min)	M1050L4 (160 mW Min)	-	M1050F3 (3 mW)	-	-	-
1070 nm	LED1070L (4 mW)	-	-	-	-	-	-	-	-	-
1070 nm	LED1070E (7.5 mW)	-	-	-	-	-	-	-	-	-
1085 nm	LED1085L (5 mW)	-	-	-	-	-	-	-	-	-
1200 nm	LED1200E (2.5 mW)	-	-	M1200D2 (30 mW Min)	M1200L3 (30 mW Min)	-	-	-	-	-
1200 nm	LED1200L (5 mW)	-	-	M1200D2 (30 mW Min)	M1200L3 (30 mW Min)	-	-	-	-	-
1300 nm	LED1300E (2 mW)	-	-	M1300D2 (25 mW Min)	M1300L3 (25 mW Min)	-	-	-	-	-
1300 nm	LED1300L (3.5 mW)	-	-	M1300D2 (25 mW Min)	M1300L3 (25 mW Min)	-	-	-	-	-
1450 nm	LED1450E (2 mW)	-	-	M1450D2 (31 mW Min)	M1450L3 (31 mW Min)	-	-	-	-	-
1450 nm	LED1450L (5 mW)	-	-	M1450D2 (31 mW Min)	M1450L3 (31 mW Min)	-	-	-	-	-
1550 nm	LED1550E (2 mW)	-	-	M1550D2 (31 mW Min)	M1550L3 (31 mW Min)	-	-	-	-	-
1550 nm	LED1550L (4 mW)	-	-	M1550D2 (31 mW Min)	M1550L3 (31 mW Min)	-	-	-	-	-
1600 nm	LED1600L (2 mW)	-	-	-	-	-	-	-	-	-
1650 nm	LED1600P (1.2 mW)	-	-	M1650D2 (13 mW)	M1650L4 (13 mW)	-	-	-	-	-
1750 nm	LED1700P (1.2 mW Quasi-CW, 30 mW Pulsed)	-	-	-	-	-	-	-	-	-
1850 nm	LED1800P (0.9 mW Quasi-CW, 20 mW Pulsed)	-	-	-	-	-	-	-	-	-
1950 nm	LED1900P (1.0 mW Quasi-CW, 25 mW Pulsed)	-	-	-	-	-	-	-	-	-
2050 nm	LED2050P (1.1 mW Quasi-CW, 28 mW Pulsed)	-	-	-	-	-	-	-	-	-
2350 nm	LED2350P (0.8 mW Quasi-CW, 16 mW Pulsed)	-	-	-	-	-	-	-	-	-
4200 nm	LED4300P (0.03 mW Quasi-CW, 0.2 mW Pulsed)	-	-	-	-	-	-	-	-	-
4500 nm	LED4600P (0.006 mW Quasi-CW, 0.12 mW Pulsed)	-	-	-	-	-	-	-	-	-
Wavelength	Unmounted LEDs	Pigtailed LEDs	LEDs in SMT Packages	PCB- Mounted LEDs	Heatsink- Mounted LEDs	Collimated LEDs for Microscopy (Item # Prefix^a)	Fiber- Coupled LEDs^b	High-Power LEDs for Microsocopy	4-Wavelength LED Source Options^c	LED Arrays
Multi-Color, Broadband, and White LEDs
455 nm (12.5%^g) and 640 nm	-	-	-	MPRP1D2 (275 mW Min)	MPRP1L4 (275 mW Min)	-	-	-	-	-
572 nm and 625 nm	LEDGR (0.09 mW and 0.19 mW)	-	-	-	-	-	-	-	-	-
588 nm and 617 nm	LEDRY (0.09 mW and 0.19 mW)	-	-	-	-	-	-	-	-	-
467.5 nm, 525 nm, and 627.5 nm	LEDRGBE (5.8 mW, 6.2 mW, and 3.1 mW)	-	-	-	-	-	-	-	-	-
430 - 660 nm (White)	LEDWE-15 (13 mW)	-	-	-	-	-	-	-	-	-
	LEDW7E (15.0 mW)
	LEDW25E (15.0 mW)
470 - 850 nm (Broadband)	-	-	-	MBB1D1 (70 mW Min)	MBB1L3 (70 mW Min)	-	MBB1F1 (1.2 mW)	-	-	-
6500 K (Cold White)	-	-	-	MCWHD2 (800 mW Min)	MCWHL5 (800 mW Min)	MCWHL5 (320 mW)^d	-	SOLIS-1C (3.3 W)^e	-	-
				MCWHD4 (990 mW Min)	MCWHL6 (990 mW Min)	MCWHL6 (354 mW)^d
				MCWHD3 (2350 mW Min)	MCWHLP1 (2350 mW Min)	-
6200 K (Cold White)	-	-	-	-	-	-	MCWHF2 (21.5 mW)	-	-	-
5000 K (Cold White)	-	-	LEDSW50 (110 mW)	-	-	-	-	-	-	-
4600 - 9000 K (Cold White)	-	-	-	-	-	-	-	-	-	LIUCWHA (250 mW)
4000 K (Warm White	-	-	LEDSW40 (115 mW)	-	-	-	MWWHF2 (16.3 mW)	-	-	-
3000 K (Warm White)	-	-	LEDSW30 (100 mW)	MWWHD3 (2000 mW Min)	MWWHL4 (570 mW Min)	-	-	SOLIS-2C (3.2 W)^e	-	-
3000 K (Warm White)	-	-	LEDSW30 (100 mW)	MWWHD3 (2000 mW Min)	MWWHLP1 (2000 mW Min)	-	-	SOLIS-2C (3.2 W)^e	-	-
5700 K (Day Light White)	-	-	-	-	-	-	-	SOLIS-3C (3.5 W)	-	-

These Collimated LEDs are compatible with the standard and epi-illumination ports on the following microscopes: Olympus BX/IX (Item # Suffix: -C1), Leica DMI (Item # Suffix: -C2), Zeiss Axioskop (Item # Suffix: -C4), and Nikon Eclipse (Bayonet Mount, Item # Suffix: -C5).
Typical power when used with MM Fiber with Ø400 µm core, 0.39 NA.
Our LED4D 4-Wavelength LED Source is available with select combinations of the LEDs at these wavelengths.
Typical power for LEDs with the Leica DMI collimation package (Item # Suffix: -C2).
Minimum power for the collimated output of these LEDs. The collimation lens is installed with each LED.
Typical power for LEDs with the Olympus BX and IX collimation package (Item # Suffix: -C1).
Percentage of LED intensity that emits in the blue portion of the spectrum, from 400 nm to 525 nm.

UV LEDs with Ball Lens (250 - 280 nm)

Item #	Center Wavelength^a	Optical Power (Min)^b	Spectral FWHM^a	Viewing Half Angle^a	Max DC Forward Current^c	Lifetime (Min)^c,d	Package^e
LED250J	250 nm	1 mW	12 nm	7.5°	100 mA	>1000 hrs	TO-39
LED255J	255 nm	1 mW	12 nm	7.5°	100 mA	>1000 hrs	TO-39
LED260J	260 nm	1 mW	12 nm	7.5°	100 mA	>1000 hrs	TO-39
LED275J	275 nm	1 mW	12 nm	7.5°	100 mA	>1000 hrs	TO-39
LED280J	280 nm	1 mW	12 nm	7.5°	100 mA	>1000 hrs	TO-39

Typical values unless otherwise noted.
At 100 mA unless otherwise noted.
Temperature: 25 °C
The Lifetime is defined as the time required for the LED light output to drop by 50% when driven at 100 mA.
Because these LEDs can generate up to 1 W of heat, we recommend that they are mounted in an S1LEDM LED mount with a passive HSLT2 heat sink lens tube.

LED Mounts

Zoom

LED Mount Compatibility
Item #	LED Package	External Mounting Threads	Compatible Spanner Wrenches
Item #	LED Package	External Mounting Threads	Mount	LED Retaining Ring
S05LEDM	TO-18, TO-39, TO-46, and T1-3/4^a	SM05 (0.535"-40)	SPW603 SPW801	SPW301 SPW801
S1LEDM	TO-18, TO-39, TO-46, and T1-3/4^a	SM1 (1.035"-40)	SPW909 SPW801	SPW301 SPW801

The LEDRGBE uses a T-1 3/4 package, but is not compatible with the S05LEDM and S1LEDM, as the four pins prevent the retaining ring from holding the LED in place.

The S05LEDM and S1LEDM LED Mounts are SM05 (0.535"-40) and SM1 (1.035"-40) threaded, respectively. They are designed to hold any of Thorlabs' TO-18, TO-39, TO-46, or T1-3/4 packages using the included adapter rings. The external threading on these mounts allows them to be used in a wide variety of SM05- or SM1-compatible optomechanics.

To aid in threading the retaining ring into the mount or in threading the mount into a mating component, we recommend using our selection of spanner wrenches. The SPW801 Adjustable Spanner Wrench can be used to thread LED retaining rings into the mount and the mount into a mating component. Alternatively, the table to the right also lists the compatible fixed spanner wrench for each mount.

View All »Matching Part Numbers

High-Power UV LEDs with Ball Lens

Features

UV LEDs with Ball Lens (250 - 280 nm)

LED Mounts
