Software for Thorlabs' Beam Profilers and M2 Measurement SystemsThe following software packages are available: - Software: Software package with driver and graphical user interface for operating the device in standard applications.
- Firmware: Firmware Update for the BP209 Scanning-Slit Beam Profilers.
- Programming Reference: Application notes for programming in LabVIEW™, C++, C#, and Visual Basic.
- Archive: Previous versions of Thorlabs Beam Installation Package for 32 Bit and 64 Bit Windows®.
| Software | | |
|---|
| Description | Thorlabs Beam Installation Package for 32 Bit and 64 Bit Windows. |  | | Version | 7.0.4133.305 | | Filesize | 238 MB | | Download |  | | ReadMe |  | | License |  | | System Requirements | Windows 7, 8, and 10 are supported. Click here for recommended system requirements for our Beam software. | | Additional Software | National Instruments® VISA Runtime Engine 5.2 or Higher Required (5.4 is Included in the Software Package) |

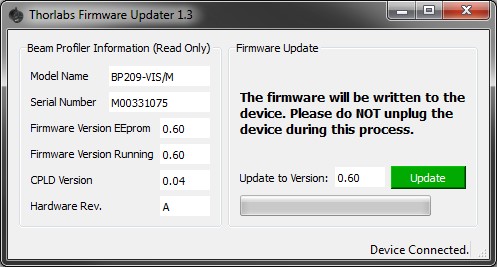

| Firmware Update for BP209 Beam Profilers | | |
|---|
| Description | This is a firmware update for the BP209 scanning-slit beam profilers to correct an error that made it possible to downgrade the firmware to versions where the hardware was not supported. This has been fixed and the firmware updater now matches the hardware version to the latest supported firmware. |  | | Version | 1.3 | | Filesize | 6.6 MB | | Download | | | ReadMe | |
| Camera and Scanning-Slit Beam Profilers | | |
|---|
| Description | These application notes provide descriptions of programming functionality and sample code for Thorlabs' Beam Profilers and M2 Measurement Systems. The ZIP archive contains four PDF reference documents. |  | | Version | 1.0 | | Filesize | 3.9 MB | | Download | | | Additional | Includes:
BC106 LabVIEW Programming Notes
BC106 Visual C++ Programming Notes
BC106 Visual C# Programming Notes
BC106 Visual Basic Programming Notes |
| Scanning-Slit Beam Profiler with TSP01 | | |
|---|
| Description | These application notes provide descriptions of programming functionality and sample code for using Thorlabs' Scanning-Slit Beam Profilers in combination with our TSP01 Temperature and Humidity Sensor. The ZIP archive contains two PDF reference documents. |  | | Version | 1.0 | | Filesize | 2.3 MB | | Download | | | Additional | Includes:
BP209-VIS and TSP01 LabVIEW Programming Notes
BP209-VIS and TSP01 Visual Basic Programming Notes |
| Software Version 6.2 | | |
|---|
| Description | Thorlabs Beam Installation Package for 32 Bit and 64 Bit Windows. |  | | Version | 6.2 | | Filesize | 186 MB | | Download | | | ReadMe | | | License | | | Change Log |  | | System Requirements | Windows XP SP2, Vista, 7, and 8 are supported. Click here for recommended system requirements for our Beam software. | | Additional Software | National Instruments® VISA Runtime Engine 5.2 or Higher Required (5.4 is Included in the Software Package) |
| Software Version 6.0 | | |
|---|
| Description | Thorlabs Beam Installation Package for 32 Bit and 64 Bit Windows. |  | | Version | 6.0 | | Filesize | 189 MB | | Download | | | ReadMe | | | License | | | Change Log | | | System Requirements | Windows XP (32-bit Version), Windows Vista, Windows 7 or Windows 8. Monitor resolution minimum 1024 x 768 pixel (≥16 bit color depth); USB 2.0 port; Processor: Pentium 4 ≥ 2.6 GHz, 3.0 GHz Intel or A64 3000+ AMD; 1.0 GB RAM | | Additional Software | National Instruments® VISA Runtime Engine 5.2 required (included in software package) |
| Software Version 5.1 | | |
|---|
| Description | Software package with driver and graphical user interface for operating the device in standard applications. |  | | Version | 5.1 | | Filesize | 213 MB | | Download | | | ReadMe | | | License | | | Change Log | | | System Requirements | Windows XP (32-bit Version), Windows Vista, Windows 7 or Windows 8. Monitor resolution minimum 1024 x 768 pixel (≥16 bit color depth); USB 2.0 port; Processor: Pentium 4 ≥ 2.6 GHz, 3.0 GHz Intel or A64 3000+ AMD; 1.0 GB RAM | | Additional Software | National Instruments® VISA Runtime Engine 5.2 required (included in software package) | |
